Factory Diagnostic Screen In Line Diag
If the vehicle left the factory in the factory diagnostic mode, you will see this screen every time you turn the vehicle to the ON mode. Sometimes this screen also appears after you replace the audio-navigation unit with a new or remanufactured unit.

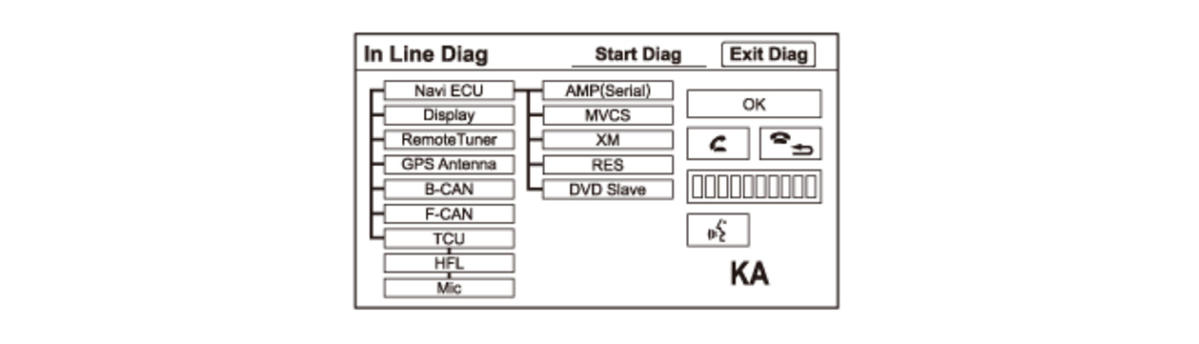

When the audio-navigation unit is powered up for the first time at the factory or sometimes a remanufactured audio-navigation unit is installed, the factory diagnosis screen (In Line Diag) appears. Normally the factory does the steps necessary to verify proper operation and terminate the factory diagnosis. Until the proper confirmation sequence is done, the screen appears every time you turn the vehicle to the ON mode.
Follow these steps to prevent the screen from appearing in the future:
1. Press and hold the MENU button, the NAV button, and the BACK button for about 3 seconds. The Select Diagnosis Items screen appears.

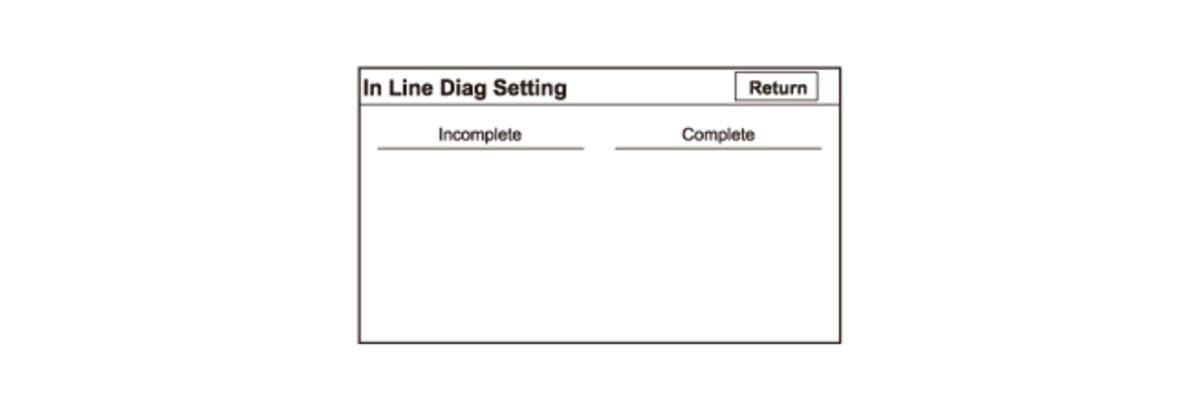

2. Press and hold the NAV button until the In line Diag Setting screen appears.
3. Set the In Line Diag Setting to Complete, then select Return twice to exit the diagnostic mode. The In Line Diag should not appear again.
