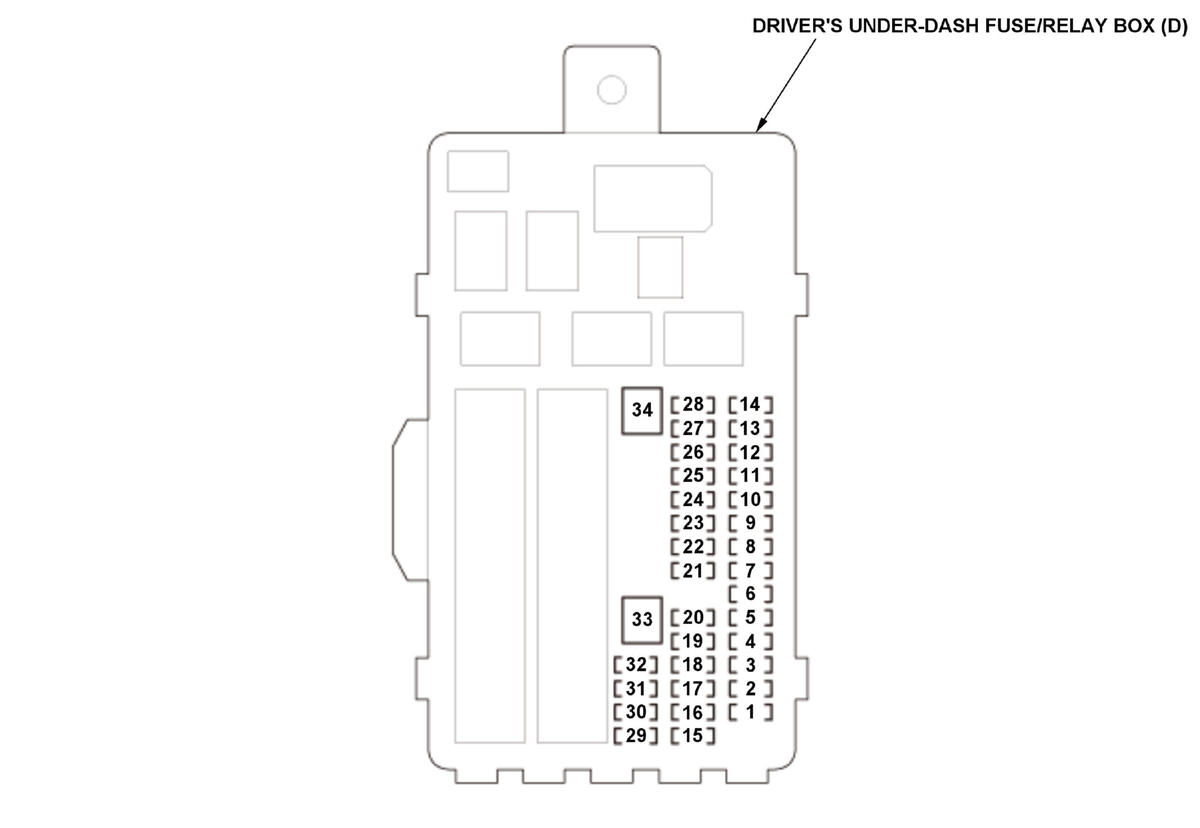

Driver's Under-Dash Fuse/Relay Box (D)
Driver's Under-Dash Fuse/Relay Box (D) Legend
| Fuse Number | Amps | Component(s) or Circuit(s) Protected |
|---|---|---|
| D1 | 10 A | Front passenger's door lock actuator, Right rear door lock actuator |
| D2 | 7. 5 A | Left rear door lock actuator |
| D3 | 7. 5 A | Driver's door lock actuator |
| D4 | 10 A | Front passenger's door lock actuator, Right rear door lock actuator |
| D5 | 7. 5 A | Left rear door lock actuator |
| D6 | 7. 5 A | Driver's door lock actuator (via power door lock relay (DR UNLOCK) circuit (built into the driver's under-dash fuse/relay box)), Power door lock relay (DR UNLOCK) circuit (built into the driver's under-dash fuse/relay box) |
| D7 | 20 A | No. D1, No. D2, and No. D3 fuses in the driver's under-dash fuse/relay box (via power door lock relay (LOCK) circuit (built into the driver's under-dash fuse/relay box)), No. D4 and No. D5 fuses in the driver's under-dash fuse/relay box (via power door lock relay (UNLOCK) circuit (built into the driver's under-dash fuse/relay box)), Power door lock relay (LOCK) circuit (built into the driver's under-dash fuse/relay box), Power door lock relay (UNLOCK) circuit (built into the driver's under-dash fuse/relay box) |
| D8 | - - - | Not used |
| D9 | 20 A | Power tilt/telescopic steering control unit |
| D10 | 15 A | No. F12 and No. F13 fuses in the rear fuse/relay box |
| D11 | 7. 5 A | ANC/active sound control unit, Audio-navigation unit (via reverse relay circuit (built into the driver's under-dash fuse/relay box)), Automatic dimming inside mirror (via reverse relay circuit (built into the driver's under-dash fuse/relay box)), Back-up lights (via reverse relay circuit (built into the driver's under-dash fuse/relay box)), Driver's MICU, Driver's MICU (via reverse relay circuit (built into the driver's under-dash fuse/relay box) at internal connection), Heads-up warning unit (with CMBS), Optional connector, Parking and back-up sensor control unit, Parking and back-up sensor switch (without headlight washer), Parking and back-up sensor switch/headlight washer switch (with headlight washer), Power mirror control unit, Power seat control unit, Power tilt/telescopic steering control unit, Reverse relay circuit (built into the driver's under-dash fuse/relay box), SBW shifter control module |
| D12 | 20 A | No. C3, No. C4, No. C5, and No. C6 fuses in the under-hood fuse/relay box, No. E24 fuse in the passenger's under-dash fuse/relay box |
| D13 | 7. 5 A | DC-DC converter ACC relay cargo area accessory power socket relay, Console accessory power socket relay, Front accessory power socket relay, TCM (with electric steering lock) |
| D14 | - - - | Not used |
| D15 | 20 A | Power seat control unit |
| D16 | 20 A | Moonroof control unit/motor |
| D17 | 20 A | Left rear power window switch |
| D18 | 10 A | Engine start/stop switch, Electric steering lock (with electric steering lock), Keyless access/TPMS control unit |
| D19 | 20 A | Power window master switch |
| D20 | - - - | Not used |
| D21 | 20 A | Fuel pump control module (via PGM-FI main relay 2), PCM |
| D22 | 15 A | No. E19, No. E20, and No. E21 fuses in the passenger's under-dash fuse/relay box |
| D23 | 7. 5 A | Electric steering lock (with electric steering lock), EPS control unit, Keyless access/TPMS control unit, Steering angle sensor |
| D24 | 7. 5 A | Brake pedal position switch, Starter cut relay 1, Starter cut relay 2, DC-DC converter IG1 relay1DC-DC converter IG1 relay2DC-DC converter |
| D25 | - - - | Not used |
| D26 | 7. 5 A | AC inverter unit (with AC inverter), A/C compressor clutch relay, A/C condenser fan relay, Automatic dimming inside mirror, Climate control switch, Climate control unit, Fan control relay, Front blower motor relay, Front seat heater relay, Heated steering wheel relay (with heated steering wheel), Heated windshield wiper area relay (with heated windshield wiper area), Power mirror switch (with MVCS), Power window master switch, Rear blower motor relay, Rear window defogger relay, Second row seat heater relay |
| D27 | 7. 5 A | Relay control module |
| D28 | 7. 5 A | Driver's MICU |
| D29 | 7. 5 A | Driver's power lumbar support switch |
| D30 | 7. 5 A | Door puddle lights (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)) (with puddle light), Driver's door courtesy light (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)), Footwell lights (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)), Front passenger's door courtesy light (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)), Interior light cut relay circuit (built into the driver's under-dash fuse/relay box), Power tailgate inside switch (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)), Rear door courtesy lights (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)), Rear individual map lights (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)), Roof console module (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)), One-touch access switches (seat-back side) (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)), One-touch access switches (seat cushion side) (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)), Tailgate lights (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)), Vanity mirror lights (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)) |
| D31 | 20 A | Power tilt/telescopic steering control unit |
| D32 | 20 A | Power seat control unit |
| D33 | - - - | Not used |
| D34 | - - - | Not used |
