Electrical System - Testing & Troubleshooting / Gen Info (Except Hybrid)
>>
Relay Box Locations And Control Unit Locations
>>
Relay Box Locations And Control Unit Locations (2014 2015)
>>
Dashboard (2/3)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Dashboard (2/3)

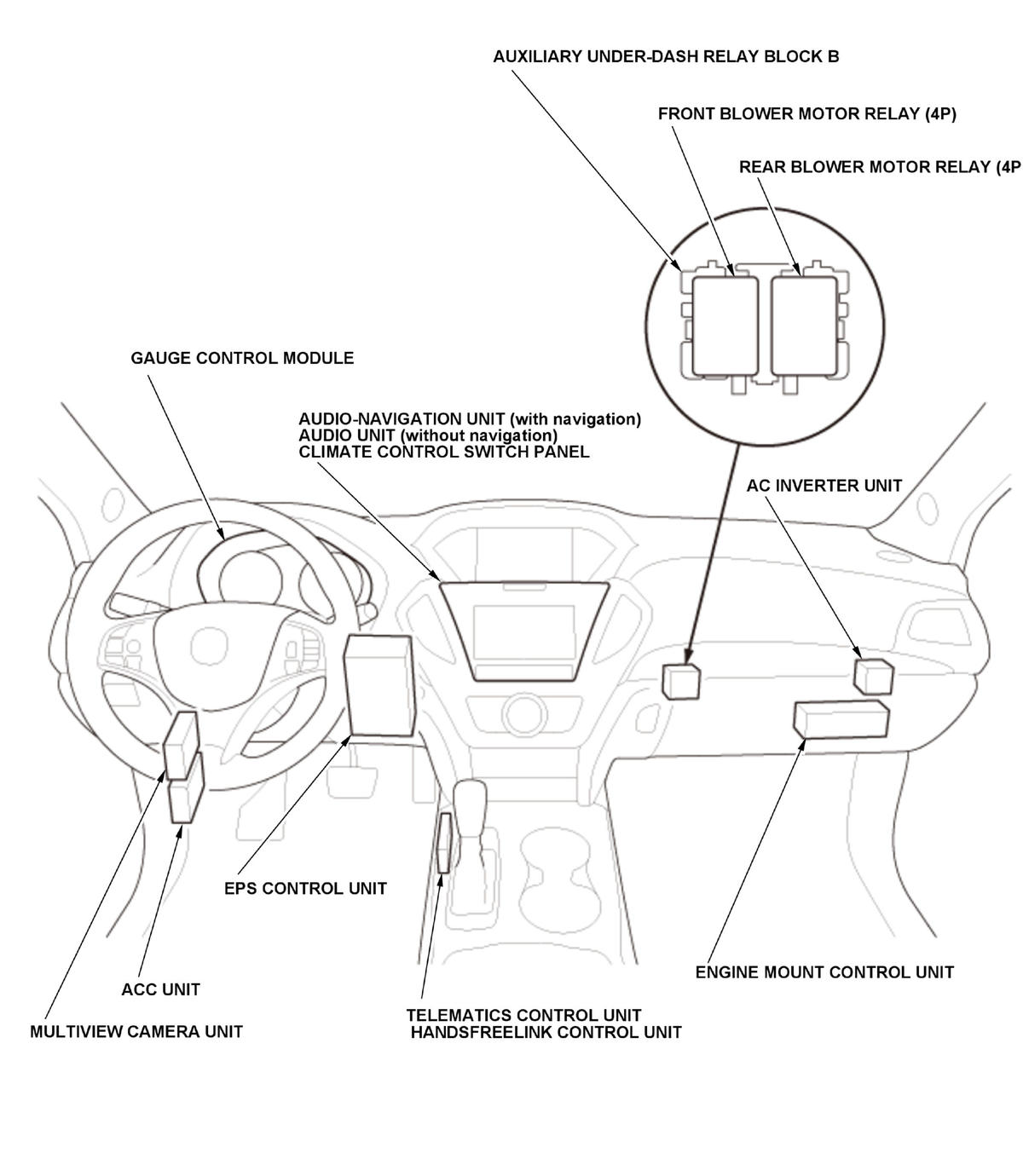

Fig 1: Dashboard (2/3) Components Location
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
