PGM-FI System Description - Components

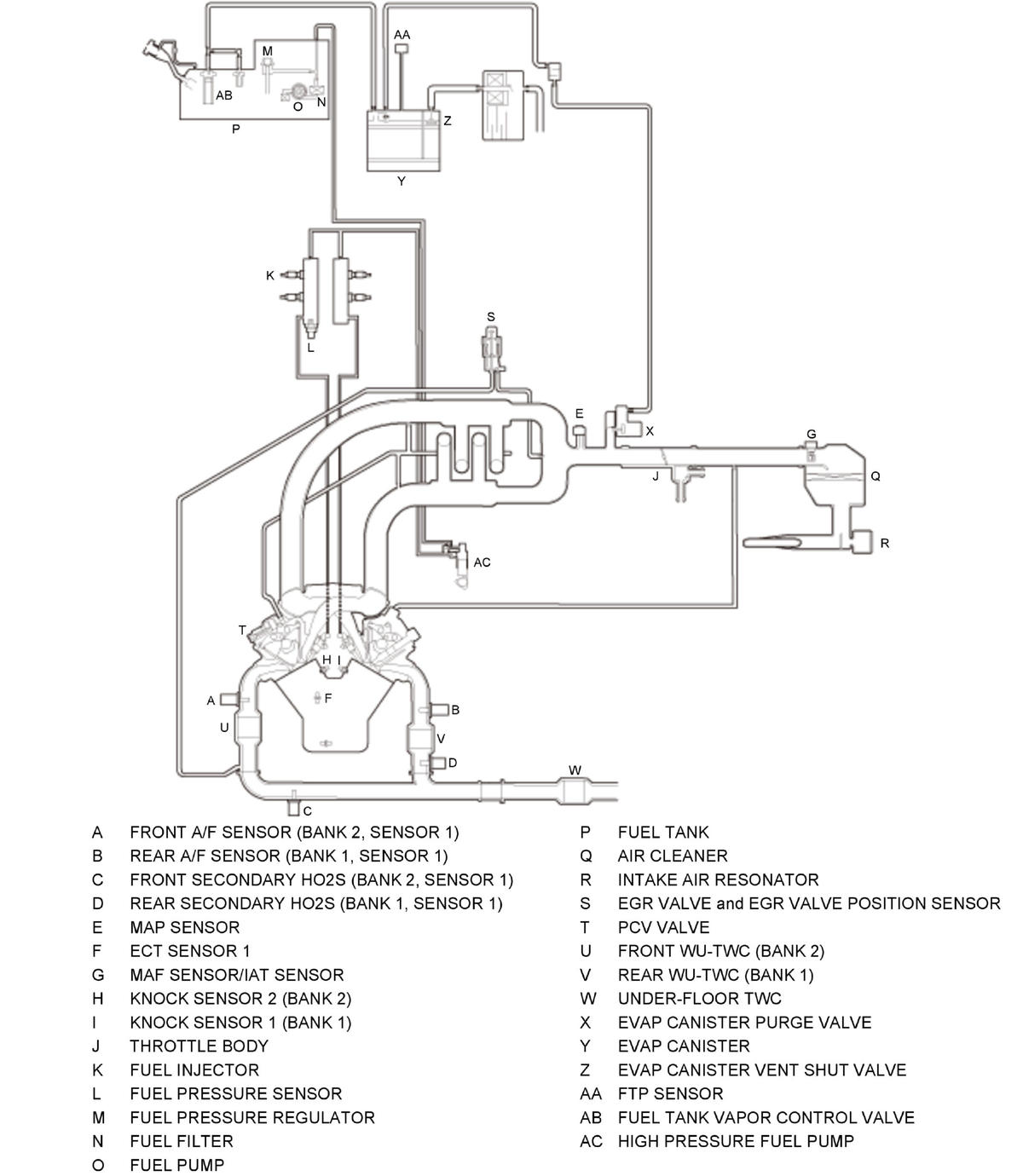

USA and Canada models

GHH320032Courtesy of HONDA, U.S.A., INC.

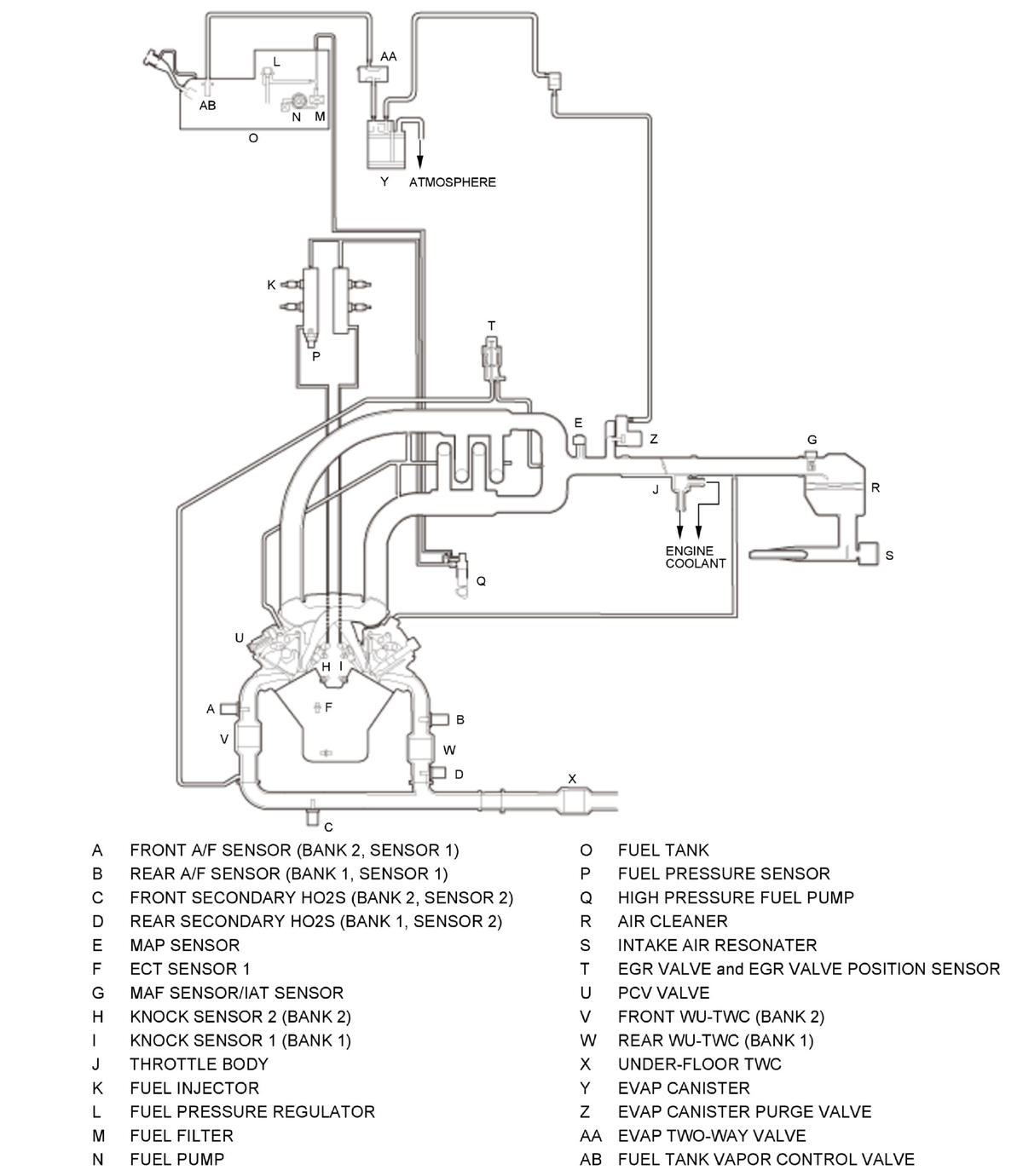

Mexico models

GHH320033Courtesy of HONDA, U.S.A., INC.
