DTC P0456
DTC P0456: Evaporative Emission (EVAP) System Very Small Leak Detected
General Description

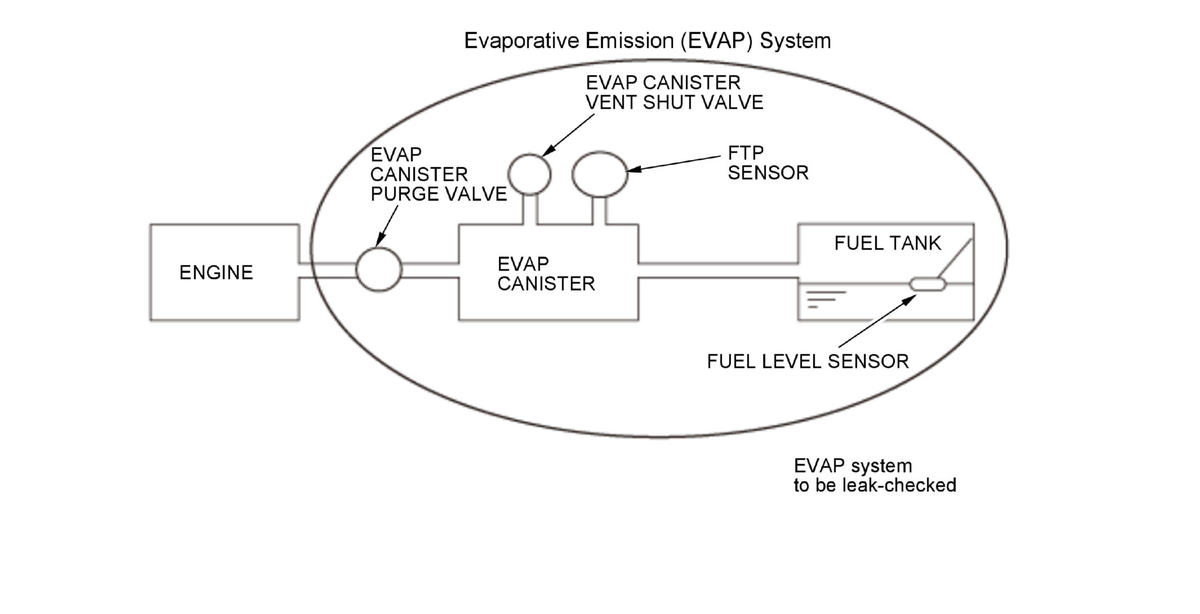

The evaporative emission (EVAP) leak detection system uses an engine off natural vacuum (EONV) method. The EONV method detects leakage from the change in fuel tank pressure via the fuel tank pressure (FTP) sensor with the engine off.

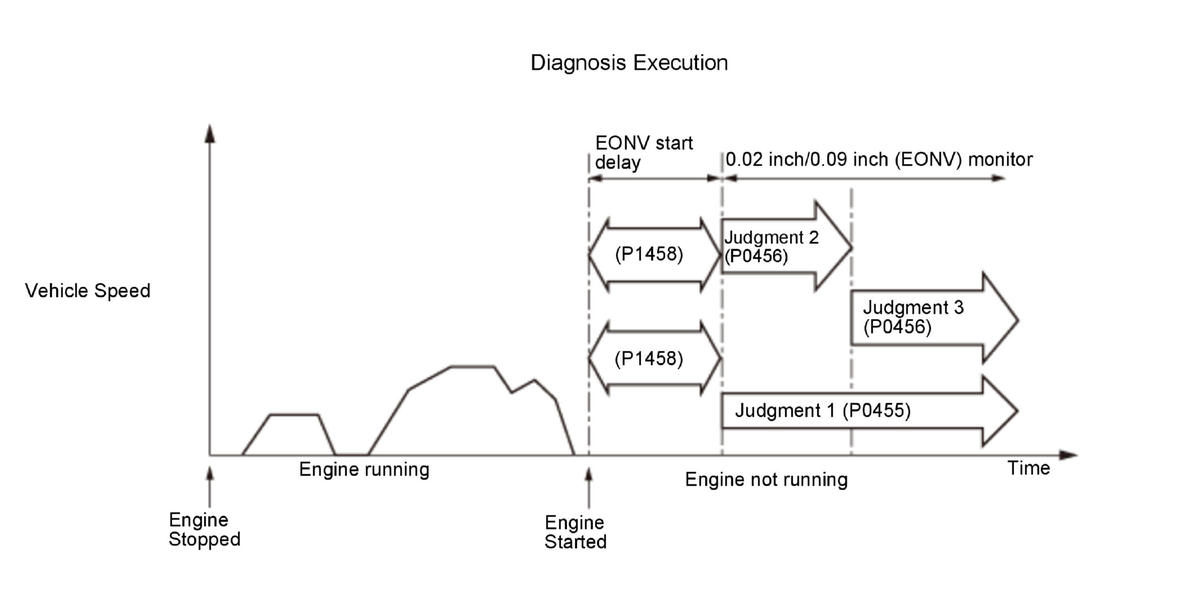

Here is an overview of the malfunction detection for the EONV method:
Judgment 1: Judgment of detection of 0.09 inch leak as normal operation
Judgment 2: Judgment of detection of 0.02 inch leak as normal operation
Judgment 3: Detection of 0.02 inch leak
<Judgments 1, 2, and 3 happen at the same time.>
Judgment 1:
After the engine has stopped, the powertrain control module (PCM) monitors the variation of the FTP sensor output to detect "no 0.09 inch leak" depending on the variation of the pressure inside the fuel tank.
- If the variation of the pressure is a specified value and continues for a specified duration, it is identified as a "0.09 inch leak" and the diagnosis completes.
- If the variation of the pressure is a specified value before a specified duration has passed, it is defined as "no 0.09 inch leak", the judgment of detection of a 0.09 inch leak is completed, and it goes to 0.02 inch leak monitor.
Judgment 2:
After the engine has stopped, the PCM monitors the variation of the FTP sensor output to detect "no 0.02 inch leak" depending on the variation corresponding to the increasing pressure inside the fuel tank.
- If "no 0.02 inch leak" is detected, it is identified as normal; the diagnosis is complete.
- If the pressure inside the fuel tank does not increase a specified value within a specified duration, it goes to Judgment 3.
Judgment 3:
The PCM continues to monitor the FTP sensor output to detect "no 0.02 inch leak" depending on the variation corresponding to the decreasing pressure inside the fuel tank until the detection completes.
- If a "0.02 inch leak" is detected, it is identified as a malfunction; the diagnosis is complete.
- If "no leakage" is detected, it is identified as normal; the diagnosis is complete.
- If the pressure is not atmospheric pressure or less when the detection is completed, that data is stored and the diagnosis is complete.
Monitor Execution, Sequence, Duration, DTC Type, OBD Status
| Execution | Once per driving cycle |
| Sequence | P0455 is judged as OK |
| Duration | At least 16 minutes, 37 seconds but not more than 41 minutes, 37 seconds |
| DTC Type | Two drive cycles, MIL on |
| OBD Status | PASSED/FAILED/NOT COMPLETED (STILL TESTING) |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Elapsed time before starting the engine | 6 hours | - |
| Initial condition A* | - | 36 °F (20 °C) |
| Initial condition B** | - | 18 °F (10 °C) |
| Initial engine coolant temperature [ECT SENSOR 1] | 40 °F (5 °C) | 95 °F (35 °C) |
| Initial intake air temperature [IAT SENSOR (2)] | 40 °F (5 °C) | 95 °F (35 °C) |
| Barometric pressure [BARO SENSOR] | 76 kPa (22.5 inHg, 569 mmHg) | - |
*: The initial intake air temperature [IAT SENSOR (2)] minus the current intake air temperature [IAT SENSOR (2)]
**: The initial engine coolant temperature [ECT SENSOR 1] minus the initial intake air temperature [IAT SENSOR (2)]
[ ]: HDS Parameter
| Condition | Minimum | Maximum |
|---|---|---|
| Battery voltage [BATTERY] | 10.5 V | - |
| No active DTCs set (prevents monitor from running) | P0112, P0113, P0116, P0117, P0118, P011A, P011B, P0125, P0443, P0451, P0452, P0453, P0496, P0497, P0498, P0499, P0685, P1454, P1458, P145C, P2227, P2228, P2229, P2422, P2610 | |
| Other | Avoid abrupt acceleration, deceleration, and turns | |
| Test-drive on a flat road to avoid misdetection | ||
| No refueling is required | ||
| Vehicle stopped | ||
*: The initial intake air temperature [IAT SENSOR (2)] minus the current intake air temperature [IAT SENSOR (2)]
**: The initial engine coolant temperature [ECT SENSOR 1] minus the initial intake air temperature [IAT SENSOR (2)]
[ ]: HDS Parameter
Malfunction Threshold
- The change rate of the pressure rise slope inside the fuel tank is 4.0 or more.
- The change rate of the pressure descending slope inside the fuel tank is 0.8 or more.
- The barometric pressure is stable for at least 30 minutes.
Possible Cause
- EVAP system leak (EVAP canister purge valve from fuel tank)
Confirmation Procedure

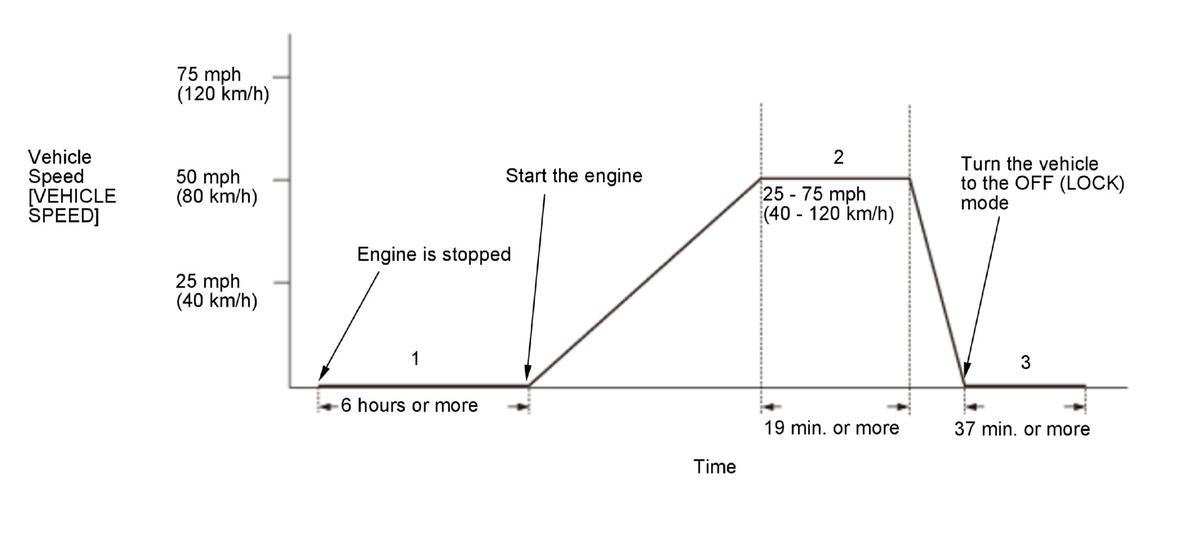

Operating Condition
- 1.
After the vehicle has been left for an appropriate amount of time as specified, with the engine coolant temperature [ECT SENSOR 1] and intake air temperature [IAT SENSOR (2)] within the specified range, start the engine.
- 2.
Drive the vehicle immediately at a speed between 25 - 75 mph (40 - 120 km/h) for at least 19 minutes.
- 3.
After stopping the vehicle, turn the vehicle to the OFF (LOCK) mode and leave the vehicle in this condition for at least 37 minutes (EONV executes).
- Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
With the HDS
Do the EVAP FUNCTION TEST in the INSPECTION MENU with the HDS.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle with the engine coolant temperature and intake air temperature at engine start-up within the specified temperature range, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle with the engine coolant temperature and intake air temperature at engine start-up within the specified temperature range, the MIL comes on and a Confirmed DTC and the freeze data are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
