Keyless Access Control Unit Removal and Installation (2013-18): Removal

  1. Keyless Access Control Unit - Remove

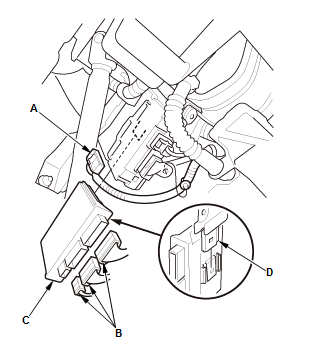

    GHH76982Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the power control unit connector (A)

    2. Disconnect the keyless access control unit connectors (B)

    3. Remove the keyless access control unit (C) from the bracket (D) of power control unit.
