Keyless Access Power Control Unit Removal and Installation (2013-18): Installation
NOTE:
If the power control unit is replaced, do the keyless access registration. If the original power control unit is installed, confirm that all systems work properly.
- Power Control Unit - Install

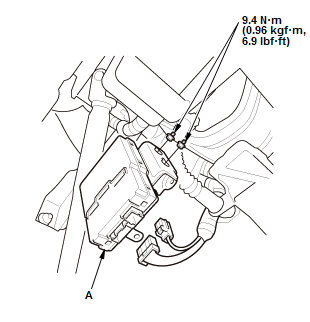

1. Install the power control unit (A) 2. Connect the power control unit connectors.
- Keyless Access Control Unit - Install
1. Install the keyless access control unit . - Keyless Access System - Registration
1. After replacement, register the power control unit - Refer to: Keyless Access System Registration (2013-15), or Keyless Access System Registration (2016-18) .
