Keyless Access Power Control Unit Removal and Installation (2013-18): Removal

  1. Keyless Access Control Unit - Remove
      1. Remove the keyless access control unit .
  2. Power Control Unit - Remove

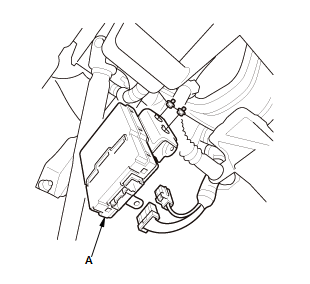

    GHH76996Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the power control unit connectors

    2. Remove the power control unit (A).
