Driving Position Memory System (DPMS) Component Location Index (2016-18)

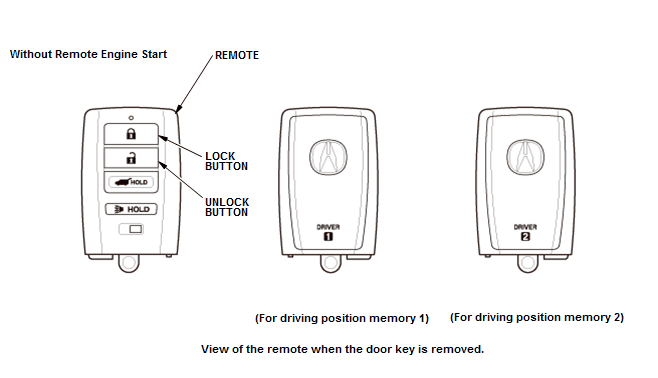

GHH75316Courtesy of HONDA, U.S.A., INC.

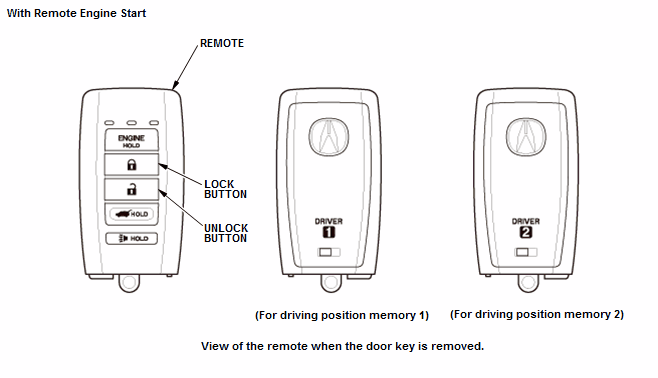

GHH75317Courtesy of HONDA, U.S.A., INC.

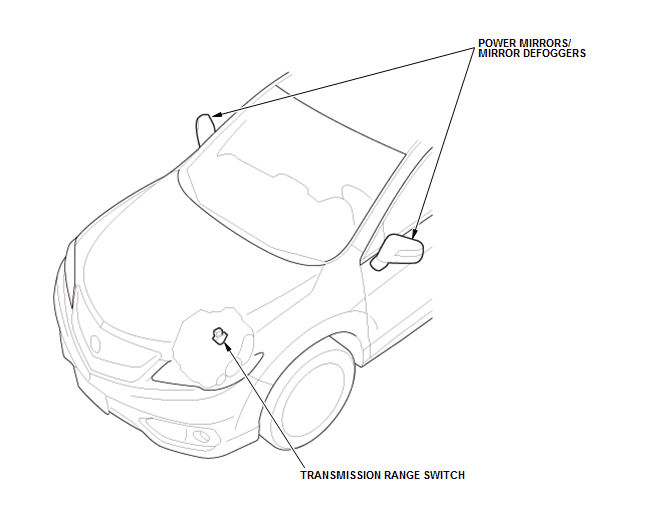

GHH75318Courtesy of HONDA, U.S.A., INC.

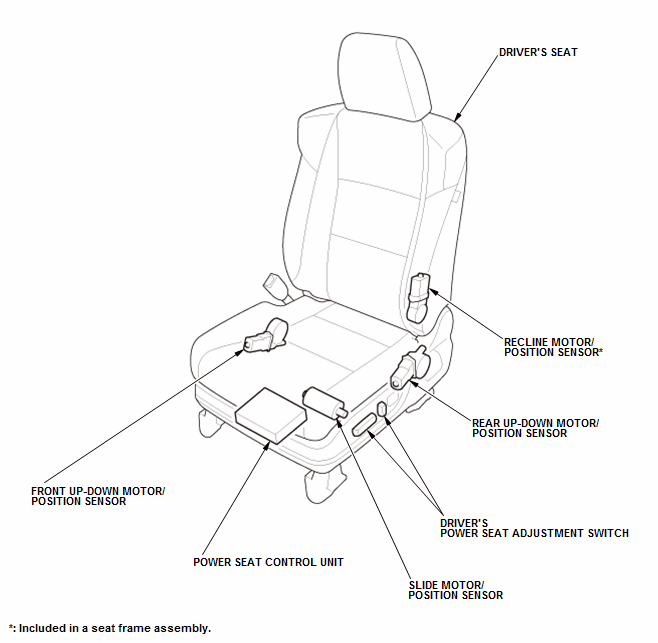

GHH75319Courtesy of HONDA, U.S.A., INC.

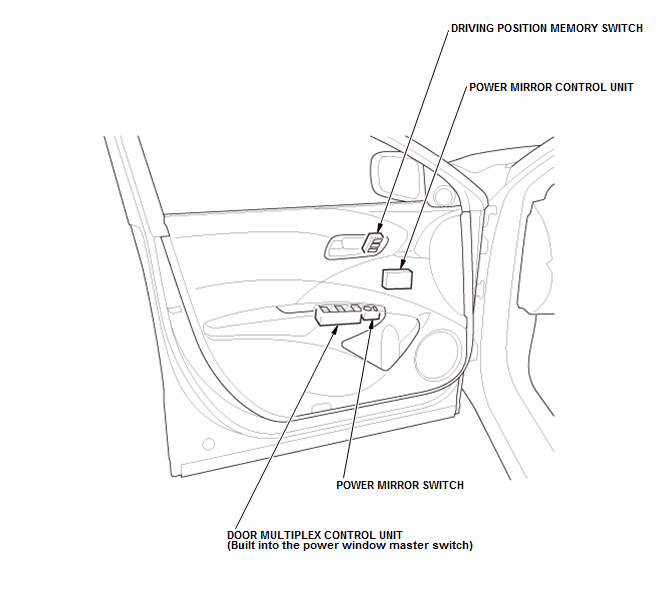

GHH75320Courtesy of HONDA, U.S.A., INC.
