Multiplex Integrated Control System Component Location Index (2013-18)

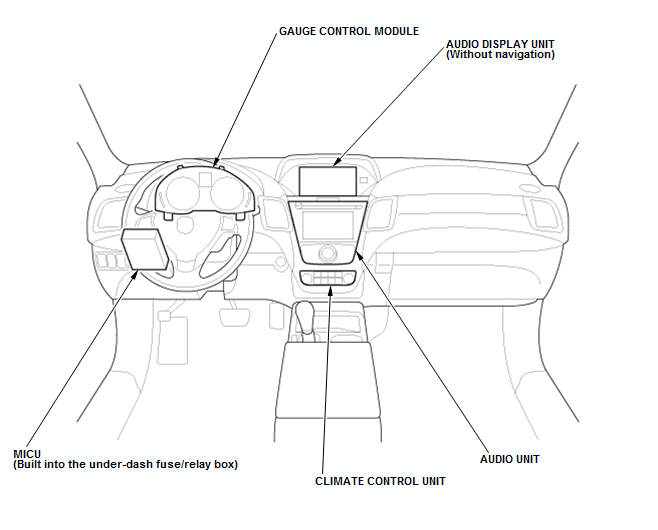

GHH75321Courtesy of HONDA, U.S.A., INC.

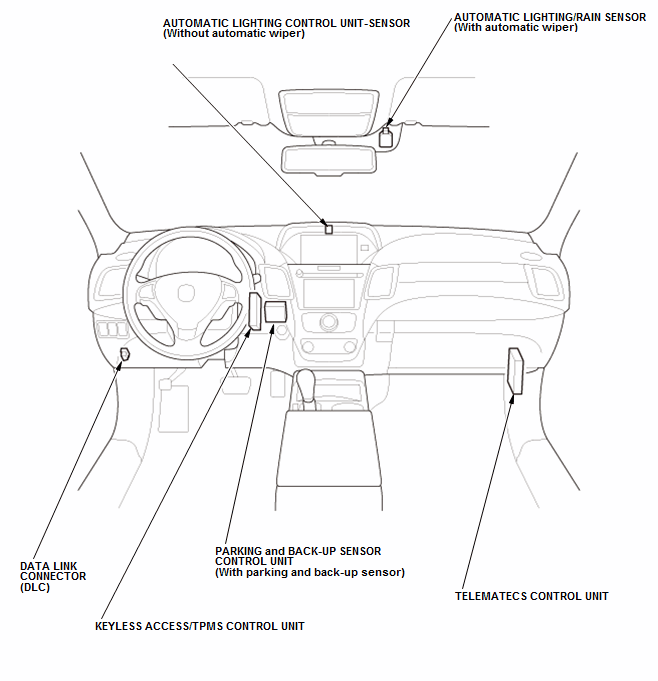

GHH75322Courtesy of HONDA, U.S.A., INC.

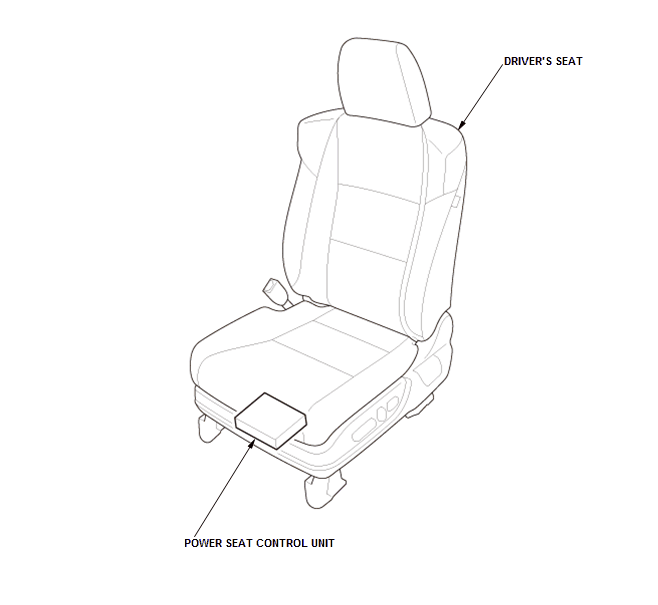

GHH75323Courtesy of HONDA, U.S.A., INC.

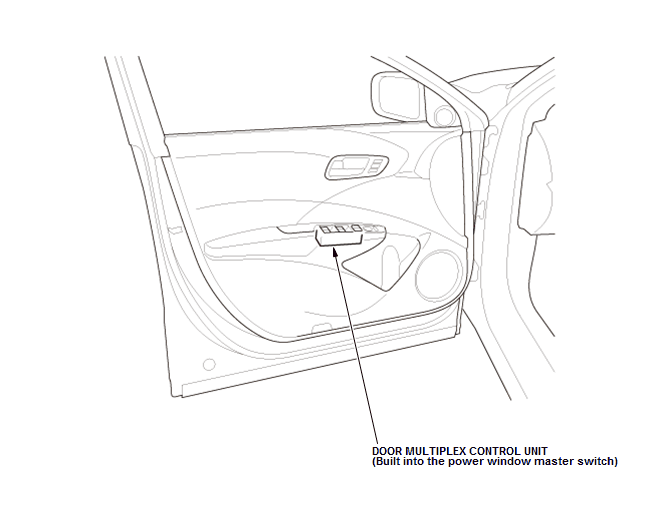

GHH75324Courtesy of HONDA, U.S.A., INC.

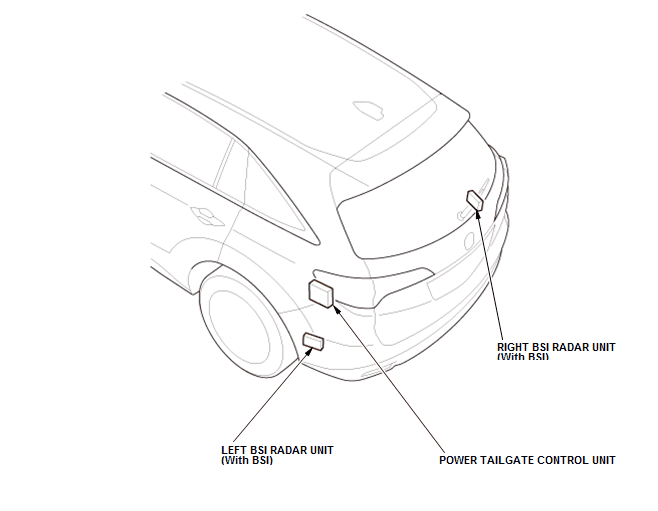

GHH75325Courtesy of HONDA, U.S.A., INC.
