DTC P0589-15: Main Switch Signal Circuit Open (2016-18)

NOTE:

Before you troubleshoot, review the general troubleshooting information .

DTC Description DTC Freeze Frame
P0589-15 Main Switch Signal Circuit Open

DTC (IDAS)

  1. Problem verification:

    Turn the vehicle to the ON mode.

    - 2. Clear the DTC with the HDS.

    Clear DTCs

    - 3. Turn the vehicle to the OFF (LOCK) mode.

    - 4. Turn the vehicle to the ON mode, then wait for at least 5 seconds.

    - 5. Check for DTCs with the HDS.

    DTC Description DTC Freeze Frame
    P0589-15 Main Switch Signal Circuit Open

    Is DTC P0589-15 indicated?

    YES

    The failure is duplicated. Go to step 2.

    NO

    Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting . If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the Freeze data/on-board snapshot.

  2. Open wire check (CRUISE line) 1:

    Turn the vehicle to the OFF (LOCK) mode.

    - 2. Disconnect the following connector.

    Select/reset/information switch 12P connector

    - 3. Turn the vehicle to the ON mode.

    - 4. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      Select/reset/information switch 12P connector: disconnected
    Test point 1 Select/reset/information switch 12P connector No. 12
    Test point 2 Body ground

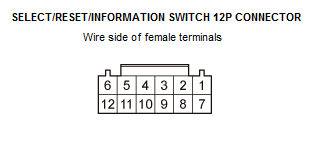

    GHH76111Courtesy of HONDA, U.S.A., INC.

    Is there about 5 V?

    YES

    The CRUISE wire is not open. Go to step 3.

    NO

    Go to step 7.

  3. ACC combination switch internal circuit check:

    Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      Select/reset/information switch 12P connector: disconnected
    Test point 1 Select/reset/information switch 12P connector No. 6
    Test point 2 Select/reset/information switch 12P connector No. 12
    GHH76112Courtesy of HONDA, U.S.A., INC.

    Is there about 5 V?

    YES

    Replace the steering wheel trim/select/reset/information switch .

    NO

    Go to step 4.

  4. Open wire check (CRUISE GND line) 1:

    Check for continuity between test points 1 and 2 without disconnect the cable reel connector C (20P).

    Test condition Vehicle OFF (LOCK) mode
      Select/reset/information switch 12P connector: disconnected
    Test point 1 Cable reel connector C (20P) No. 19
    Test point 2 Body ground
    GHH76113Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair an open in the wire between the ACC combination switch and the cable reel.

    NO

    Go to step 5.

  5. Open wire check (CRUISE GND line) 2:

    Check for continuity between test points 1 and 2 without disconnect the cable reel connector A (20P).

    Test condition Vehicle OFF (LOCK) mode
      Select/reset/information switch 12P connector: disconnected
    Test point 1 Cable reel connector A (20P) No. 7
    Test point 2 Body ground

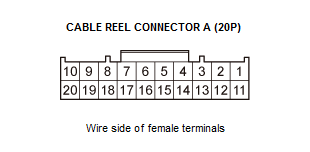

    GHH76114Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Replace the cable reel .

    NO

    Go to step 6.

  6. Open wire check (CRUISE GND line) 3:

    Disconnect the following connectors.

    Gauge control module 32P connector
    Cable reel connector A (20P)

    - 2. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Select/reset/information switch 12P connector: disconnected
    Test point 1 Gauge control module 32P connector No. 30
    Test point 2 Cable reel connector A (20P) No. 7
    GHH76115Courtesy of HONDA, U.S.A., INC.
    GHH76116Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The CRUISE GND wire is not open. Replace the gauge control module .

    NO

    Repair an open in the wire between the gauge control module and the cable reel.

  7. Open wire check (CRUISE line) 2:

    Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      Select/reset/information switch 12P connector: disconnected
    Test point 1 Cable reel connector C (20P) No. 20
    Test point 2 Body ground

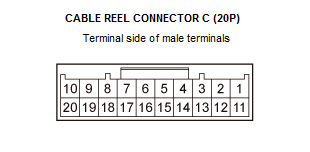

    GHH76117Courtesy of HONDA, U.S.A., INC.

    Is there about 5 V?

    YES

    Repair an open in the wire between the ACC combination switch and the cable reel.

    NO

    Go to step 8.

  8. Open wire check (CRUISE SW line) 1:

    Measure the voltage between test points 1 and 2 without disconnect the cable reel connector A (20P).

    Test condition Vehicle ON mode
      Select/reset/information switch 12P connector: disconnected
    Test point 1 Cable reel connector A (20P) No. 8
    Test point 2 Body ground

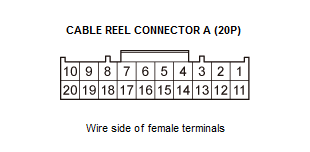

    GHH76118Courtesy of HONDA, U.S.A., INC.

    Is there about 5 V?

    YES

    Replace the cable reel .

    NO

    Go to step 9.

  9. Open wire check (CRUISE SW line) 2:

    Turn the vehicle to the OFF (LOCK) mode.

    - 2. Disconnect the following connectors.

    Gauge control module 32P connector
    Cable reel connector A (20P)

    - 3. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF mode
      Select/reset/information switch 12P connector: disconnected
    Test point 1 Gauge control module 32P connector No. 4
    Test point 2 Cable reel connector A (20P) No. 8

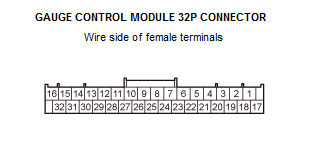

    GHH76119Courtesy of HONDA, U.S.A., INC.

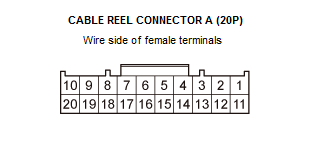

    GHH76120Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The CRUISE wire is not open. Replace the gauge control module .

    NO

    Repair an open in the wire between the gauge control module and the cable reel.
