BSI Radar Unit Connector for Inputs and Outputs (2016-18)

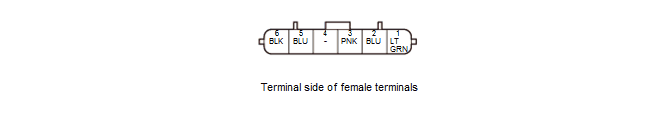

Left Side BSI Radar Unit 6P Connector Inputs and Outputs
| Terminal number | Terminal name | Description |
| 1 | IG1 OPTION | Power source for the BSI radar unit |
| 2 | BSI L IND | Drives the left BSI alert indicator |
| 3 | B CAN-H | B-CAN communication (high) circuit |
| 4 | Not used | Not used |
| 5 | B CAN-L | B-CAN communication (low) circuit |
| 6 | GND | Ground circuit for the left BSI radar unit |

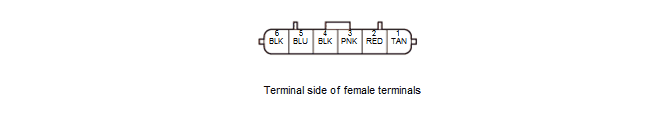

Right Side BSI Radar Unit 6P Connector Inputs and Outputs
| Terminal number | Terminal name | Description |
| 1 | IG1 OPTION | Power source for the BSI radar unit |
| 2 | BSI R IND | Drives the right BSI alert indicator |
| 3 | B CAN-H | B-CAN communication (high) circuit |
| 4 | GND | Ground circuit for the right BSI radar unit |
| 5 | B CAN-L | B-CAN communication (low) circuit |
| 6 | GND | Ground circuit for the right BSI radar unit |
