Front Passenger's Power Window Switch Input Test (2013-18)

NOTE:

Before testing, make sure the No. B44 (20 A) fuse in the under-dash fuse/relay box is OK.
Before testing, check for DTCs. If any DTCs are indicated, troubleshoot those DTCs first.

1. Press the engine start/stop button to select the OFF mode.

Courtesy of HONDA, U.S.A., INC.

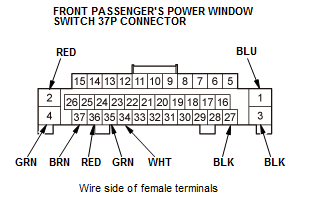

3. Inspect the connector and socket terminals to be sure they are all making good contact:

If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
If the terminals look OK, go to step 4.

4. With the connector still disconnected, do the following input tests:

If any test indicates a problem, find and correct the cause, then recheck the system.
If all the input tests prove OK, go to step 5.

Cavity	Wire	Test condition	Test: Desired result	Possible cause if desired result is not obtained
2.1	RED.BLU	Connect terminals No. 2 and No. 4, and terminals No. 1 and No. 3 with jumper wires.	Check front passenger's power window motor operation:The front passenger's power window should close.	Faulty front passenger's power window motor An open or high resistance in the wire
2.1	RED.BLU	Connect terminals No. 1 and No. 4, and terminals No. 2 and No. 3 with jumper wires.	Check front passenger's power window motor operation:The front passenger's power window should open.
27	BLK	Disconnect the front passenger's power window motor 6P connector	Check for continuity between terminal No. 27 and front passenger's power window motor 6P connector terminal No. 4:There should be continuity.	An open or high resistance in the wire

Cavity	Wire	Test condition	Test: Desired result	Possible cause if desired result is not obtained
34	WHT	Disconnect the power window master switch 37P connector and the moonroof control unit/motor 14P connector	Check for continuity between terminal No. 34 and power window master switch 37P connector terminal No. 36:There should be continuity.	An open in the LIN (P/W) wire
			Check for continuity between terminal No. 34 and moonroof control unit/motor 14P connector terminal No. 12:There should be continuity.	An open in the LIN (P/W) wire
			Check for continuity to ground: There should be no continuity.	A short to ground in the LIN (P/W) wire

5. Reconnect the connector, and do the following input tests:

If any test indicates a problem, find and correct the cause, then recheck the system.
If all the input tests prove OK, replace the front passenger's power window switch - Refer to: Rear Power Window Switch Removal and Installation (2013-18), or Front Passenger's Power Window Switch Removal and Installation (2013-18) .

NOTE:

After replacing the front passenger's power window switch, do the resetting the power window control unit .

Cavity	Wire	Test condition	Test: Desired result	Possible cause if desired result is not obtained
4	GRN	Under all conditions	Measure the voltage to ground:There should be battery voltage.	Blown No. B44 (20 A) fuse in the under-dash fuse/relay box An open or high resistance in the wire
3	BLK	In all power modes	Measure the voltage to ground:There should be less than 0.2 V.	Poor ground (G506) An open or high resistance in the ground wire
37	BRN	Power mode ON	Measure the voltage to ground:There should be battery voltage.	Faulty front passenger's power window motor A short to ground in the wire
36	RED	Power mode ON, and front passenger's power window moving up or down	Measure the voltage between terminals No. 36 and No. 3:An analog meter should alternate between 0 V and 5 V (a digital voltmeter should read about 2.5 V while the window moves).	Faulty front passenger's power window motor An open or high resistance in the wire A short to ground in the wire
35	GRN	Power mode ON, and front passenger's power window moving up or down	Measure the voltage between terminals No. 35 and No. 3:An analog meter should alternate between 0 V and 5 V (a digital voltmeter should read about 2.5 V while the window moves).	Faulty front passenger's power window motor An open or high resistance in the wire A short to ground in the wire
