Exploded View

NOTE:

For these operations, refer to the complete procedure as needed.

  1. Steering Gearbox - Exploded View

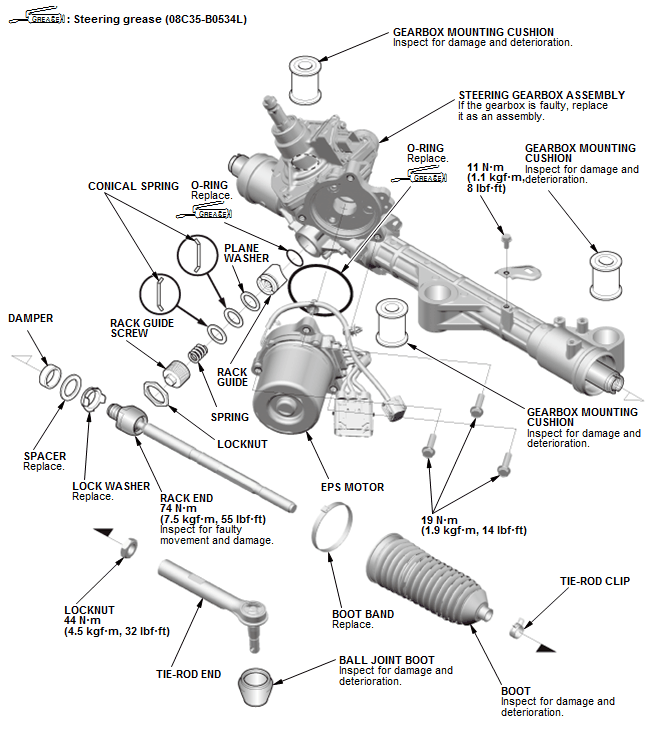

    Fig 1: Exploded View Of Steering Gearbox With Torque Specifications
    GHH77594Courtesy of HONDA, U.S.A., INC.
