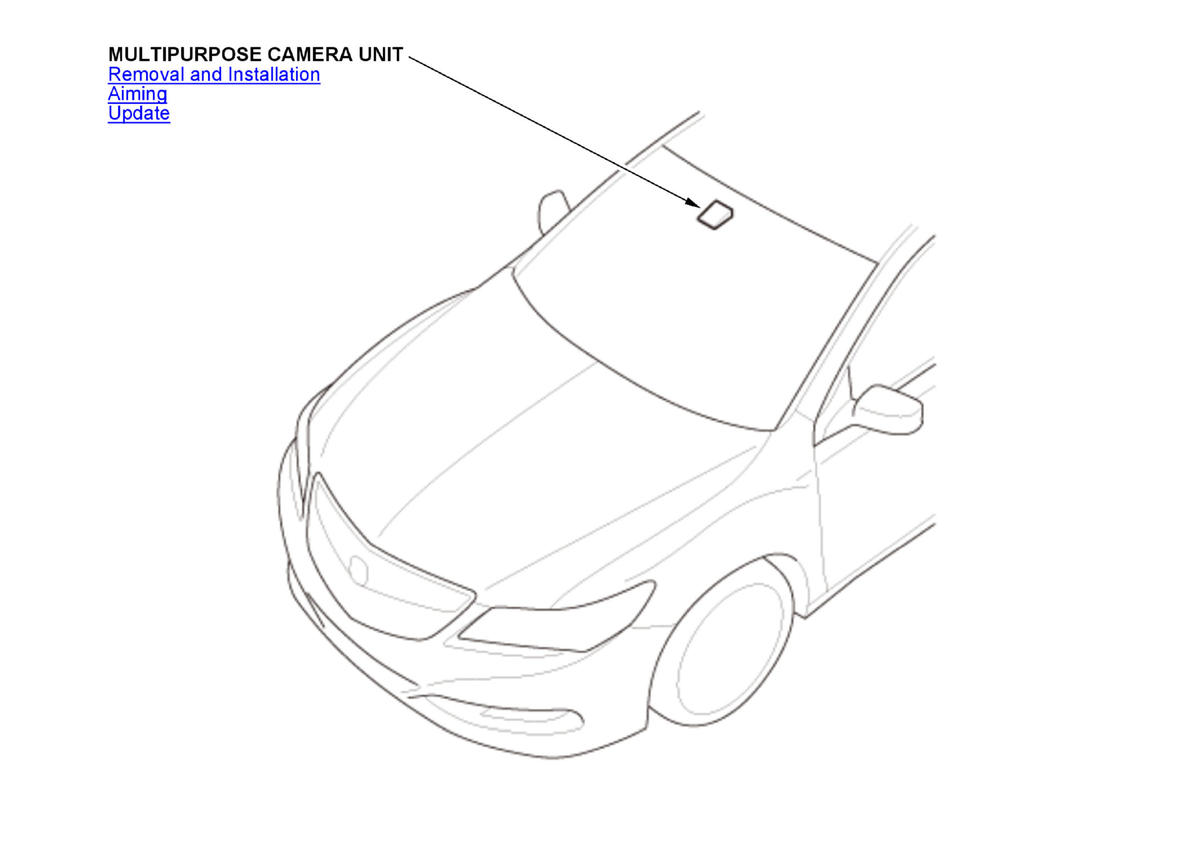

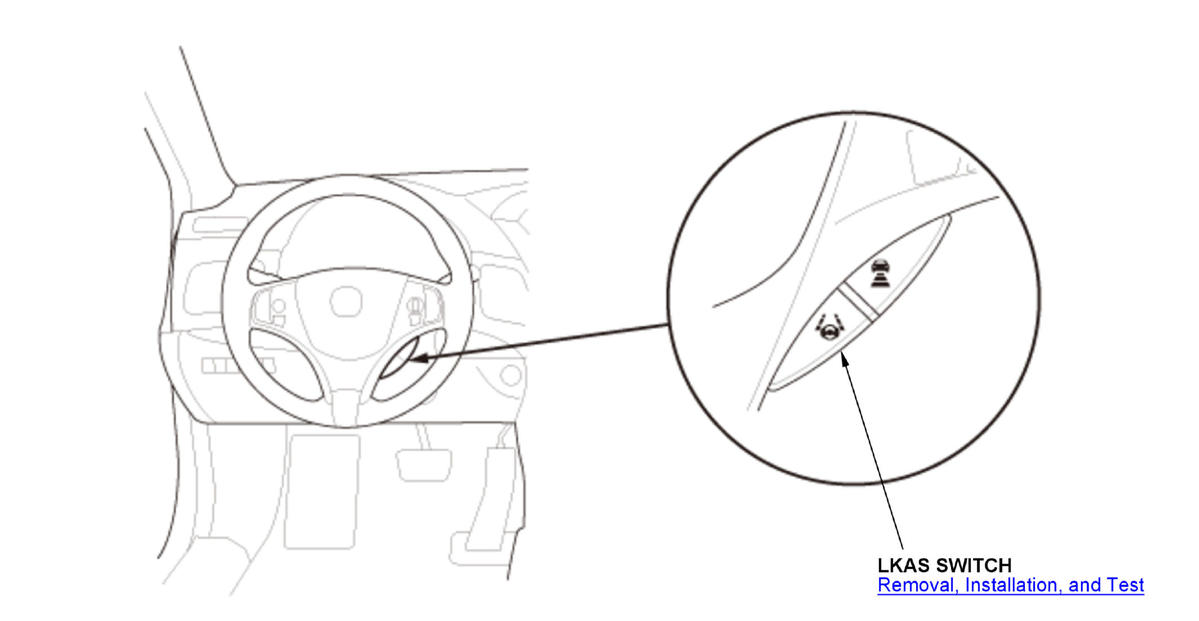

Lane Keeping Assist System (LKAS) Component Location Index (2016 2017 2018 2019 2020)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
