FCW/LDW Camera Unit Connector for Inputs and Outputs (FCW) (2014 2015 2016)

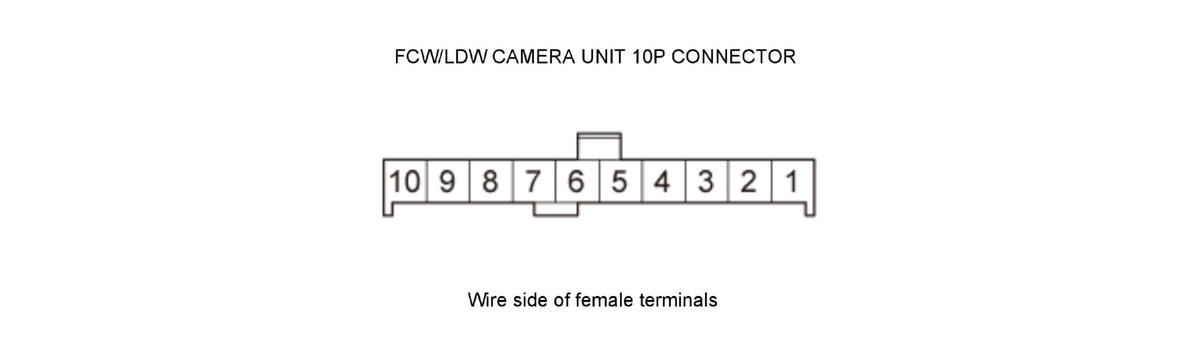

FCW/LDW Camera Unit 10P Connector Inputs and Outputs
| Terminal number | Wire color | Terminal name | Description | Signal |
| 1 | LT GRN | LDW OFF SW | Detects LDW OFF switch signal | Vehicle in ON mode: Battery voltage Vehicle in OFF (LOCK) mode: About 0 V |
| 2 | WHT | IG1 DR2 | Power supply for the FCW/LDW camera unit | Vehicle in ON mode: Battery voltage Vehicle in OFF (LOCK) mode: About 0 V |
| 3 | Not used | Not used | --- | --- |
| 4 | Not used | Not used | --- | --- |
| 5 | PNK | F-CAN C_L | F-CAN communication (low) circuit | --- |
| 6 | PUR | F-CAN C_H | F-CAN communication (high) circuit | --- |
| 7 | YEL | LDW OFF IND | Drive LDW OFF switch circuit | LDW OFF switch pressed: Battery voltage |
| 8 | PNK | +B BACK UP | Power supply for backup memory | Battery voltage at all time |
| 9 | Not used | Not used | --- | --- |
| 10 | BRN | GND | Ground circuit for the FCW/LDW camera unit | Less than 0.2 V at all times |
