Navigation System Description - System Diagram (2014 2015 2016 2017)

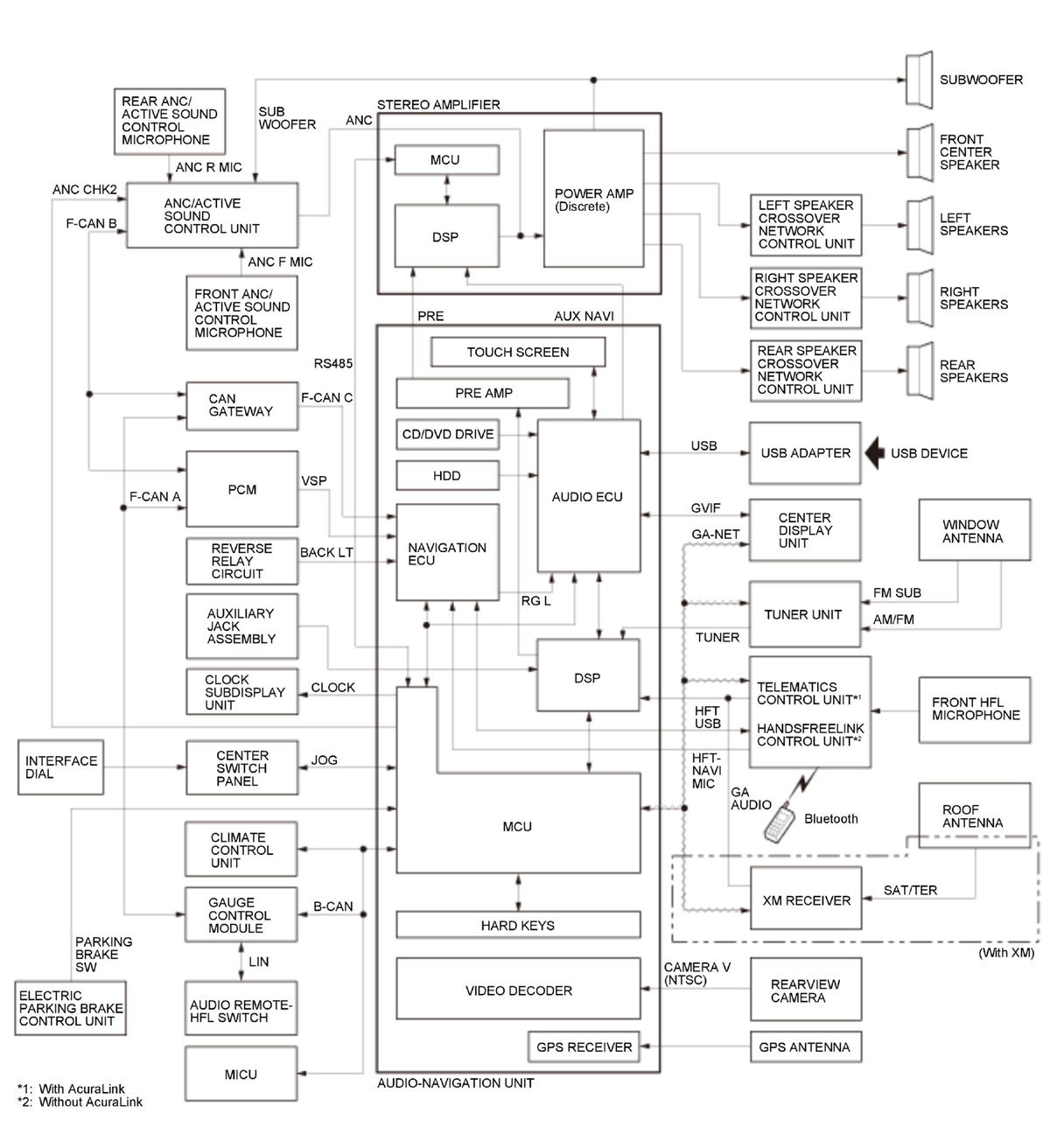

With KRELL Audio
Courtesy of HONDA, U.S.A., INC.

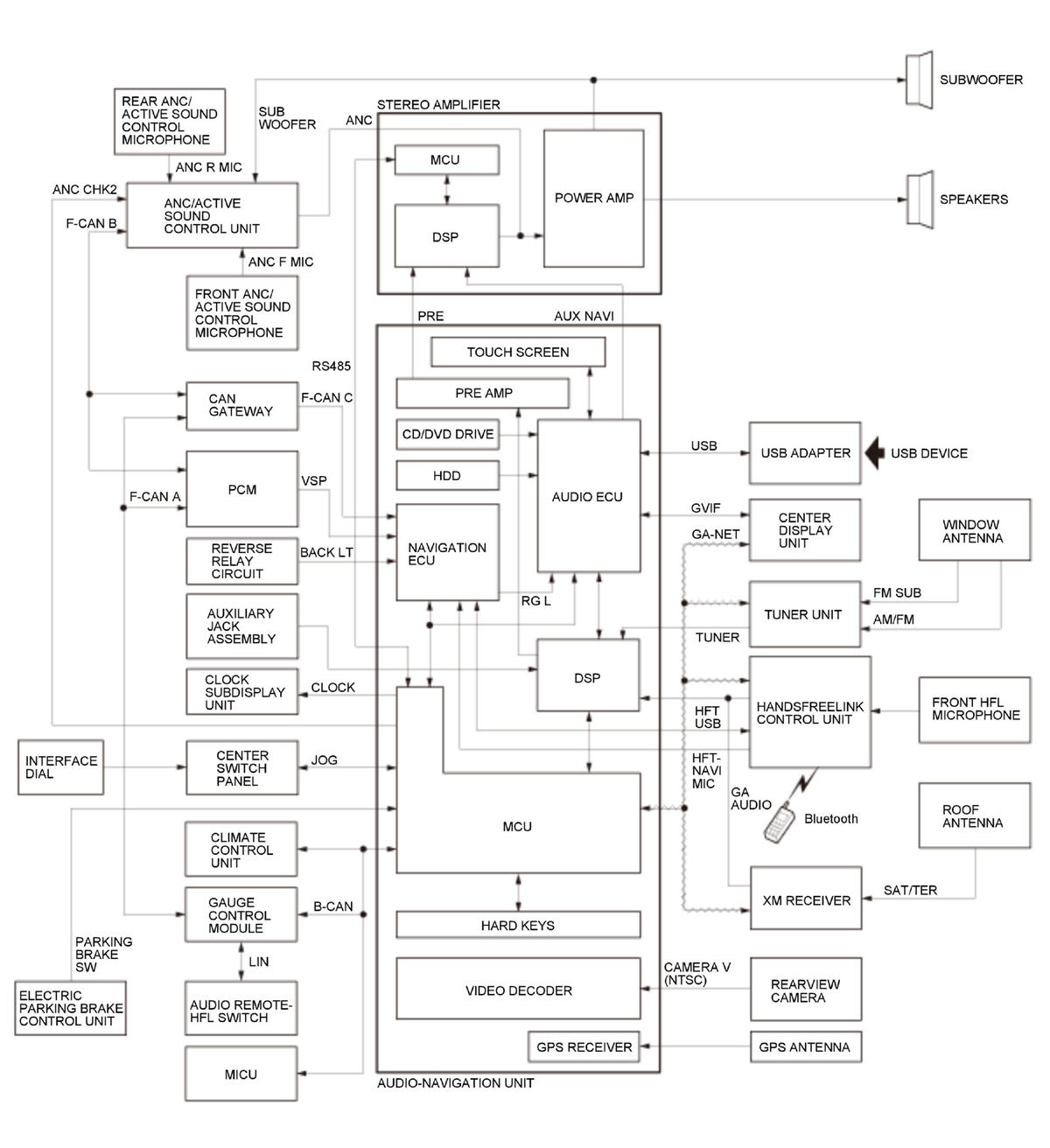

With ELS Audio
Courtesy of HONDA, U.S.A., INC.

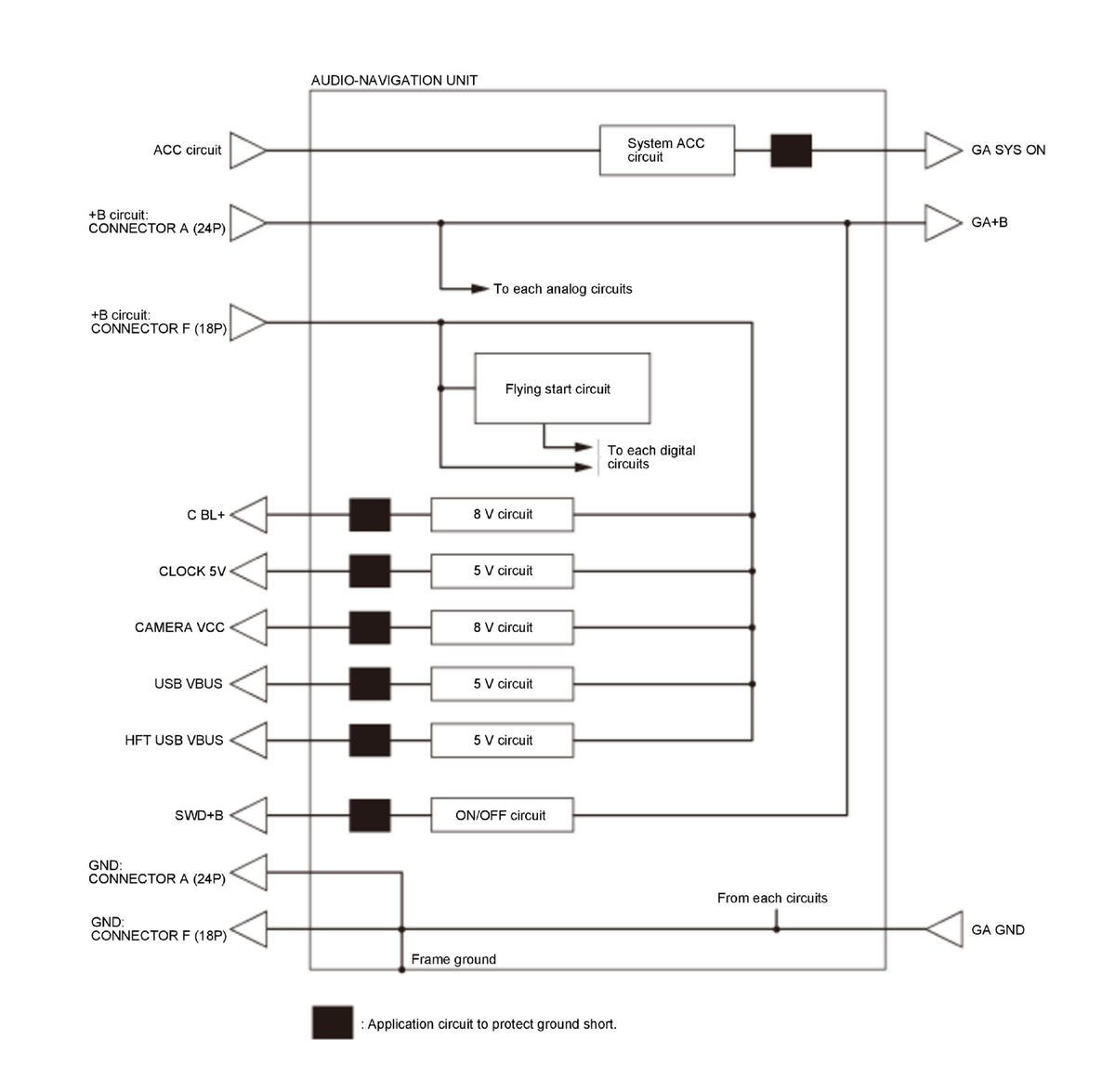

Power Supply Diagram (All models)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
