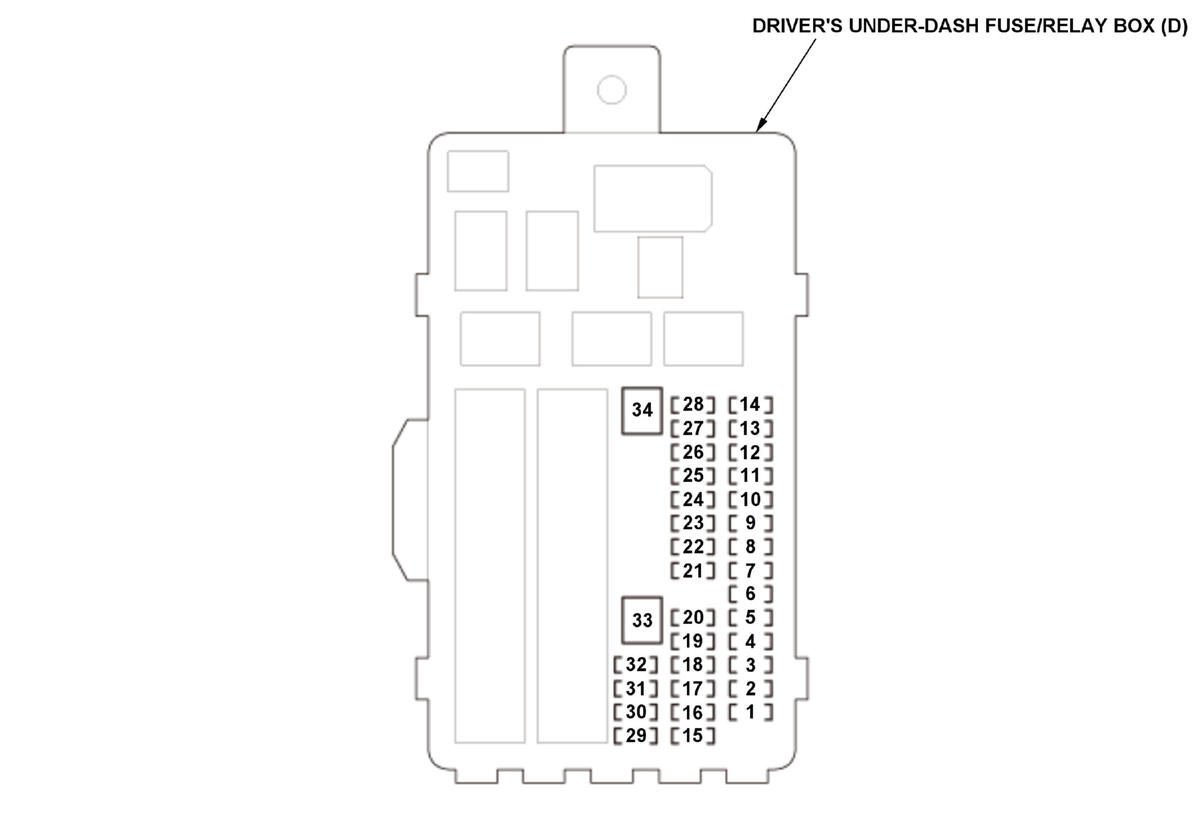

Driver's Under-Dash Fuse/Relay Box (D)
Driver's Under-Dash Fuse/Relay Box (D) Legend
| Fuse Number | Amps | Component(s) or Circuit(s) Protected |
|---|---|---|
| D1 | 10 A | Left rear door lock actuator |
| D2 | 10 A | Front passenger's door lock actuator, Right rear door lock actuator |
| D3 | 10 A | Driver's door lock actuator |
| D4 | 10 A | Left rear door lock actuator |
| D5 | 10 A | Front passenger's door lock actuator, Right rear door lock actuator |
| D6 | 10 A | Driver's door lock actuator (via power door lock relay circuit (DR UNLOCK) built into the driver's under-dash fuse/relay box), Power door lock relay circuit (DR UNLOCK) built into the driver's under-dash fuse/relay box |
| D7 | 20 A | No. D1, No. D2, and No. D3 fuses in the driver's under-dash fuse/relay box (via power door lock relay circuit (LOCK) built into the driver's under-dash fuse/relay box), No. D4 and No. D5 fuses in the driver's under-dash fuse/relay box (via power door lock relay circuit (UNLOCK) built into the driver's under-dash fuse/relay box), Power door lock relay circuit (LOCK) built into the driver's under-dash fuse/relay box, Power door lock relay circuit (UNLOCK) built into the driver's under-dash fuse/relay box |
| D8 | --- | Not used |
| D9 | 20 A | Power tilt/telescopic steering control unit |
| D10 | 7.5 A | A/T gear position indicator, Automatic dimming inside mirror, BSI radar units *1, Front seat belt buckle switch (via driver's seat belt tension reducer solenoid *2), Electric parking brake control unit, Front seat heater control unit *3, Front seat heater switches *3, Parking and back-up sensor control unit *5, Power rear window sunshade relay *6, Rear seat heater control unit *15, Rear sear heater switches *15, Shift lock solenoid, TPMS control unit, Ventilated seat control unit *4, Ventilated seat switches *4 |
| D11 | 10 A | ANC/active sound control unit, Audio-navigation unit *8, Audio-navigation unit *8 (via reverse relay circuit built into the driver's under-dash fuse/relay box), Audio unit *7, Audio unit *7(via reverse relay circuit built into the driver's under-dash fuse/relay box), Automatic dimming inside mirror (via reverse relay circuit built into the driver's under-dash fuse/relay box), Back-up lights (via reverse relay circuit built into the driver's under-dash fuse/relay box), Center display unit, Electric steering lock, Gauge control module, MICU (IG1 METER), MICU (BACK LT) (via reverse relay circuit built into the driver's under-dash fuse/relay box), Parking and back-up sensor control unit (via parking and back-up sensor switch) *5, Parking and back-up sensor switch indicator *5, Power seat control unit, Power tilt/telescopic steering control unit, Relay control module, Reverse relay circuit built into the driver's under-dash fuse/relay box, Telematics control unit *9 |
| D12 | 20 A | No. C6 and No. C7 fuses in the under-hood fuse/relay box, No. E24 fuse in the passenger's under-dash fuse/relay box |
| D13 | 7.5 A | A/T gear position indicator, Audio-navigation unit *8, Audio unit *7, Center display unit, Console accessory power socket relay, Electric parking brake control unit, Front accessory power socket relay, Interface dial *8, Keyless access control unit (ACC/ACC RLY CL-), Telematics control unit *9 |
| D14 | --- | Not used |
| D15 | 20 A | Power seat control unit/power seat adjustment switch |
| D16 | 20 A | Moonroof control unit/motor *10 |
| D17 | 20 A | Left rear power window switch |
| D18 | 20 A | Power tilt/telescopic steering control unit |
| D19 | 20 A | Power window master switch |
| D20 | 20 A | E-pretensioner unit *2 |
| D21 | 20 A | Fuel pump control module (via PGM-FI main relay 2), Keyless access control unit (IG1 FUEL PUMP), PCM (IG1 FUEL PUMP) |
| D22 | --- | Not used |
| D23 | 7.5 A | Starter cut relay 1, Starter cut relay 2 |
| D24 | 7.5 A | ACC unit *2, Brake light relay, CAN gateway, Engine mount control unit, FCW/LDW camera unit *11, LDW off switch *12, LKAS camera/control unit *13, Millimeter wave radar *2, Precision all wheel steer control unit |
| D25 | 7.5 A | PCM (START DIAG) |
| D26 | 7.5 A | Air quality sensor, A/C compressor clutch relay, Blower motor relay, Climate control switch, Climate control unit, Front seat heater relay *3, Heated steering wheel relay, Power mirror control unit, Power window master switch, Rear seat heater relay *15, Rear window defogger relay, Ventilated seat relay *4 |
| D27 | 7.5 A | Left/right LED control unit (low beam) (via relay control module) |
| D28 | 7.5 A | MICU (ACC KEYLOCK) |
| D29 | 7.5 A | Driver's power lumbar support valve unit (via driver's power lumbar support switch) |
| D30 | 10 A | Electric steering lock, Engine start/stop switch, Engine start/stop switch indicator, Engine start/stop switch light, Keyless access control unit (+B SMART) (via engine start/stop switch) |
| D31 | --- | Not used |
| D32 | 20 A | Power seat control unit/power seat adjustment switch |
| D33 | 40 A | Precision all wheel steer control unit |
| D34 | 30 A | No. C1 and No. C2 fuses in the under-hood fuse/relay box, No. E19, No. E20, and No. E22 fuses in the passenger's under-dash fuse/relay box |
| *1: With BSI *2: With ACC *3: Without ventilated seat *4: With ventilated seat *5: With parking and back-up sensor system *6: With power rear window sunshade *7: Without navigation *8: With navigation *9: With AcuraLink *10: With moonroof *11: With FCW/LDW *12: With LDW *13: With LKAS *14: With heated steering wheel *15: With rear seat heater |
||
