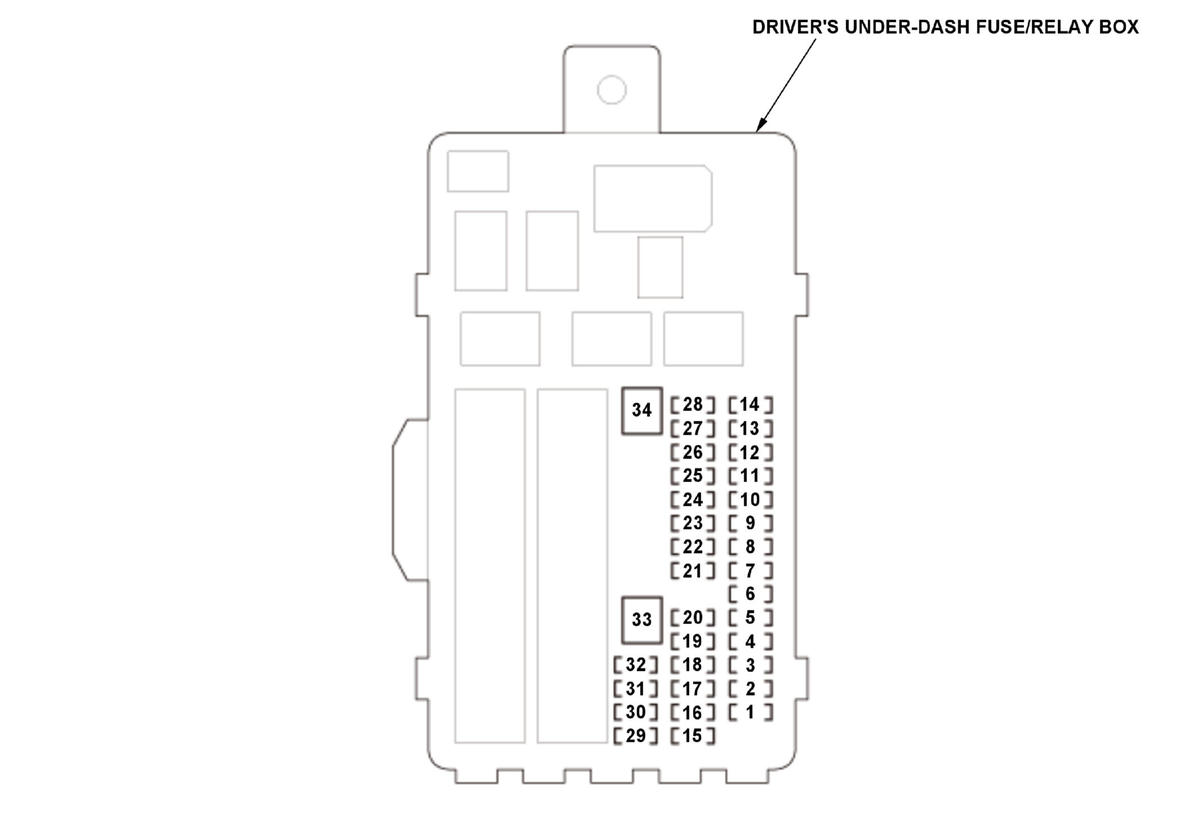

Driver's Under-Dash Fuse/Relay Box
Driver's Under-Dash Fuse/Relay Box Legend
| Fuse Number | Amps | Component(s) or Circuit(s) Protected |
|---|---|---|
| D1 | 10 A | Left rear door lock actuator |
| D2 | 10 A | Front passenger's door lock actuator, Right rear door lock actuator |
| D3 | 10 A | Driver's door lock actuator |
| D4 | 10 A | Left rear door lock actuator |
| D5 | 10 A | Front passenger's door lock actuator, Right rear door lock actuator |
| D6 | 10 A | Driver's door lock actuator (via power door lock relay circuit (DR UNLOCK)) built into the driver's under-dash fuse/relay box), Power door lock relay circuit (DR UNLOCK) built into the driver's under-dash fuse/relay box |
| D7 | 20 A | No. D1, No. D2, and No. D3 fuses in the driver's under-dash fuse/relay box (via power door lock relay circuit (LOCK) built into the driver's under-dash fuse/relay box), No. D4 and No. D5 fuses in the driver's under-dash fuse/relay box (via power door lock relay circuit (UNLOCK) built into the driver's under-dash fuse/relay box), Power door lock relay circuit (LOCK) built into the driver's under-dash fuse/relay box, Power door lock relay circuit (UNLOCK) built into the driver's under-dash fuse/relay box |
| D8 | --- | Not used |
| D9 | 20 A | Power tilt/telescopic steering control unit |
| D10 | 7.5 A | Auto high-beam control unit, Automatic dimming inside mirror, BSI radar units, Electric parking brake control unit, Front seat heater control unit, Front seat heater switches, SBW shifter control module |
| D11 | 10 A | ANC/active sound control unit, Audio-navigation unit, Center display unit, Gauge control module, MICU (IG1 METER), Power seat control unit, Power tilt/telescopic steering control unit, Relay control module, Reverse relay circuit built into the driver's under-dash fuse/relay box, Telematics control unit |
| Via reverse relay circuit built into the driver's under-dash fuse/relay box:Audio-navigation unit, Inner taillights, MICU (BACK LT) | ||
| D12 | 20 A | No. C5, No. C6, and No. C7 fuses in the under-hood fuse/relay box, No. E24 fuse in the passenger's under-dash fuse/relay box |
| D13 | 7.5 A | Audio-navigation unit, Center display unit, Console accessory power socket relay, Electric parking brake control unit, Front accessory power socket relay, Interface dial, Telematics control unit |
| D14 | --- | Not used |
| D15 | 20 A | Power seat control unit |
| D16 | 20 A | Moonroof control unit/motor |
| D17 | 20 A | Left rear power window switch |
| D18 | 20 A | Power tilt/telescopic steering control unit |
| D19 | 20 A | Power window master switch |
| D20 | 20 A | E-pretensioner unit |
| D21 | 20 A | Fuel pump control module (via PGM-FI main relay 2), PCM (IG1 FUEL PUMP) |
| D22 | --- | Not used |
| D23 | 7.5 A | Starter cut relay 1, Starter cut relay 2 |
| D24 | 7.5 A | Brake light relay, CAN gateway, Engine mount control unit, Head up warning unit, Millimeter wave radar, Multipurpose camera unit, Multipurpose camera unit (via RDM switch), Precision all wheel steer control unit, RDM switch indicator |
| D25 | 7.5 A | PCM (START DIAG) |
| D26 | 7.5 A | Air quality sensor, A/C compressor clutch relay, Blower motor relay, Climate control switch, Climate control unit, Front seat heater relay, Power mirror control unit, Power window master switch, Rear window defogger relay |
| D27 | 7.5 A | Relay control module |
| D28 | 7.5 A | MICU (ACC KEYLOCK) |
| D29 | 7.5 A | Driver's power lumbar support valve unit (via driver's power lumbar support switch) |
| D30 | 10 A | Engine start/stop switch, Engine start/stop switch lights, Keyless access/TPMS control unit, Keyless access/TPMS control unit (via engine start/stop switch), SBW shifter control module |
| D31 | --- | Not used |
| D32 | 20 A | Power seat control unit |
| D33 | 40 A | Precision all wheel steer control unit |
| D34 | 30 A | No. C1 and No. C2 fuses in the under-hood fuse/relay box, No. E19, No. E20, and No. E22 fuses in the passenger's under-dash fuse/relay box |
