Relay And Control Unit Locations (2014 2015)

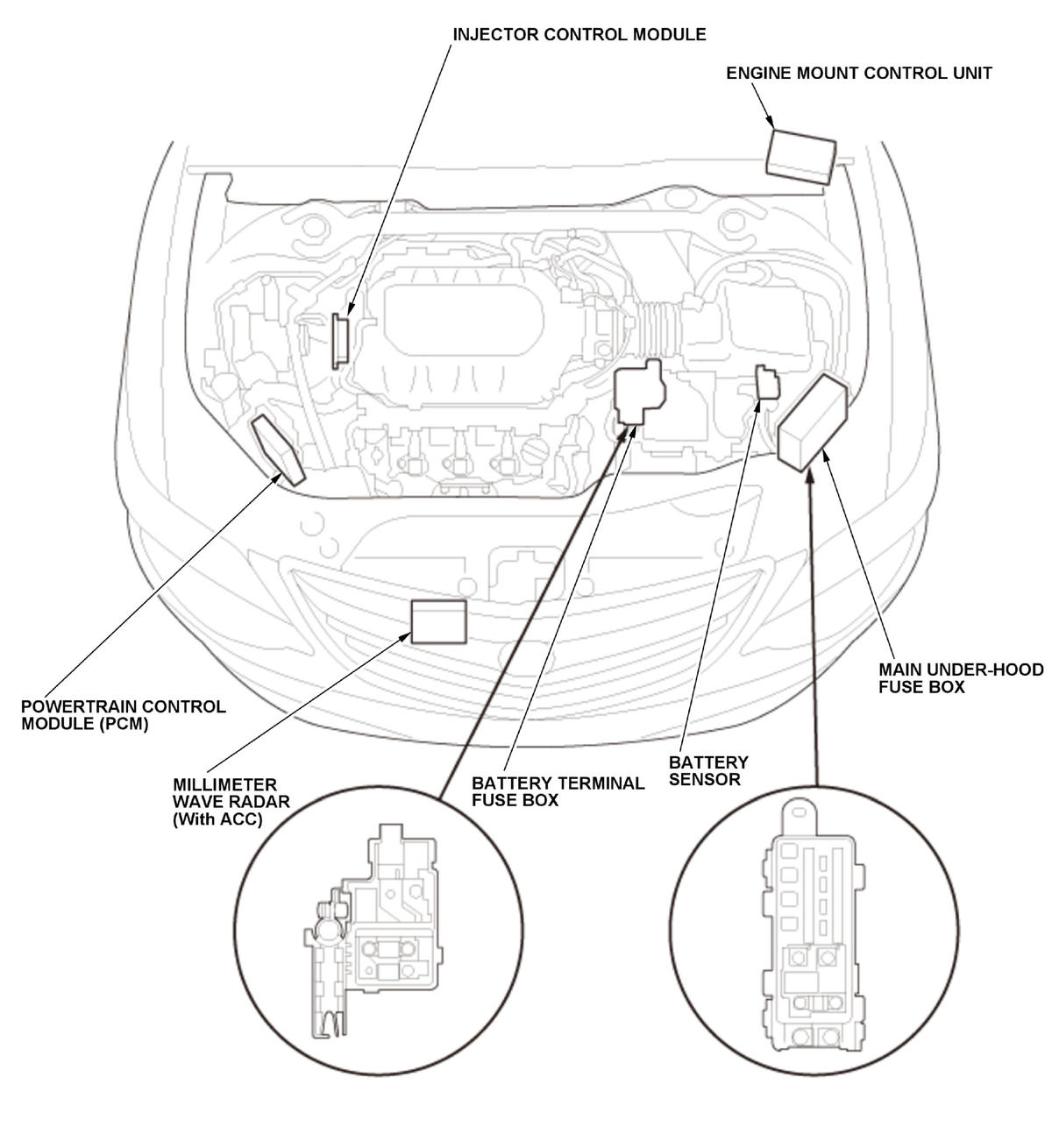

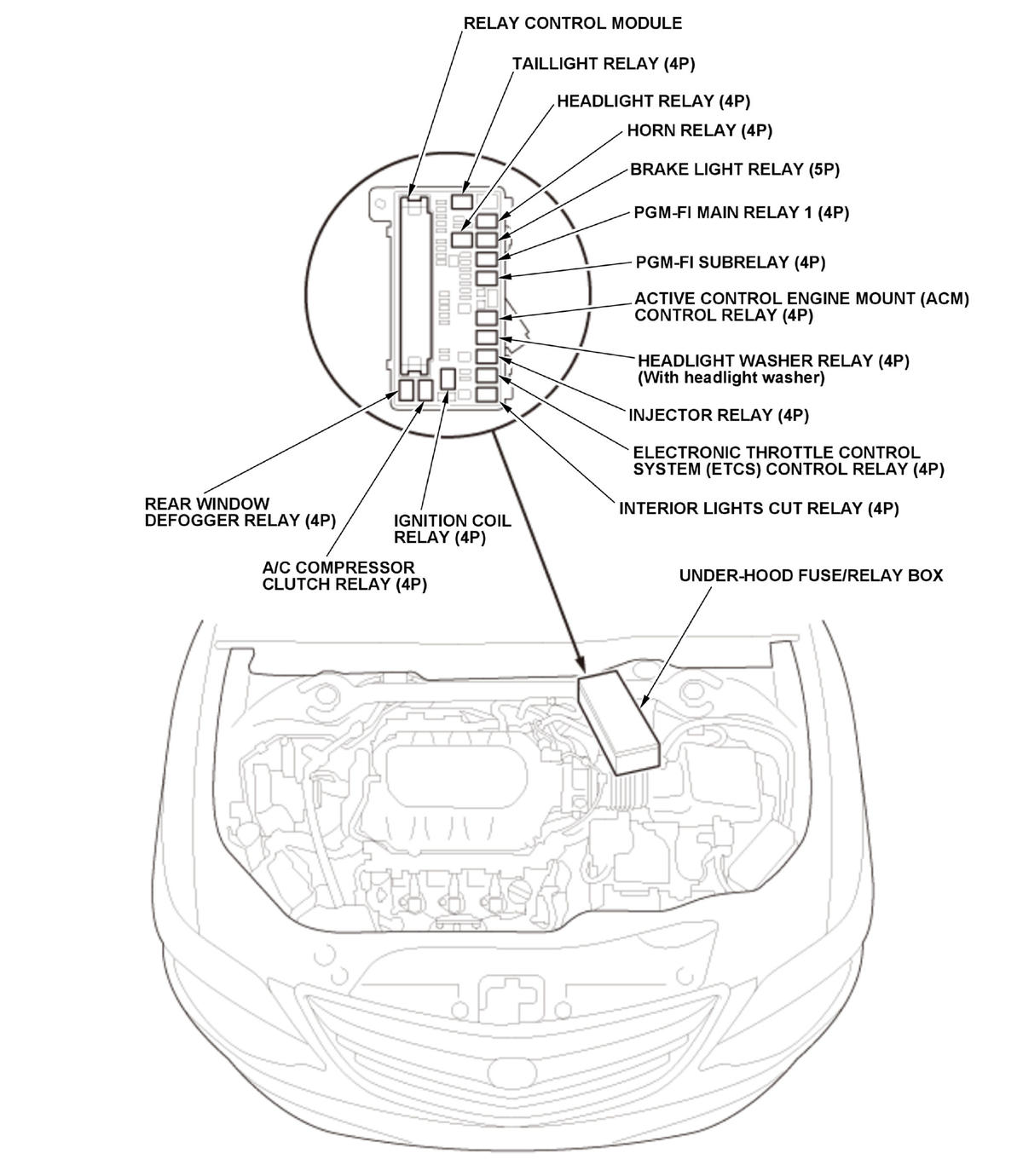

Engine Compartment - 1/4

Courtesy of HONDA, U.S.A., INC.

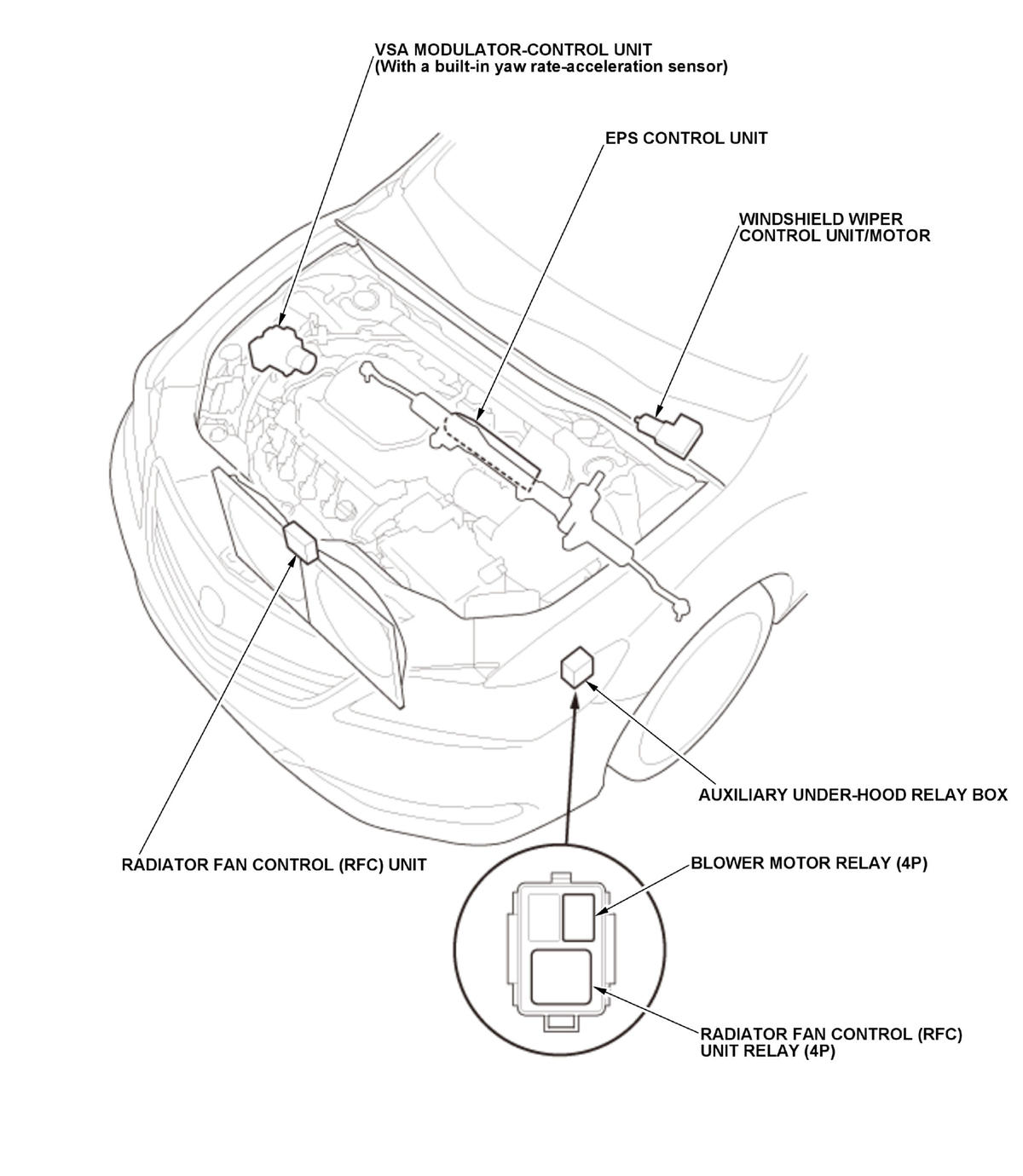

Engine Compartment - 2/4

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 3/4

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 4/4

Courtesy of HONDA, U.S.A., INC.

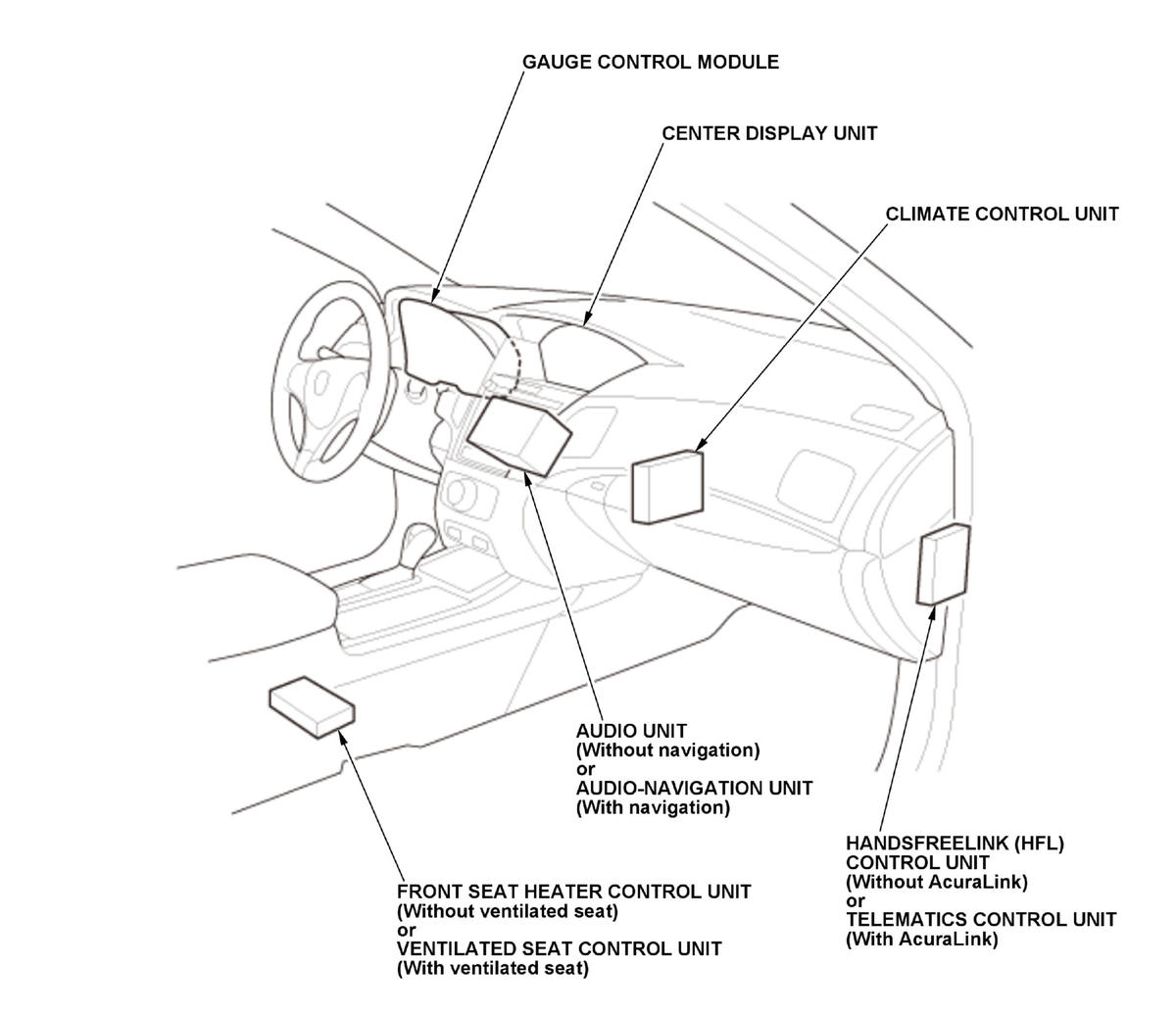

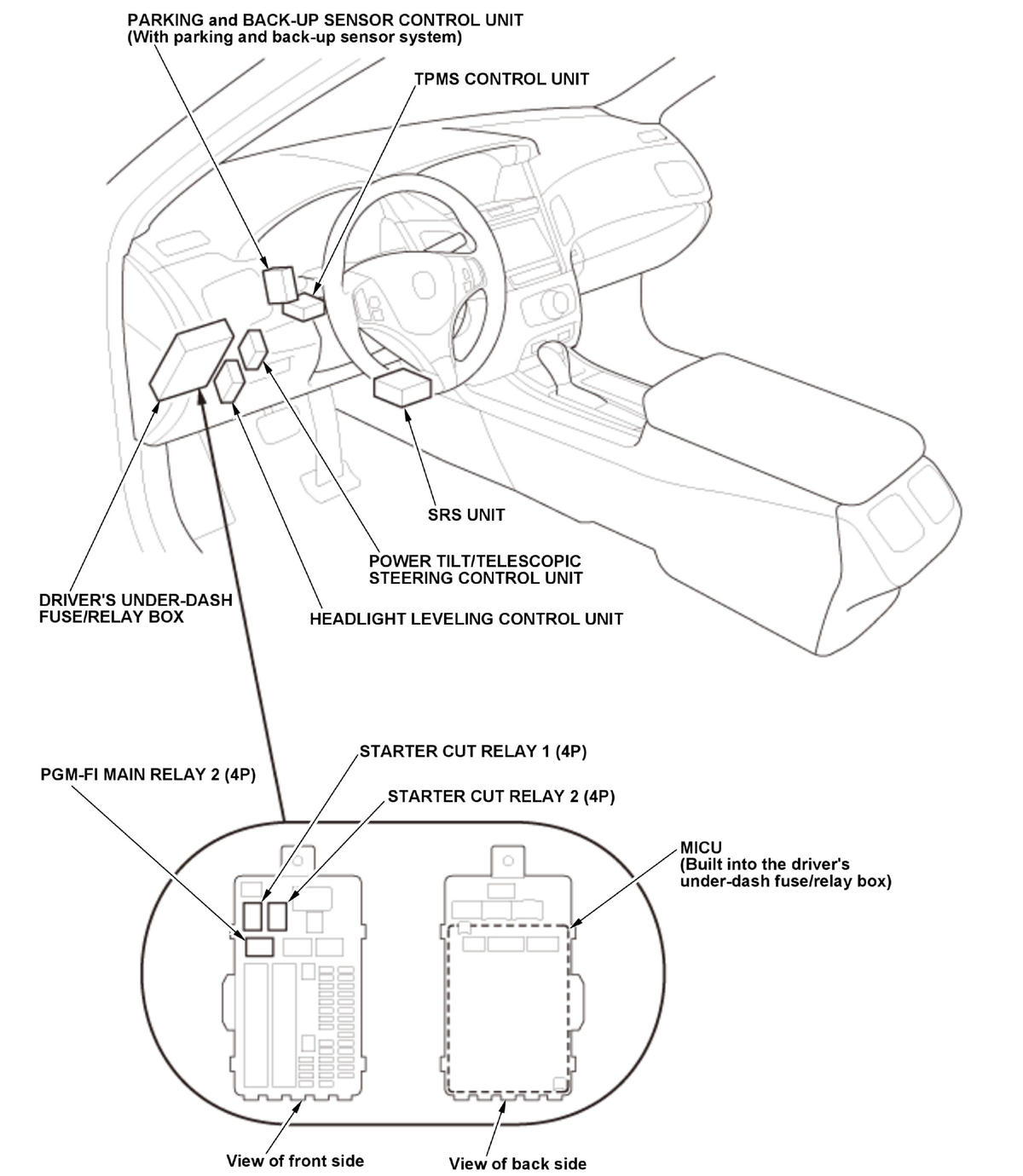

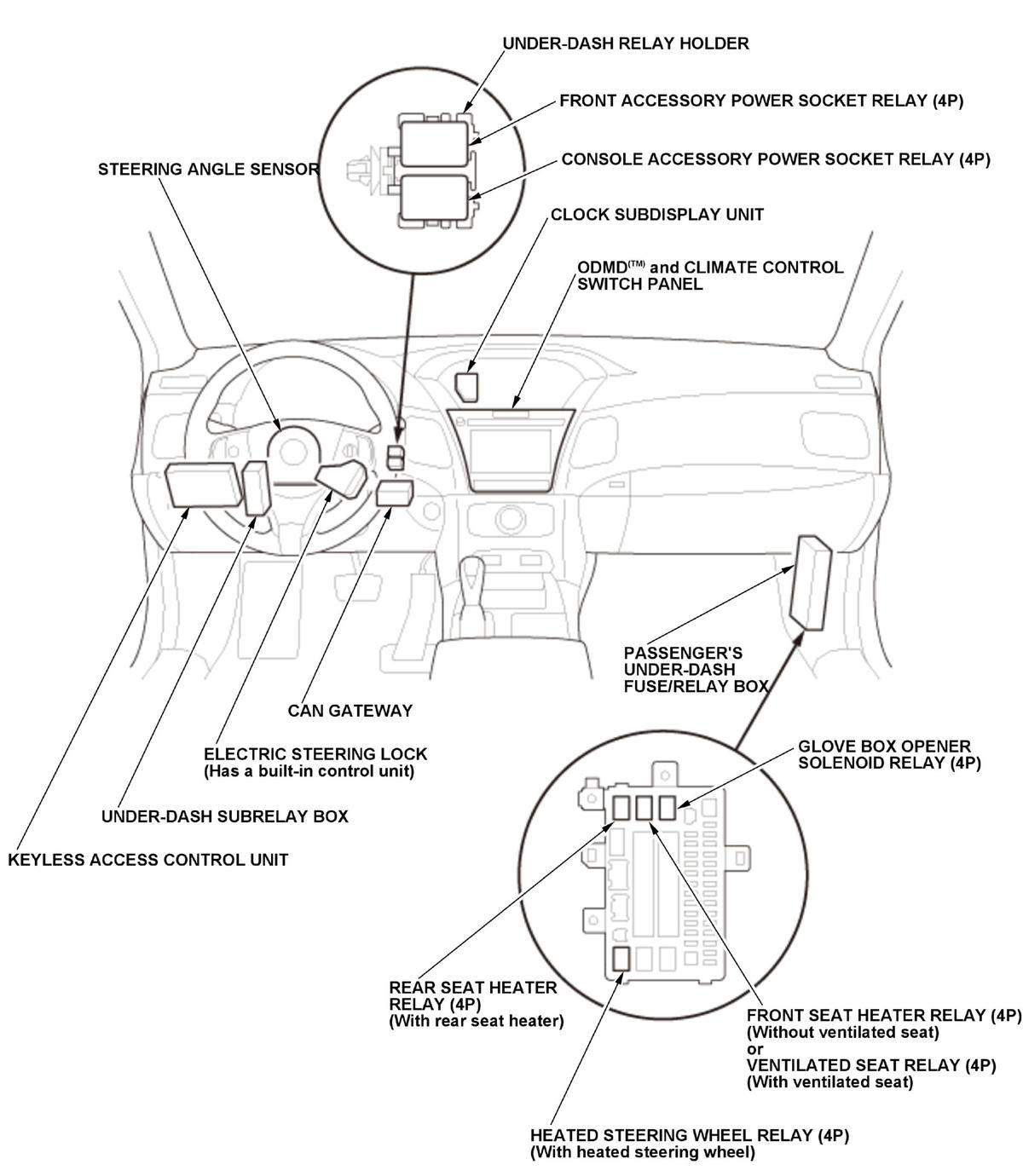

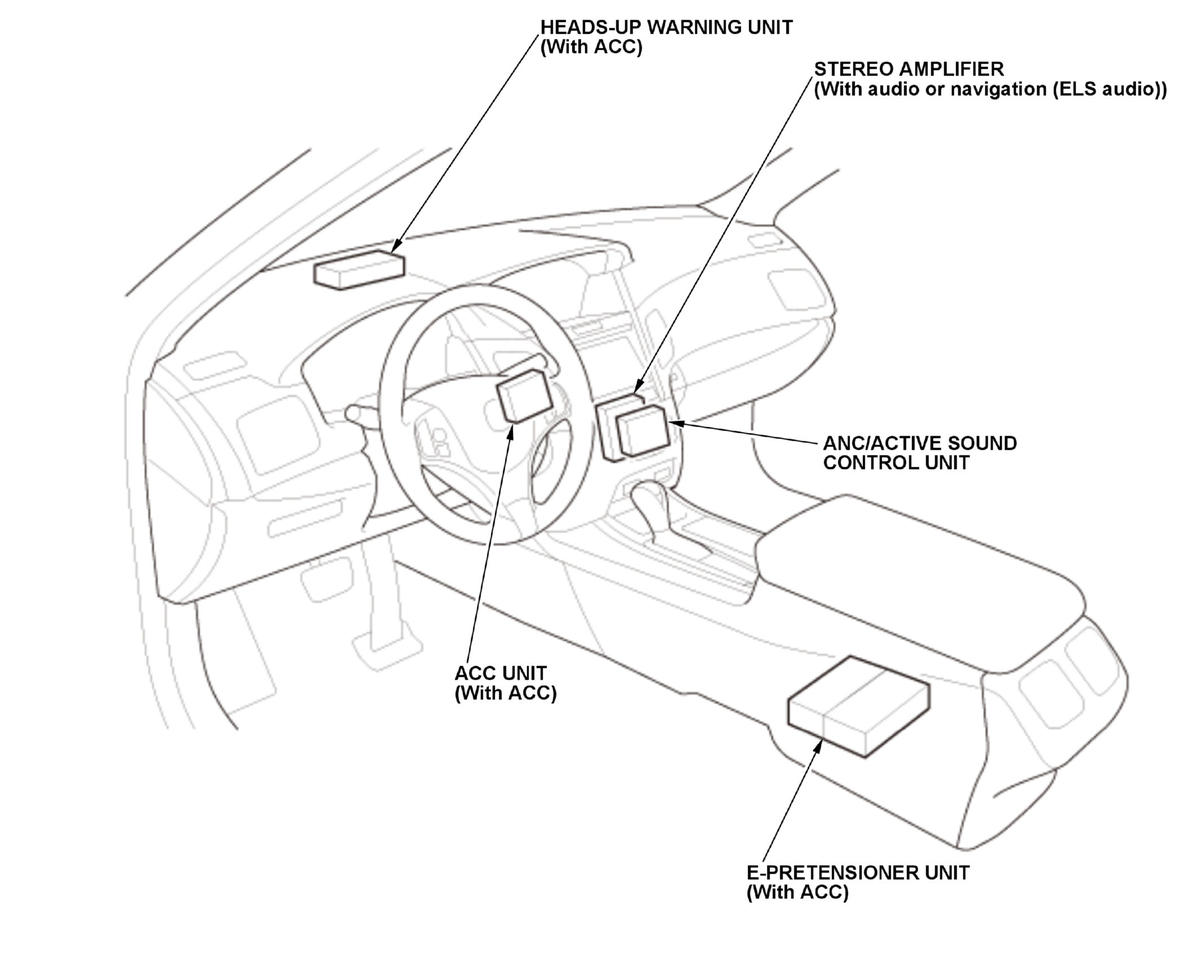

Dashboard - 1/4

Courtesy of HONDA, U.S.A., INC.

Dashboard - 2/4

Courtesy of HONDA, U.S.A., INC.

Dashboard - 3/4

Courtesy of HONDA, U.S.A., INC.

Dashboard - 4/4

Courtesy of HONDA, U.S.A., INC.

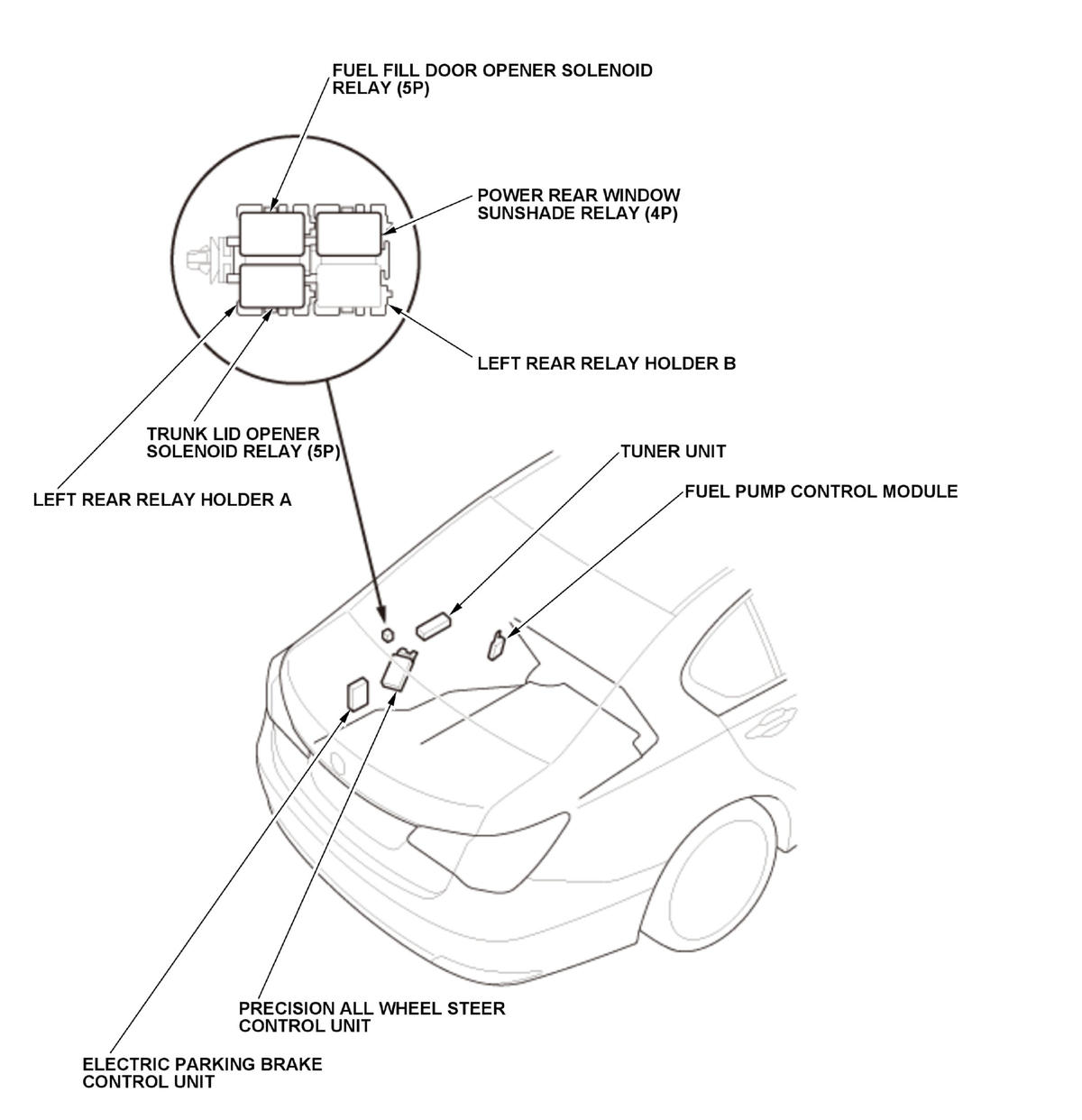

Rear - 1/2

Courtesy of HONDA, U.S.A., INC.

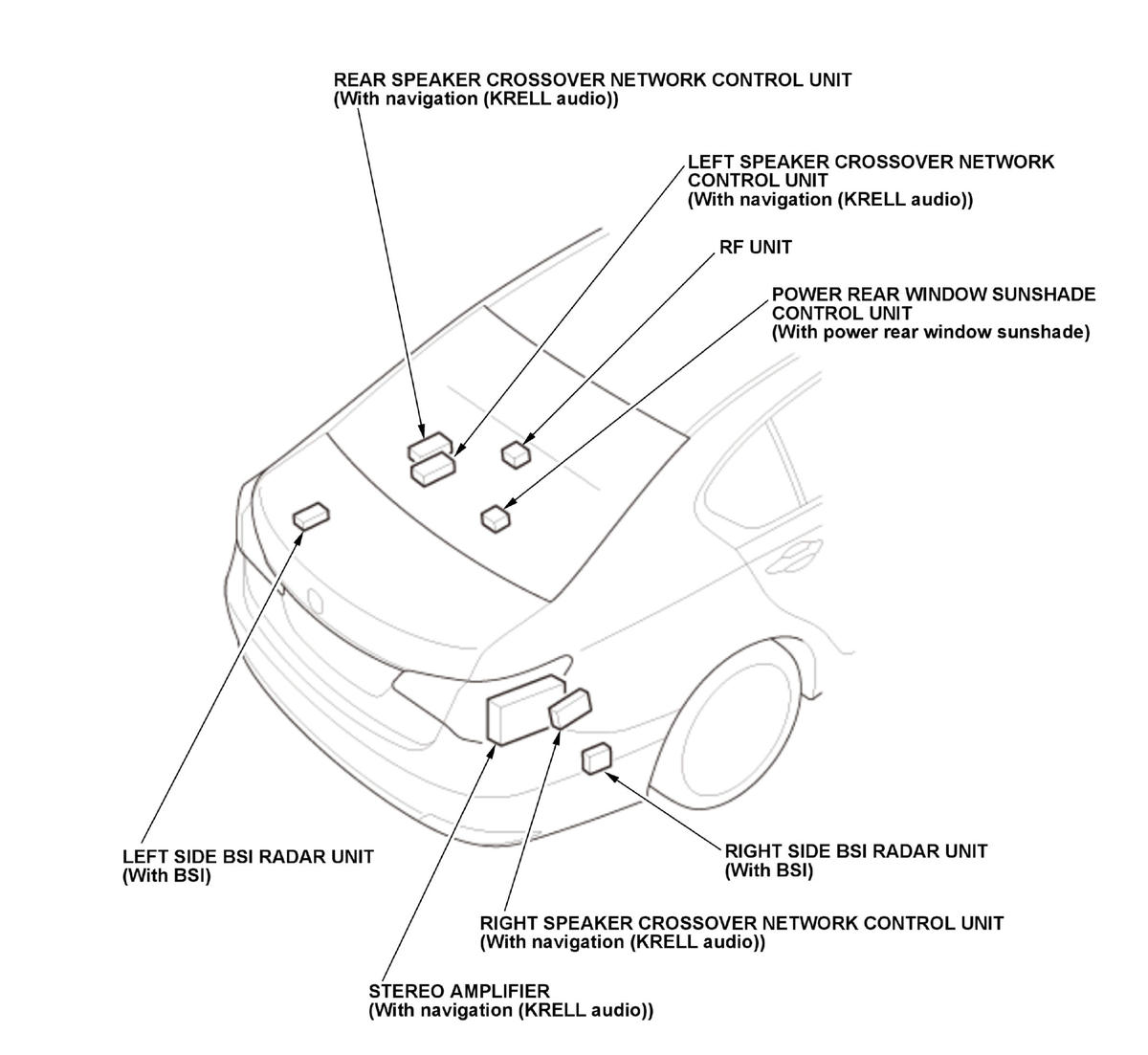

Rear - 1/2

Courtesy of HONDA, U.S.A., INC.

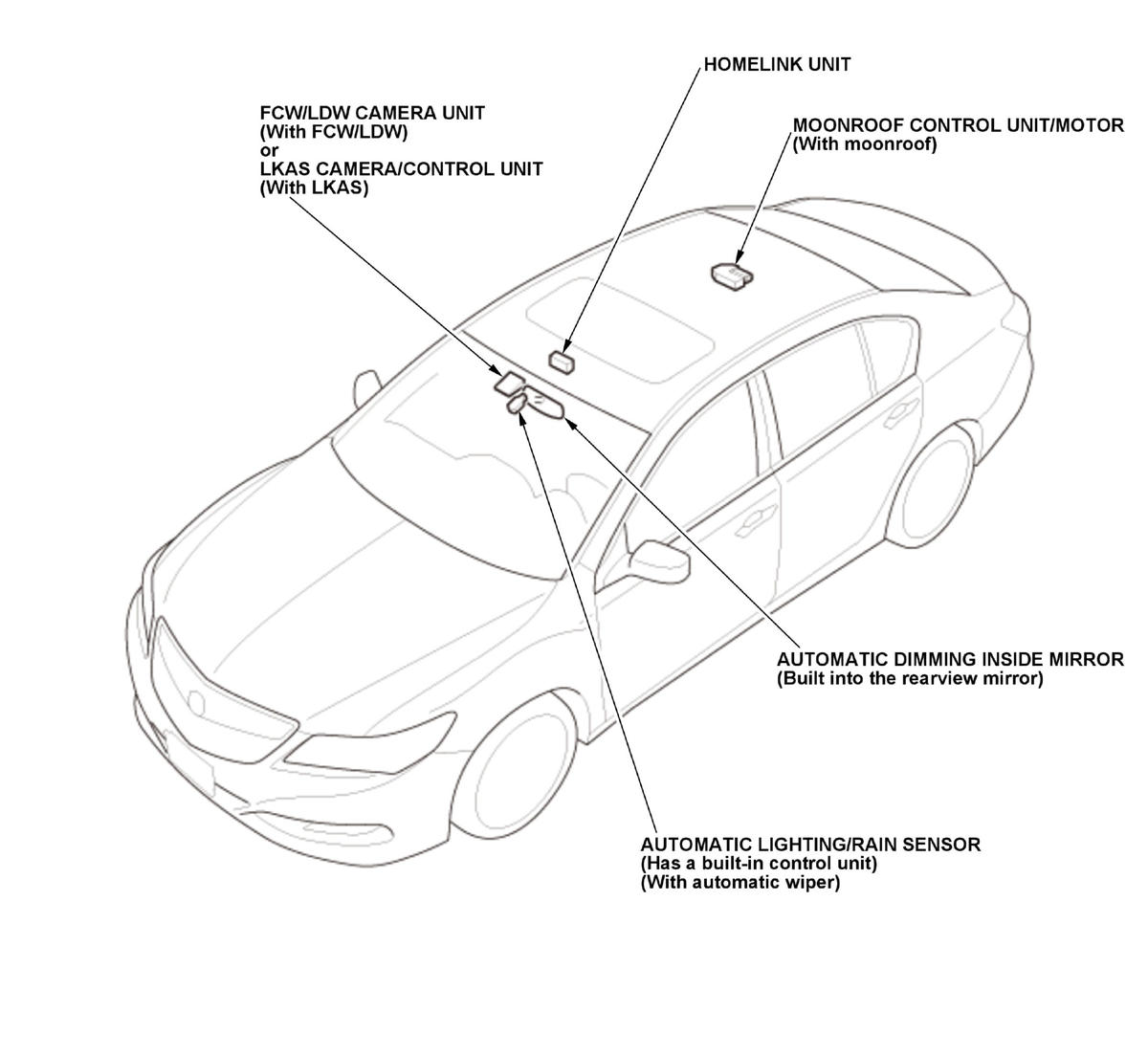

Roof

Courtesy of HONDA, U.S.A., INC.

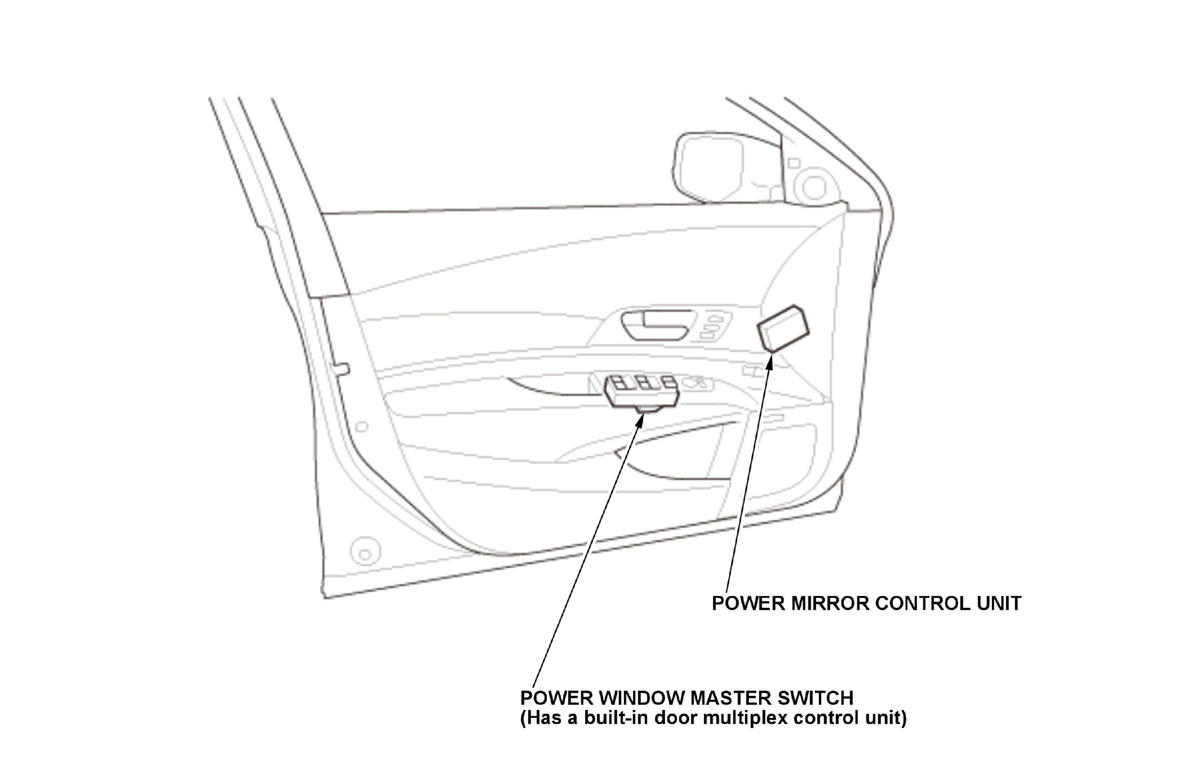

Door - 1/4 (Driver's)

Courtesy of HONDA, U.S.A., INC.

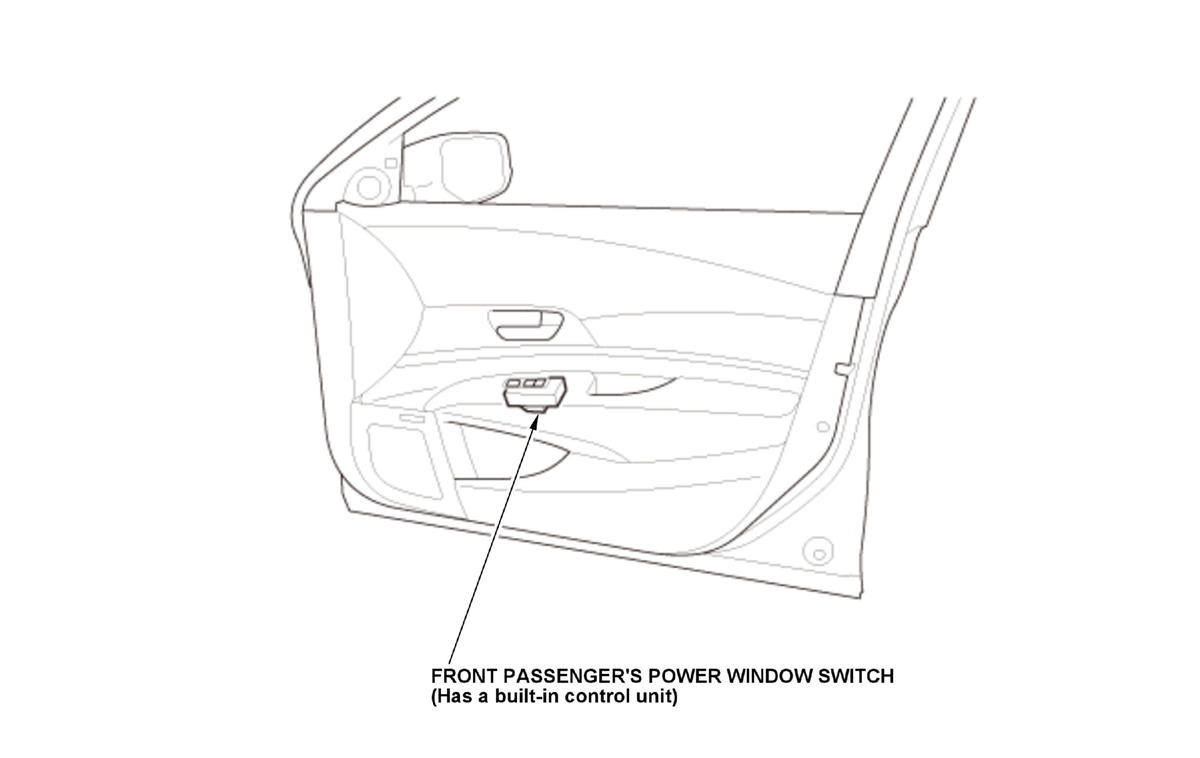

Door - 2/4 (Front Passenger's)

Courtesy of HONDA, U.S.A., INC.

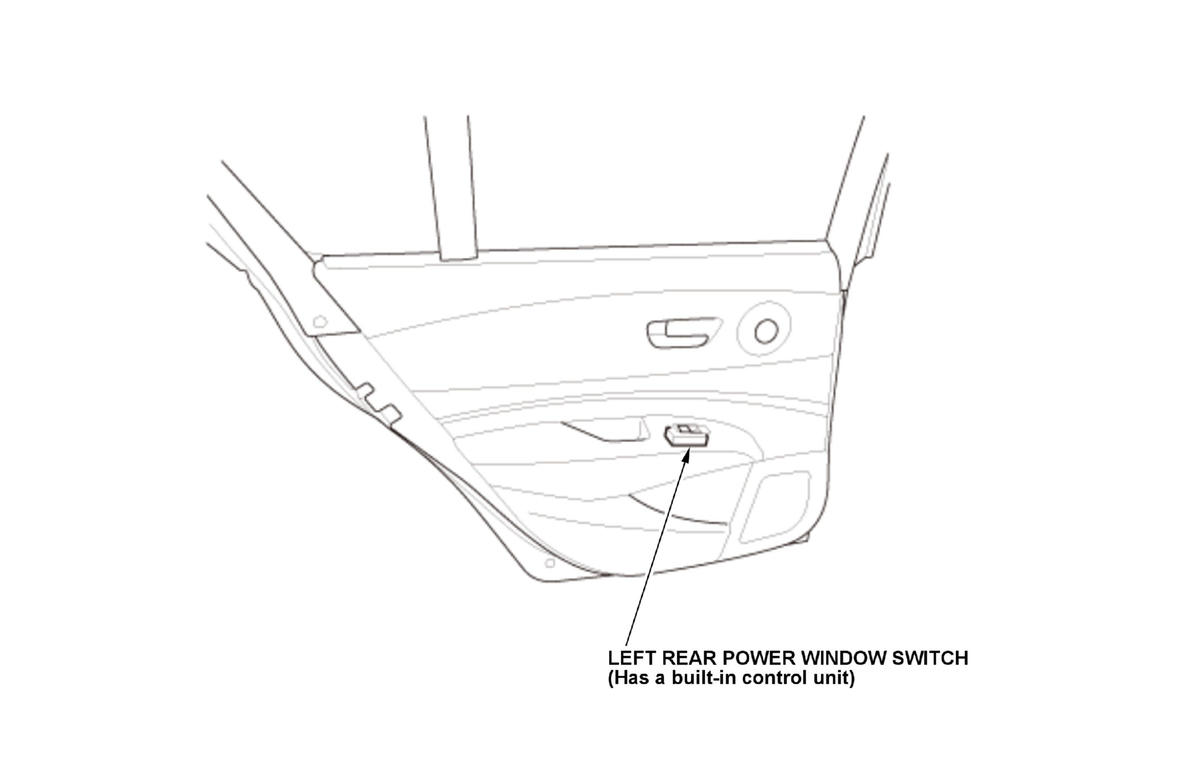

Door - 3/4 (Left Rear)

Courtesy of HONDA, U.S.A., INC.

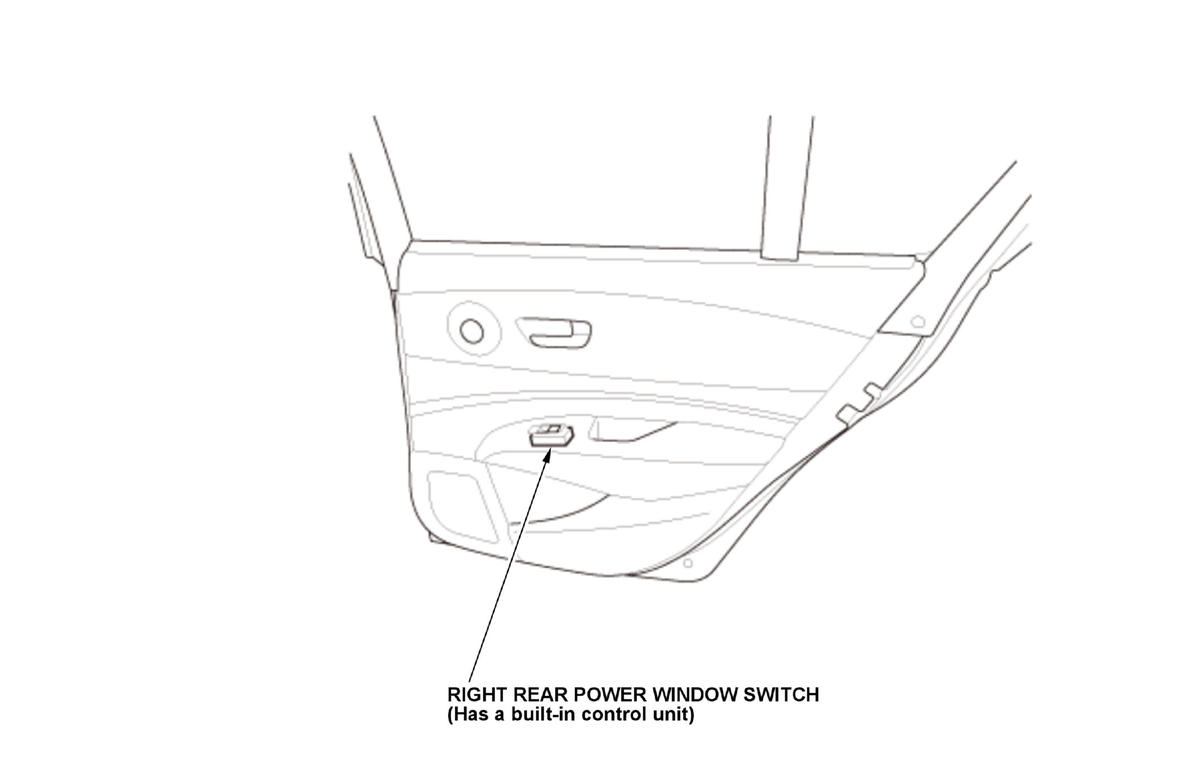

Door - 4/4 (Right Rear)

Courtesy of HONDA, U.S.A., INC.

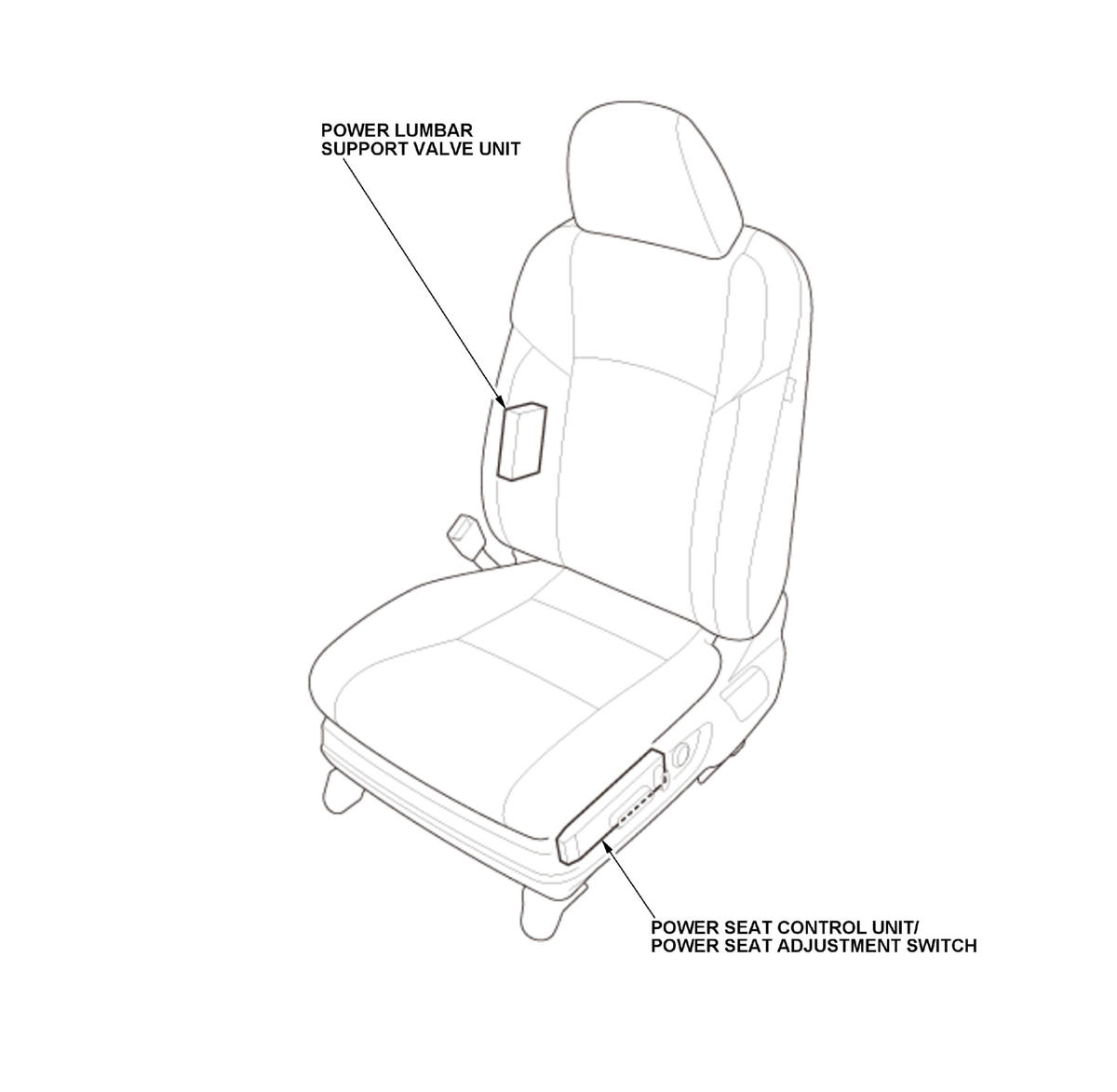

Seat - 1/3 (Driver's)

Courtesy of HONDA, U.S.A., INC.

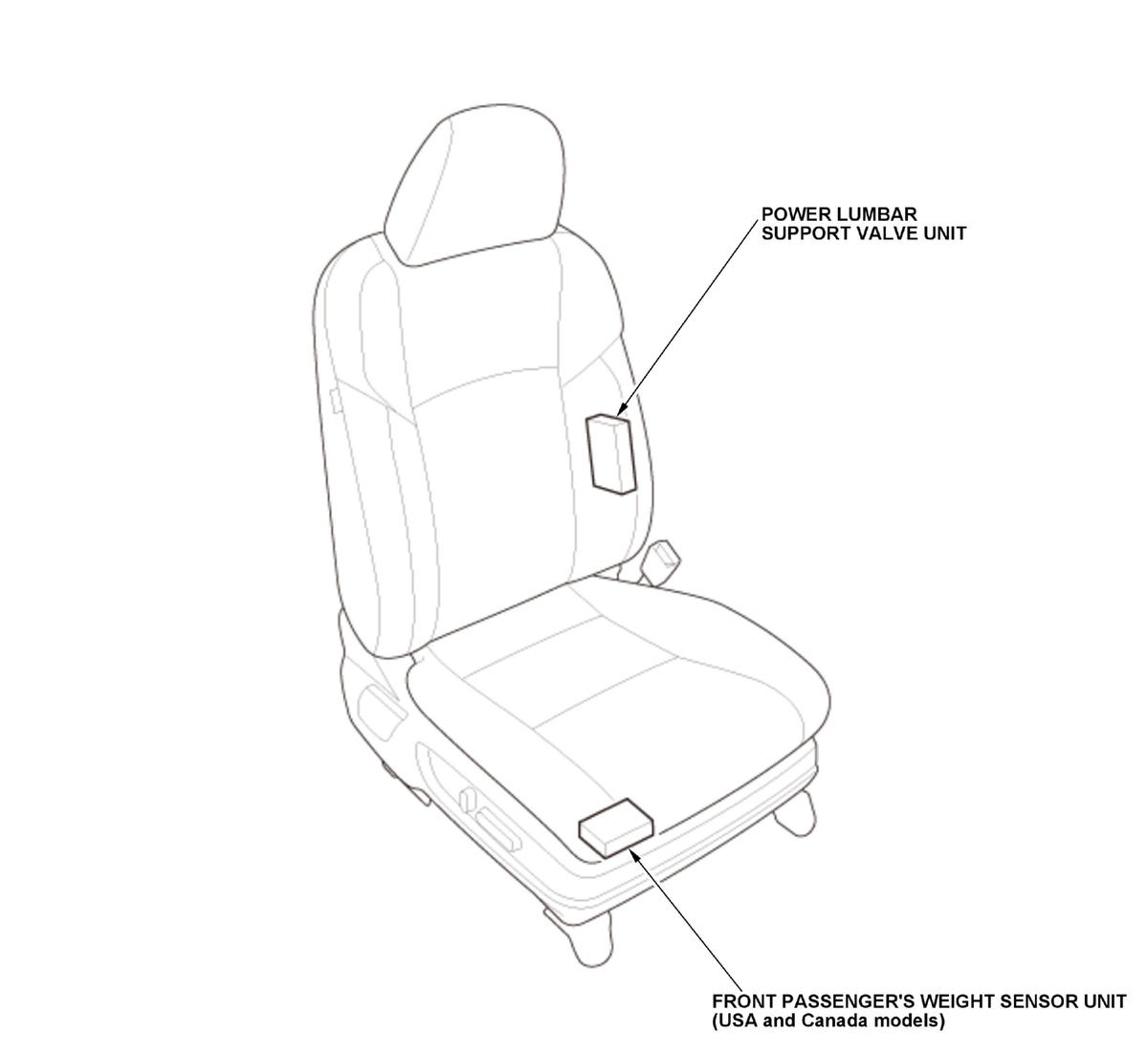

Seat - 2/3 (Front Passenger's)

Courtesy of HONDA, U.S.A., INC.

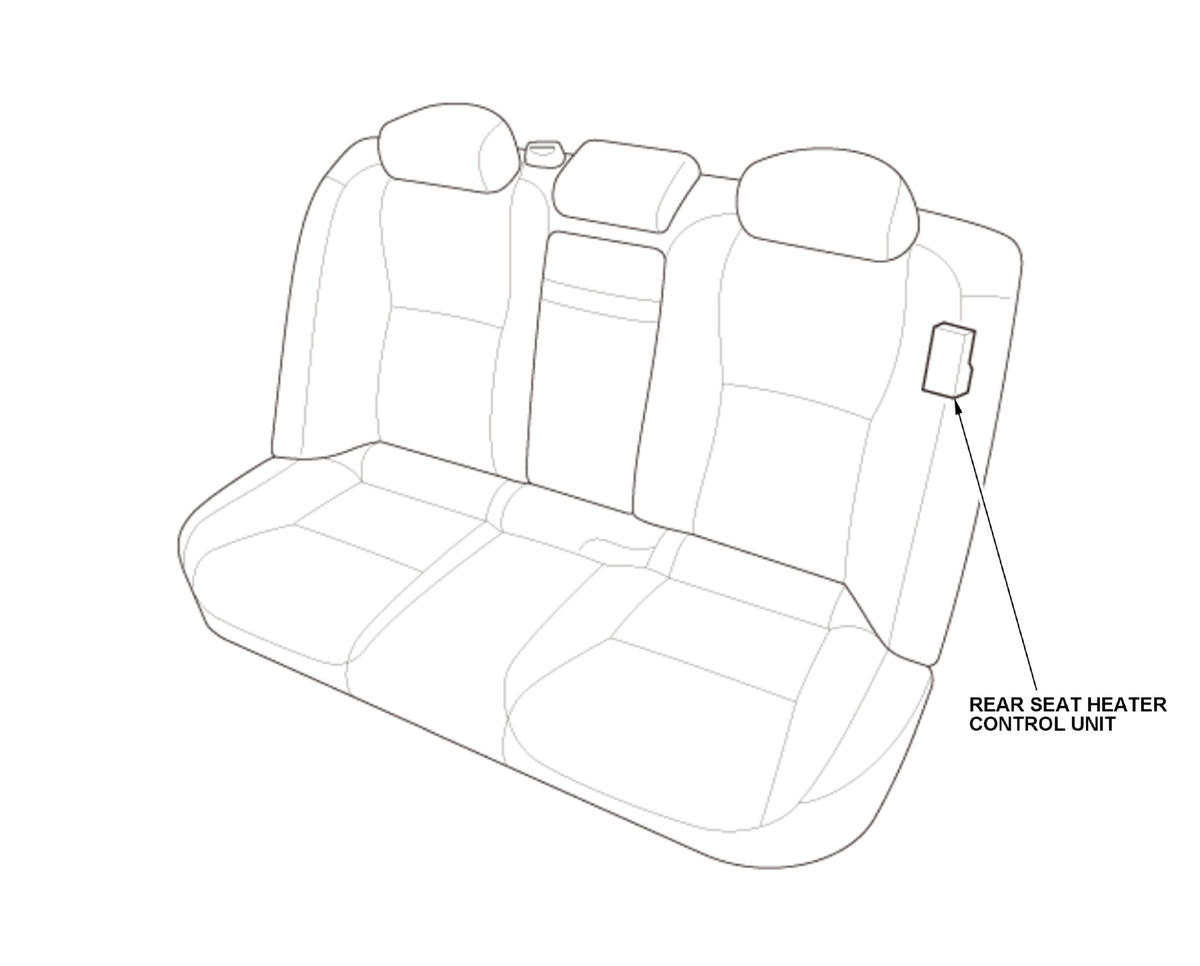

Seat - 3/3 (Rear)With Rear Seat Heater

Courtesy of HONDA, U.S.A., INC.

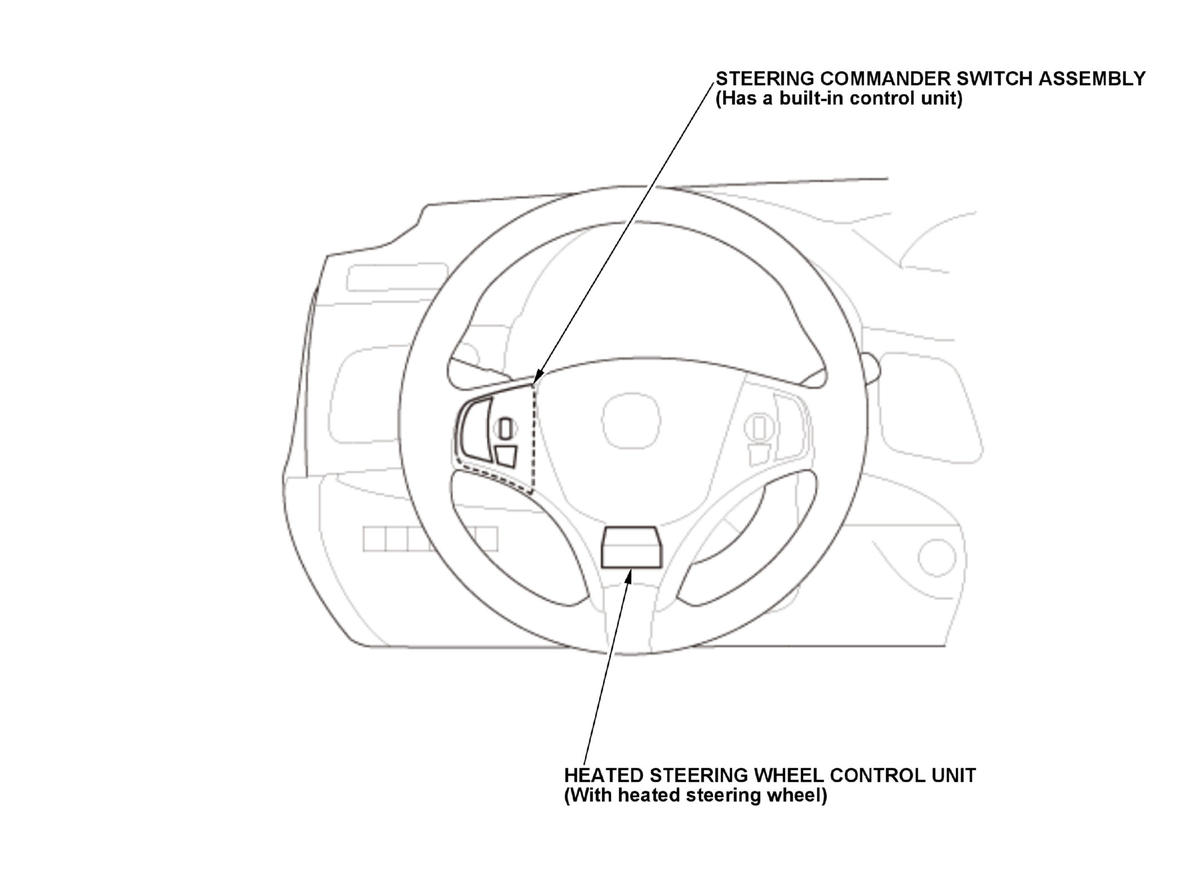

Steering

Courtesy of HONDA, U.S.A., INC.
