Accelerator Pedal Module Removal And Installation: Removal

  1. Accelerator Pedal Module - Remove
    GHH345811GHH345812Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH345811GHH345812Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

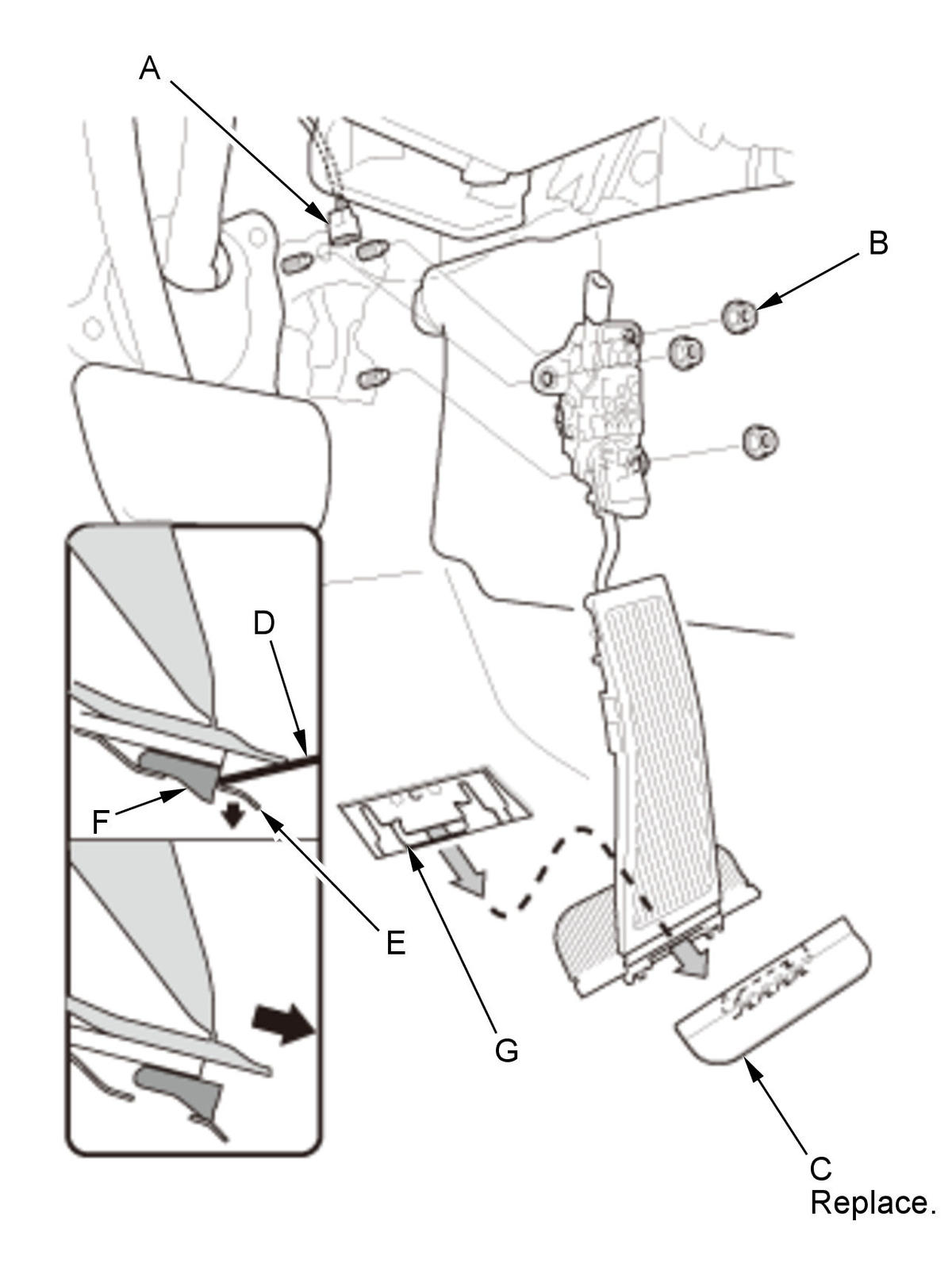

    		 1. Disconnect the accelerator pedal module connector (A).

    2. Remove the nuts (B), then remove the clip (C).

    3. Using a flat-tip screwdriver (D), push the lock (E), then remove the accelerator pedal pad (F) from the pedal stop (G).

    • The APP sensor is not available separately. Do not disassemble the accelerator pedal module.

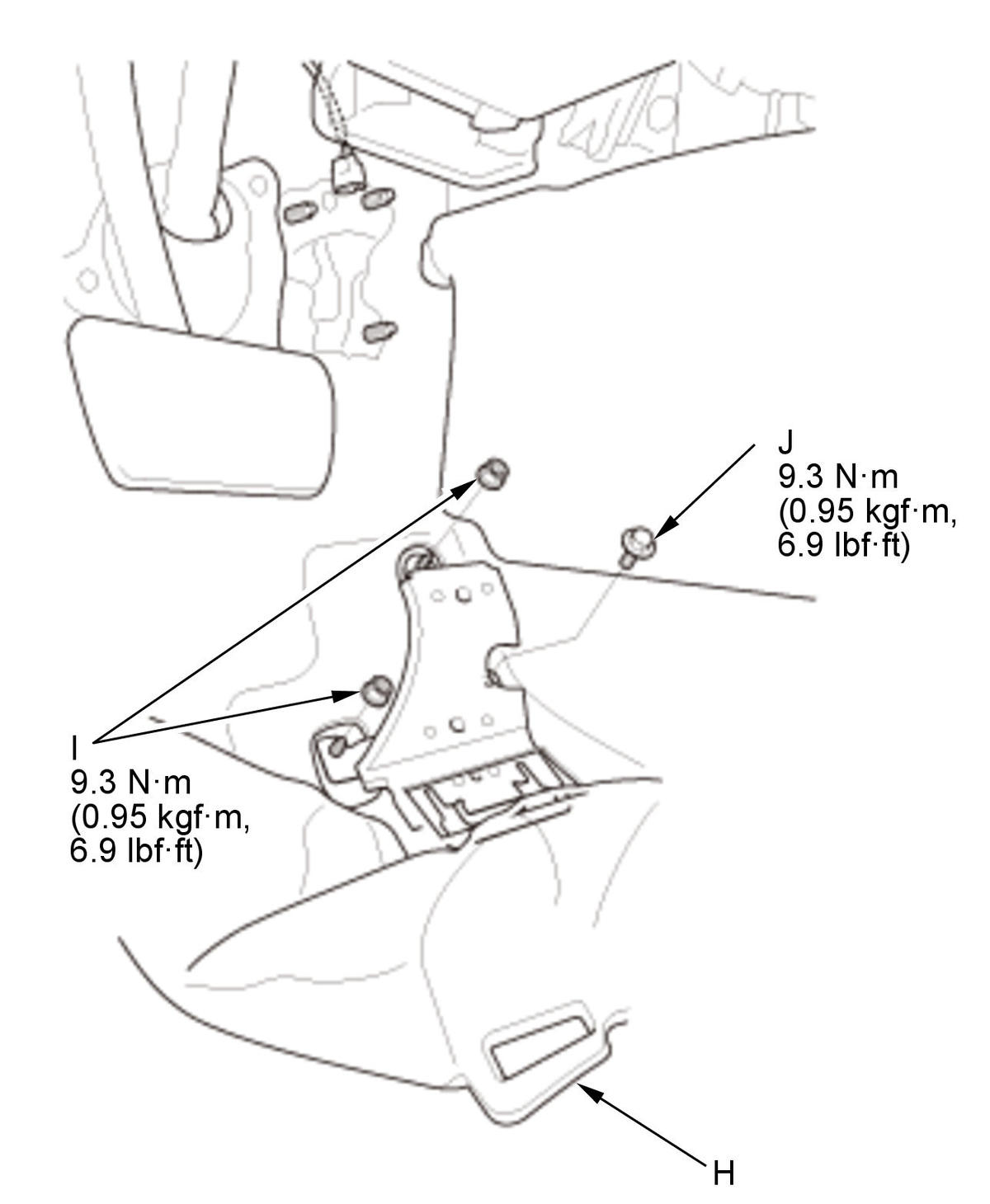

    • If the pedal stop is damaged, replace it by pulling back the carpet (H), and removing the nuts (I), the bolt (J), and the pedal stop.
