Run the Sensor Input Display Mode

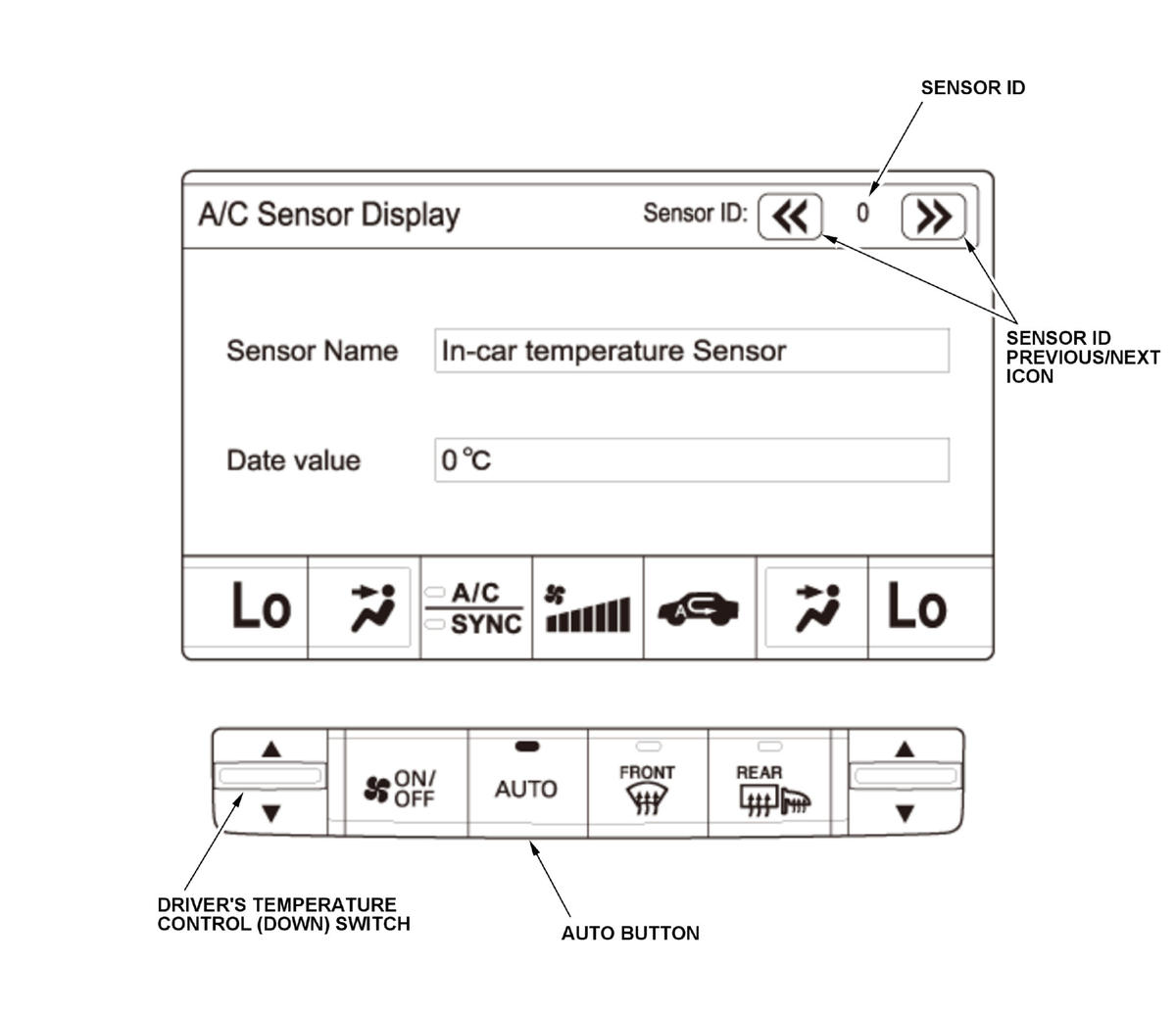

1. Press and hold both the AUTO button and the driver's temperature control (down) switch, then start the engine.

Courtesy of HONDA, U.S.A., INC.

2. Release the button and the switch. The display screen goes directly to the A/C sensor display mode shown. The display screen indicates the sensor ID and then the value for that sensor.

3. To advance to the next sensor, press the sensor ID previous/next icon.

The sensor values will be displayed in degrees Celsius (deg.C) or an alphanumeric code. Use the chart to convert the value to degrees Fahrenheit (deg.F).
If the sensor value displays "255", this indicates there is an open or short in the circuit or sensor. Check for DTCs using the HDS, or use the climate control self-diagnostic function.
If necessary, compare the sensor input display to a known-good vehicle under the same test conditions.
If the sensor displayed value is out of the normal range, refer to the sensor test or substitute a known-good sensor, and recheck.

Sensor ID	Item	Displayed Value
0	In-car temperature	deg.C
1	Outside air temperature	deg.C
2	Solar radiation sensor value: dark = 00, flashlight = 04, cloudy = 10, sunny = 65	10 W/m2
3	Engine coolant temperature	deg.C
4	Evaporator outlet air temperature	deg.C
5	Humidity value	%
6	A/C pressure value	0.1 MPa
7	Air quality value	%
8	Driver's air mix opening (low value indicates cooler air distribution, higher value indicates warmer air distribution)	% of opening
9	Passenger's air mix opening (low value indicates cooler air distribution, higher value indicates warmer air distribution)	% of opening
10	Rear air mix opening (low value indicates cooler air distribution, higher value indicates warmer air distribution)	% of opening
11	Driver's mode positioning	0.1 V
12	Passenger's mode positioning	0.1 V
13	Recirculation control opening	% of opening
14	Rear temperature control dial positioning	0.1 V
15	Vehicle speed (vehicle must be driven to display speed)	km/h
16	Vent temperature air out (TAO) (driver's)	deg.C

Celsius to Fahrenheit Conversion Table

deg.C	deg.F	deg.C	deg.F	deg.C	deg.F	deg.C	deg.F	deg.C	deg.F
0	32	10	50	20	68	30	86	40	104
1	34	11	52	21	70	31	88	41	106
2	36	12	54	22	72	32	90	42	108
3	37	13	55	23	73	33	91	43	109
4	39	14	57	24	75	34	93	44	111
5	41	15	59	25	77	35	95	45	113
6	43	16	61	26	79	36	97	46	115
7	45	17	63	27	81	37	99	47	117
8	46	18	64	28	82	38	100	48	118
9	48	19	66	29	84	39	102	49	120

deg.C	deg.F	deg.C	deg.F	deg.C	deg.F	deg.C	deg.F	deg.C	deg.F
50	122	60	140	70	158	80	176	90	194
51	124	61	142	71	160	81	178	91	196
52	126	62	144	72	162	82	180	92	198
53	127	63	145	73	163	83	181	93	199
54	129	64	147	74	165	84	183	94	201
55	131	65	149	75	167	85	185	95	203
56	133	66	151	76	169	86	187	96	205
57	135	67	153	77	171	87	189	97	207
58	136	68	154	78	172	88	190	98	208
59	138	69	156	79	174	89	192	99	210

Alphanumeric Conversion Table

Display Reading (Alphanumeric)	Value
0 thru 200	0 thru 200
201 thru 209	-1 thru -9
210 thru 219	-10 thru -19
220 thru 229	-20 thru -29
230 thru 239	-30 thru -39
240 thru 249	-40 thru -49
250 thru 254	Not used
255	Er

Alphanumeric Conversion Table (Driver's and Passenger's Mode Positioning)

Display Reading (Voltage)	Mode Position
4.5	VENT1
4.1	VENT2
3.4	HEAT/VENT1
3.0	HEAT/VENT2
2.6	HEAT1
2.1	HEAT2
1.8	HEAT/DEF1
1.2	HEAT/DEF2
0.5	DEF

4. To cancel the sensor input display mode, press the AUTO button or turn the vehicle to the OFF (LOCK) mode.
