Engine Start/Stop Switch Removal and Installation: Removal

  1. Driver's Dashboard Lower Cover - Remove

    Remove the driver's dashboard lower cover .

  2. Engine Start/Stop Switch - Remove

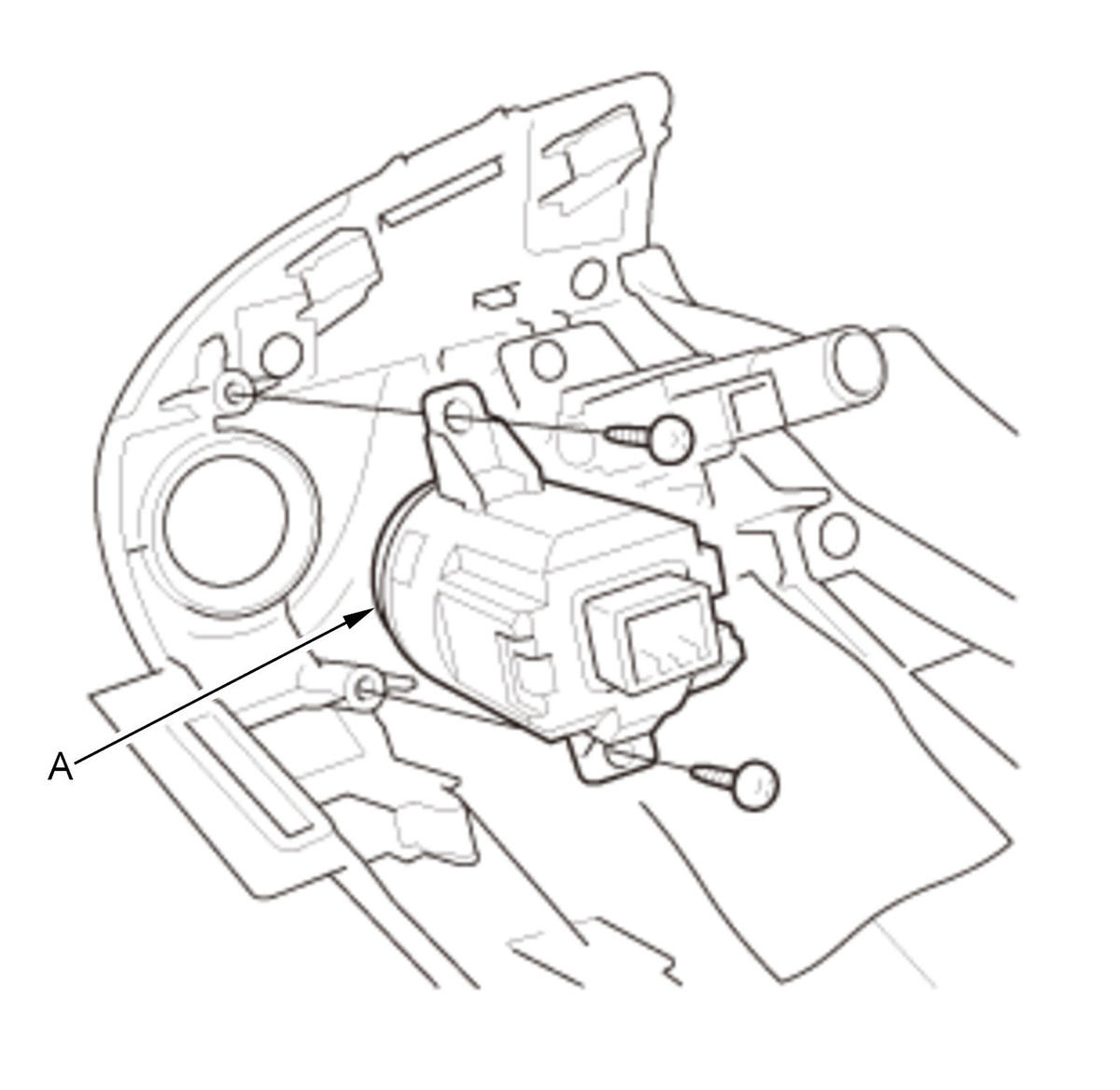

    GHH350556Courtesy of HONDA, U.S.A., INC.

    Remove the engine start/stop switch (A).
