EGR Valve Removal And Installation: Installation

  1. EGR Valve - Install

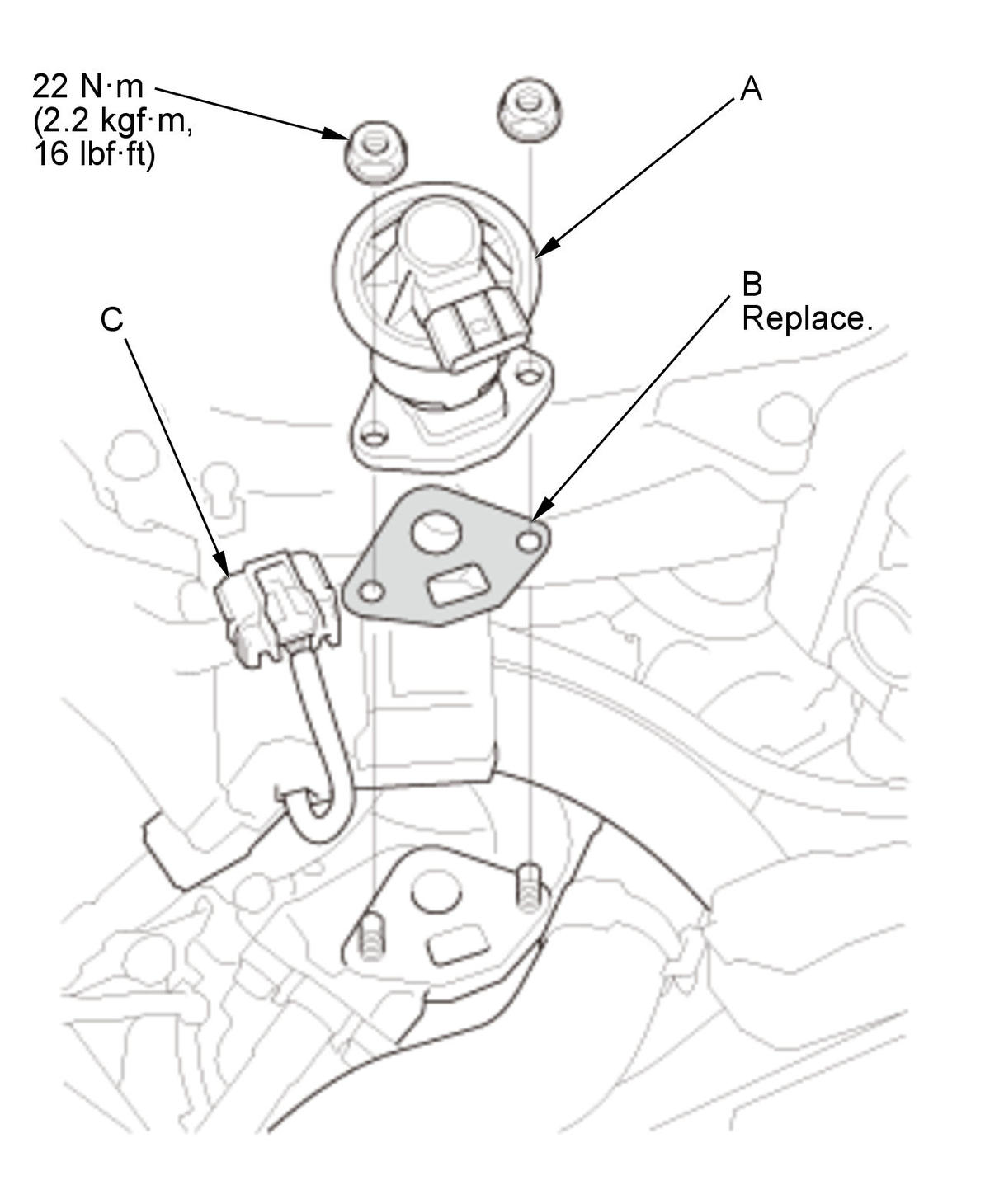

    Fig 1: EGR Valve With Torque Specifications
    GHH345867Courtesy of HONDA, U.S.A., INC.
    1. Install the EGR valve (A) with a new gasket (B).

    2. Connect the EGR valve connector (C).
  2. Engine Cover - Install

    Install the engine cover .
