Engine Removal And Installation (2018 2019 2020): Installation

NOTE:

• How to read the torque specifications .
• Reinstall the mounting bolts/support nuts in the sequence given in the following steps. Failure to follow this sequence may cause excessive noise and vibration, and reduce engine mount life.

1. Engine Mount Bracket - Install

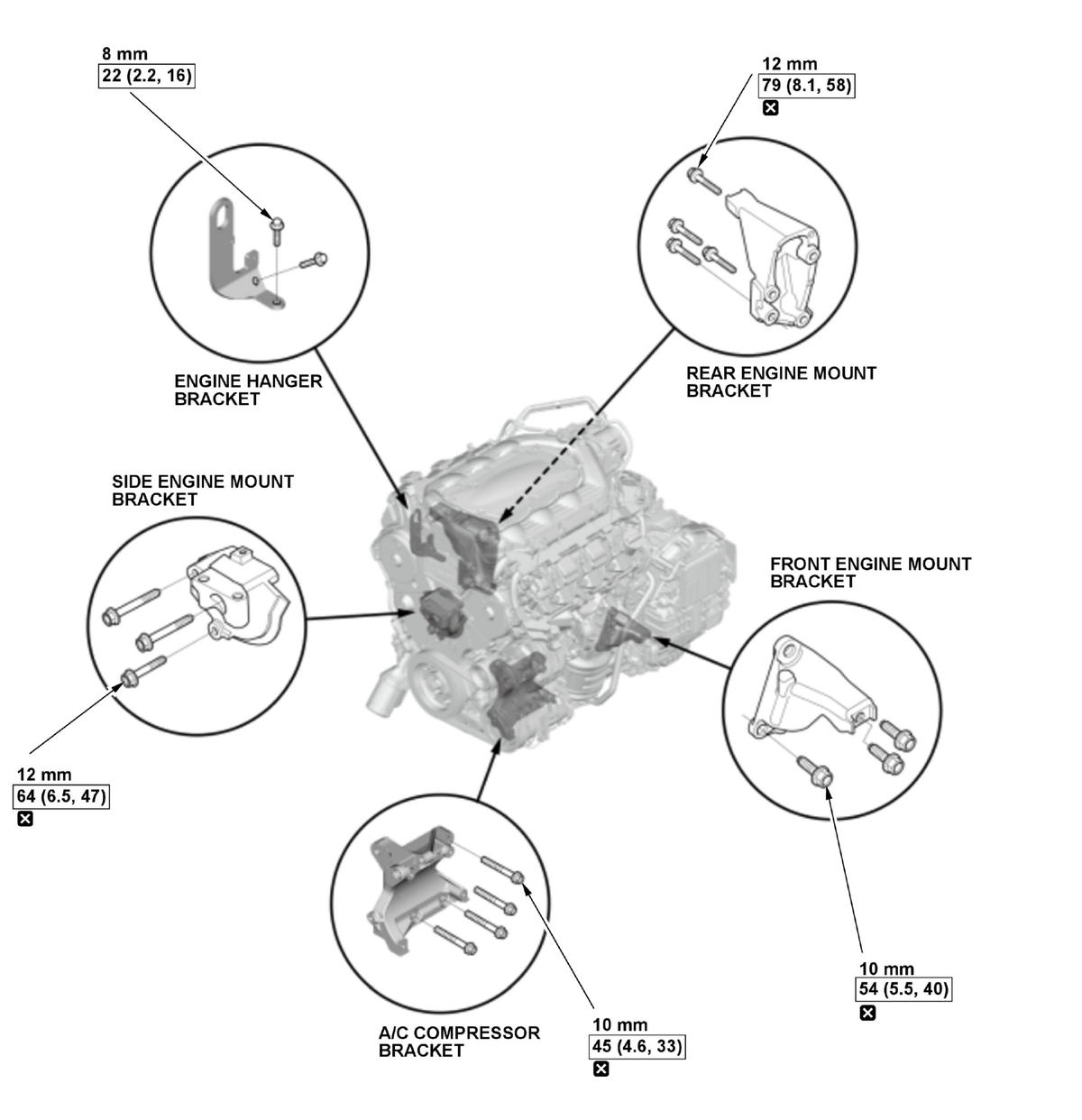

   1. Install the engine mount brackets and the accessory brackets, then tighten the bolts to the specified torque.

   Fig 1: Engine Mount Bracket With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.
2. Engine - Install

   Courtesy of HONDA, U.S.A., INC.

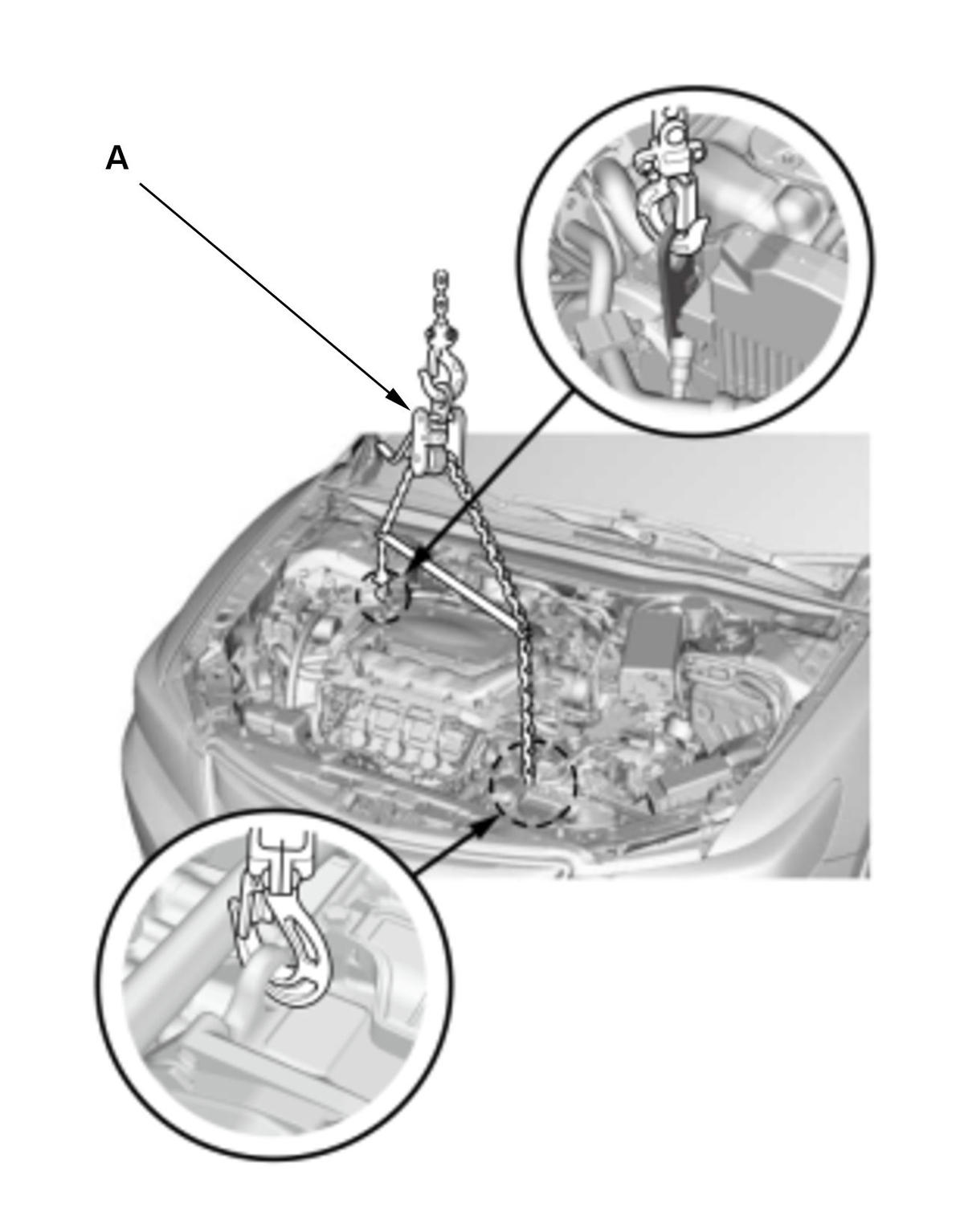

   1. Position the engine/transmission under the vehicle. Be sure that they are properly aligned. Carefully lower the vehicle until the engine/transmission are properly positioned in the engine compartment. Make sure the vehicle is not resting on any part of the engine/transmission. Support the engine/transmission with a chain hoist (A) and carefully raise the engine/transmission into place. NOTE:  Reinstall the mounting bolts/support nuts in the sequence given in the following steps. Failure to follow this sequence may cause excessive noise and vibration, and reduce engine mount life.

3. Upper Half of Side Engine Mount Bracket Mounting Bolt - Loosely Install

   Courtesy of HONDA, U.S.A., INC.

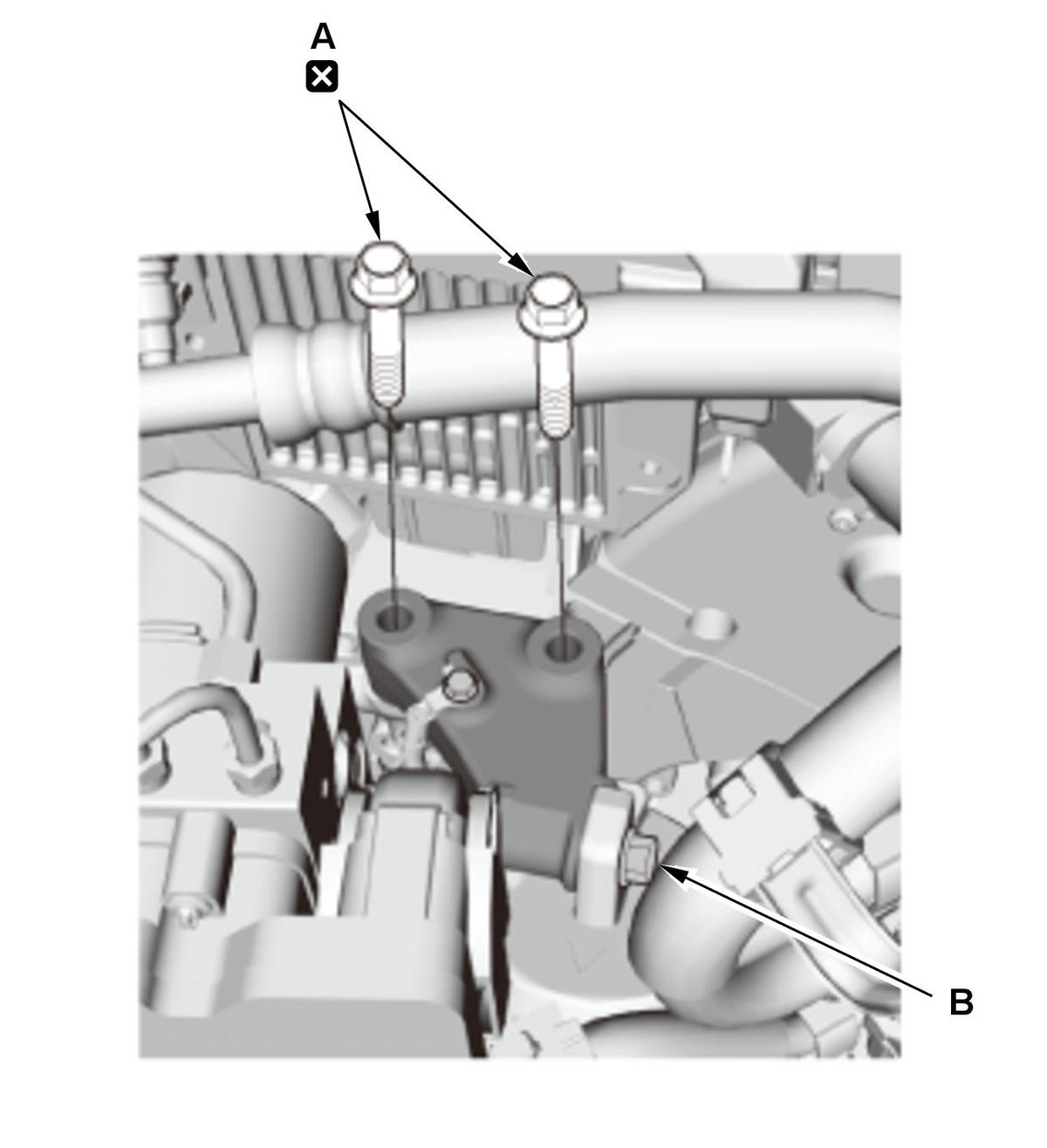

   1. Loosely install the new mounting bolts (A) into the upper half of the side engine mount bracket. 2. Loosen the upper half of the side engine mount bracket mounting bolt (B).

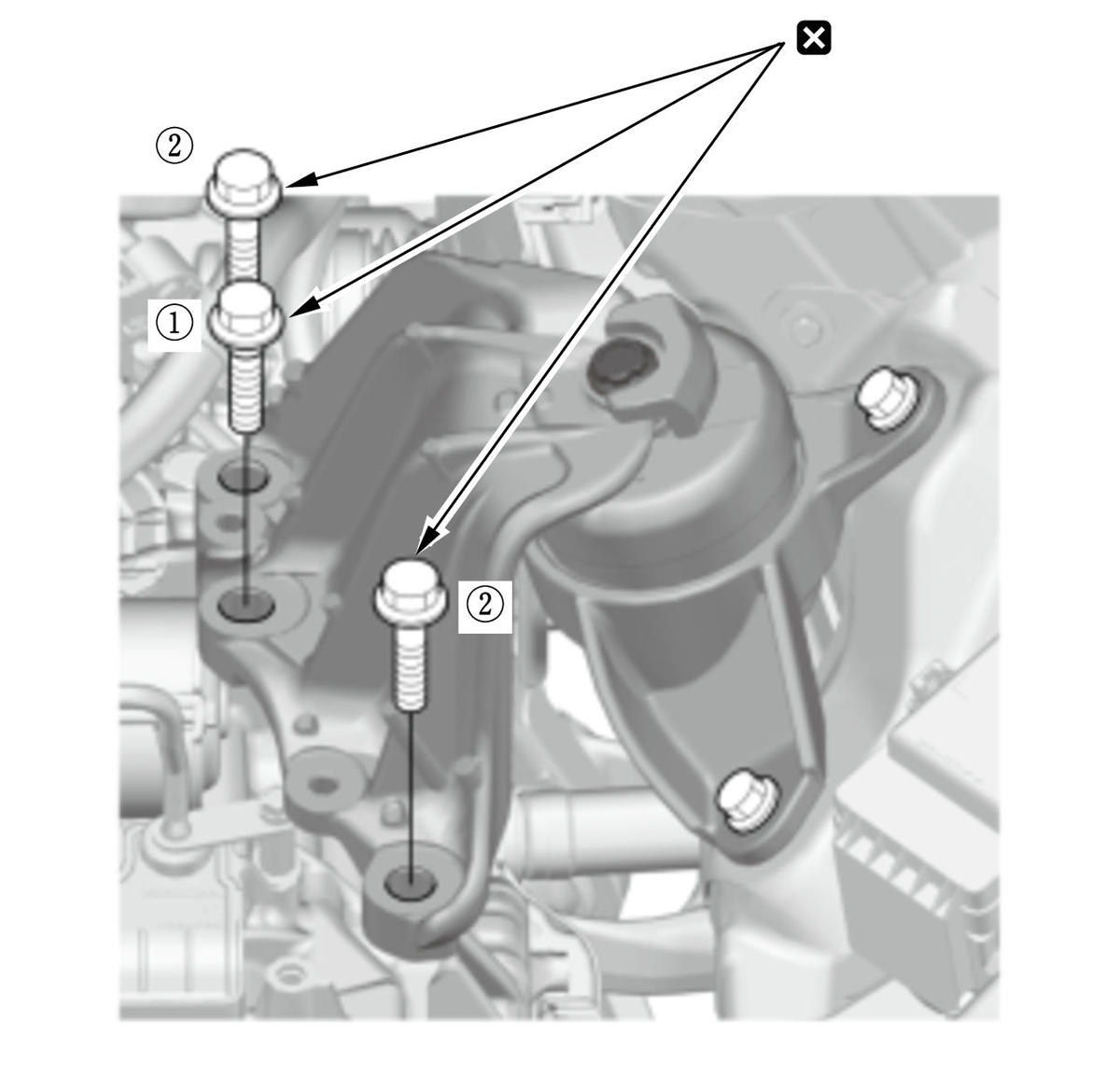

4. Upper Transmission Mount Bracket Mounting Bolt - Loosely Install

   Courtesy of HONDA, U.S.A., INC.

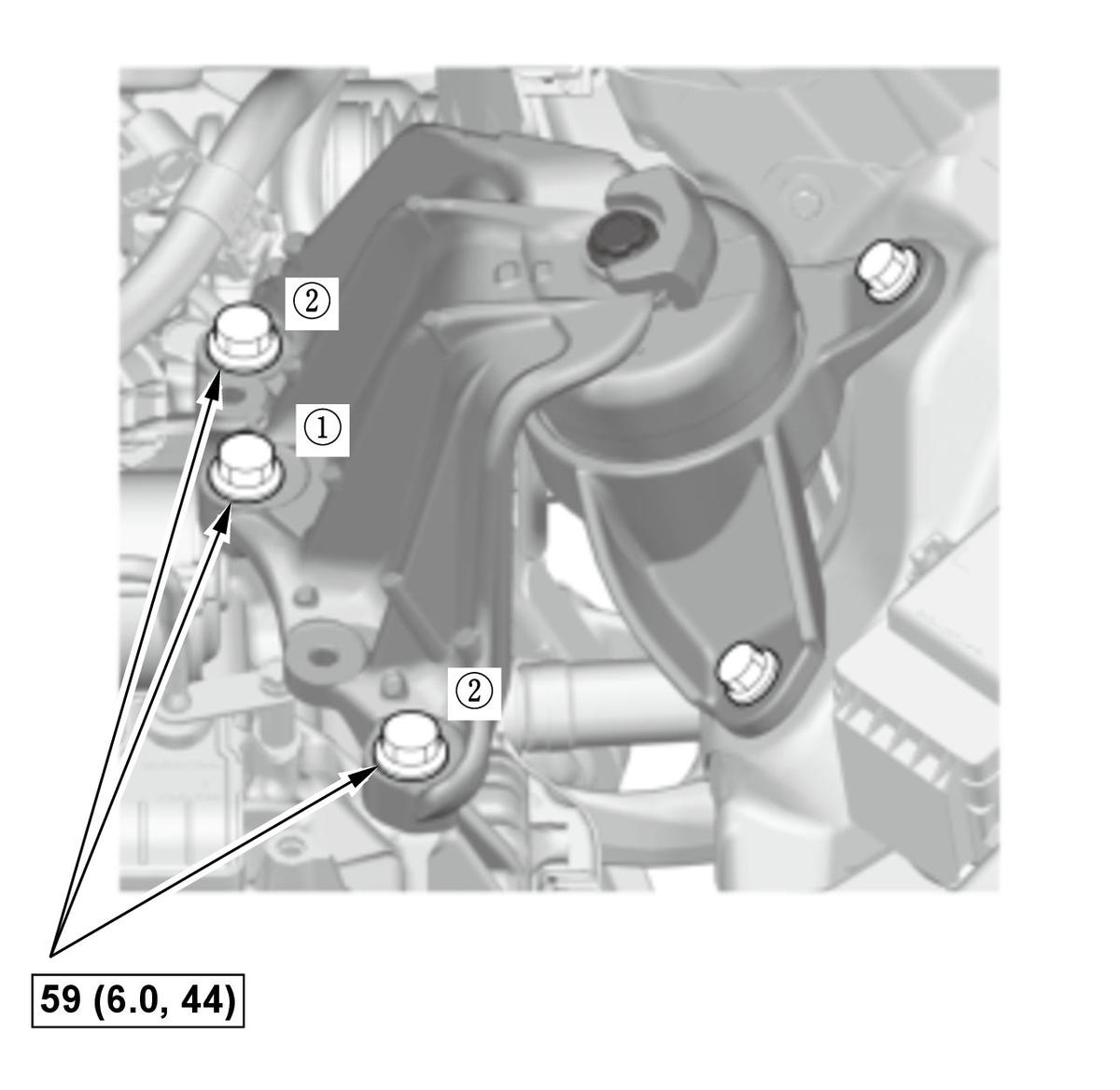

   1. Loosely install the new mounting bolts in the numbered sequence shown.

5. Engine Support Hanger - Install

   Courtesy of HONDA, U.S.A., INC.

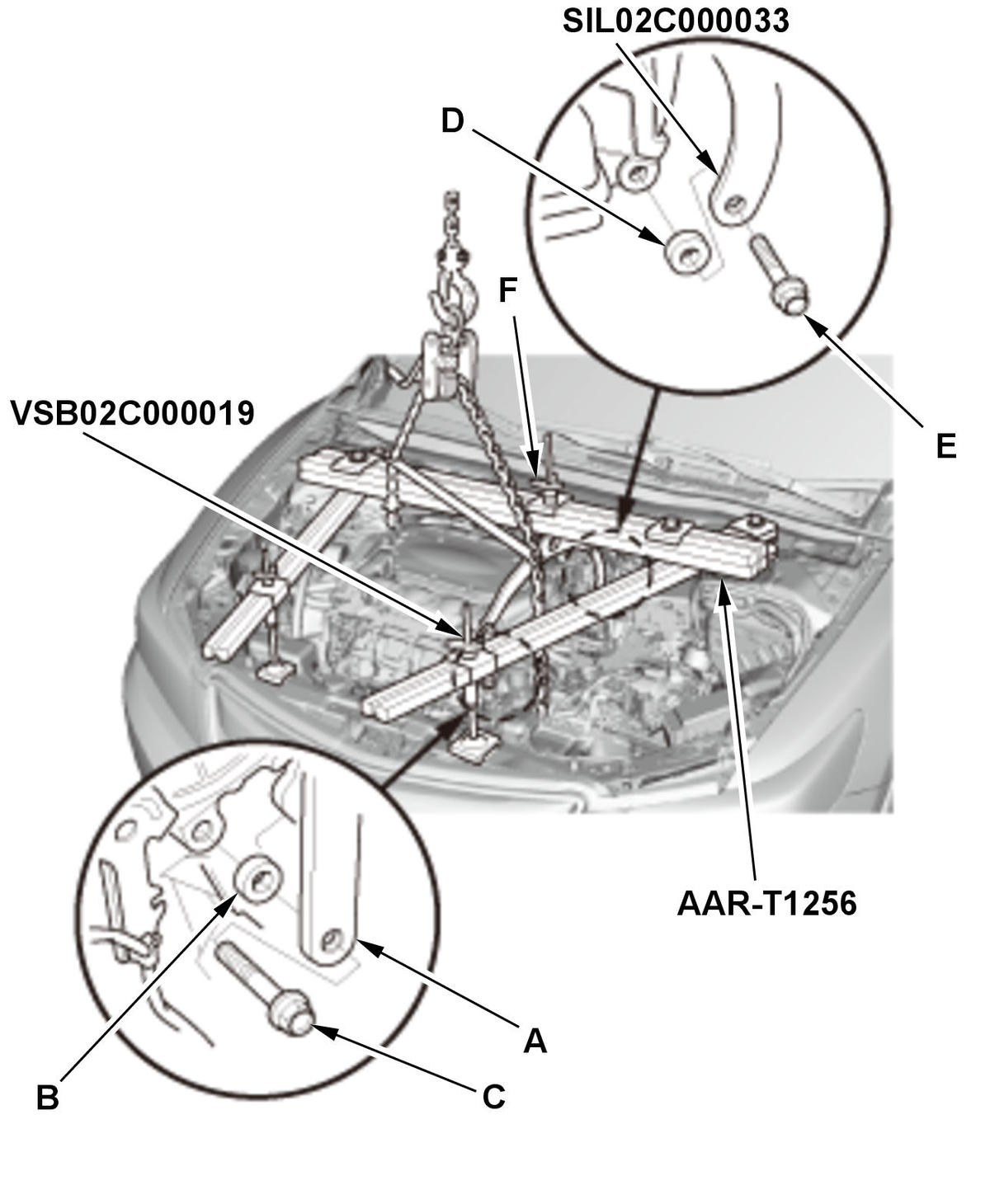

   NOTE:  Be careful when working around the windshield. Two sets of AAR-T1256 are required for stacking additional cross section bars. Be careful not to damage the hood opener cable when installing the engine support hanger at the front bulkhead. 1. Install the engine hanger balance bar. Attach the front arm (A) to the front cylinder head with about a 10 mm (0.39 in) spacer (B) and a 10 x 1.25 mm bolt (C). Remove the rear arm from the engine hanger balance bar, then install the 2008 V6 attachment arm. Attach the 2008 V6 attachment arm to the rear cylinder head with about a 10 mm (0.39 in) spacer (D) and an 8 x 1.25 mm bolt (E). 2. Install the engine support hanger onto the vehicle as shown, and attach the hook to the slotted hole in the engine hanger balance bar. Tighten the wing nut (F) by hand, then lift and support the engine/transmission.

6. Chain Hoist - Remove
7. Vehicle - Lift

   1. Raise the vehicle.

8. Front Subframe - Support

   Courtesy of HONDA, U.S.A., INC.

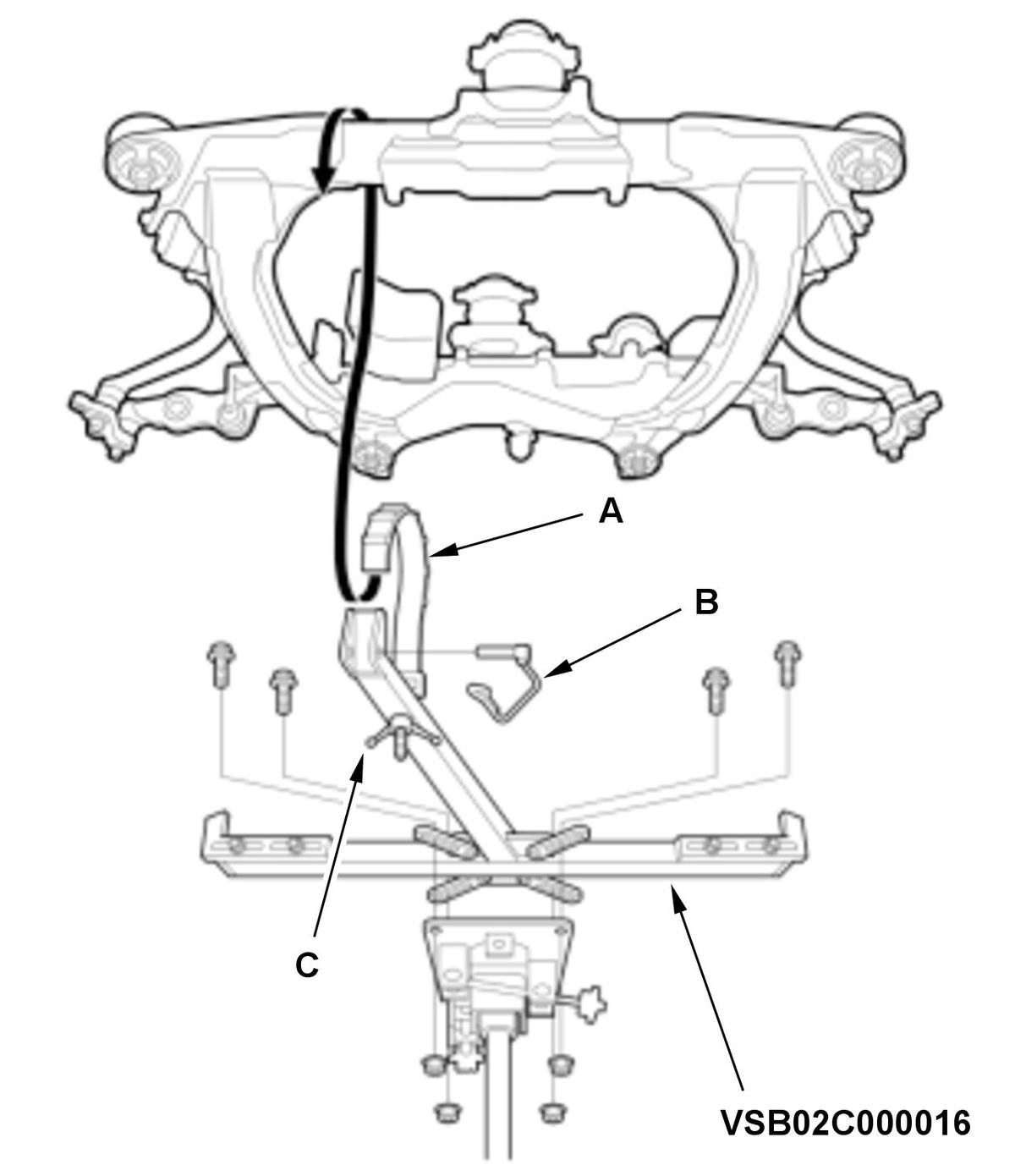

   1. Attach the subframe adapter to the front subframe by looping the belt (A) over the front of the front subframe, then secure the belt with its stop (B), and tighten the wing nut (C). 2. Raise a transmission jack and line up the slots in the subframe adapter arms with the bolt holes on the transmission jack base, then securely attach them with four bolts.

9. Front Subframe - Install
10. Front Subframe Middle Mount Rubber Mounting Bolt - Tighten
    Fig 2: Front Subframe Middle Mount Rubber Mounting Bolt Tightening Sequence With Torque Specifications

    Courtesy of HONDA, U.S.A., INC.

    1. Tighten the front subframe middle mount rubber mounting bolts (A) on both sides.

11. Lower Transmission Mount - Loosely Install
12. Transmission Ground Cable - Connect
13. Connector (EPS Control Unit) - Connect
14. Vehicle - Lift

    1. Lower the vehicle.

15. Engine Support Hanger, Engine Hanger Balance Bar, and 2008 V6 Attachment Arm - Remove
16. Front Engine Mount Stop and Front Engine Mount Mounting Bolt - Install
    Fig 3: Front Engine Mount Stop and Front Engine Mount Mounting Bolt With Torque Specifications

    Courtesy of HONDA, U.S.A., INC.

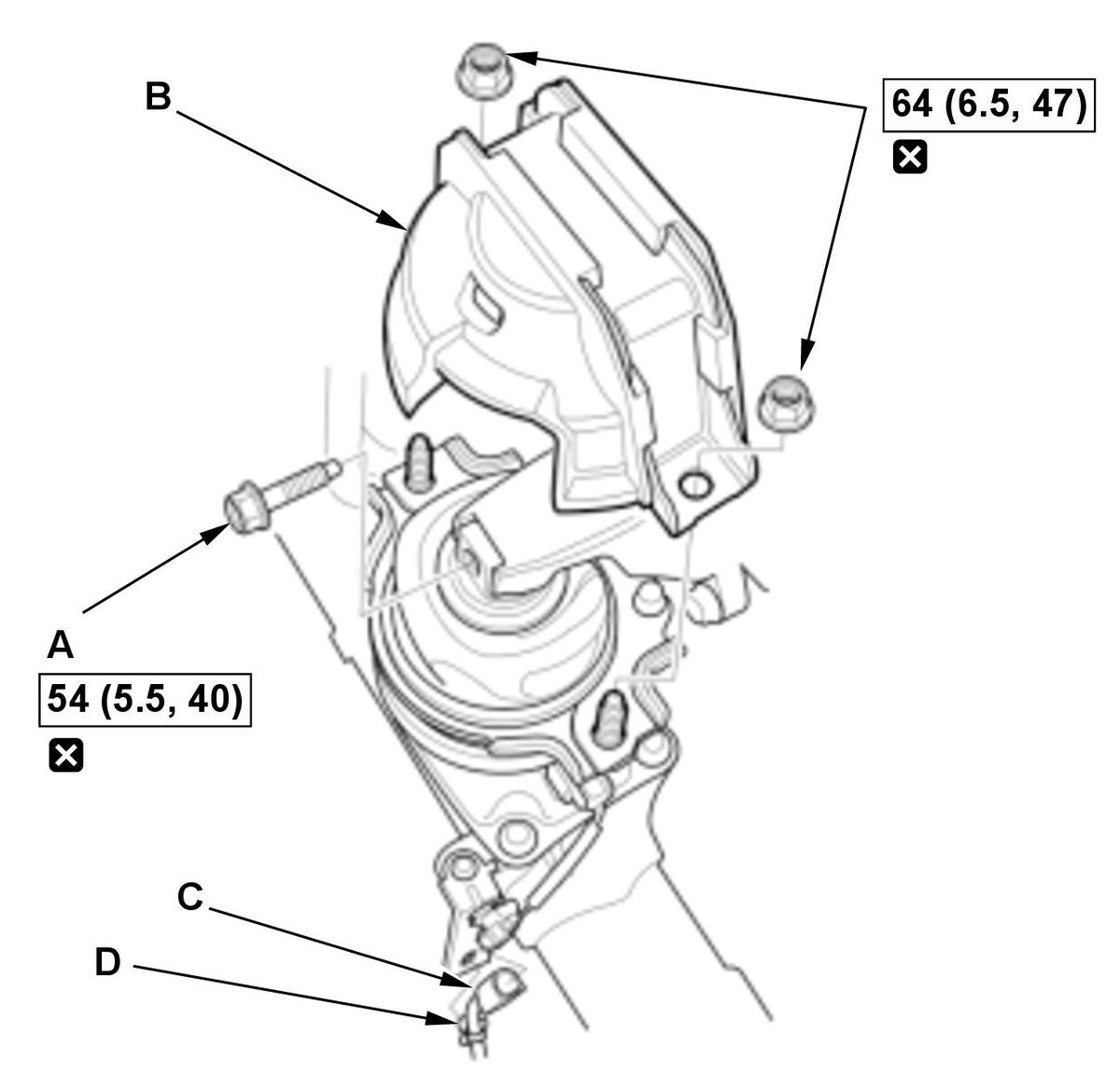

    1. Tighten the new front engine mount mounting bolt (A). 2. Install the front engine mount stop (B) using new nuts. 3. Connect the connector (C) and the harness clamp (D). 4. Install the No. 6 cylinder ignition coil .

17. Rear Engine Mount Stop and Rear Engine Mount Mounting Bolt - Install

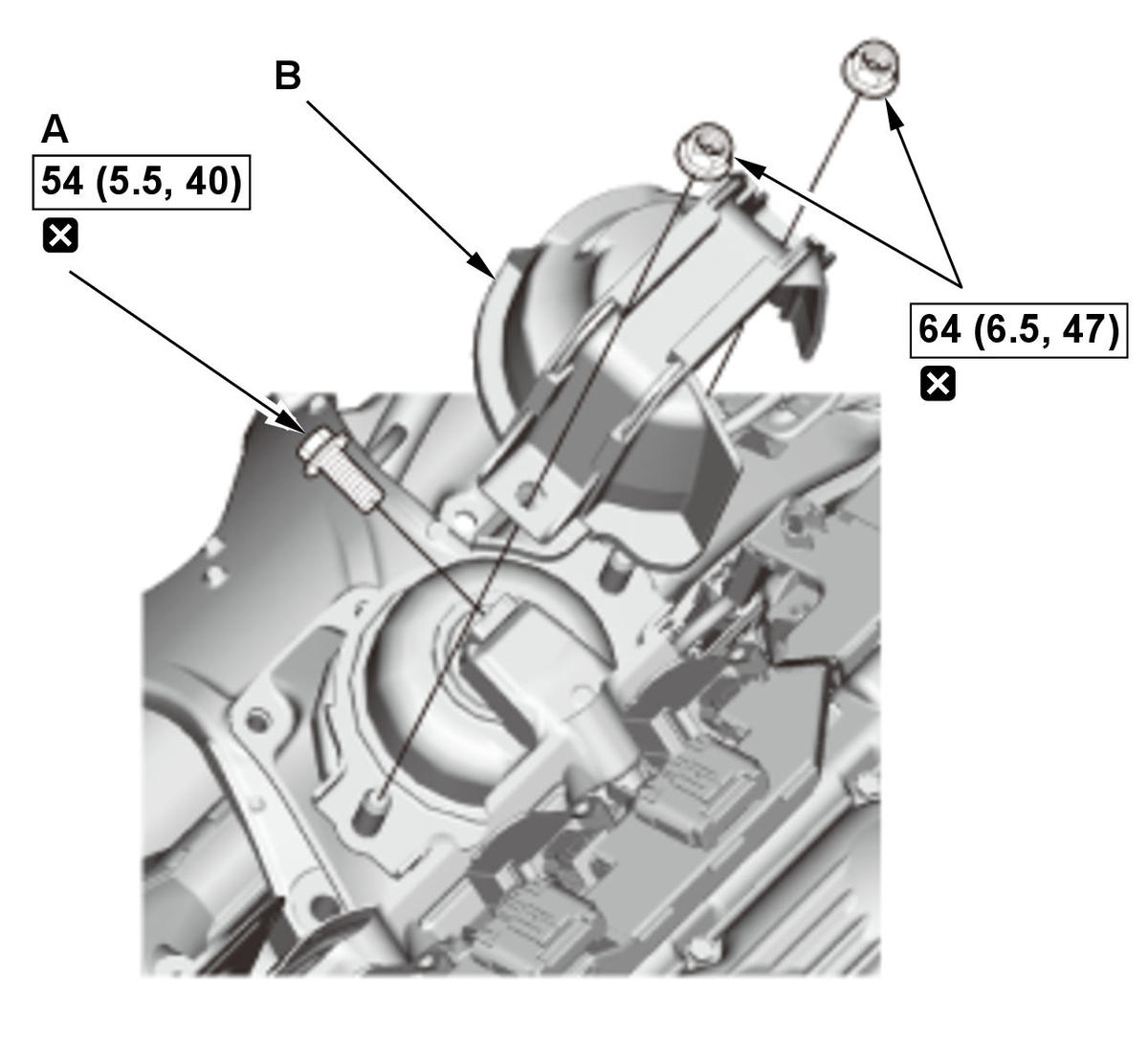

    Fig 4: Rear Engine Mount Stop and Rear Engine Mount Mounting Bolt With Torque Specifications

    Courtesy of HONDA, U.S.A., INC.

    1. Tighten the new rear engine mount mounting bolt (A). 2. Install the rear engine mount stop (B) using new nuts.

18. Lower Transmission Mount - Tighten
19. Upper Half of Side Engine Mount Bracket Mounting Bolt - Retighten

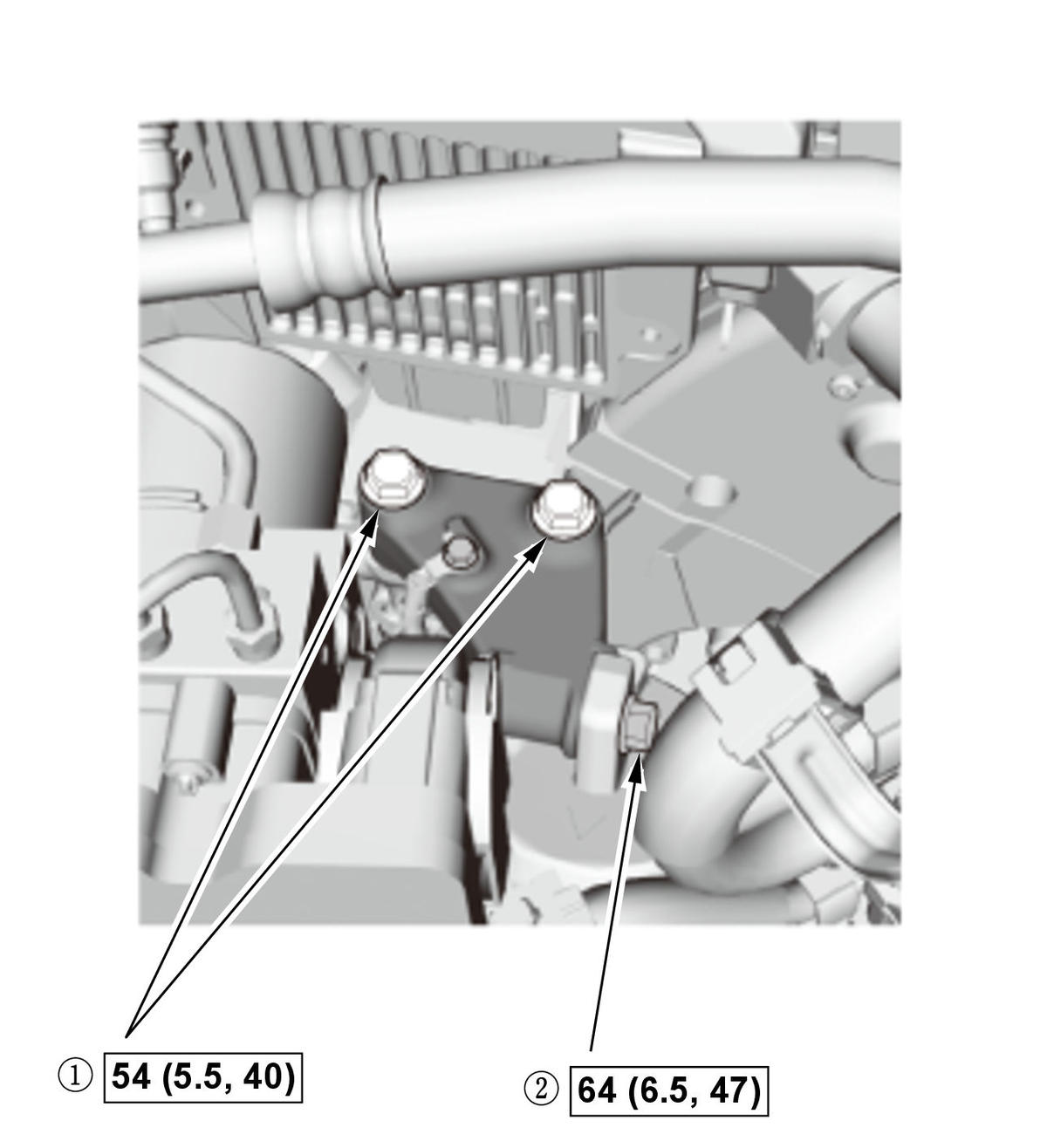

    Fig 5: Upper Half of Side Engine Mount Bracket Mounting Bolt Tightening Sequence With Torque Specifications

    Courtesy of HONDA, U.S.A., INC.

    1. Tighten the upper half of the side engine mount bracket mounting bolts in the numbered sequence shown.

20. Upper Transmission Mount Bracket Mounting Bolt - Tighten
    Fig 6: Upper Transmission Mount Bracket Mounting Bolt Tightening Sequence With Torque Specifications

    Courtesy of HONDA, U.S.A., INC.

    1. Tighten the upper transmission mount bracket mounting bolts in the numbered sequence shown.

21. Harness Bracket - Install
    Fig 7: Harness Bracket With Torque Specifications

    Courtesy of HONDA, U.S.A., INC.

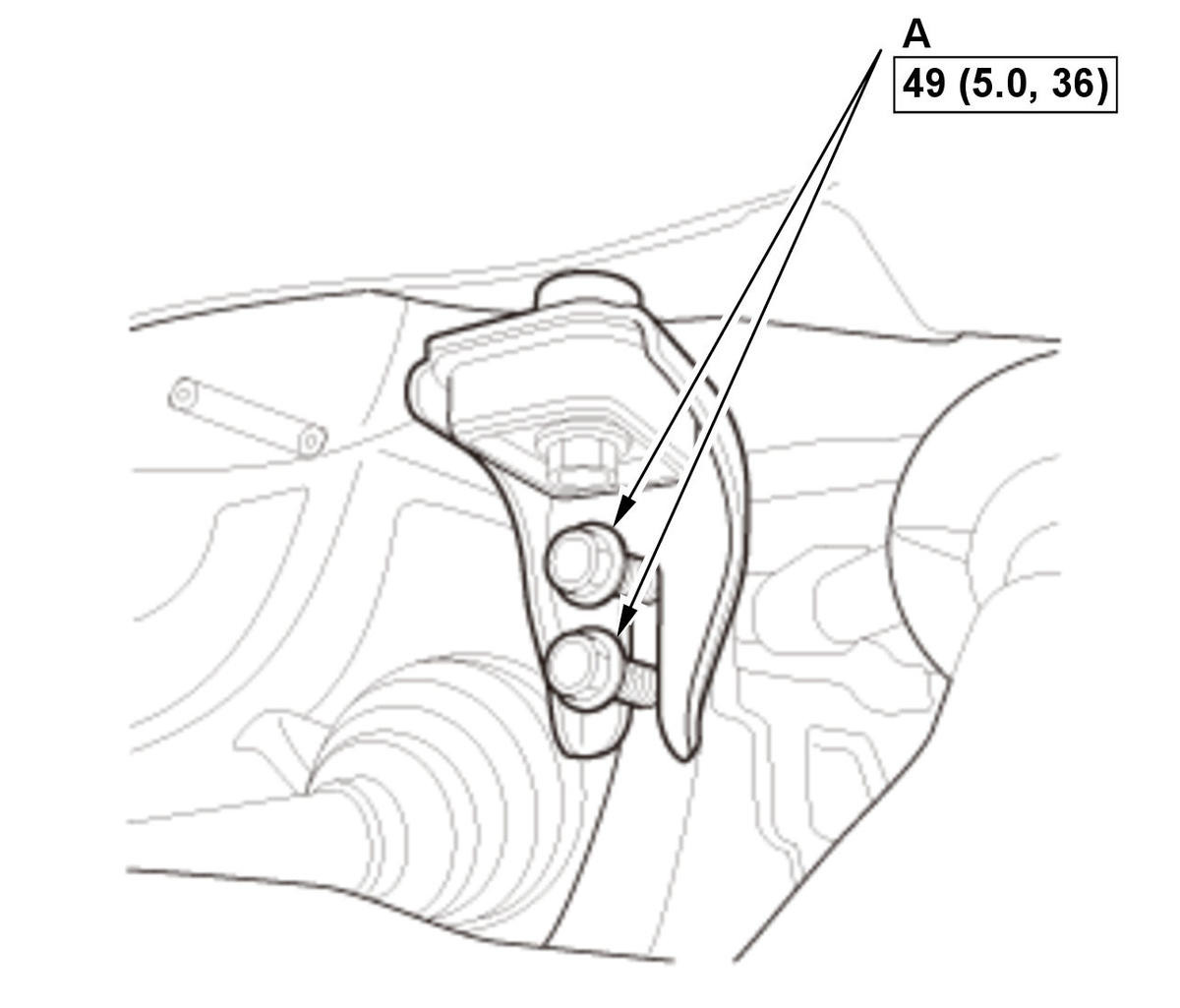

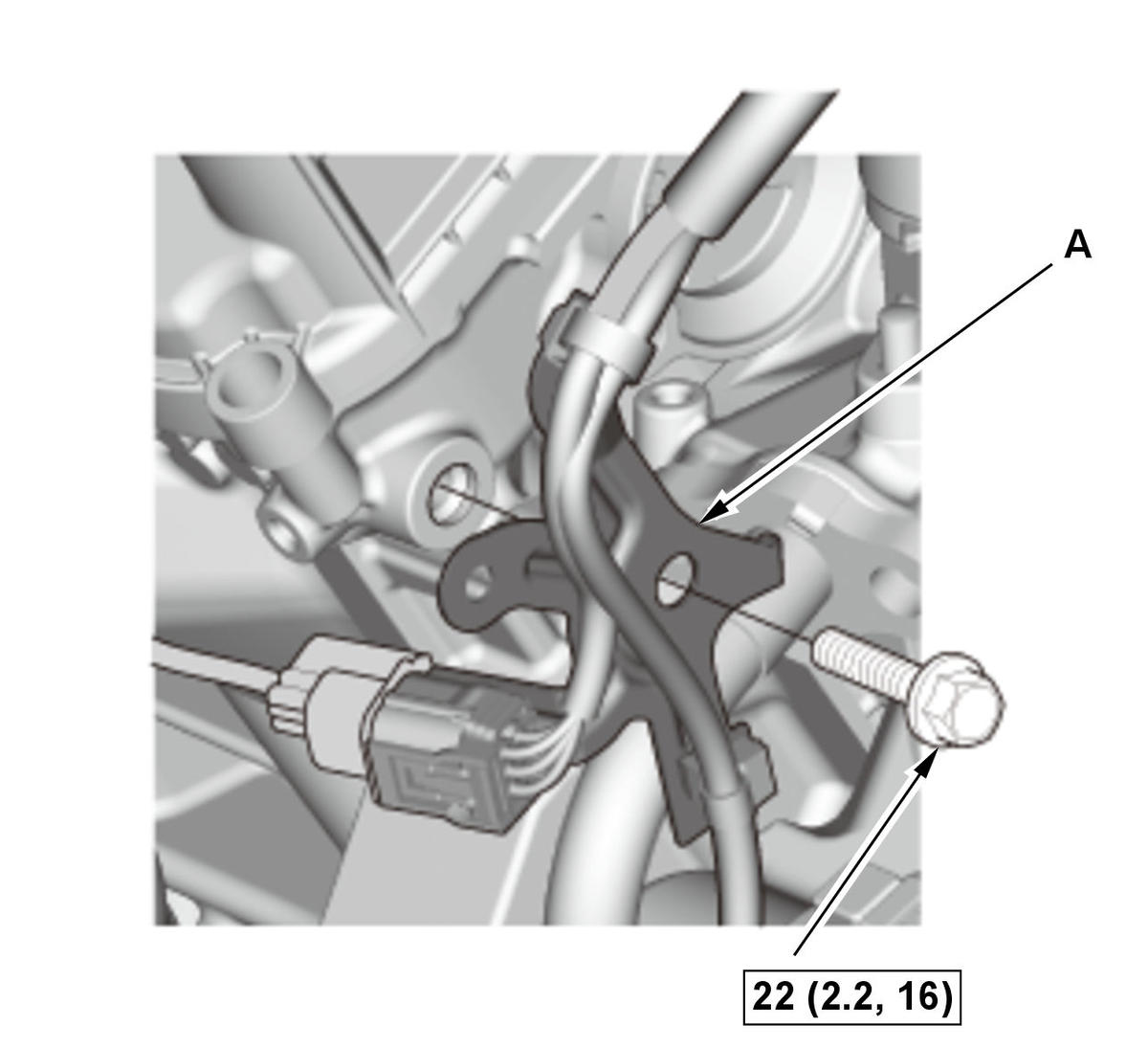

    1. Install the harness bracket (A) to the rear cylinder head.

22. Connector Bracket - Install
    Fig 8: Connector Bracket With Torque Specifications

    Courtesy of HONDA, U.S.A., INC.

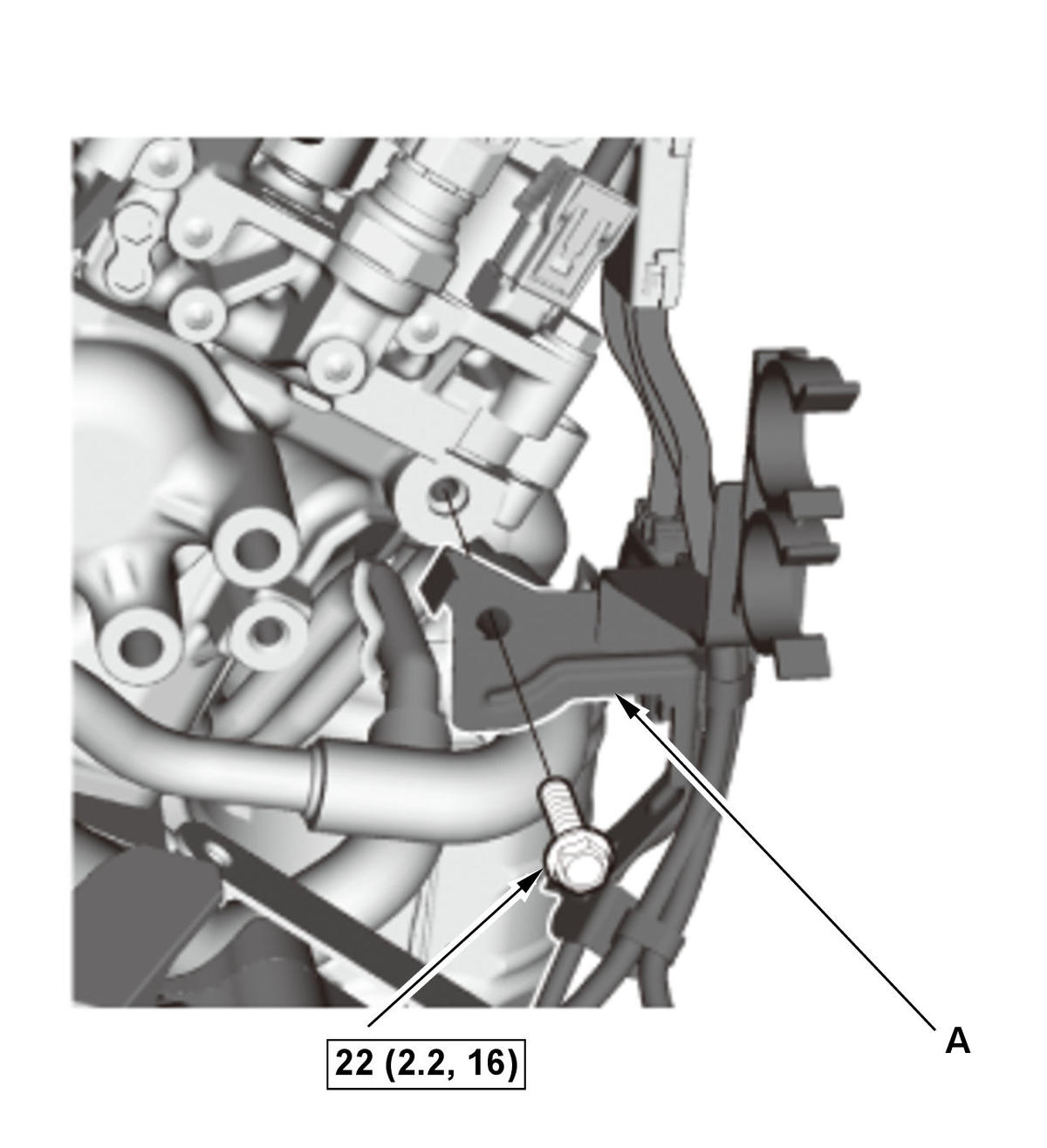

    1. Install the connector bracket (A) to the front cylinder head.

23. Harness Clamp - Install

    Courtesy of HONDA, U.S.A., INC.

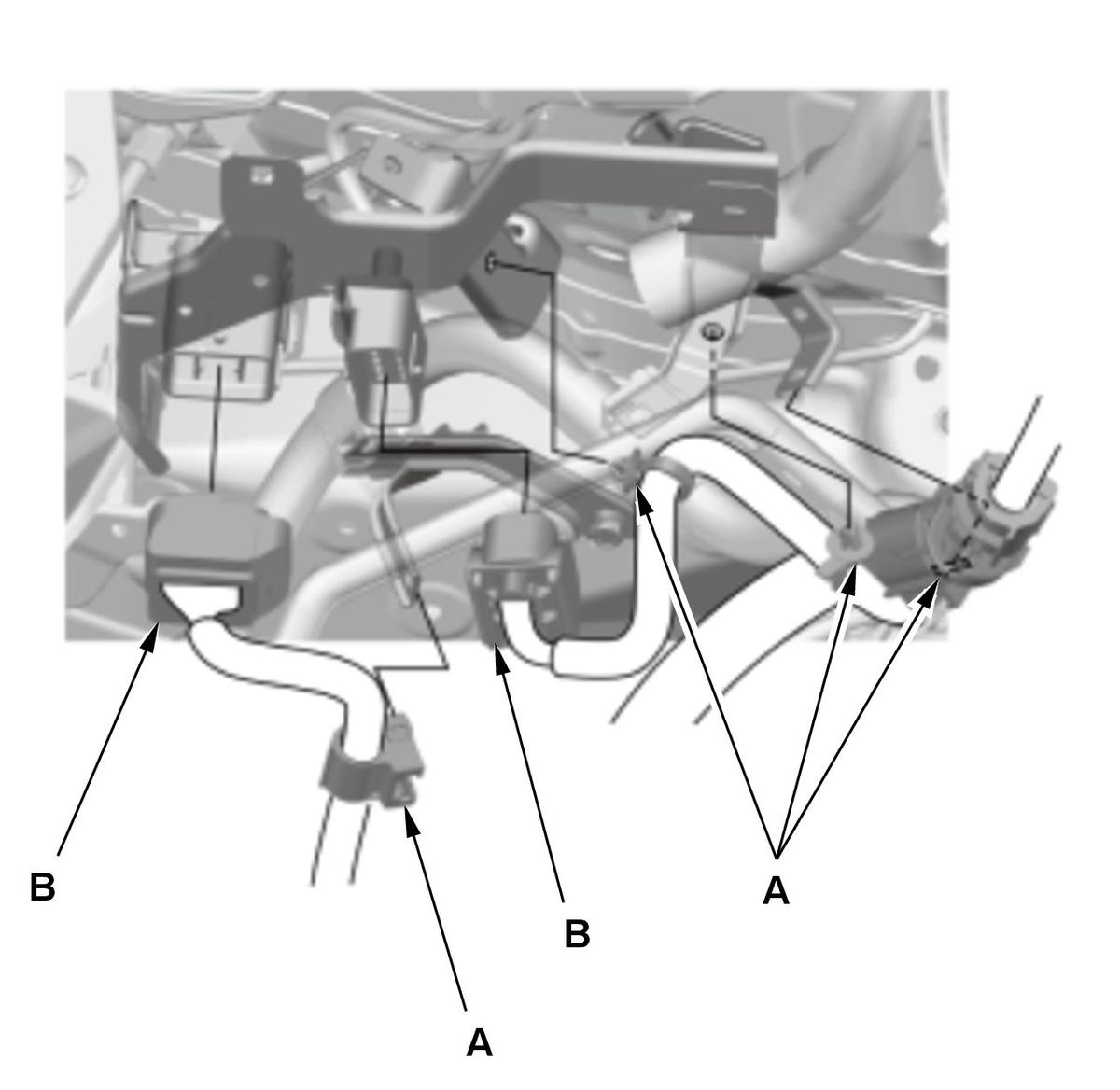

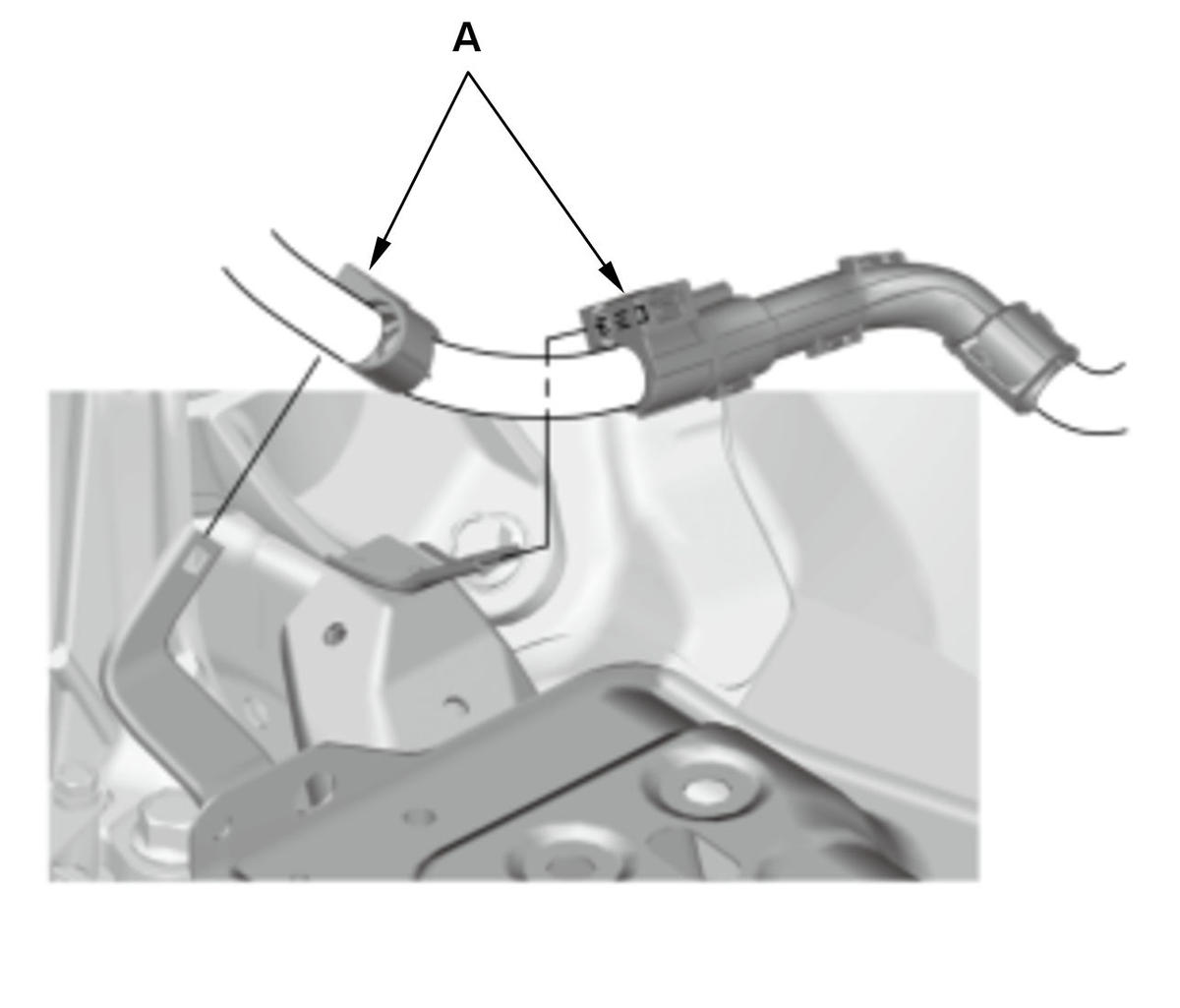

    1. Install the harness clamps (A). 2. Connect the connector (B).

    Courtesy of HONDA, U.S.A., INC.

    3. Install the harness clamps (A).

24. Battery Cable - Install

    Courtesy of HONDA, U.S.A., INC.

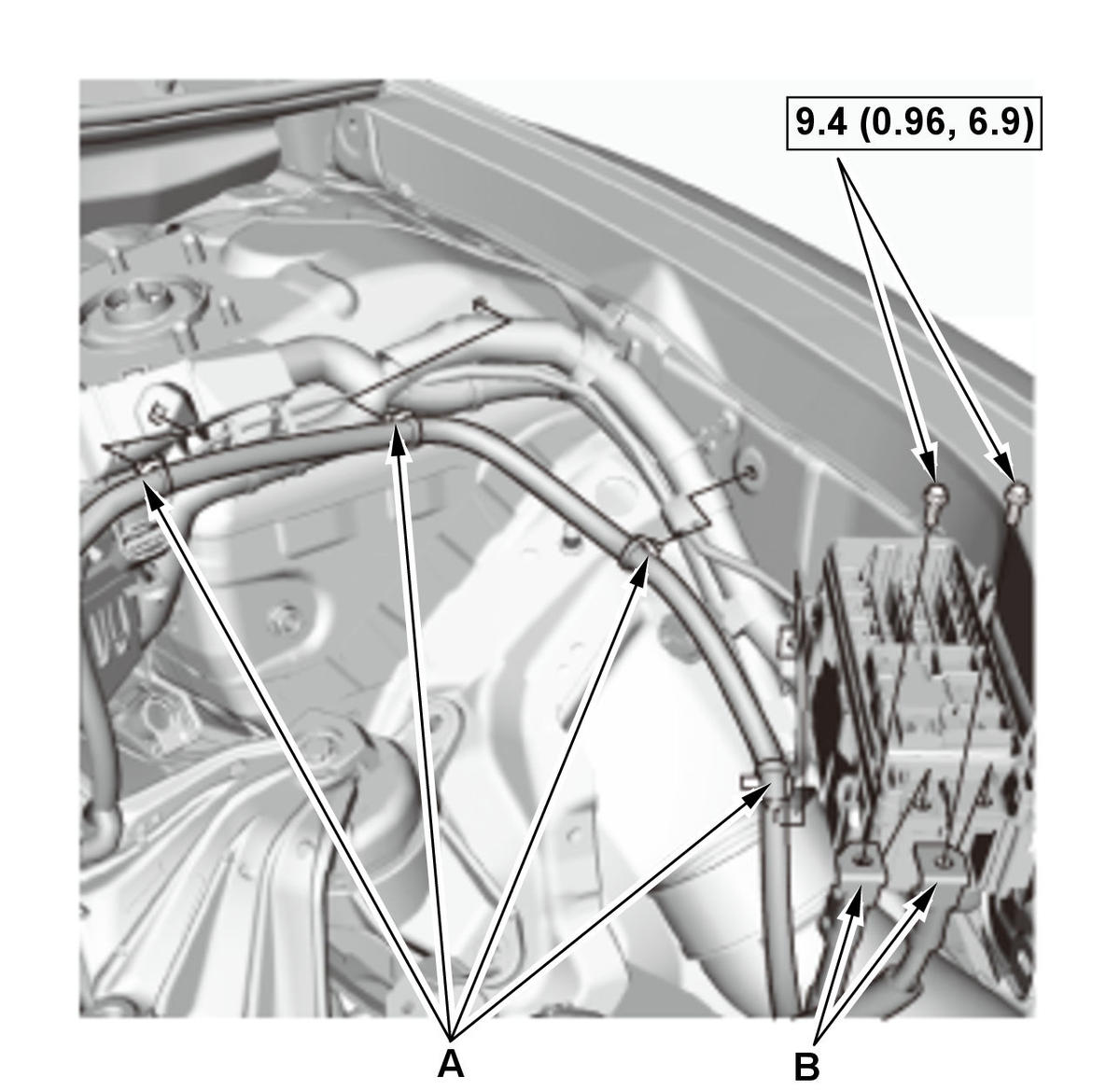

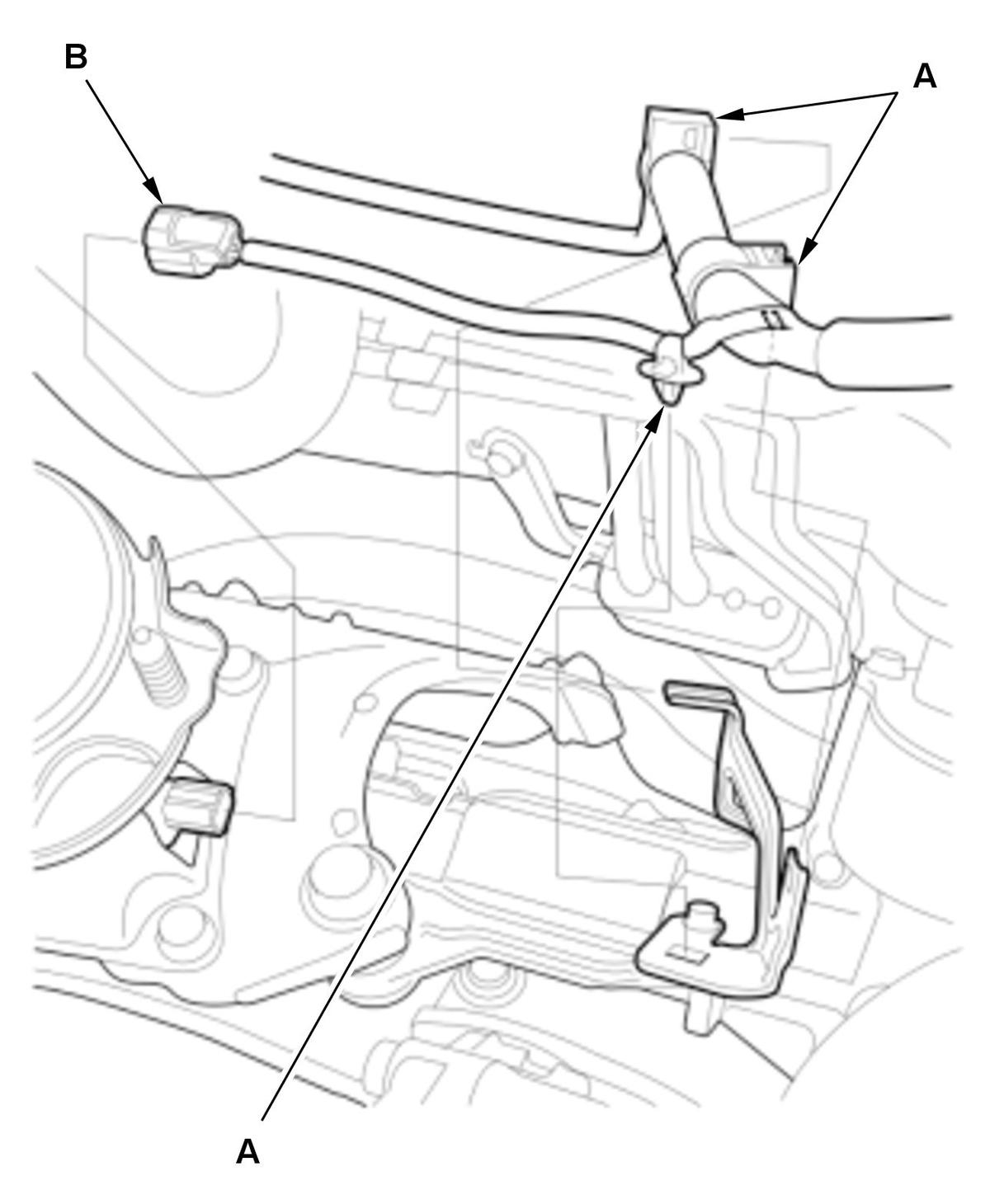

    1. Install the harness clamps (A). 2. Install the cables (B).

25. Connector (Engine Wire Harness) - Connect

    Courtesy of HONDA, U.S.A., INC.

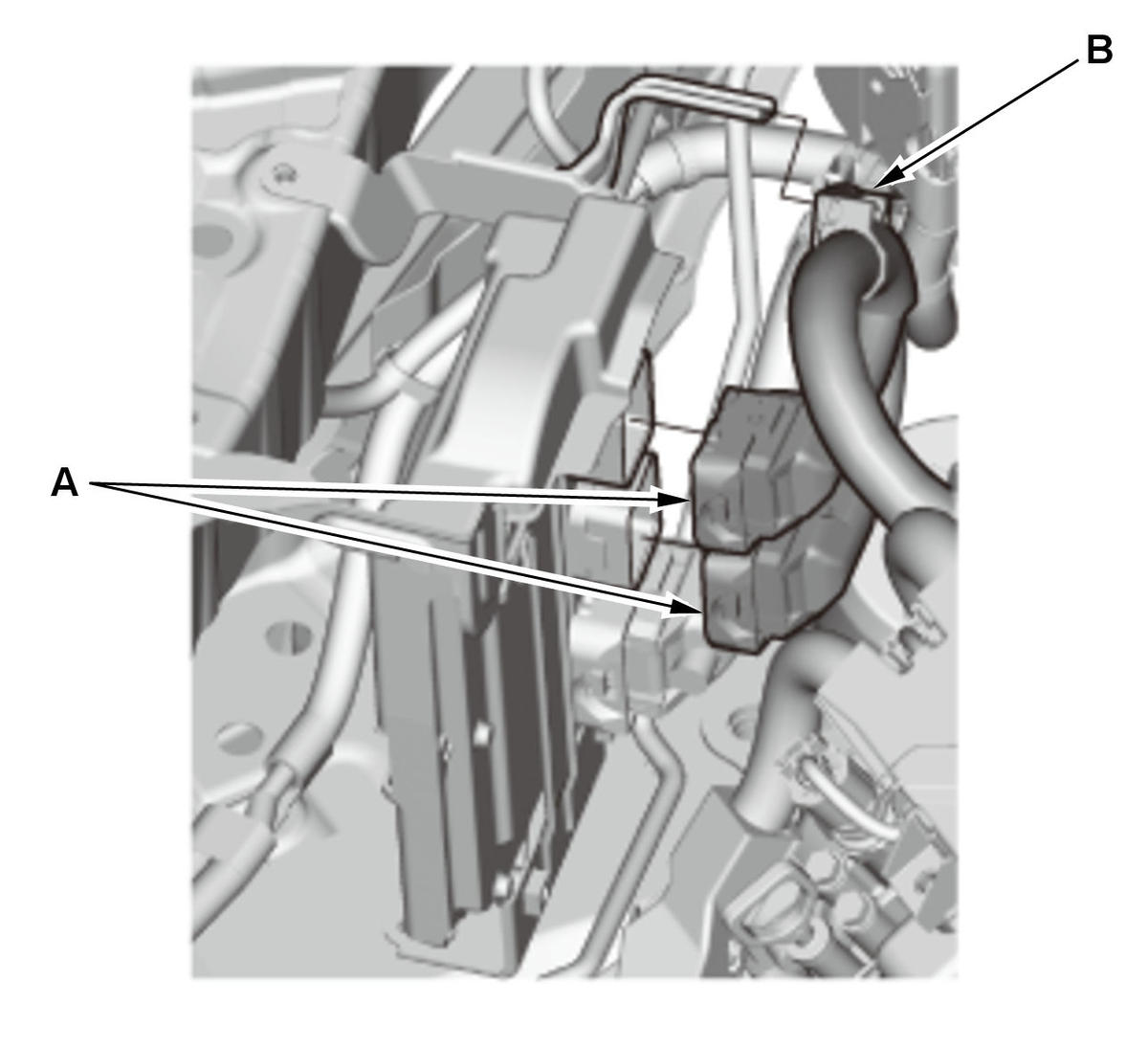

    1. Install the harness clamps (A). 2. Connect the connectors (B).

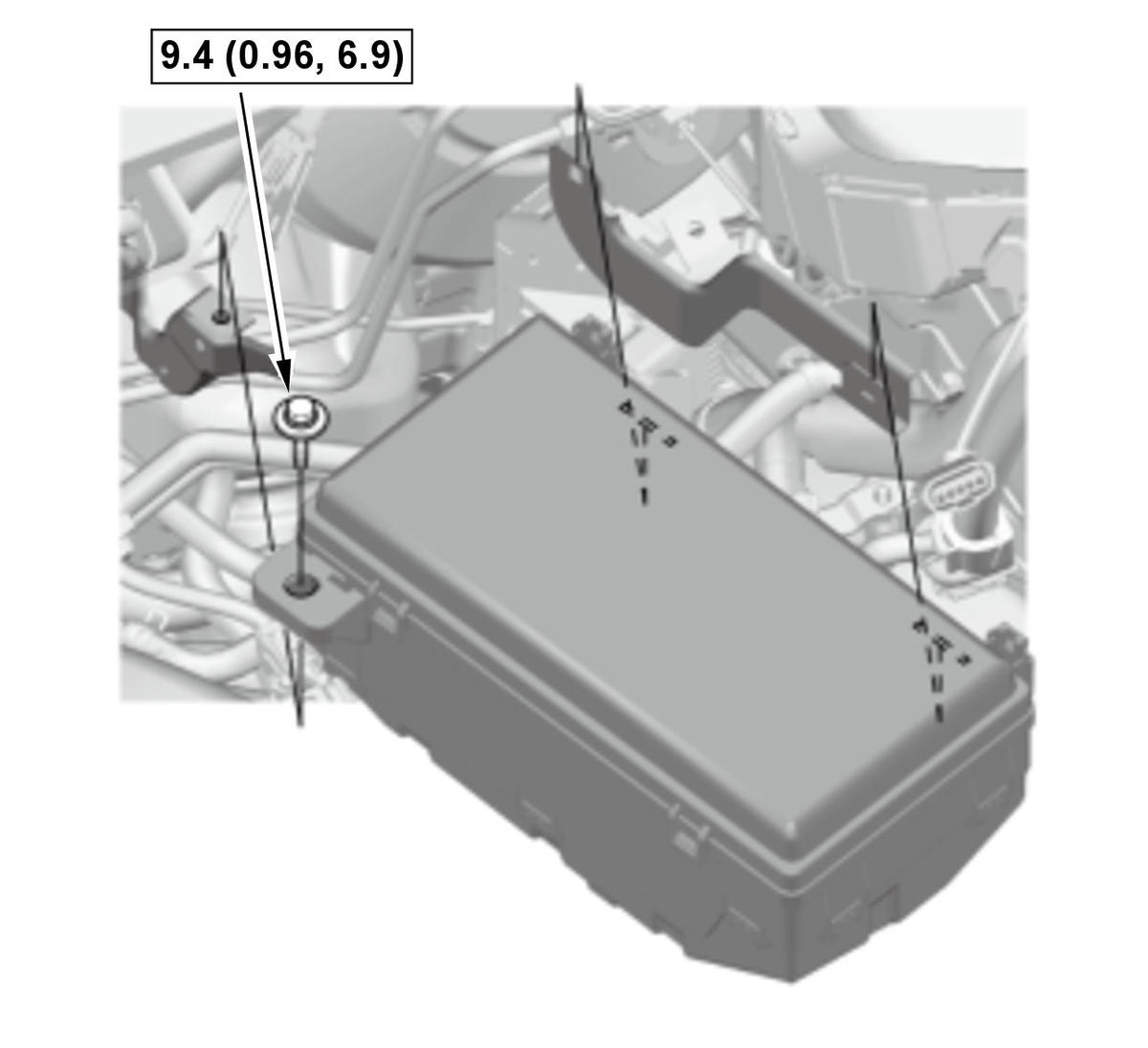

26. Under-Hood Fuse/Relay Box - Install

    Courtesy of HONDA, U.S.A., INC.

27. A/C Compressor - Install
28. Alternator - Install
29. Radiator Assembly - Install

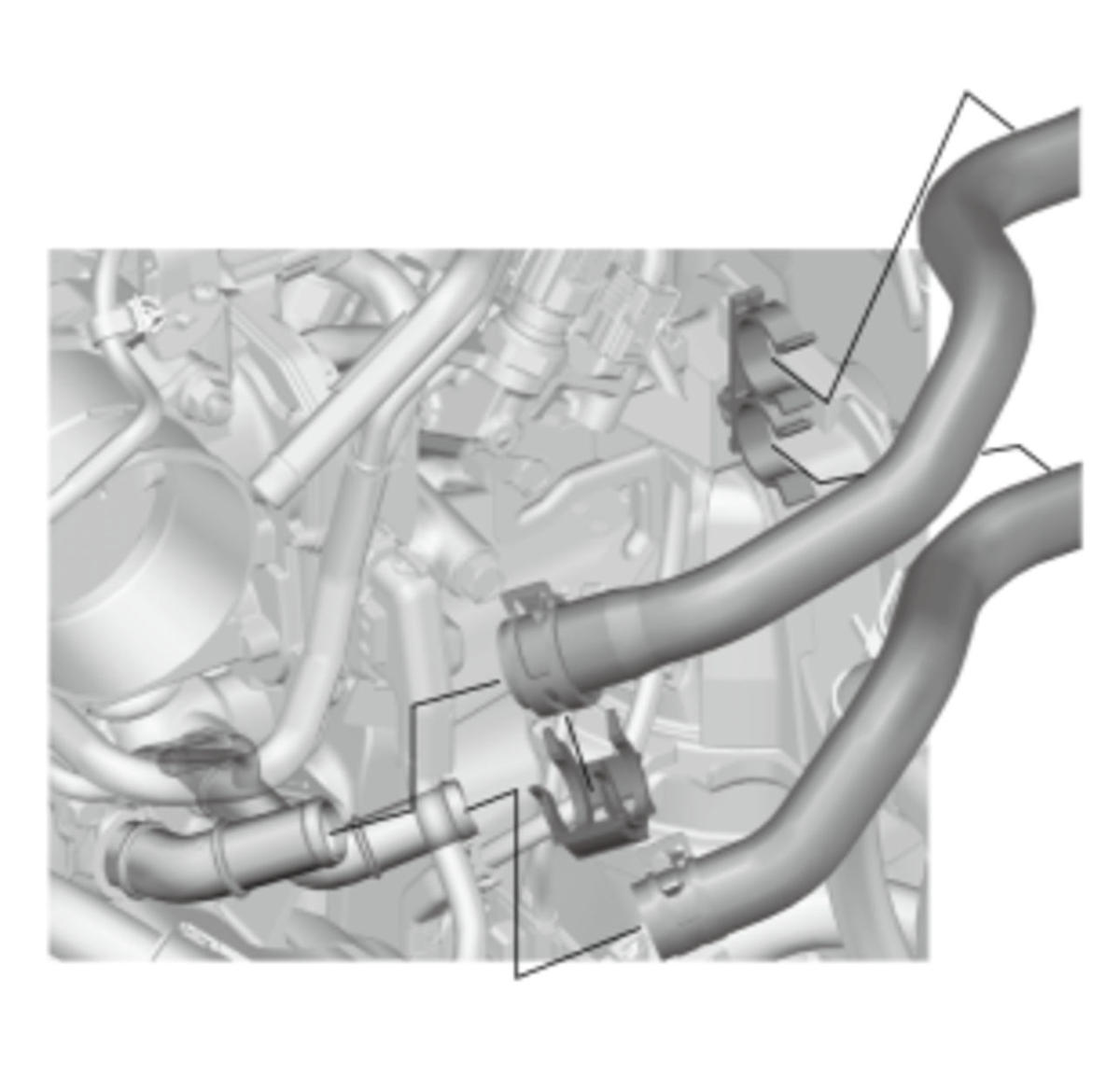

30. Heater Hose - Connect

    Courtesy of HONDA, U.S.A., INC.

31. Vehicle - Lift

    1. Raise the vehicle.

32. Driveshaft - Install
33. Knuckle Holder - Connect
34. Damper Fork Mounting Bolt and Nut - Install
35. Tie-Rod End Ball Joint - Connect
36. Exhaust Pipe A - Install
37. Connector (Secondary HO2S) - Connect
38. Front Wheel - Install
39. Vehicle - Lift

    1. Lower the vehicle.

40. Steering Joint - Connect
41. EVAP Purge Hose - Connect

    Courtesy of HONDA, U.S.A., INC.

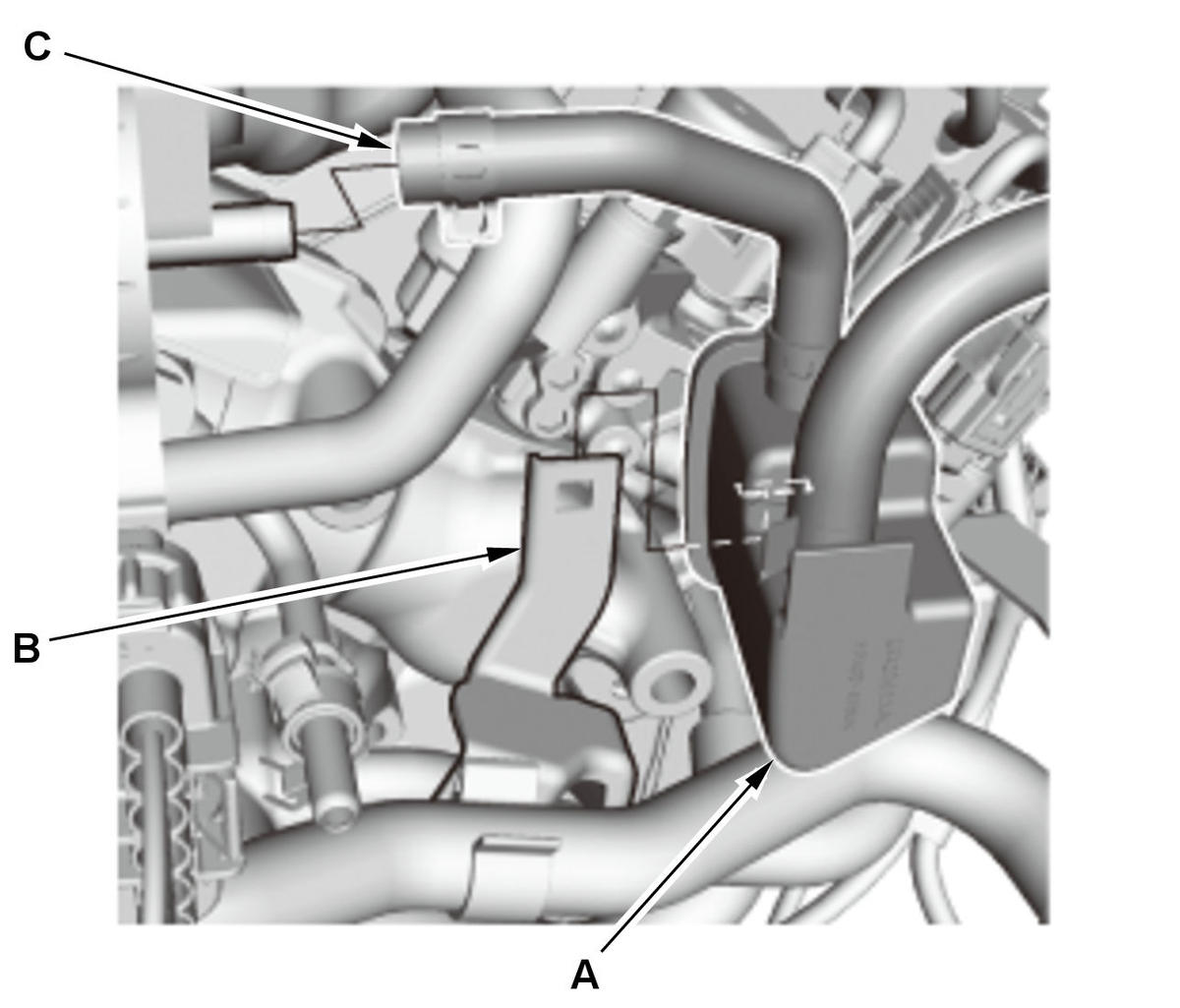

    1. Install the EVAP purge joint (A) to the bracket (B). 2. Connect the EVAP purge hose (C).

42. Fuel Feed Hose - Connect

    Courtesy of HONDA, U.S.A., INC.

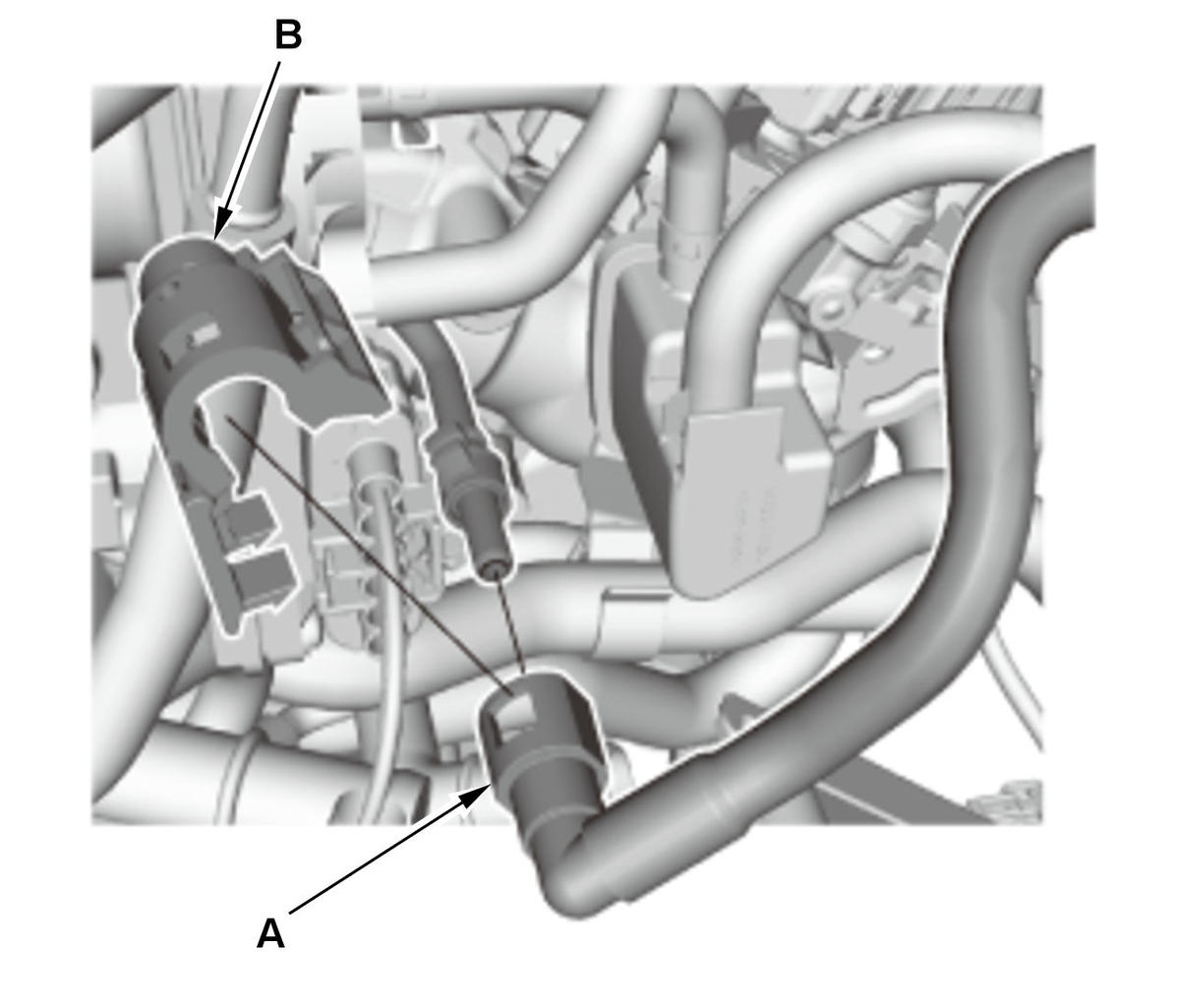

    1. Connect the fuel feed hose (A), then install the quick-connect fitting cover (B) .

43. Connector (PCM) - Connect

    Courtesy of HONDA, U.S.A., INC.

    1. Connect the connectors (A). 2. Install the harness clamp (B).

44. Skid Block - Install
45. Air Cleaner - Install
46. Front Strut Brace - Install
47. Engine Cover - Install

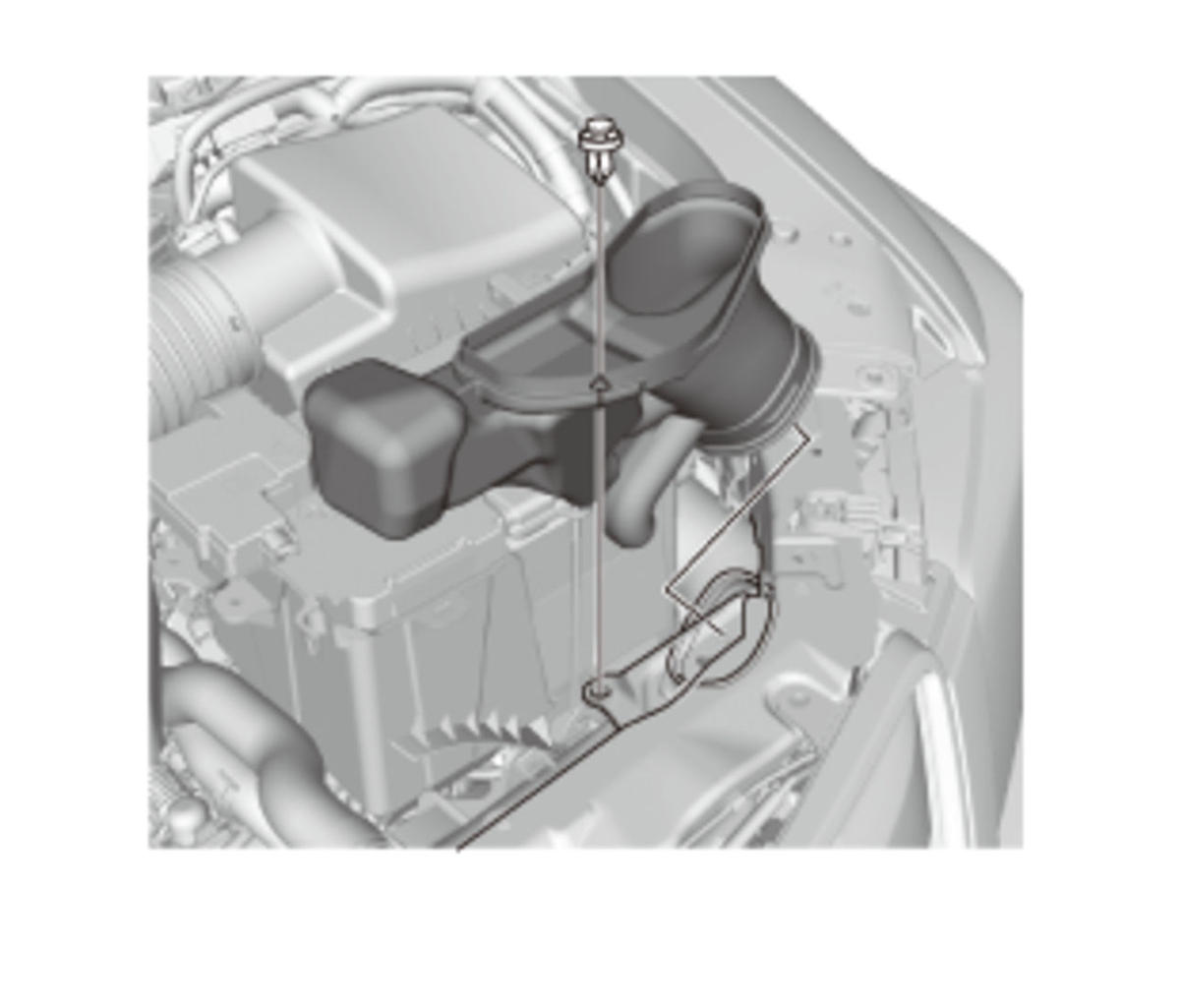

48. Splash Separator - Install

    Courtesy of HONDA, U.S.A., INC.

49. Battery - Install

    NOTE:  Do not connect the battery negative terminal.

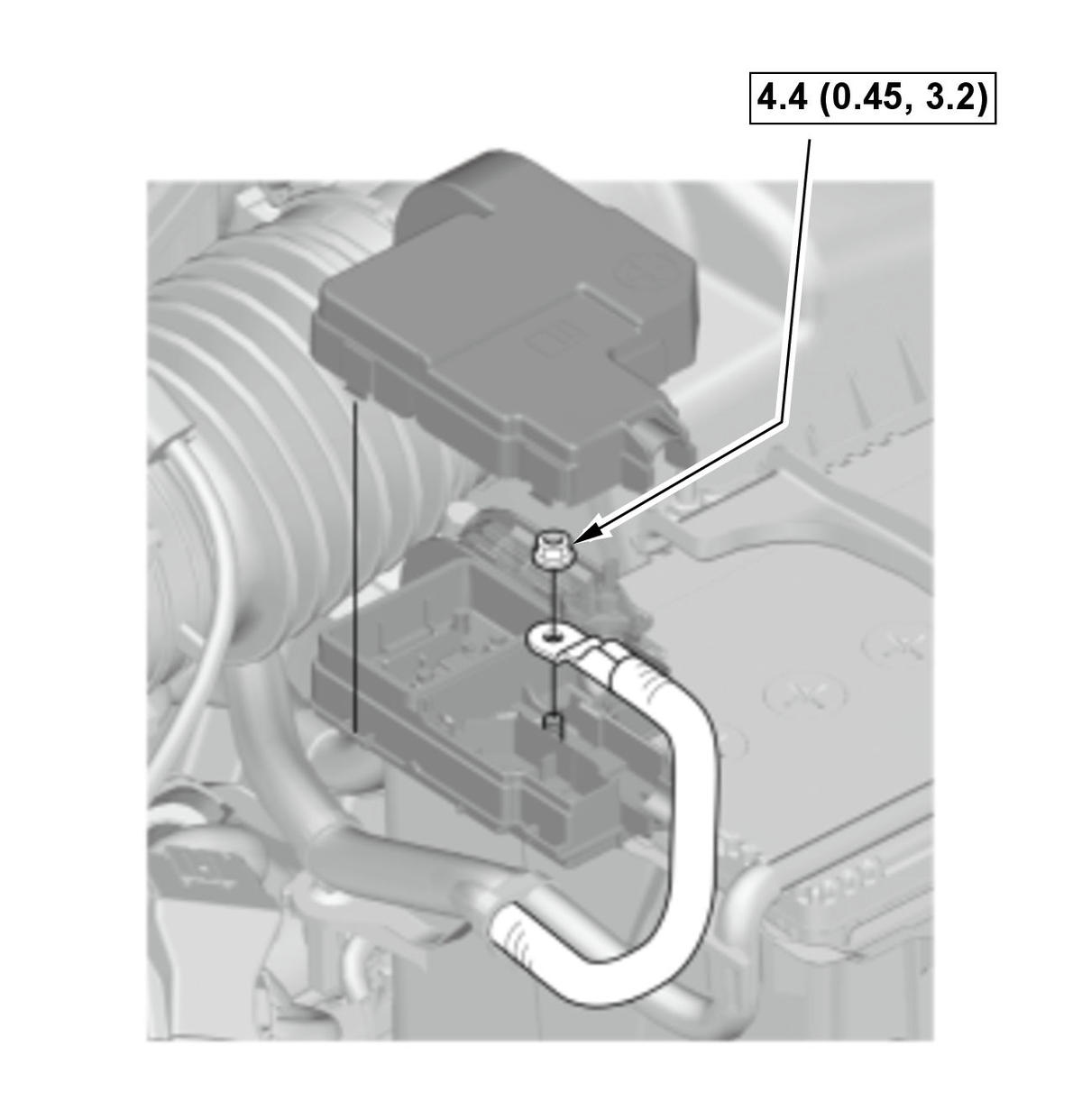

50. Starter Cable - Connect

    Courtesy of HONDA, U.S.A., INC.

51. Battery Negative Terminal - Connect
52. Fuel Leak - Inspect

    1. Turn the vehicle to the ON mode, but do not operate the starter. After the fuel pump runs for about 2 seconds, the fuel rail will be pressurized. Repeat this two or three times, then check for fuel leakage.

53. Engine Oil - Refill
54. ATF - Refill
55. Engine Undercover - Install
56. Engine Coolant - Refill
57. Fluid Leak - Check
58. PCM - Reset
59. CKP Pattern - Clear/Learn
60. Idle Speed - Inspect
61. Ignition Timing - Inspect
62. Front Grille Cover - Install
63. Hood Support Strut Normal Position - Return
64. Wheel Alignment - Check
65. VSA Sensor Neutral Position - Memorize
