Front Rocker Arm Oil Control Valve Removal And Installation: Removal

  1. Front Rocker Arm Assembly - Remove

    Remove the front rocker arm assembly .

  2. Front Rocker Arm Oil Control Valve - Remove

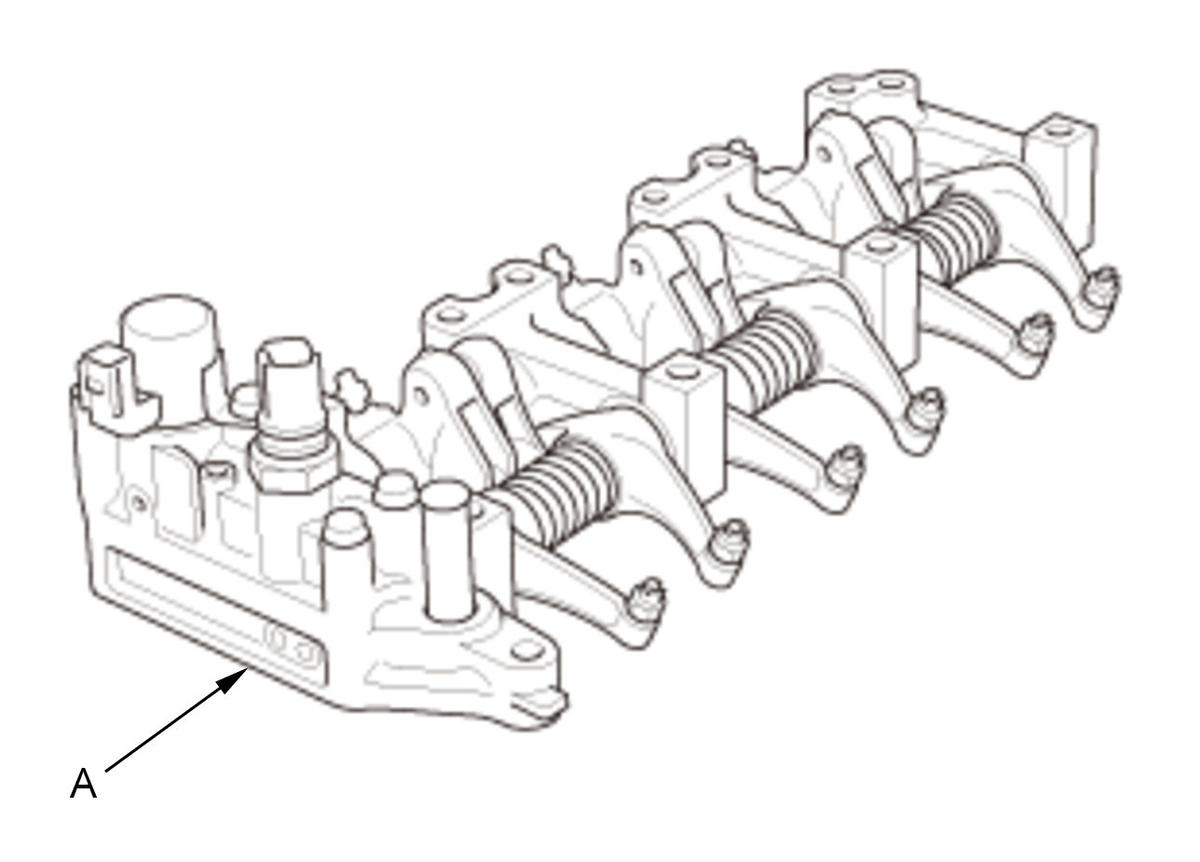

    GHH346019Courtesy of HONDA, U.S.A., INC.

    Remove the front rocker arm oil control valve (A).
