PCV Valve Removal And Installation: Installation

  1. PCV Valve - Install

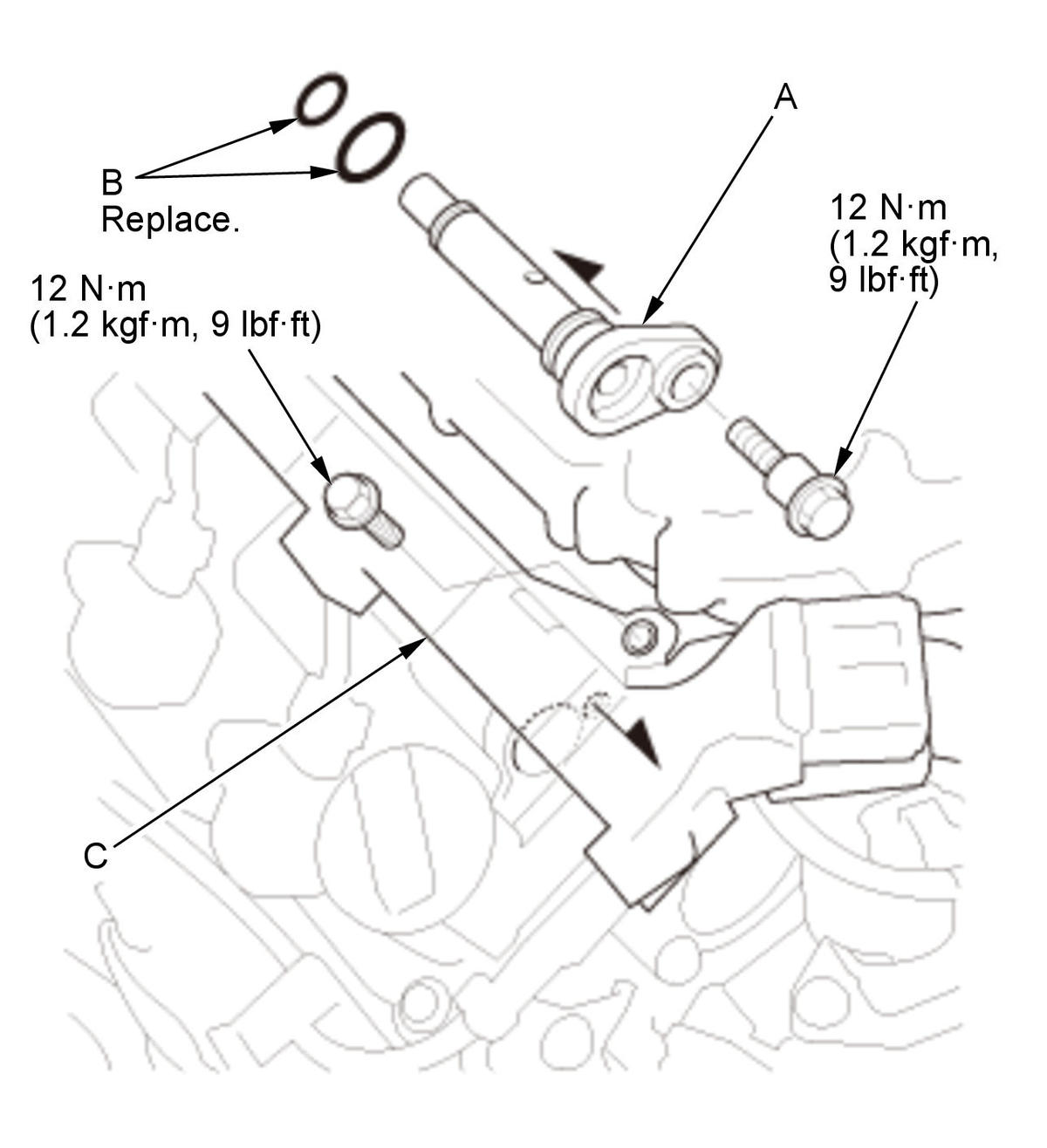

    Fig 1: PCV Valve With Torque Specifications
    GHH346072Courtesy of HONDA, U.S.A., INC.
    1. Install the PCV valve (A) with new O-rings (B).

    NOTE:  When installing a new PCV valve, make sure the O-rings are in place.

    2. Install the engine harness holder (C).
  2. Engine Cover - Install

    Install the engine cover .
