PCV Valve Removal And Installation: Removal

  1. Engine Cover - Remove

    Remove the engine cover .

  2. PCV Valve - Remove

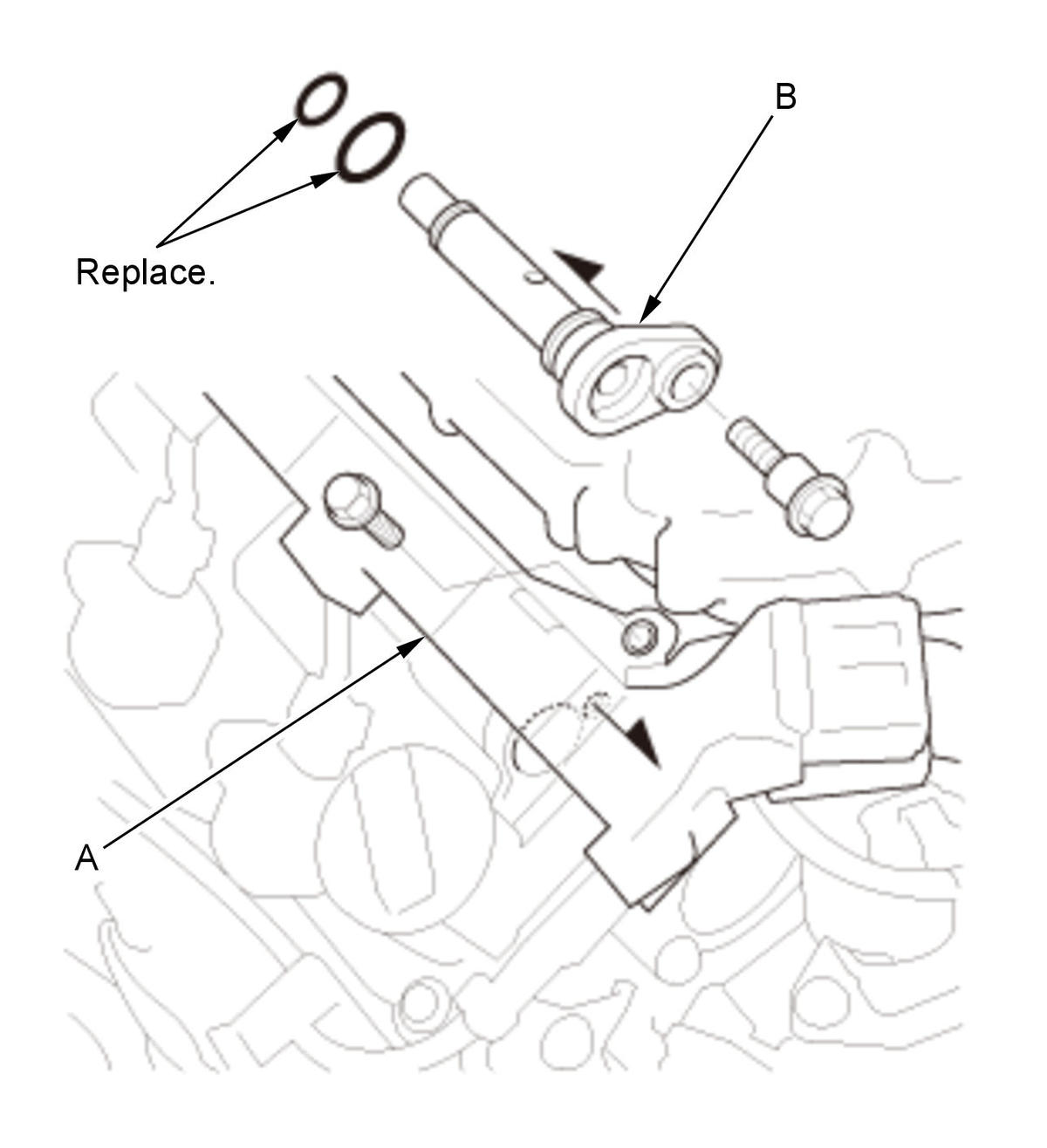

    GHH346071Courtesy of HONDA, U.S.A., INC.
    		 1. Lift the engine harness holder (A).

    2. Remove the PCV valve (B).

    NOTE:  Take care not to spill any oil on the hot exhaust manifold.
