Piston, Ring, Pin And Connecting Rod Removal and Installation (2014 2015 2016 2017): Installation

Piston Pin - Install

Courtesy of HONDA, U.S.A., INC.

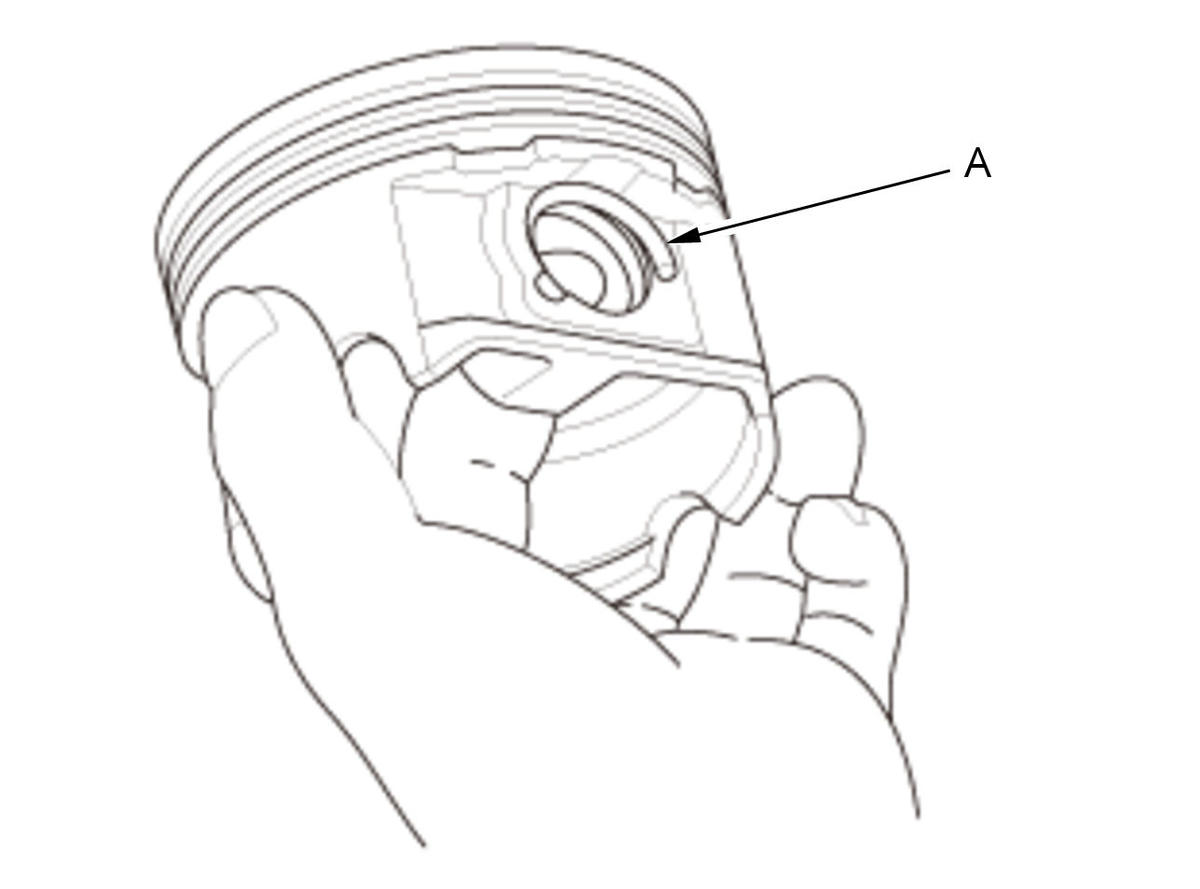

1. Install a piston pin snap ring (A) only on one side.

2. Coat the piston pin bore in the piston, the bore in the connecting rod, and the piston pin with new engine oil.

Courtesy of HONDA, U.S.A., INC.

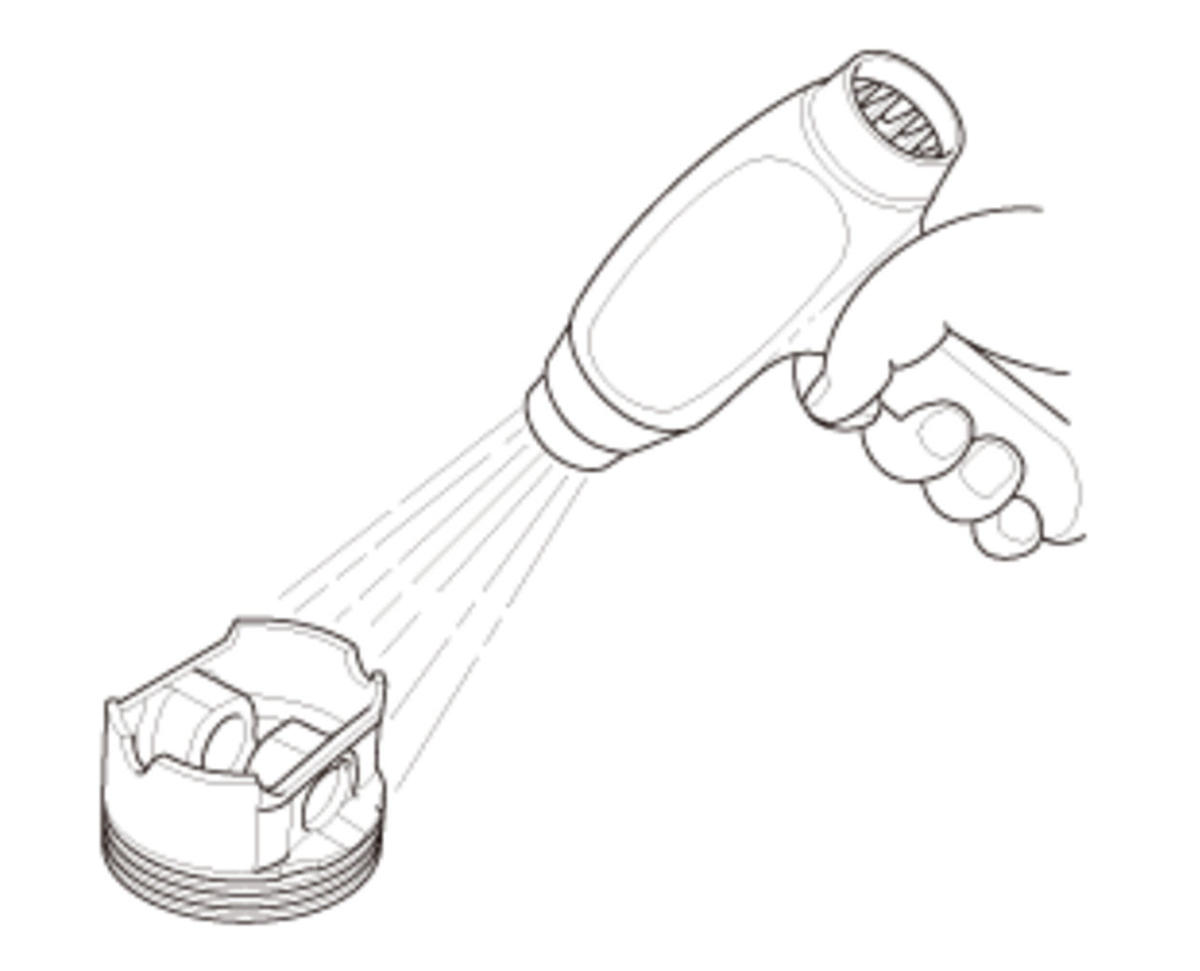

3. Heat the piston to about 158 deg.F (70 deg.C).

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

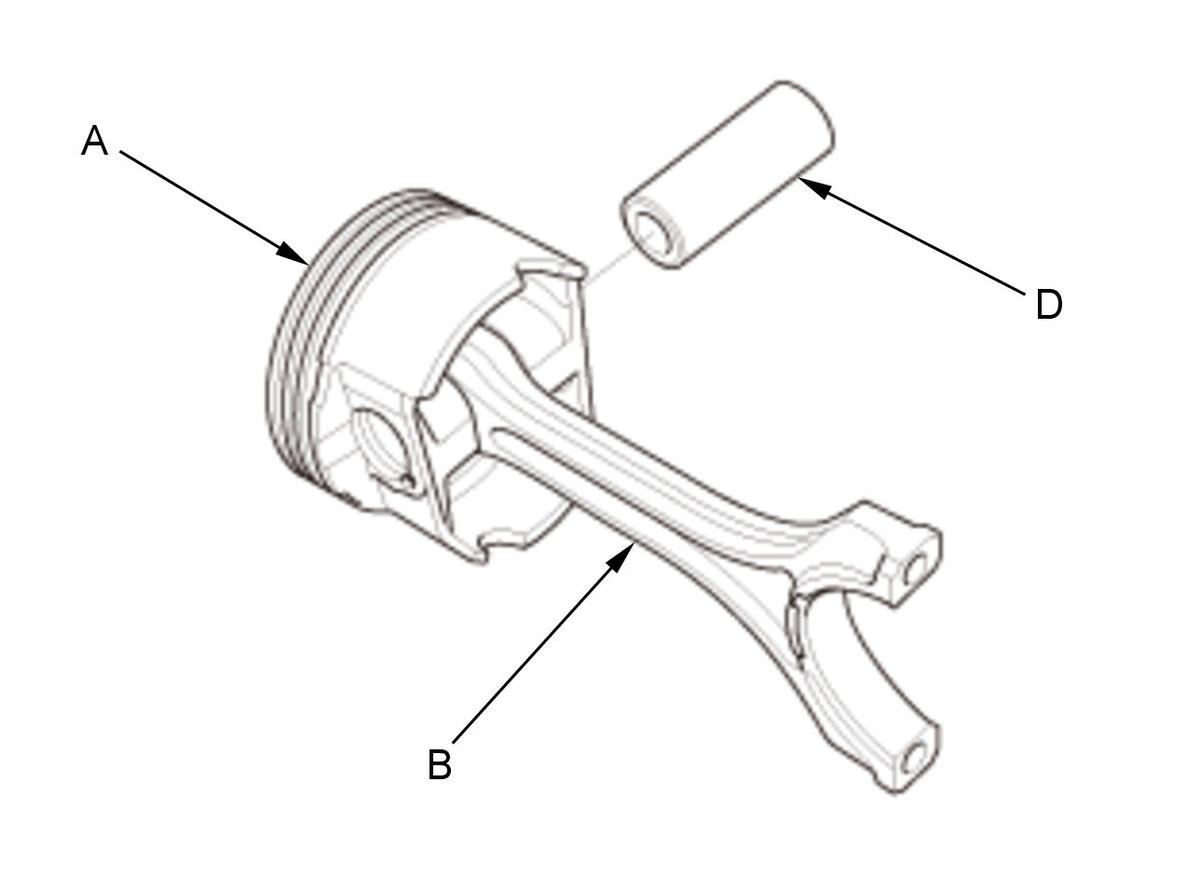

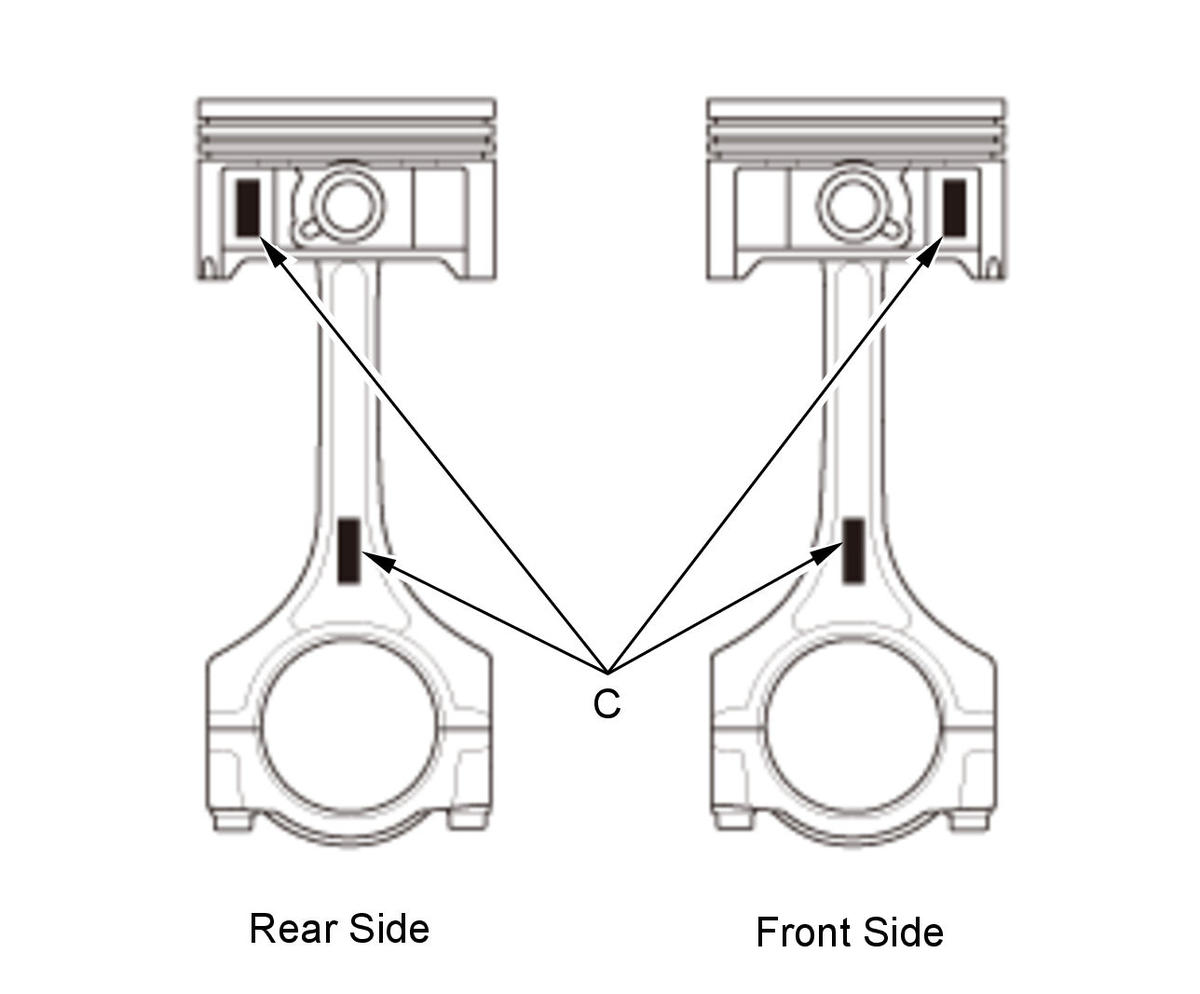

4. Assemble the piston (A) and the connecting rod (B) with the embossed marks (C) on the same side. Install the piston pin (D).

NOTE: Apply new engine oil to the piston pin.

5. Install the remaining snap ring.

6. Reassemble the other pistons the same way.

Piston Ring - Install

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

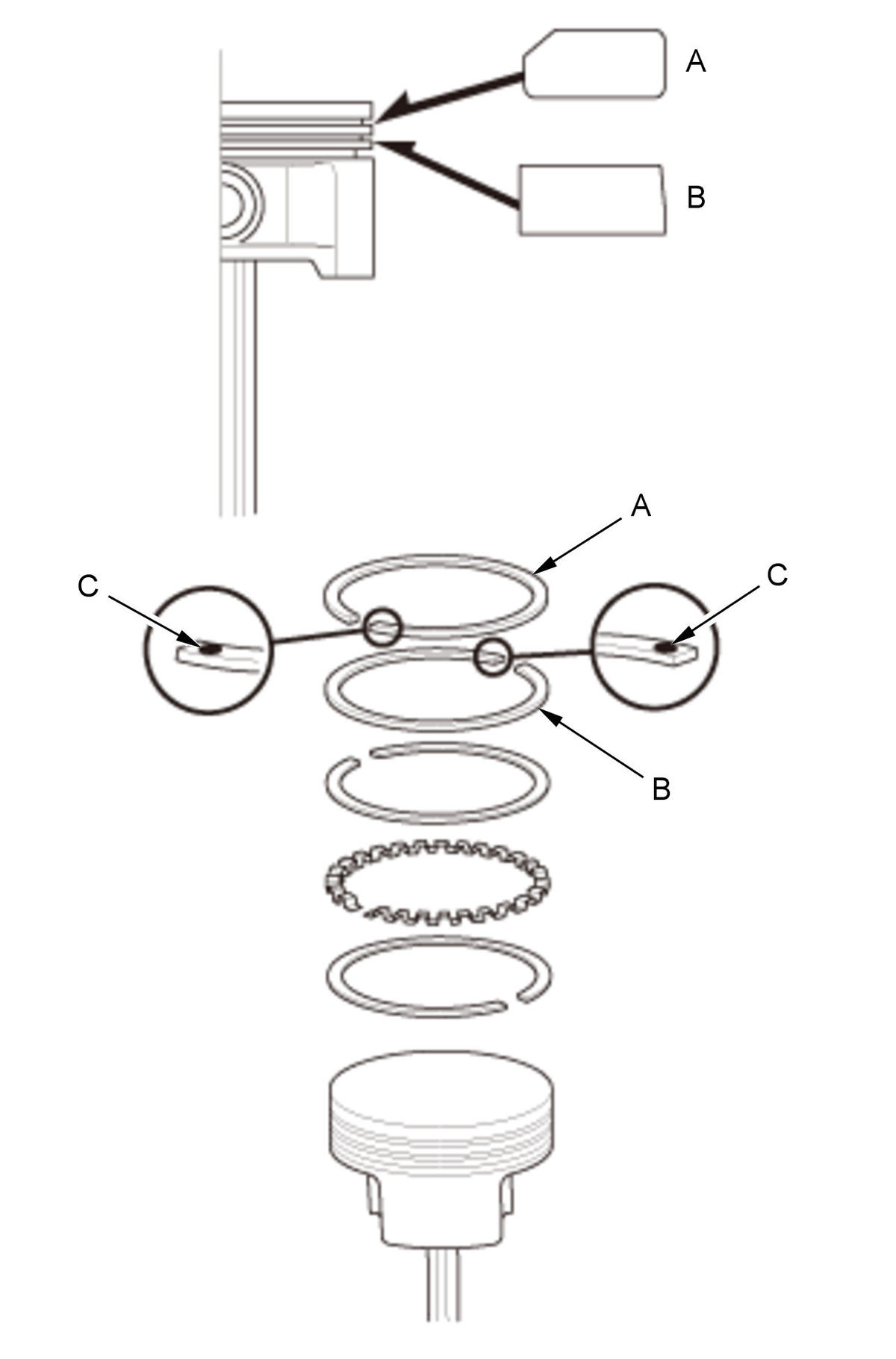

1. Install the rings as shown. The top ring (A) has a 1R mark and the second ring (B) has a 2R mark. The manufacturing marks (C) must be facing upward.

Courtesy of HONDA, U.S.A., INC.

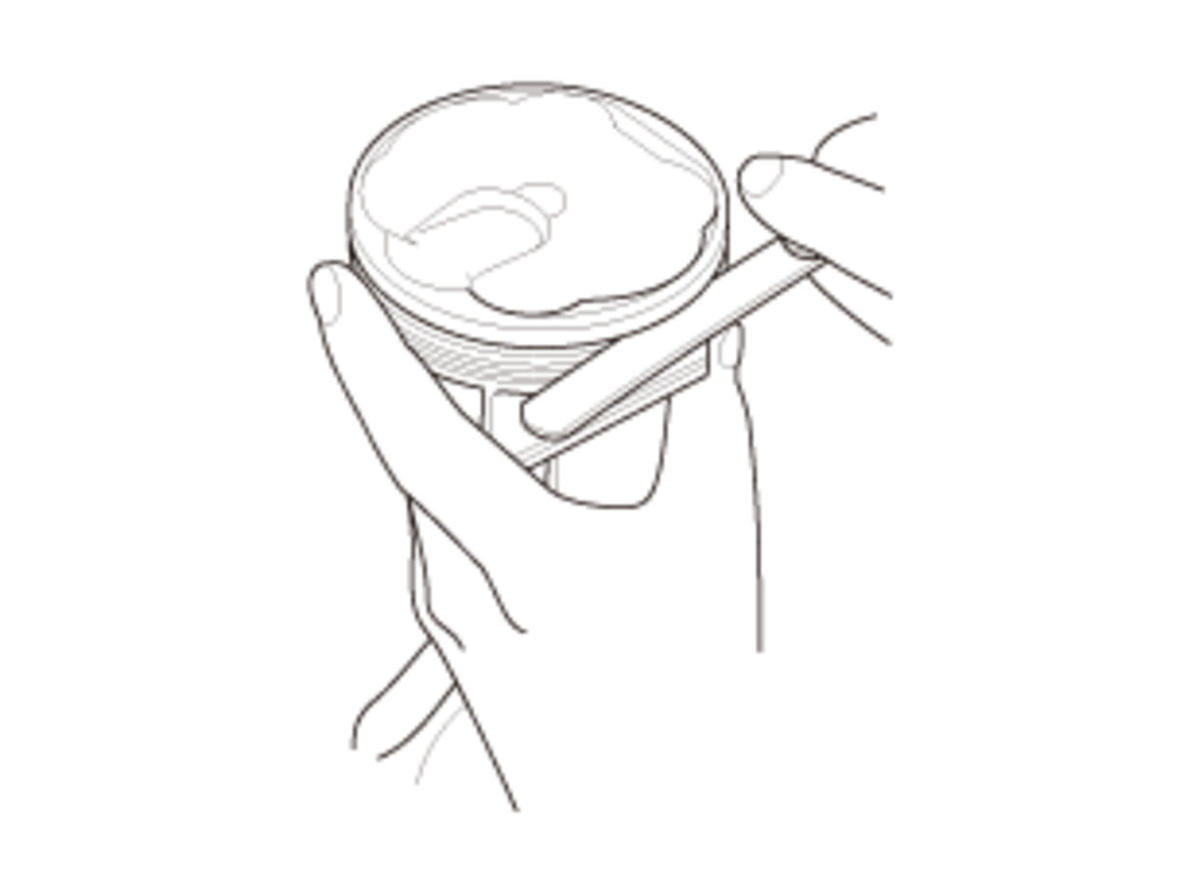

2. After installing a new set of rings, measure the ring-to-groove clearance.

3. Rotate the rings in their grooves to make sure they do not bind.

Second Ring Clearance
Standard (New):	0.030-0.055 mm (0.002- 0.002 in)
Service Limit:	0.13 mm (0.005 in)

Top Ring Clearance
Standard (New):	0.065-0.090 mm (0.003-0.003 in)
Service Limit:	0.15 mm (0.005 in)

Courtesy of HONDA, U.S.A., INC.

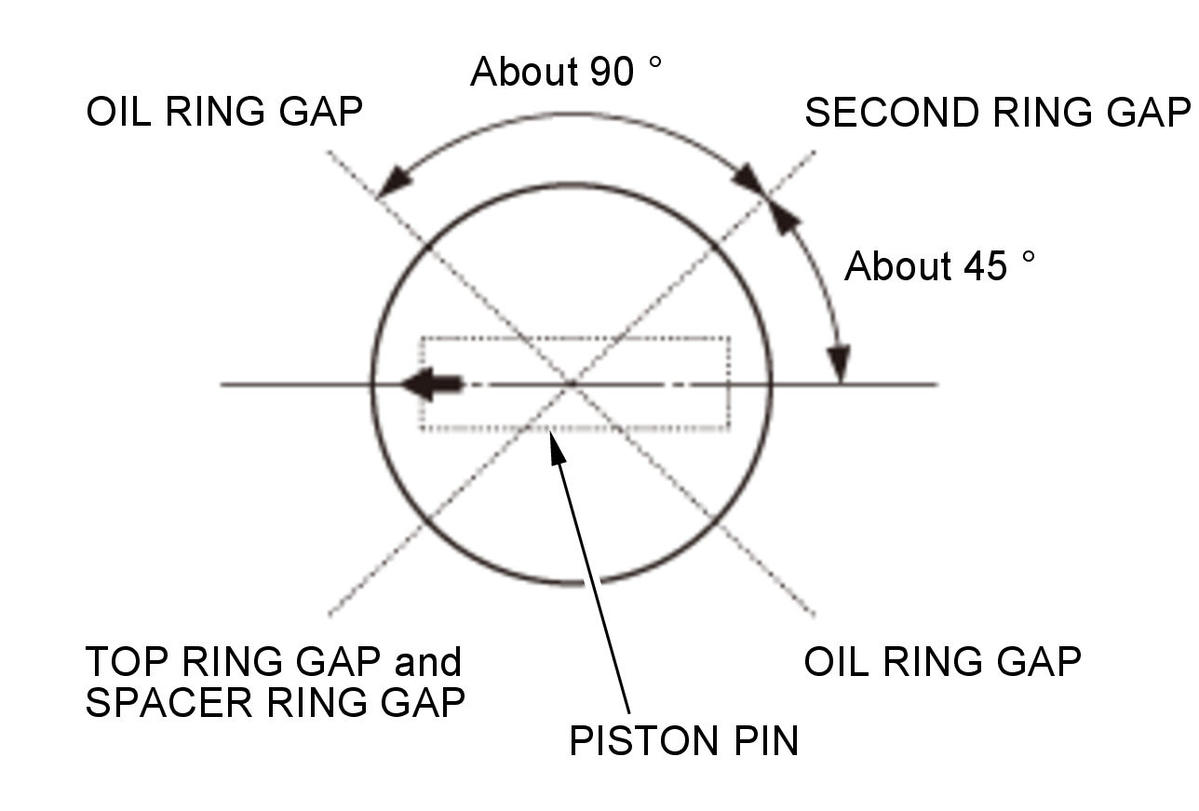

4. Position the ring end gaps as shown.

Connecting Rod Bearing Clearance - Check
Check the connecting rod bearing clearance with a plastigage .

Piston/Connecting Rod Assembly - Install

Courtesy of HONDA, U.S.A., INC.

1. Position the piston/connecting rod assembly with the arrow (A) facing the timing belt side of the engine block.

Courtesy of HONDA, U.S.A., INC.

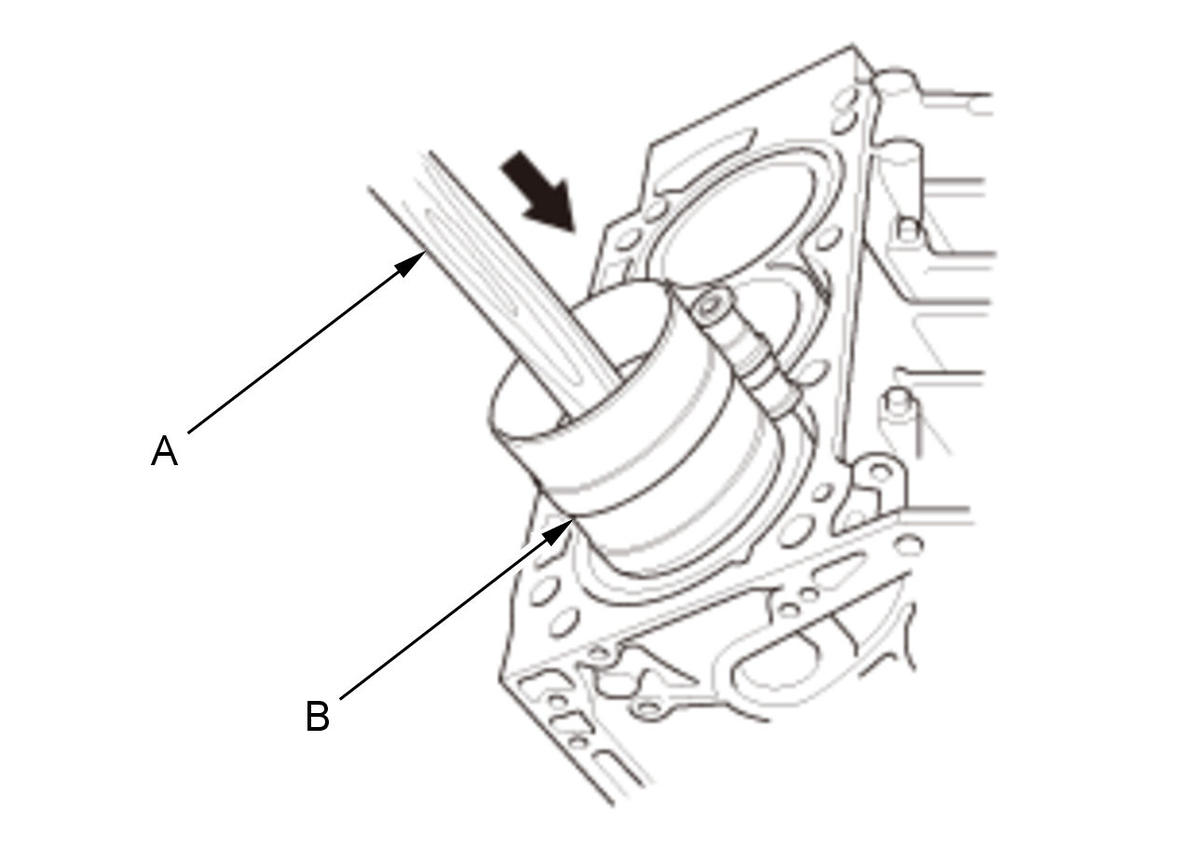

2. Position the piston/connecting rod assembly in the cylinder, and tap it in using the wooden handle of a hammer (A). Maintain downward force on the ring compressor (B) to prevent the rings from expanding before entering the cylinder bore.

3. Stop after the ring compressor pops free, and check the connecting rod-to-rod journal alignment before pushing the piston into place.

Connecting Rod Bolt - Inspect

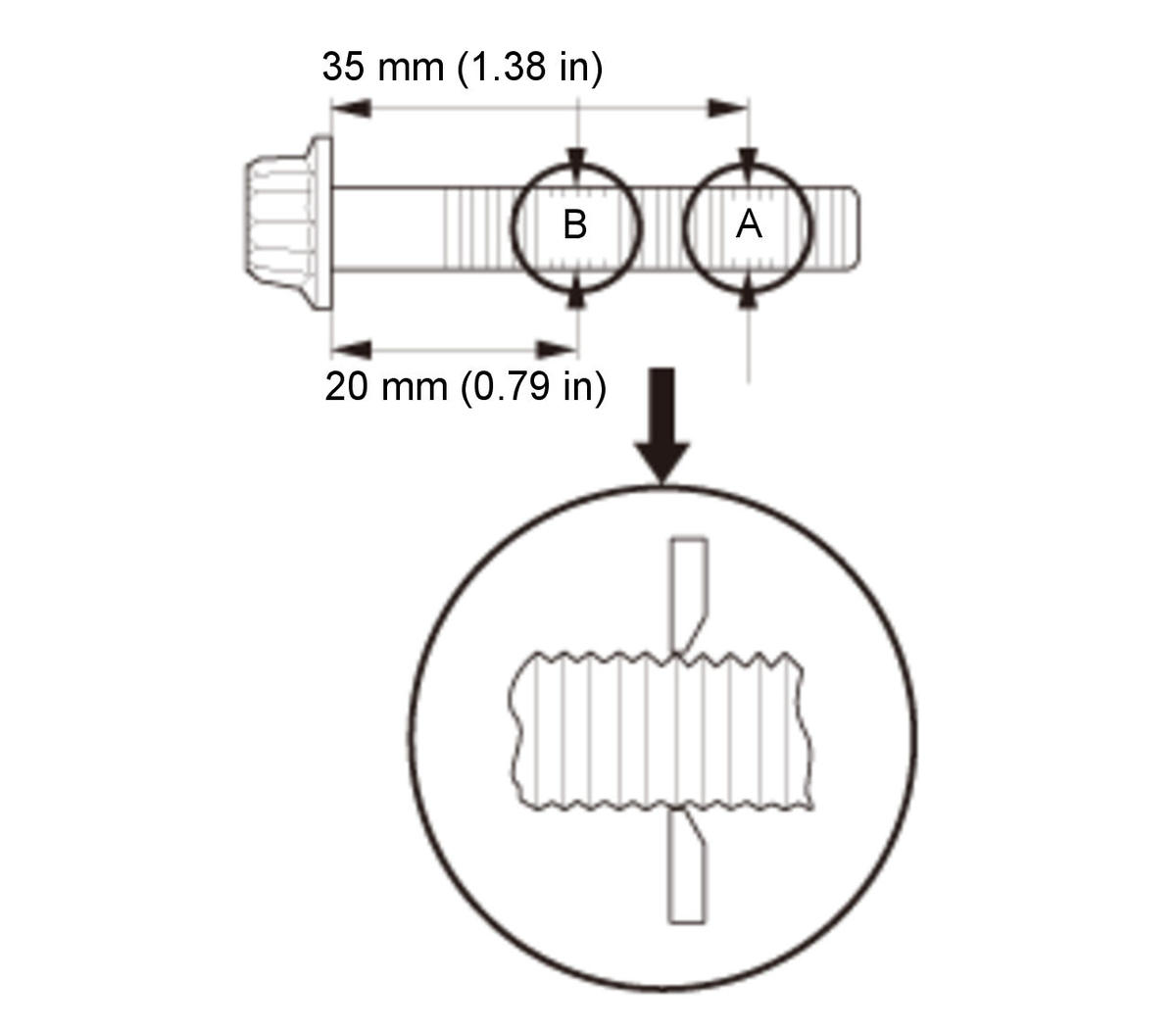

1. Measure the diameter of each connecting rod bolt at point A and point B.

Courtesy of HONDA, U.S.A., INC.

2. Calculate the difference in diameter between point A and point B.

Point A-Point B = Difference in Diameter

Difference in Diameter

Specification: 0-0.1 mm (0-0.004 in)

3. If the difference in diameter is out of tolerance, replace the connecting rod bolt.

Connecting Rod Cap and Bearing Half - Install

Courtesy of HONDA, U.S.A., INC.

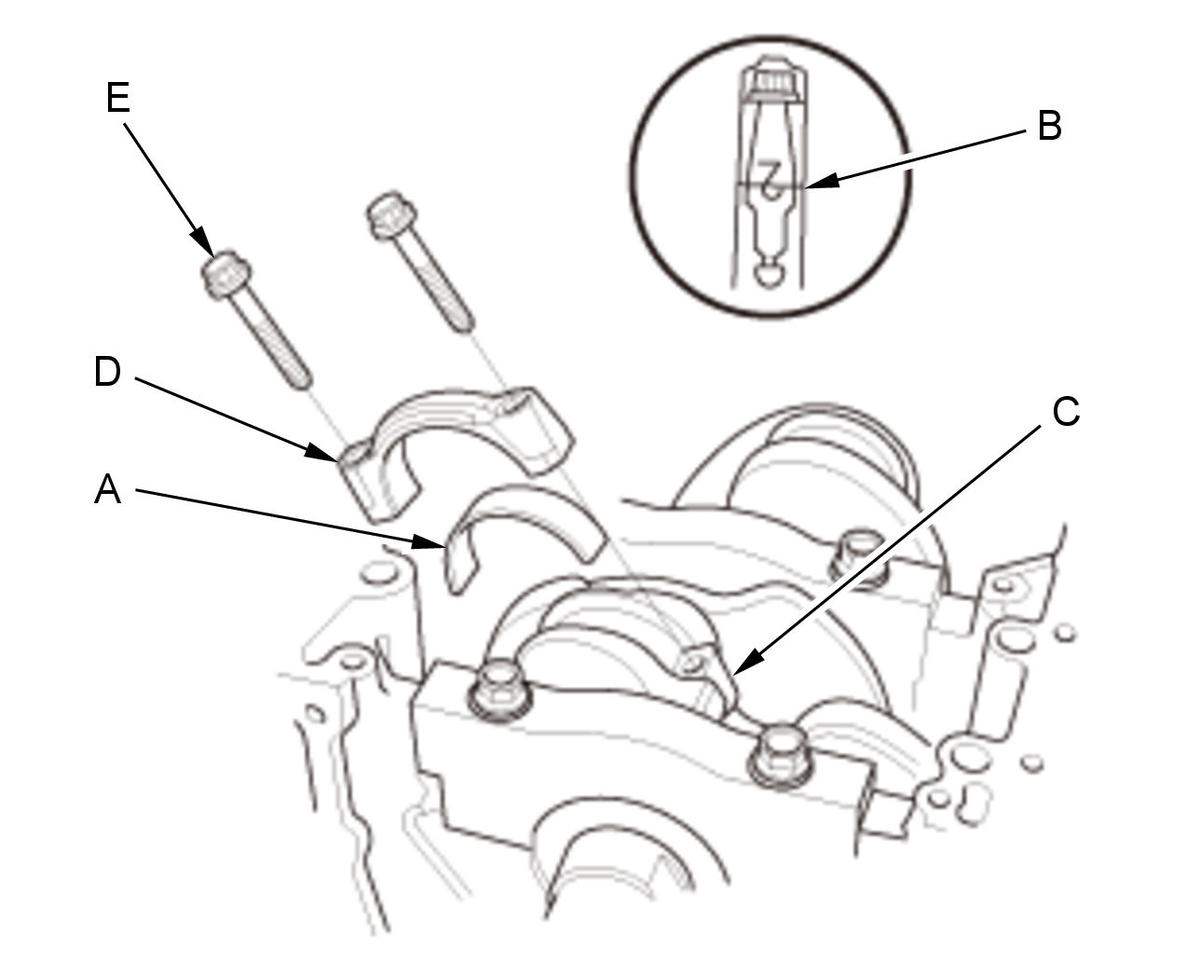

1. Install the connecting rod bearing (A), then line up the mark (B) on the connecting rod (C) and the rod cap (D).

2. Apply new engine oil to the bolt threads and flanges. Torque the bolts (E) to 20 N.m (2.0 kgf.m, 15 lbf.ft).

Courtesy of HONDA, U.S.A., INC.

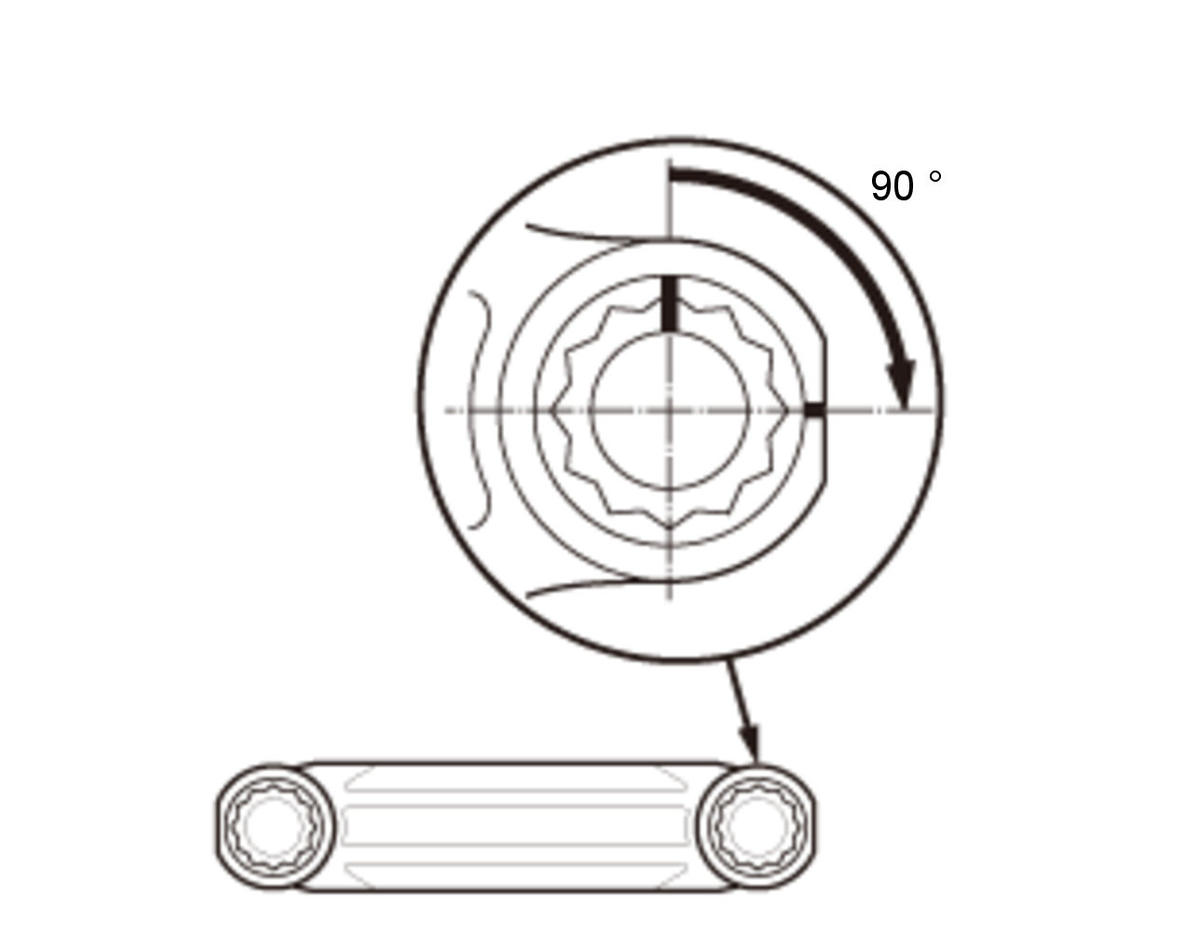

3. Tighten the connecting rod bolt an additional 90 deg..

NOTE: Remove the connecting rod bolt if you tightened it beyond the specified angle, and inspect the connecting rod bolt. Do not loosen it back to the specified angle.

Crankshaft Oil Seal - Install (Oil Pump)
Install a new crankshaft oil seal in the oil pump .
Engine Oil Strainer and Baffle Plate - Install

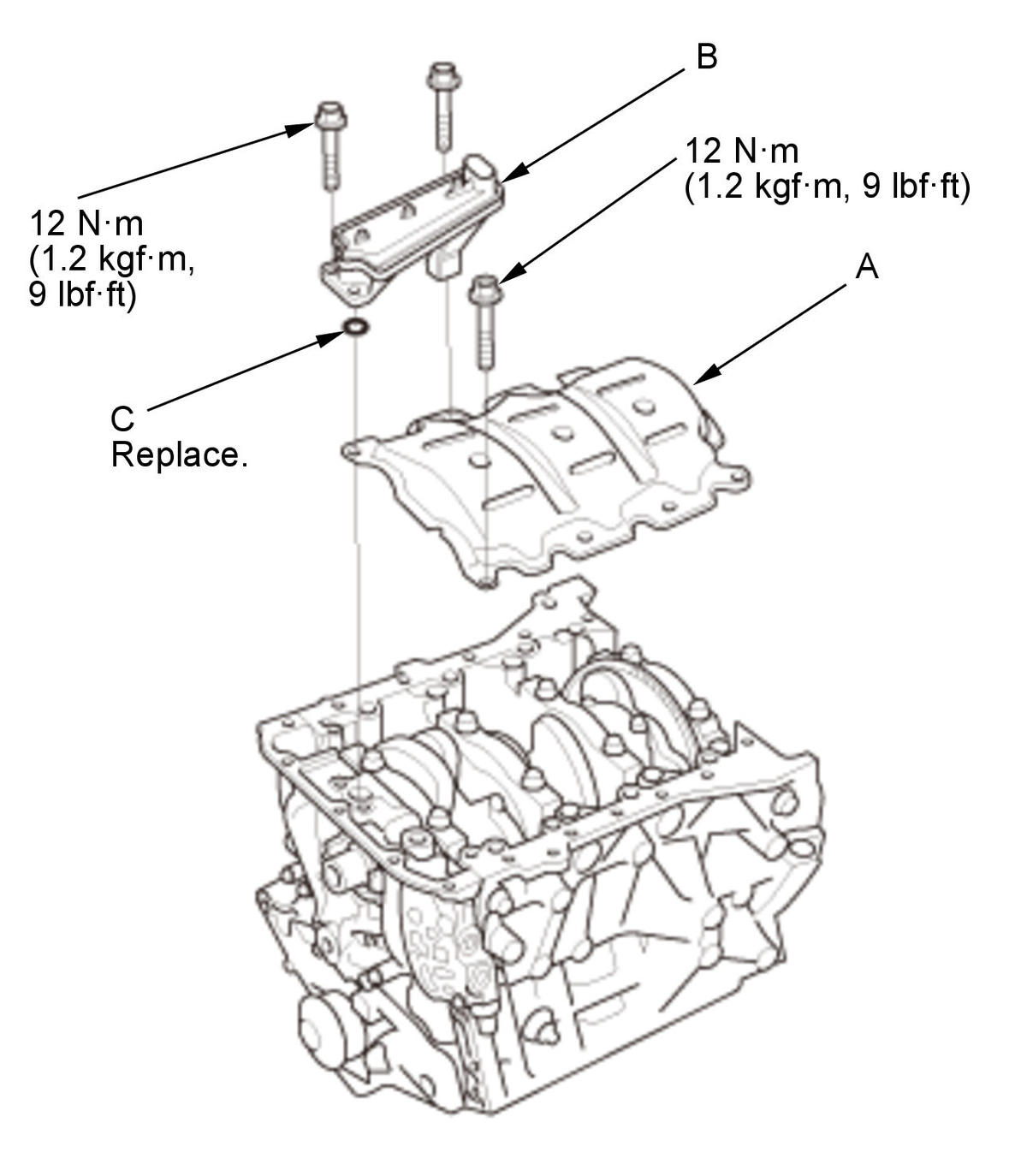

Fig 1: Engine Oil Strainer and Baffle Plate With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

1. Install the baffle plate (A).
2. Install the oil strainer (B) with a new O-ring (C).
Oil Filter Base/Oil Cooler/Oil Filter Assembly - Install

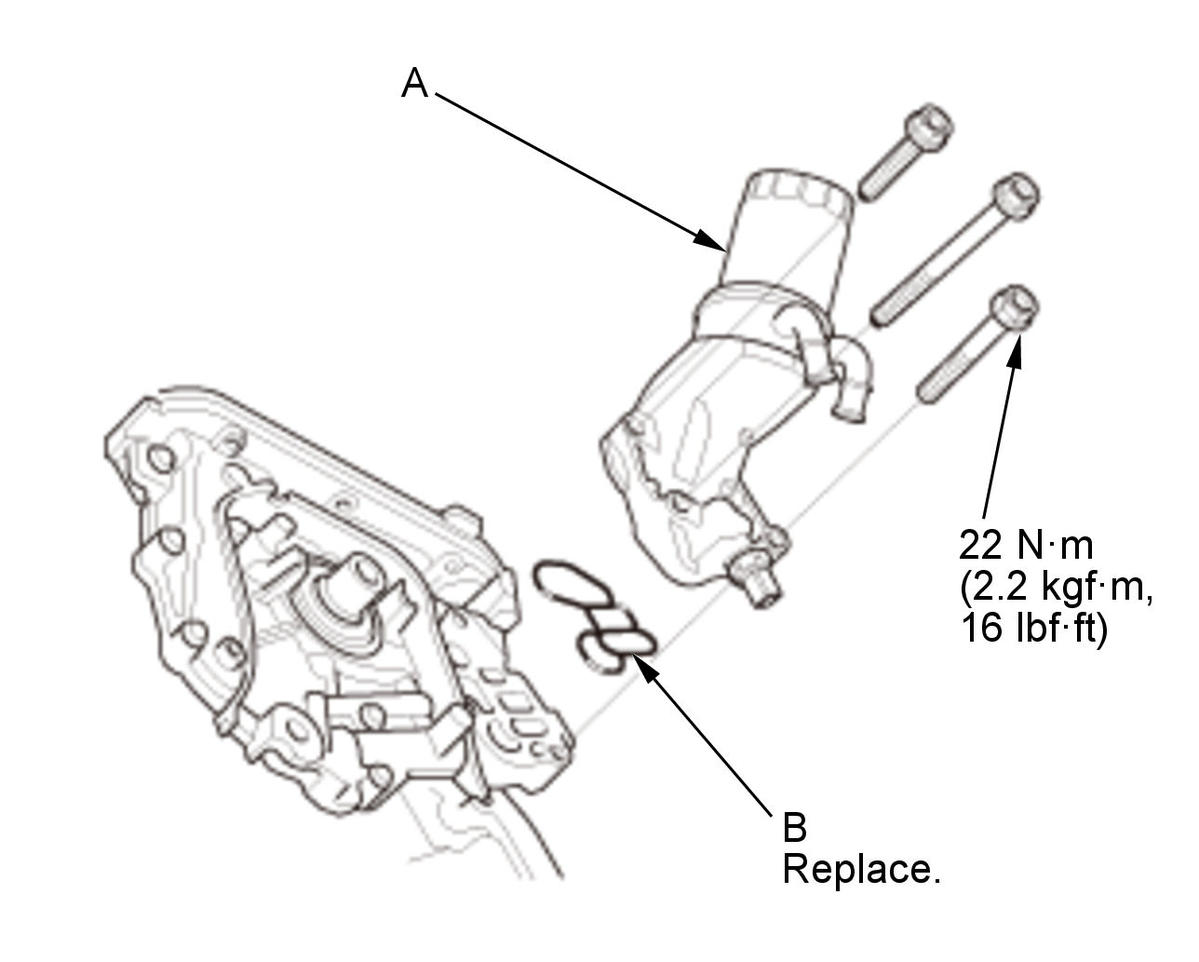

Fig 2: Oil Filter Base/Oil Cooler/Oil Filter Assembly With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

Install the oil filter base/oil cooler/oil filter assembly (A) with a new O-ring (B).
Oil Pan - Install
Install the oil pan .
Cylinder Head - Install
Install the cylinder head .
