Rocker Arm Oil Pressure Switch A (Bank 1) Removal And Installation: Installation

  1. Rocker Arm Oil Pressure Switch A (Bank 1) - Install

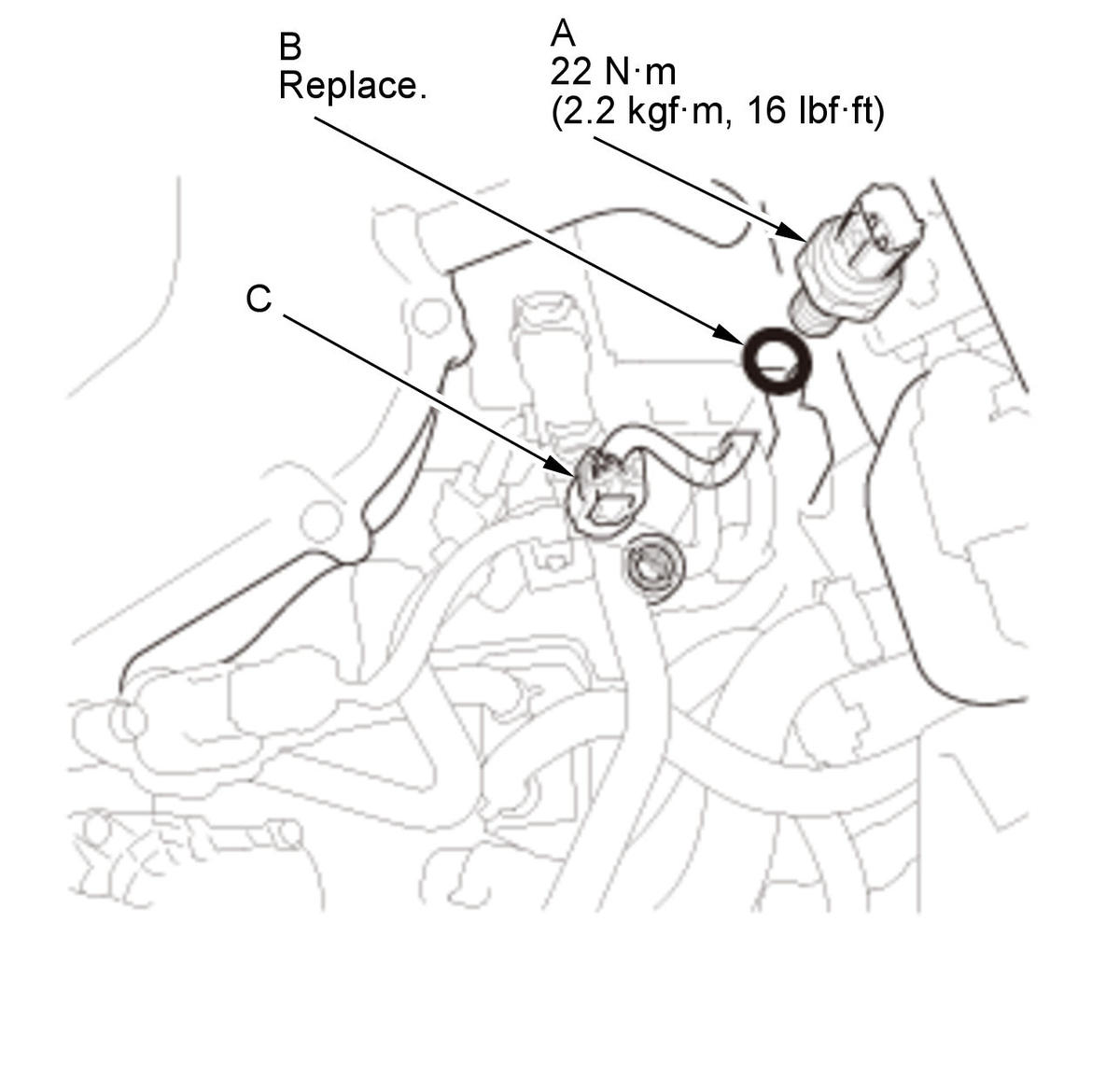

    Fig 1: Rocker Arm Oil Pressure Switch A With Torque Specifications
    GHH346150Courtesy of HONDA, U.S.A., INC.
    1. Install rocker arm oil pressure switch A (Bank 1) with a new O-ring (B).

    2. Connect the rocker arm oil pressure switch A (Bank 1) connector (C).
  2. Engine Cover - Install

    Install the engine cover .
