Rocker Arm Oil Pressure Switch B (Bank 1) Removal And Installation: Installation

  1. Rocker Arm Oil Pressure Switch B (Bank 1) - Install

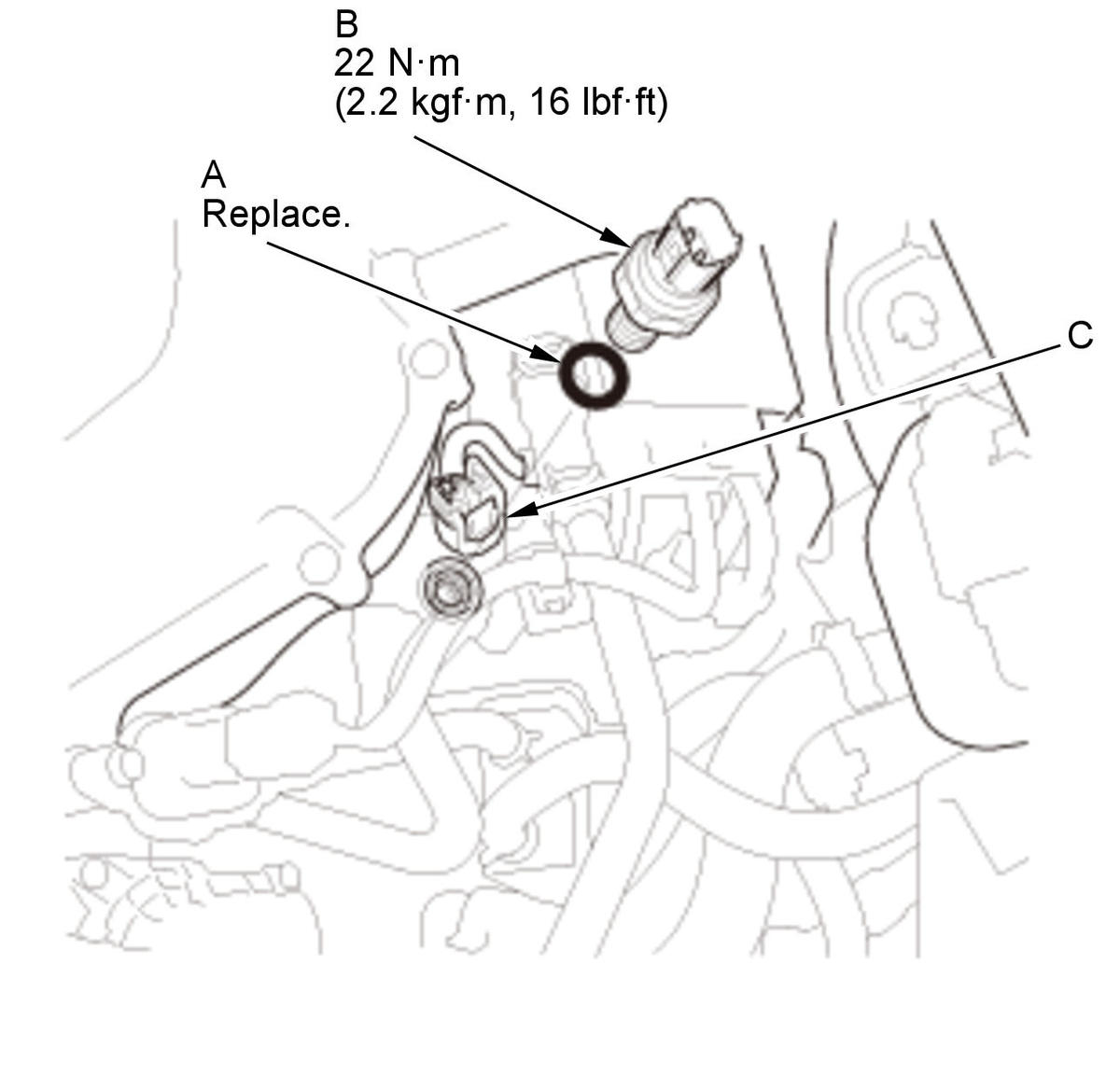

    Fig 1: Rocker Arm Oil Pressure Switch B (Bank 1) With Torque Specifications
    GHH346154Courtesy of HONDA, U.S.A., INC.
    1. Install rocker arm oil pressure switch B (Bank 1) with a new O-ring (A).

    2. Connect the rocker arm oil pressure switch B (Bank 1) connector (C).
  2. Engine Cover - Install

    Install the engine cover .
