Warm Up TWC Removal And Installation (2014 2015 2016 2017): Installation

Front Bank (Bank 2)

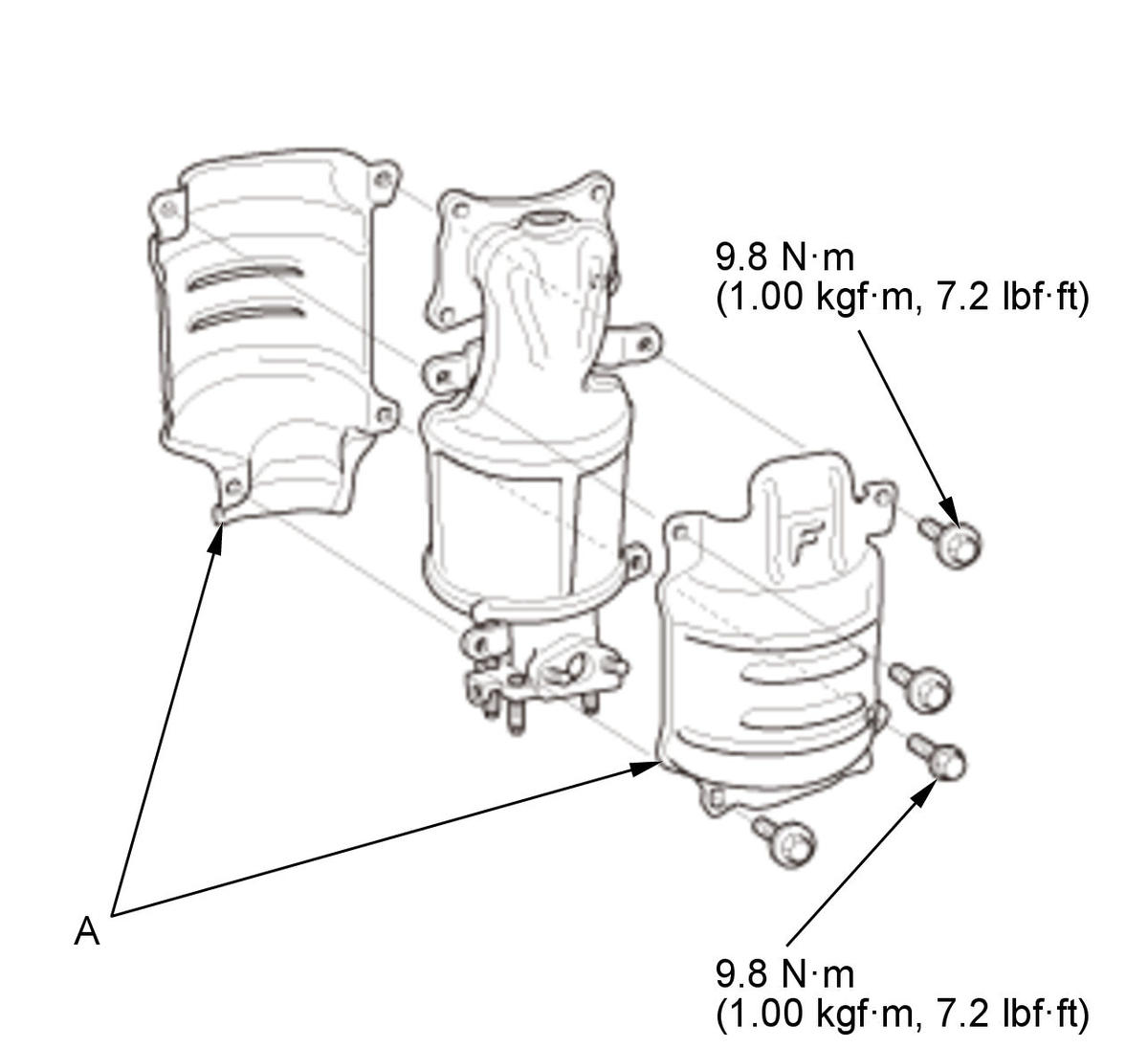

1. WU-TWC Cover - Install

   Courtesy of HONDA, U.S.A., INC.

   Install the WU-TWC covers (A) on the front WU-TWC.

2. Front WU-TWC - Install

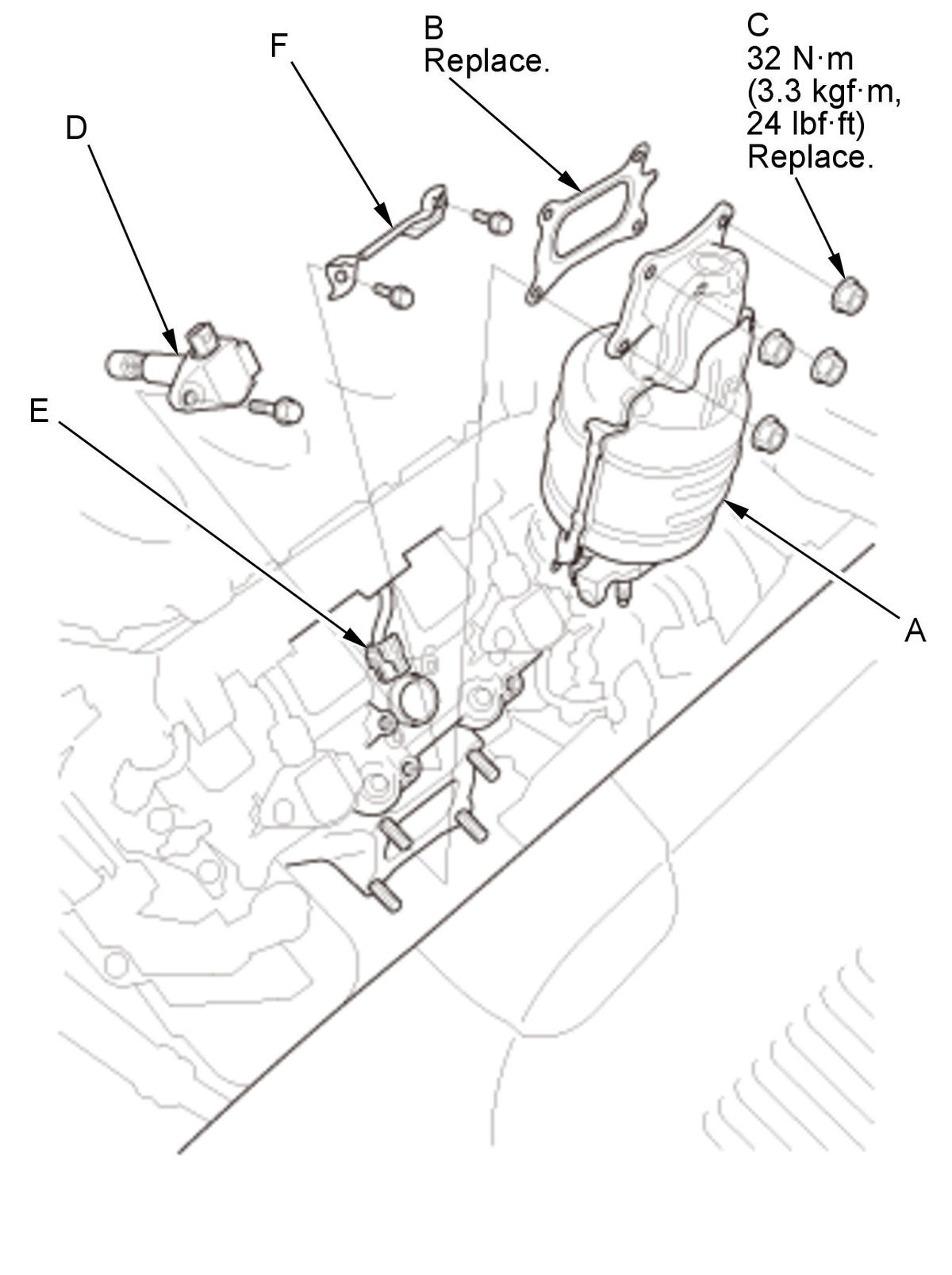

   Fig 1: Front WU-TWC With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   1. Carefully install the front WU-TWC (A) assembly with a new gasket (B) and new self-locking nuts (C). 2. Install the No. 5 cylinder ignition coil (D), then connect the No. 5 cylinder ignition coil connector (E). 3. Install the spark plug heat insulator (F).

3. A/C Condenser Fan Shroud Assembly - Install

   Install the A/C condenser fan shroud assembly .

4. Front A/F Sensor (Sensor 1) - Install

   Install the front A/F sensor (Sensor 1) .

5. EGR Pipe - Install

   Install the EGR pipe .

6. Engine Cover - Install

   Install the engine cover .

7. Front WU-TWC Bracket - Tighten

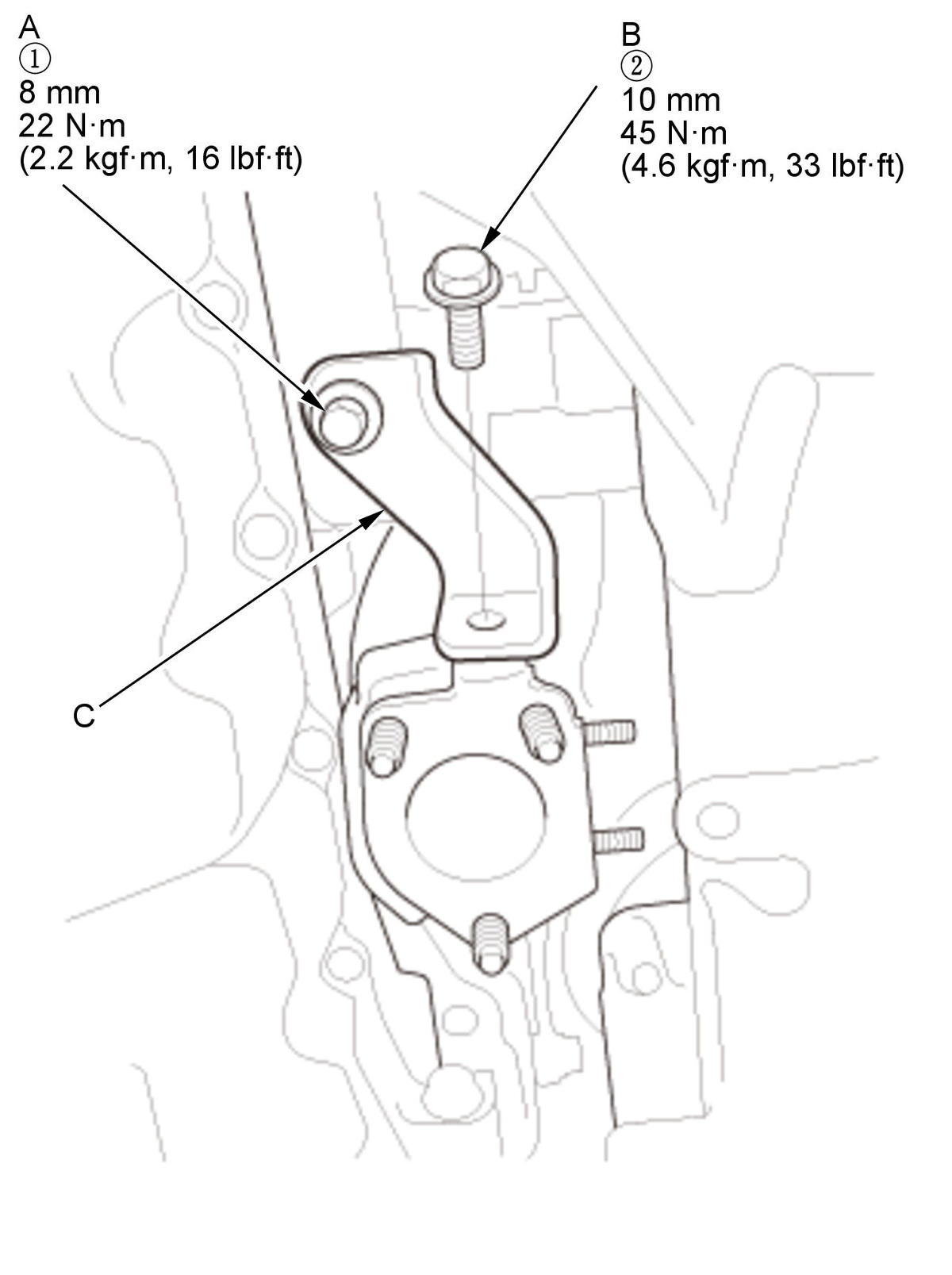

   Fig 2: Front WU-TWC Bracket With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   1. Loosely tighten the front WU-TWC bracket bolts (A) and (B) until the bracket (C) and the bolts are seated. 2. Tighten the mounting bolts in the numbered sequence shown.

8. Exhaust Pipe A - Install

   Install exhaust pipe A .

Rear Bank (Bank 1)

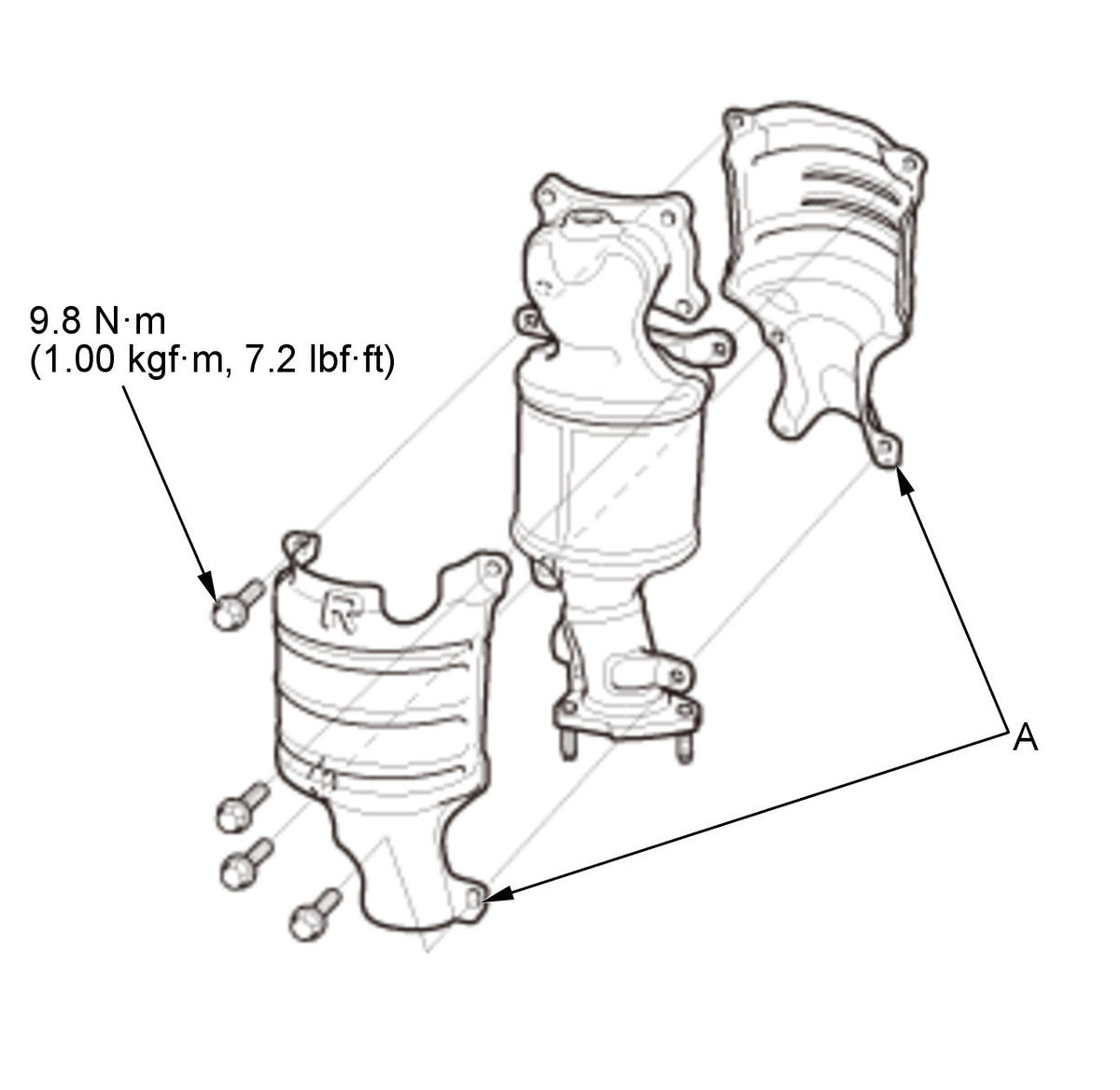

1. WU-TWC Cover - Install

   Courtesy of HONDA, U.S.A., INC.

   Install the WU-TWC covers (A) on the rear WU-TWC.

2. Rear WU-TWC - Install

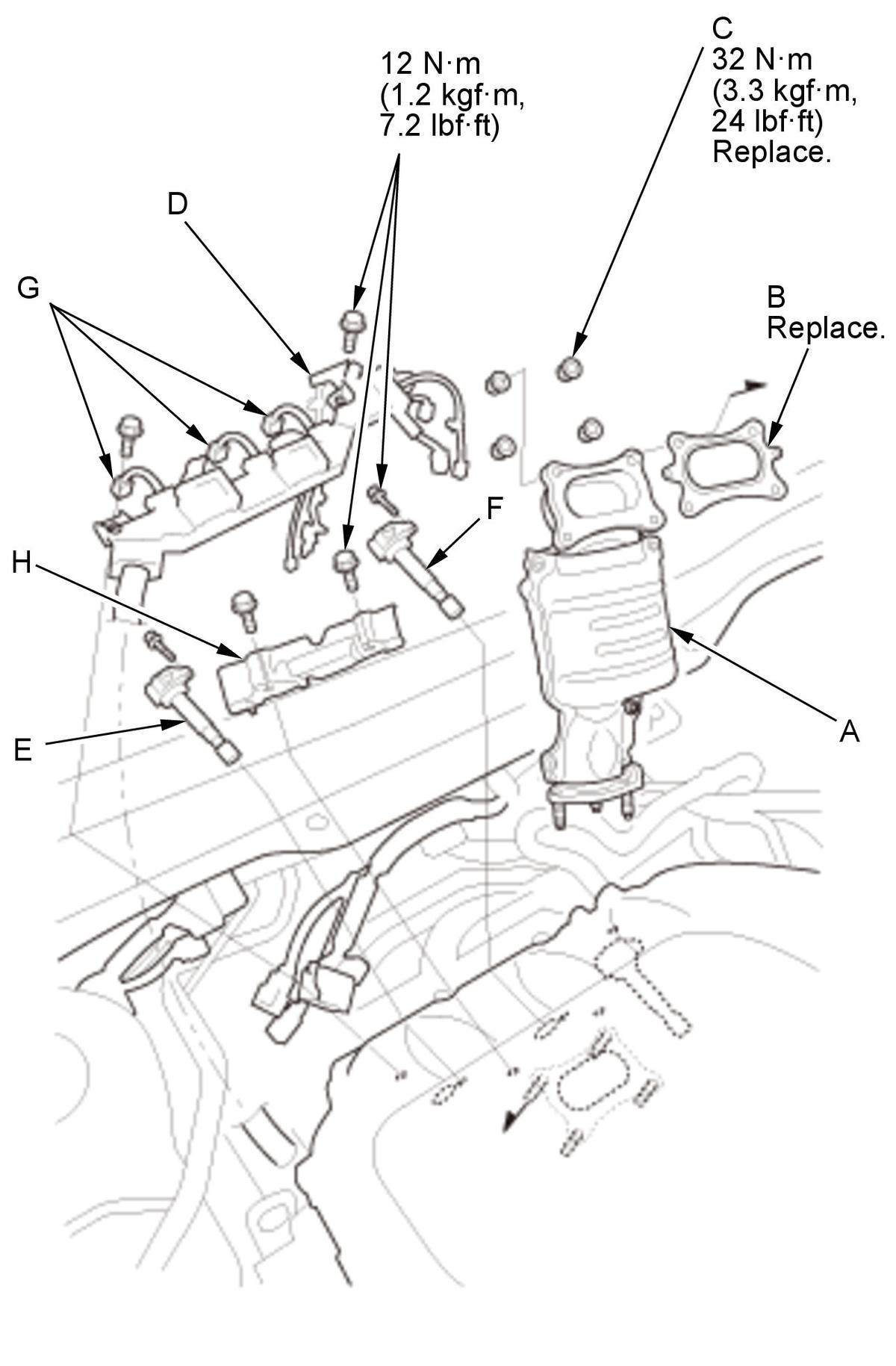

   Fig 1: Rear WU-TWC With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

   1. Carefully install the rear WU-TWC (A) assembly with a new gasket (B) and new self-locking nuts (C). 2. Install the harness holder (D). 3. Install the No. 1 cylinder ignition coil (E) and the No. 2 cylinder ignition coil (F), then connect the ignition coil connectors (G). 4. Install the spark plug heat shield (H).

   Courtesy of HONDA, U.S.A., INC.

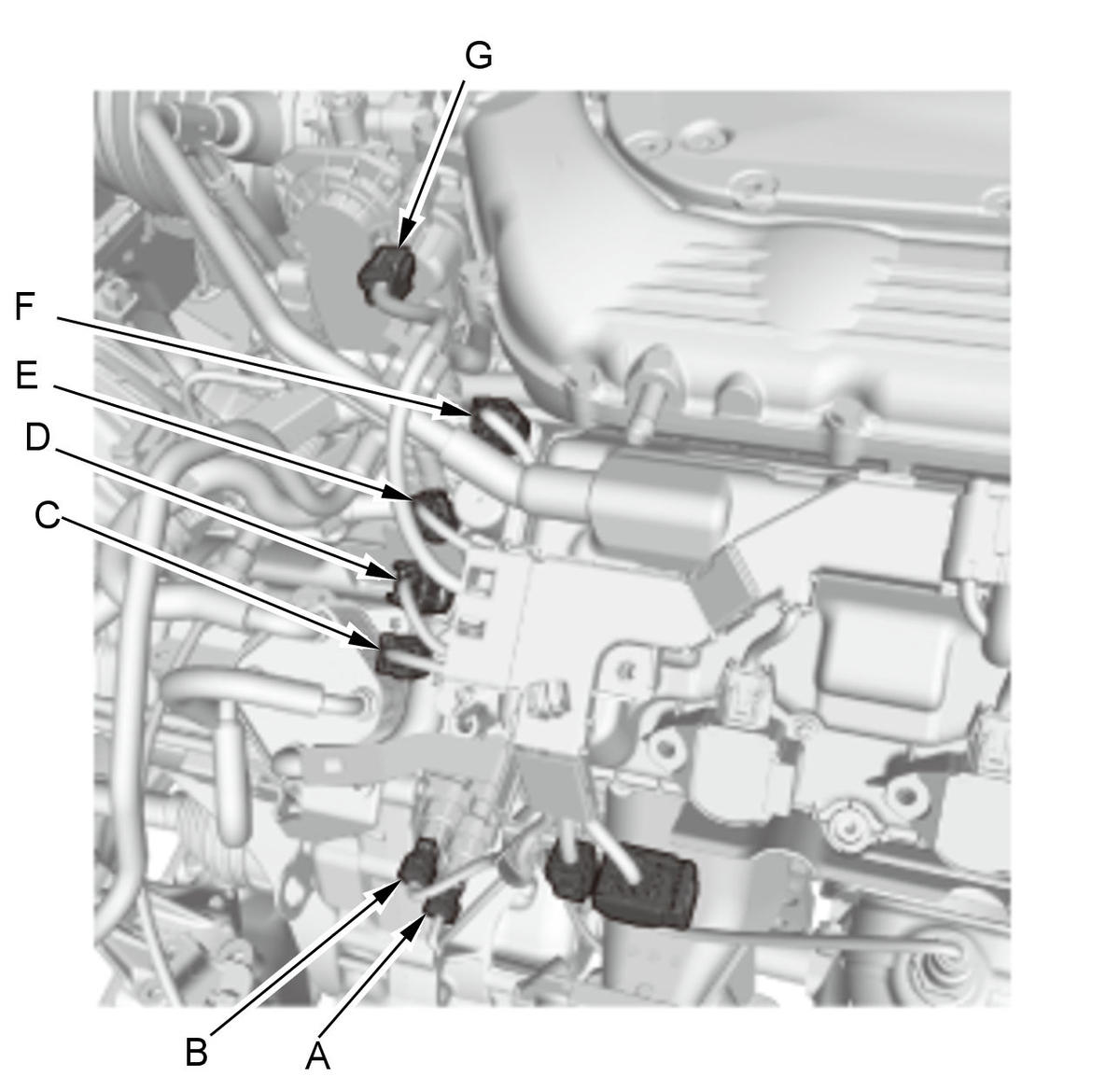

   5. Connect the following connectors. Transmission fluid pressure switch A connector (A) Transmission fluid pressure switch D connector (B) Rocker arm oil control solenoid A (Bank 1) connector (C) Rocker arm oil pressure switch A (Bank 1) connector (D) Rocker arm oil control solenoid B (Bank 1) connector (E) Rocker arm oil pressure switch B (Bank 1) connector (F) EVAP canister purge valve connector (G)

3. Power Steering Heat Shield - Install

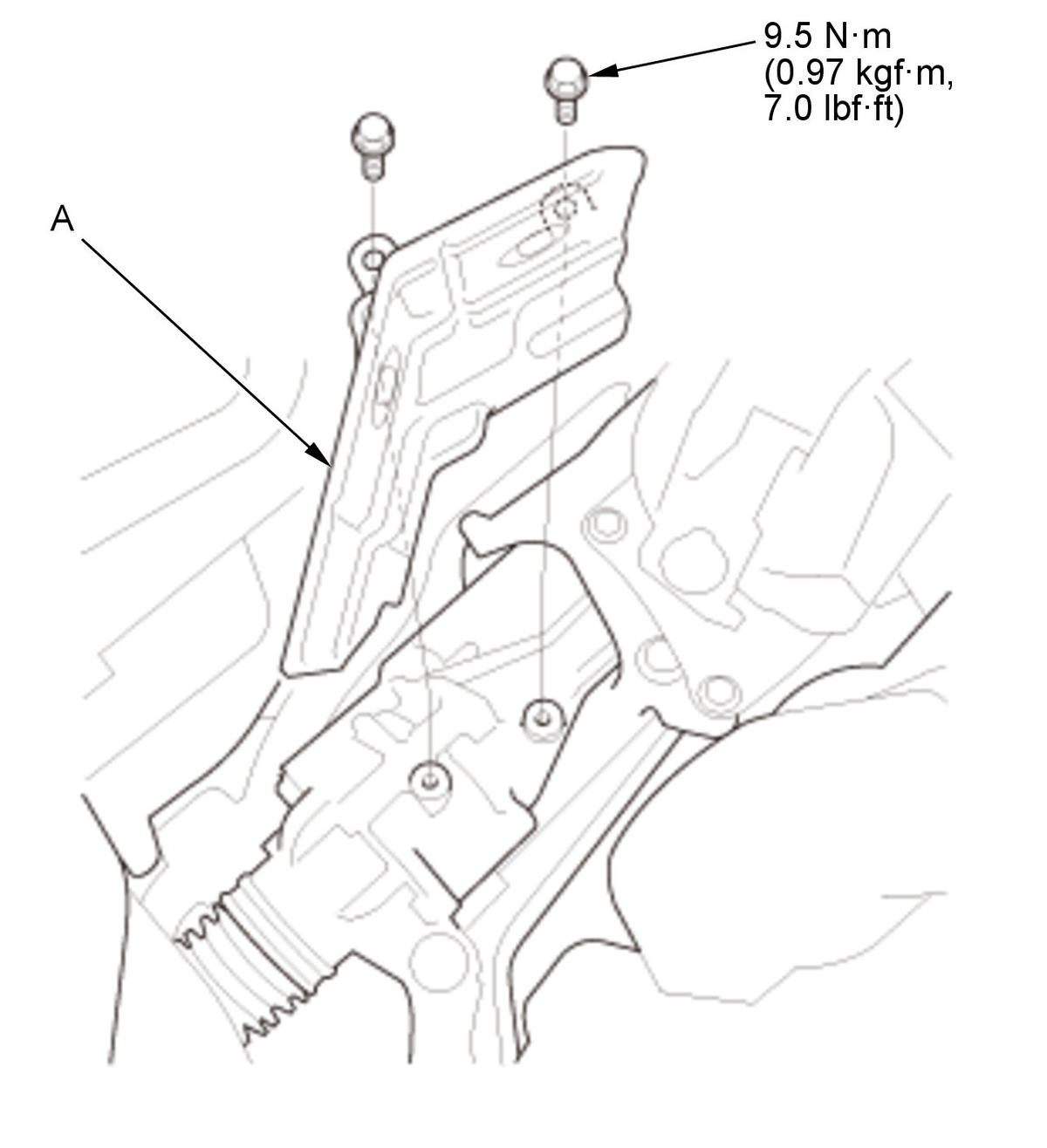

   Courtesy of HONDA, U.S.A., INC.

   Install the power steering heat shield (A).

4. Rear A/F Sensor (Sensor 1) - Install

   Install the rear A/F sensor (Sensor 1) .

5. Left Cabin Wire Harness Connector - Connect

   Courtesy of HONDA, U.S.A., INC.

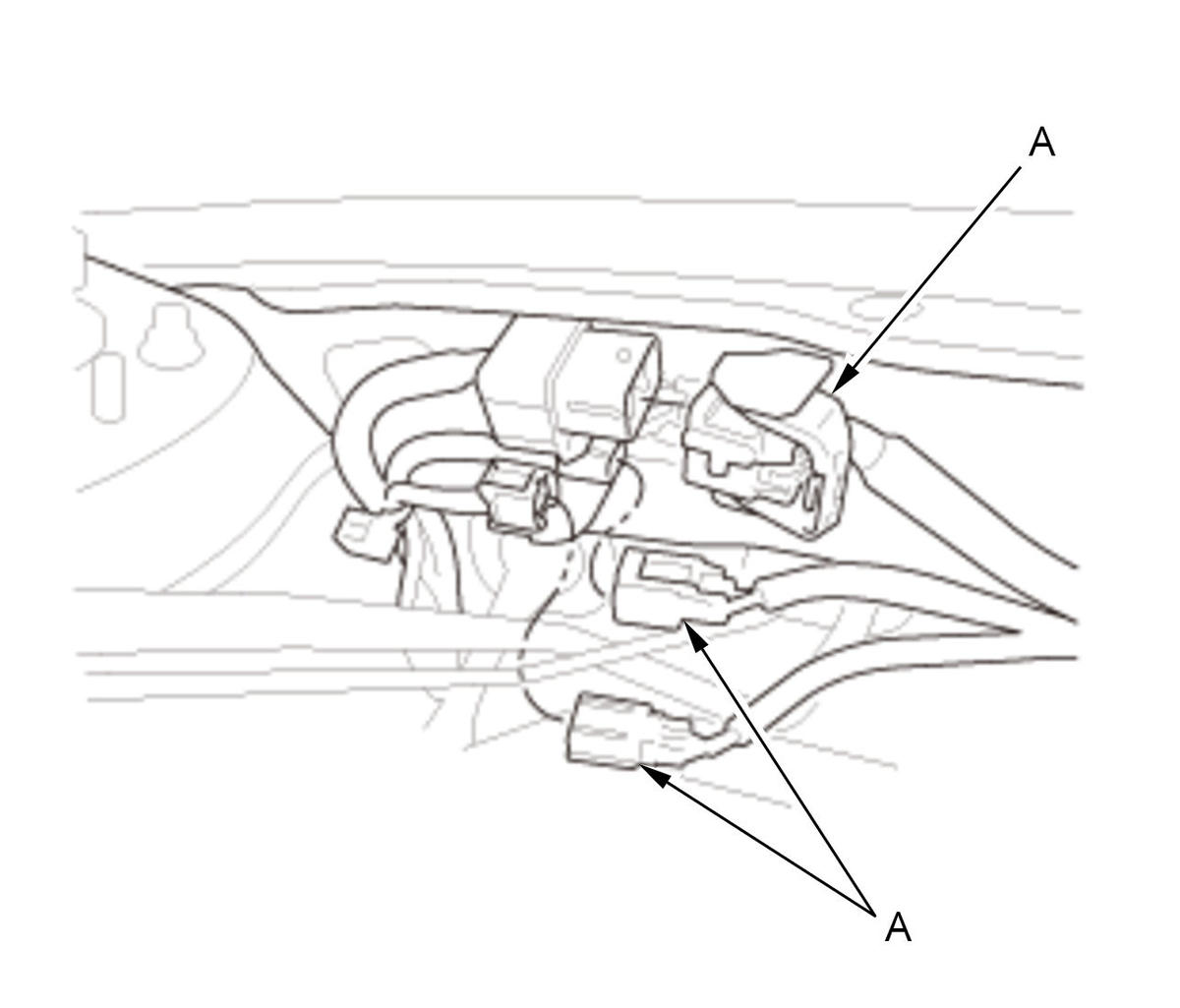

   Connect the left cabin wire harness connectors (A).

6. Front Strut Brace - Install

   Install the front strut brace .

7. Engine Cover - Install

   Install the engine cover .

8. CKP Sensor Cover and Bracket - Install

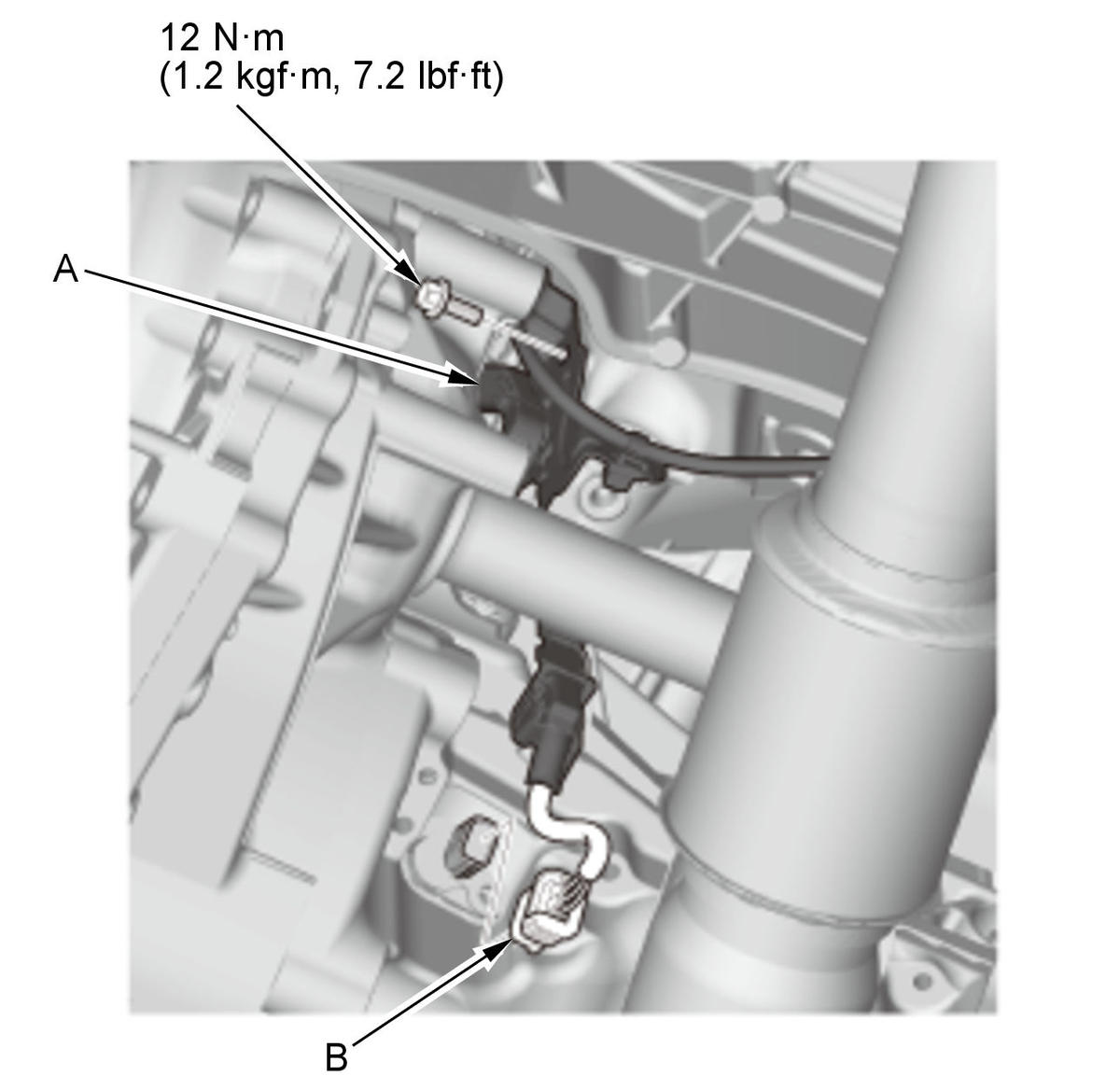

   Fig 2: CKP Sensor Cover and Bracket With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   1. Install the bracket (A). 2. Connect the CKP sensor connector (B). 3. Install the CKP sensor cover  .

9. Rear WU-TWC Bracket - Tighten

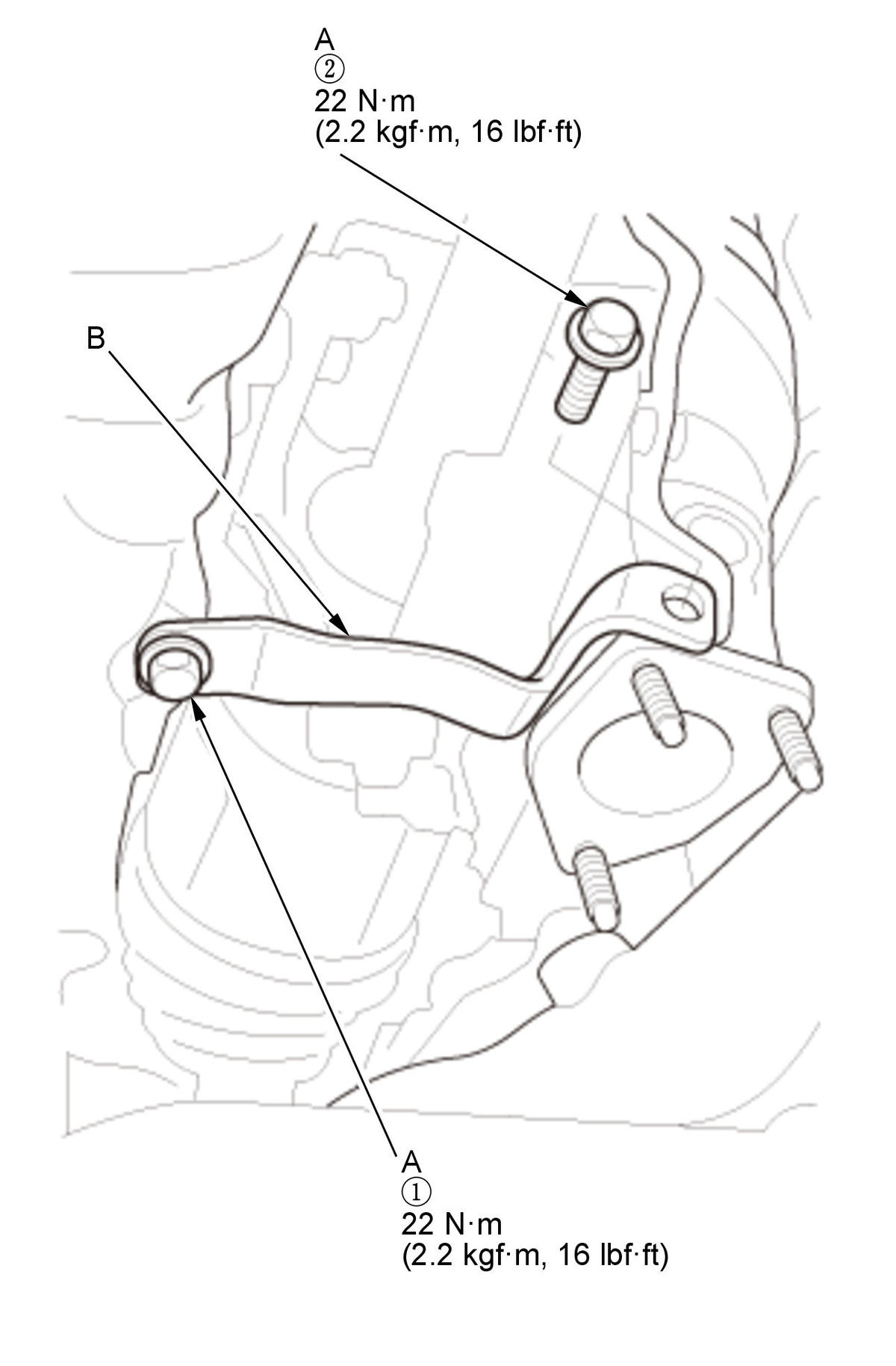

   Fig 3: Rear WU-TWC Bracket Tightening Sequence With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   1. Loosely tighten the rear WU-TWC bracket mounting bolts (A) until the bracket (B) and the bolts are seated. 2. Tighten the mounting bolts in the numbered sequence shown.

10. Rear Secondary HO2S (Sensor 2) - Install

    Install rear secondary HO2S (Sensor 2) .

11. Exhaust Pipe A - Install

    Install exhaust pipe A .
