Emission Group Identification

Example:

GHH347516Courtesy of HONDA, U.S.A., INC.

'17 Model

CONFORMS TO REGULATIONS: 2017 MY

Test Group and Evaporative Family

Test Group:  Evaporative Family:

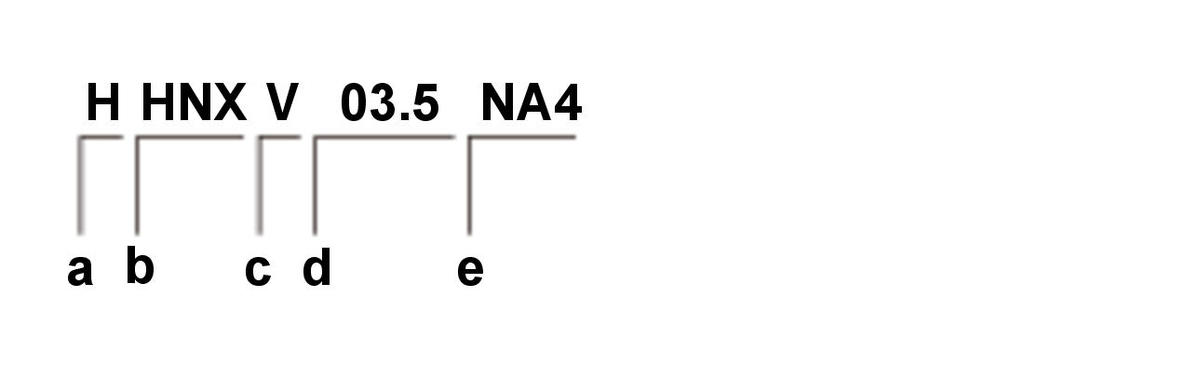

GHH347517Courtesy of HONDA, U.S.A., INC.

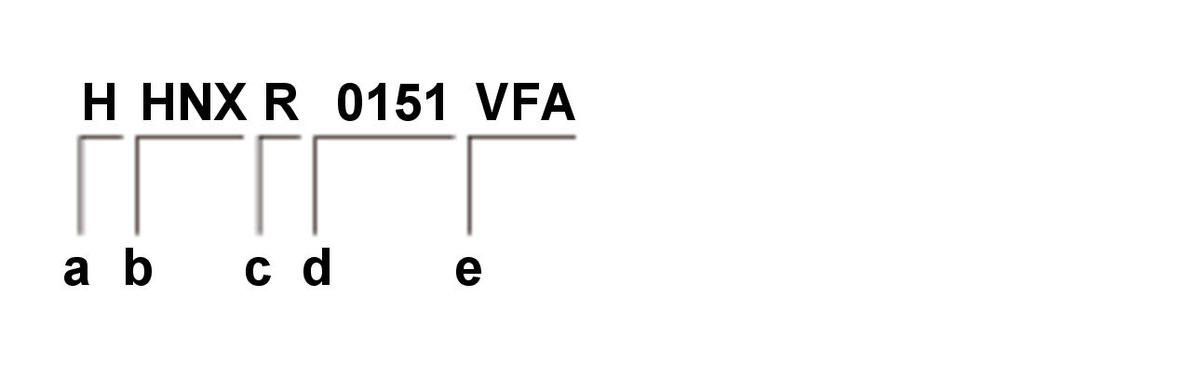

GHH347518Courtesy of HONDA, U.S.A., INC.
a.  Model Year  a.  Model Year
  H: '17   H: '17
b.  Manufacturer Subcode  b.  Manufacturer Subcode
  HNX: Honda   HNX: Honda
c.  Family Type  c.  Family Type
  V: LDV   R: EVAP/ORVR
d.  Displacement Group  d.  Canister Working Capacity Group
  03.5: J35Y4
e.  Sequence Characters  e.  Sequence Characters
  NA4: '17 model   VFA: '17 model
