DTC P0153 (2014 2015 2016 2017)

DTC P0153: Front Air/Fuel Ratio (A/F) Sensor (Bank 2, Sensor 1) Malfunction/Slow Response

General Description

Courtesy of HONDA, U.S.A., INC.

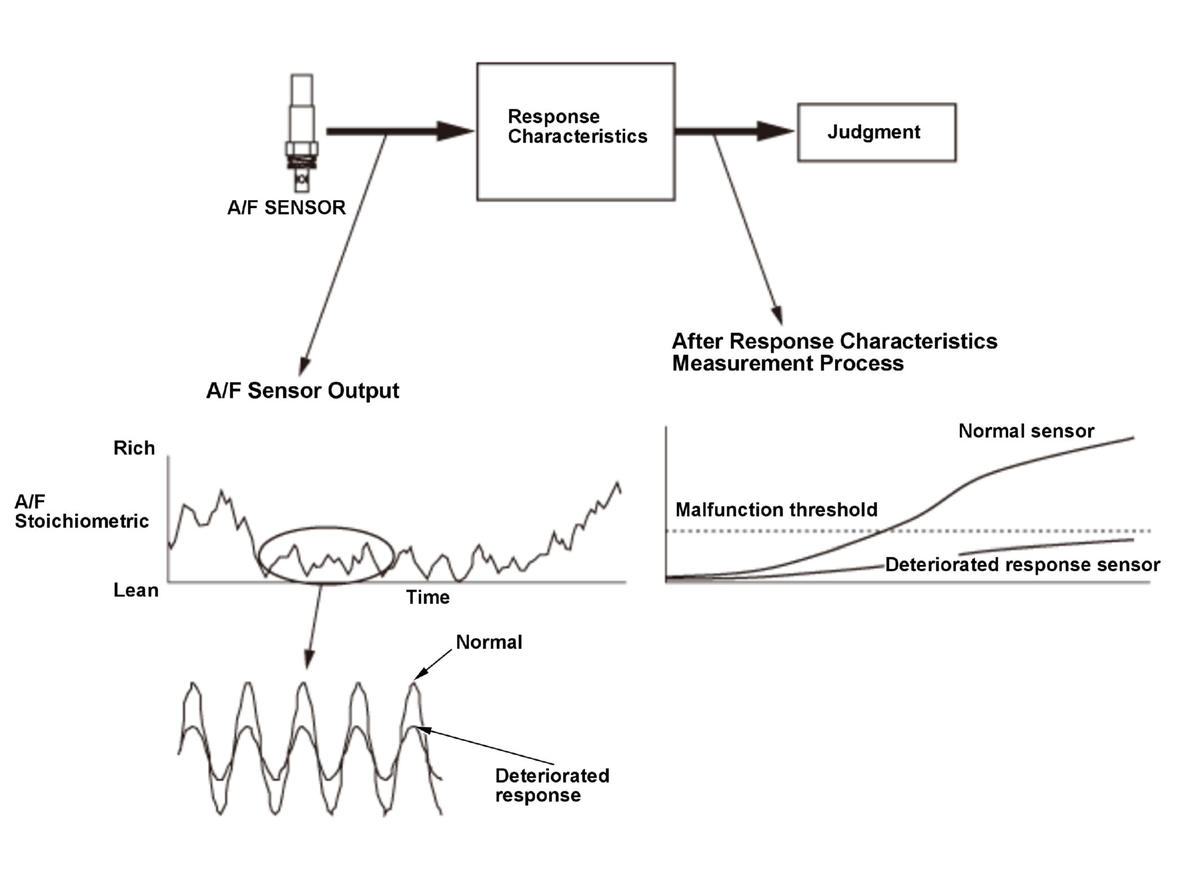

The front air/fuel ratio (A/F) sensor (bank 2, sensor 1) has a linear signal output in relation to the oxygen concentration. The powertrain control module (PCM) computes the air/fuel ratio from the front A/F sensor (bank 2, sensor 1) output voltage and uses fuel feedback control to improve exhaust emissions. The PCM compares the response characteristics against the front A/F sensor (bank 2, sensor 1) output. If the total front A/F sensor (bank 2, sensor 1) output is a specified value for a specified time, the PCM detects a deteriorated response and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

Execution	Once per driving cycle
Sequence	None
Duration	6.8 seconds or more
DTC Type	Two drive cycles, MIL on
OBD Status	PASSED/FAILED/EXECUTING/OUT OF (TEST) CONDITION

Enable Conditions

Condition		Minimum	Maximum
Elapsed time after application of power to A/F sensor heater starts		5.0 seconds	-
Engine coolant temperature [ECT SENSOR 1]		156 deg.F (69 deg.C)	-
Intake air temperature [IAT SENSOR (2)]		-13 deg.F (-25 deg.C)	-
Engine speed [ENGINE SPEED]*1		1500 RPM	2500 RPM
Engine speed [ENGINE SPEED]*2		1250 RPM	2500 RPM
MAP value [MAP SENSOR]*1	1250 RPM	67 kPa (19.7 inHg, 500 mmHg)	86 kPa (25.5 inHg, 650 mmHg)
MAP value [MAP SENSOR]*1	2000 RPM	34 kPa (9.9 inHg, 250 mmHg)	86 kPa (25.5 inHg, 650 mmHg)
MAP value [MAP SENSOR]*2	1250 RPM	54 kPa (15.8 inHg, 400 mmHg)	75 kPa (22.4 inHg, 570 mmHg)
MAP value [MAP SENSOR]*2	2000 RPM	34 kPa (9.9 inHg, 250 mmHg)	75 kPa (22.4 inHg, 570 mmHg)
Vehicle speed [VEHICLE SPEED]		36 mph (57 km/h)	-
Fuel trim		0.73	1.47
Fuel feedback		Closed loop at stoichiometric
Monitoring priority*1		P0400
No active DTCs set (prevents monitor from running)*3		P0101, P0102, P0103, P0107, P0108, P0112, P0113, P0117, P0118, P0154, P0155, P0174, P0175, P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0335, P0339, P0351, P0352, P0353, P0354, P0355, P0356, P0400, P0401, P0404, P0443, P0496, P0497, P0627, P0722, P1109, P1128, P1129, P1174, P145C, P2098, P2099, P2197, P2227, P2228, P2229, P2240, P2241, P2247, P2249, P2254, P2255, P2279, P2413, P2646, P2647, P2648, P2649, P2652, P2654, P2656, P2657, P2658, P2659, P2A03
No active DTCs set (prevents monitor from running)*4		P0069, P0101, P0102, P0103, P0107, P0108, P0112, P0113, P0117, P0118, P0154, P0155, P0174, P0175, P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0335, P0339, P0351, P0352, P0353, P0354, P0355, P0356, P0400, P0401, P0404, P0441, P0443, P0496, P0497, P0627, P0722, P1109, P1174, P2073, P2074, P2098, P2099, P2197, P2228, P2229, P2240, P2241, P2247, P2249, P2254, P2255, P2279, P2413, P2646, P2647, P2648, P2649, P2652, P2654, P2656, P2657, P2658, P2659, P2A03
No active DTCs set (prevents monitor from running)*5		P0069, P006A, P0102, P0103, P0107, P0108, P0112, P0113, P0117, P0118, P0154, P0155, P0174, P0175, P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0335, P0339, P0351, P0352, P0353, P0354, P0355, P0356, P0400, P0401, P0404, P0441, P0443, P04DF, P04F1, P0627, P0722, P1109, P1174, P2073, P2074, P2098, P2099, P2197, P2228, P2229, P2240, P2241, P2247, P2249, P2254, P2255, P2279, P2413, P2646, P2647, P2648, P2649, P2652, P2654, P2656, P2657, P2658, P2659, P2A03
Other		Without excessive load change

*1: USA and Canada models

*2: Mexico models

*3: 2014 - 2015 models

*4: 2016 model

*5: 2017 model on and after

[ ]: HDS Parameter

Malfunction Threshold (USA and Canada Models)

The total front A/F sensor (bank 2, sensor 1) output value is 0.00054* or less in 6.8 seconds.

*: Depending on engine speed and load.

Malfunction Threshold (Mexico Models)

The total front A/F sensor (bank 2, sensor 1) output value is 52 or less in 6.8 seconds.

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

Front A/F sensor (bank 2, sensor 1) deterioration

Confirmation Procedure

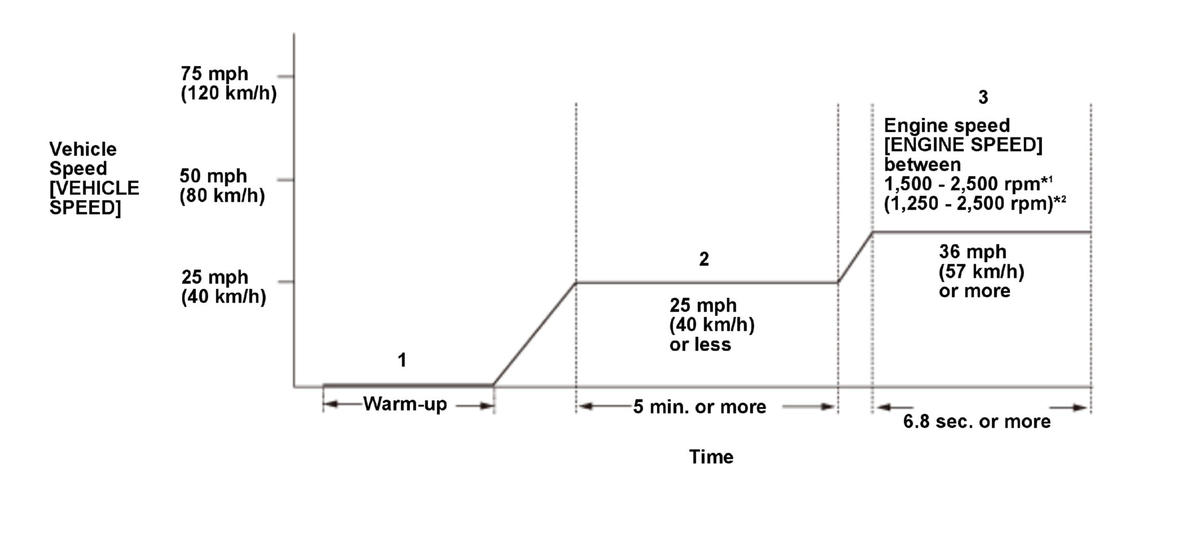

Operating Condition

Courtesy of HONDA, U.S.A., INC.

1.
Start the engine. Hold the engine speed [ENGINE SPEED] at 3000 RPM without load (in P or N) until the radiator fan comes on.
2.
Drive the vehicle at a steady speed of 25 mph (40 km/h) or less, for at least 5 minutes.
3.
Drive immediately at a steady speed of 36 mph (57 km/h) or more and engine speed [ENGINE SPEED] between 1500 - 2500 RPM*1 (1250 - 2500 RPM)*2 for at least 6.8 seconds.

Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

With the HDS

None.

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.

Conditions for clearing the DTC

The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
