DTC P0506
DTC P0506: Idle Control System RPM Lower Than Expected
General Description

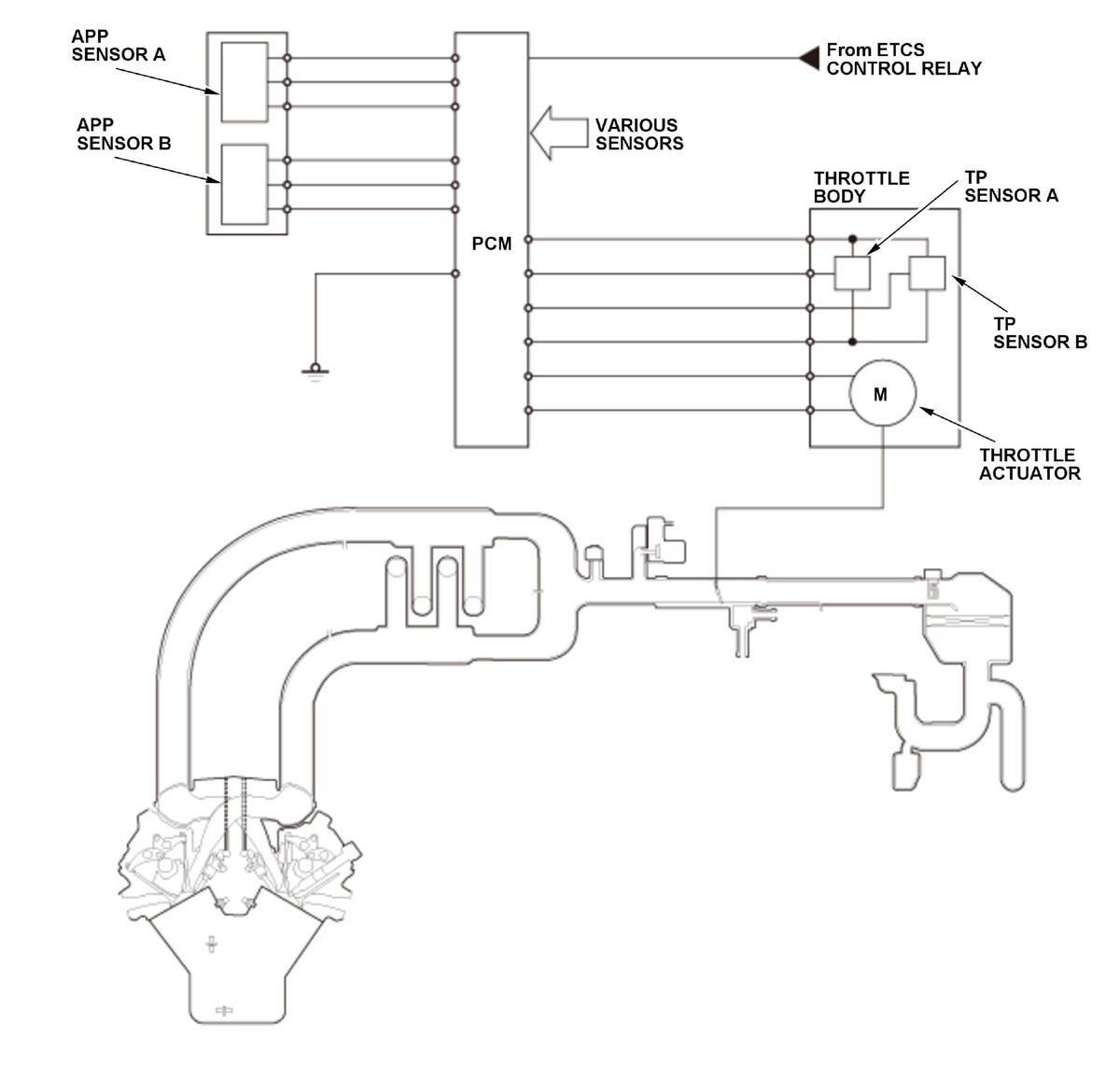

A target idle speed that meets the engine operating conditions (coolant temperature, A/C ON or OFF, etc.) is stored in the powertrain control module (PCM). The PCM monitors and controls the idle speed so that the actual idle speed is equal to the target idle speed. If the actual idle speed varies beyond a specified value from the target speed over a certain period of time, the PCM detects a malfunction in the idle speed control system and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type, OBD Status
| Execution | Once per driving cycle |
| Sequence | None |
| Duration | 20 seconds or more |
| DTC Type | Two drive cycles, MIL on |
| OBD Status | PASSED/FAILED/EXECUTING/OUT OF (TEST) CONDITION |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Engine coolant temperature [ECT SENSOR 1] | 156 deg.F (69 deg.C) | - |
| Intake air temperature [IAT SENSOR (2)] | 19 deg.F (-7 deg.C) | - |
| Battery voltage [BATTERY] | 10.5 V | - |
| Fuel trim | 0.73 | 1.47 |
| Throttle position | Fully closed | |
| Fuel feedback | Closed loop | |
| No active DTCs set (prevents monitor from running)*1 | P0087, P0088, P0107, P0108, P0112, P0113, P0117, P0118, P0122, P0123, P0171, P0172, P0174, P0175, P0192, P0193, P0222, P0223, P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0351, P0352, P0353, P0354, P0355, P0356, P0401, P0404, P0443, P0496, P0497, P0627, P064A, P0722, P1109, P1128, P1129, P145C, P2101, P2118, P2122, P2123, P2127, P2128, P2135, P2138, P2176, P2227, P2228, P2229, P2413, P2646, P2647, P2648, P2649, P2652, P2654, P2656, P2657, P2658, P2659 | |
| No active DTCs set (prevents monitor from running)*2 | P0069, P0087, P0088, P0107, P0108, P0112, P0113, P0117, P0118, P0122, P0123, P0171, P0172, P0174, P0175, P0192, P0193, P0222, P0223, P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0351, P0352, P0353, P0354, P0355, P0356, P0401, P0404, P0441, P0443, P0496, P0497, P060A, P0627, P064A, P0722, P1109, P1659, P2073, P2074, P2101, P2118, P2135, P2176, P2228, P2229, P2413, P2646, P2647, P2648, P2649, P2652, P2654, P2656, P2657, P2658, P2659 | |
| No active DTCs set (prevents monitor from running)*3 | P0069, P0087, P0088, P0107, P0108, P0112, P0113, P0117, P0118, P0122, P0123, P0171, P0172, P0174, P0175, P0192, P0193, P0222, P0223, P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0351, P0352, P0353, P0354, P0355, P0356, P0401, P0404, P0441, P0443, P04DF, P04F1, P060A, P0627, P064A, P0722, P1109, P1659, P2073, P2074, P2101, P2118, P2135, P2176, P2228, P2229, P2413, P2646, P2647, P2648, P2649, P2652, P2654, P2656, P2657, P2658, P2659 | |
| Other | The engine is under no load | |
*1: 2014 - 2015 models
*2: 2016 model
*3: 2017 model on and after
[ ]: HDS Parameter
Malfunction Threshold
The actual idle speed is 100 RPM less than the target idle speed for at least 20 seconds.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Throttle body air leak
- Intake manifold air leak
- Intake air system air leak
Confirmation Procedure
Operating Condition
- 1.
Start the engine. Hold the engine speed [ENGINE SPEED] at 3000 RPM without load (in P or N) until the radiator fan comes on.
- 2.
Let the engine idle for at least 20 seconds.
With the HDS
None.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
