DTC P064A
DTC P064A: High Pressure Fuel Pump System Malfunction
General Description

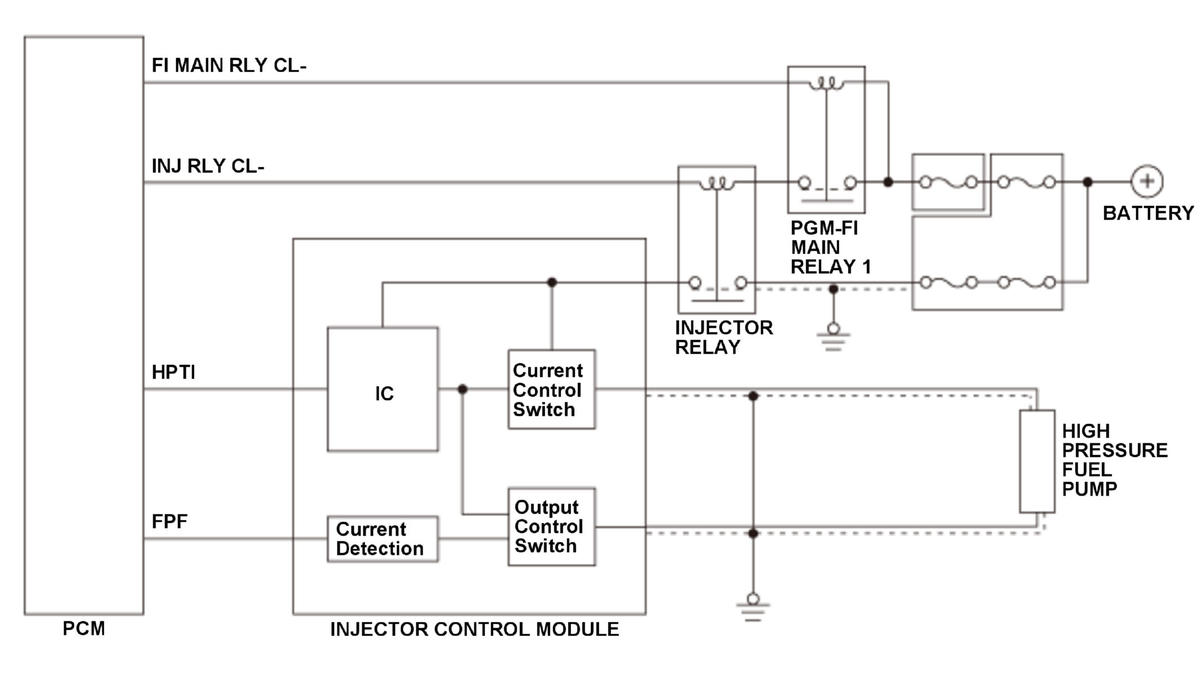

The fuel pressure is adjusted by high pressure fuel pump output ON/OFF which is controlled by the powertrain control module (PCM). The injector control module drives the high pressure fuel pump by receiving drive command output from the PCM. The injector control module monitors high pressure fuel pump currents, and transmits results to the PCM by return signal. If the return signal according to the PCM drive command is abnormal for a specified time, a malfunction is detected and a DTC is stored.
Monitor Execution, Sequence, Duration, DTC Type, OBD Status
| Execution | Continuous |
| Sequence | None |
| Duration | - |
| DTC Type | One drive cycle, MIL on |
| OBD Status | PASSED/FAILED/NOT COMPLETED (STILL TESTING) |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Battery voltage [BATTERY] | 10 V | - |
| State of the engine | Running | |
[ ]: HDS Parameter
Malfunction Threshold
The return signal according to the PCM drive command is abnormal at least 90 times (counts three times per engine cycle).
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- High pressure fuel pump failure
- High pressure fuel pump line open
- High pressure fuel pump line short to ground
- High pressure fuel pump line short to power
- Injector control module HPTI line open
- Injector control module HPTI line short to ground
- Injector control module HPTI line short to power
- Injector control module FPF line open
- Injector control module FPF line short to ground
- Injector control module FPF line short to power
- Injector control module power supply line open
- Injector relay failure
- PCM internal circuit failure
- Injector control module internal circuit failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
