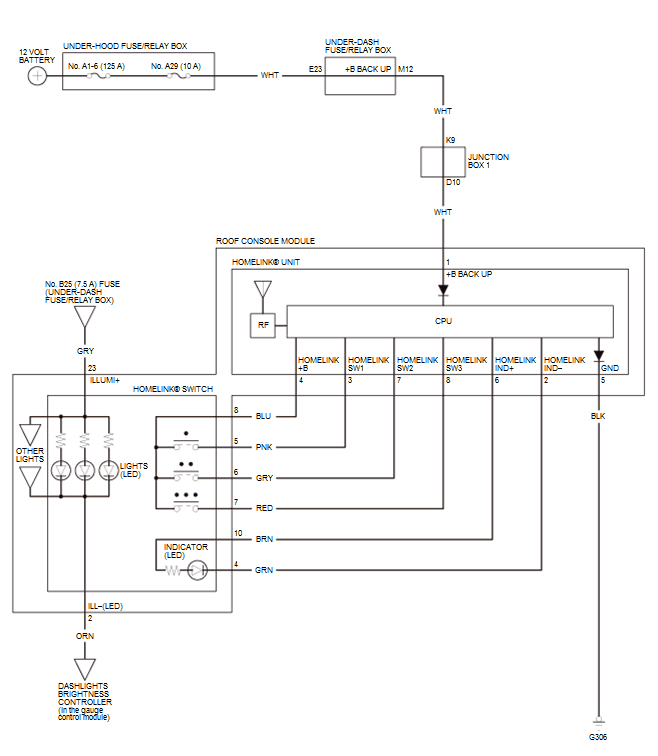

HomeLink Remote Control System Circuit Diagram (2015-17)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
