Gauge Control Module Connector For Inputs And Outputs (2018-19)

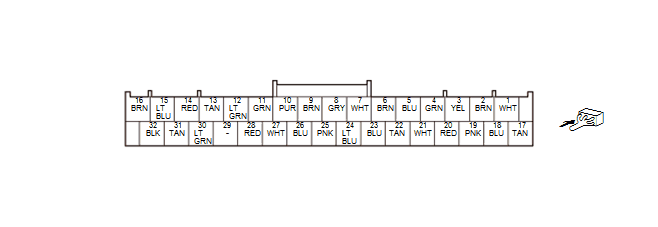

GAUGE CONTROL MODULE 32P CONNECTOR (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B BACK UP | Power source for gauge control module | About battery voltage at all times |
| 2 | IG1 METER *1 | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| IG1 METER (DC) *2 | IG1 power source | With vehicle in ON or START mode: about battery voltage | |
| 3 | BRAKE HOLD SW | Detects BRAKE HOLD SW signal | With electric parking brake switch OFF: about 3.7 V With electric parking brake switch ON: about 2.1 V |
| 4 | CRUISE SW | Detects CRUISE SW signal | With vehicle in ON mode: about 0.8 - 4.4 V (depending on cruise control combination switch) |
| 5 | DISTANCE SW | Detects DISTANCE SW signal | With vehicle in ON mode: about 0.8 - 4.4 V (depending on distance switch) |
| 6 | FUEL GAUGE+ | Detects FUEL GAUGE+ signal | With vehicle in ON mode: about 1.0 - 9.4 V (depending on fuel gauge sending unit) |
| 7 | CMBS OFF SW | Detects CMBS OFF SW signal | With vehicle in ON mode and CMBS OFF switch OFF: about battery voltage With vehicle in ON mode and CMBS OFF switch ON: less than 0.2 V |
| 8 | PARK LAMP | Detects PARK LAMP signal | With electric parking brake switch OFF: about battery voltage With electric parking brake switch ON: less than 0.2 V |
| 9 | VSA OFF SW | Detects VSA OFF SW signal | With vehicle in ON mode and VSA off switch OFF: about battery voltage With vehicle in ON mode and VSA off switch ON: less than 0.2 V |
| 10 *3 | WASHER LEVEL SNSR | Detects WASHER LEVEL SNSR signal | With vehicle in ON mode and washer fluid level switch OFF: about battery voltage With vehicle in ON mode and washer fluid level switch ON: less than 0.2 V |
| 11 | BRAKE LEVEL SW | Detects BRAKE LEVEL SW signal | With vehicle in ON mode and brake fluid level switch OFF: about battery voltage With vehicle in ON mode and brake fluid level switch ON: less than 0.2 V |
| 12 | PARKING BRAKE SW | Detects PARKING BRAKE SW signal | With vehicle in ON mode and electric parking brake switch OFF: about battery voltage With vehicle in ON mode and electric parking brake switch ON: less than 0.2 V |
| 13 | ILL- (LED) | Outputs ILL- (LED) signal | - - - |
| 14 | ILL BULB | Outputs ILL BULB signal | - - - |
| 15 | ILL HUW | Outputs ILL HUW signal | - - - |
| 16 | GND | Ground for gauge control module | Less than 0.2 V at all times |
| 17 | R TURN | Power input terminal for right turn signal light (in the gauge control module) | With right turn signal light ON: about battery voltage |
| 18 | L TURN | Power input terminal for left turn signal light (in the gauge control module) | With left turn signal light ON: about battery voltage |
| 19 | ILL VOL -SW | Detects ILL VOL -SW signal | With vehicle in ON mode and illumination control switch (-) OFF: about battery voltage With vehicle in ON mode and illumination control switch (-) ON: less than 0.2 V |
| 20 | ILL VOL +SW | Detects ILL VOL +SW signal | With vehicle in ON mode and illumination control switch (+) OFF: about battery voltage With vehicle in ON mode and illumination control switch (+) ON: less than 0.2 V |
| 21 *4 | ILL CANCEL | Outputs ILL CANCEL signal | With combination light switch in PARKING and illumination full brightness: less than 0.2 V If none of above conditions are met: about 3 V |
| 22 *2 | I/S OFF SW | Detects I/S OFF SW signal | With vehicle in ON mode and idle stop OFF switch OFF: about battery voltage With vehicle in ON mode and idle stop OFF switch ON: less than 0.2 V |
| 23 | IDS SW | Detects IDS SW signal | With vehicle in ON mode and IDS switch OFF: about battery voltage With vehicle in ON mode and IDS switch ON: less than 0.2 V |
| 24 | LIN (BATT SENSOR) | Communication line | - - - |
| 25 | B-CAN_H | Communication line | - - - |
| 26 | B-CAN_L | Communication line | - - - |
| 27 | F-CAN_H *4 F-CAN A_H *5 |
Communication line | - - - |
| 28 | F-CAN_L *4 F-CAN A_L *5 |
Communication line | - - - |
| 29 | Not used | - - - | - - - |
| 30 | CRUISE GND | Ground for cruise control switch | Less than 0.2 V at all times |
| 31 | FUEL GAUGE- | Ground for fuel gauge sending unit | Less than 0.2 V at all times |
| 32 | GND | Ground for gauge control module | Less than 0.2 V at all times |
*1: Without DC-DC converter
*2: With DC-DC converter
*3: Canada and Mexico models
*4: L4 engine
*5: V6 engine
