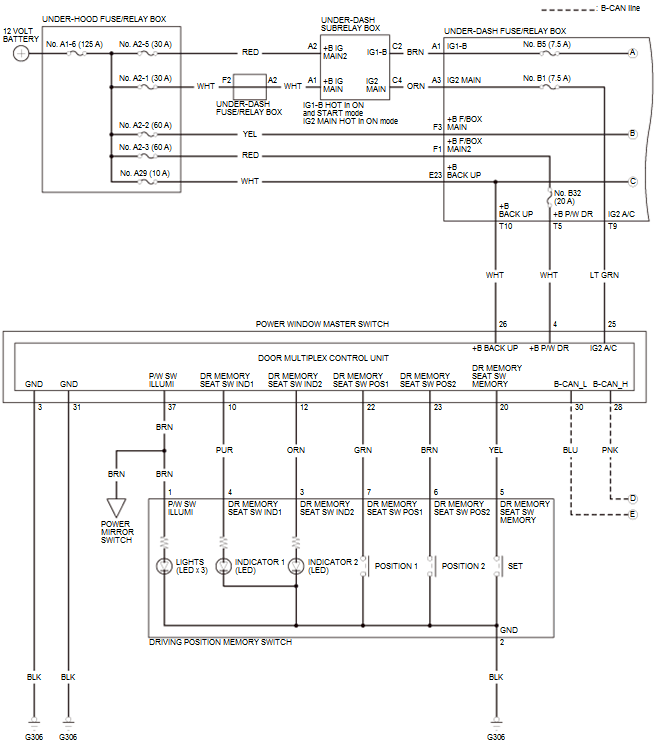

Driving Position Memory System (DPMS) Circuit Diagram (With SH-AWD) (2015-17)

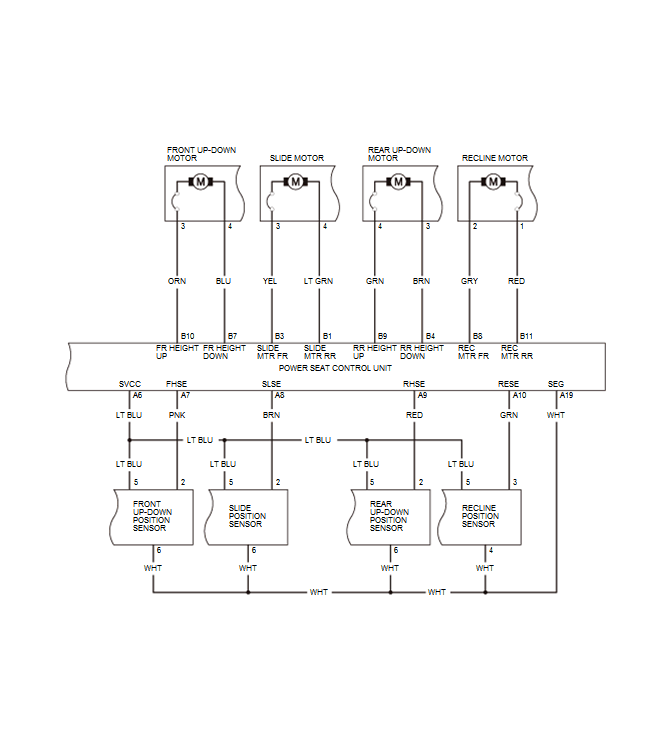

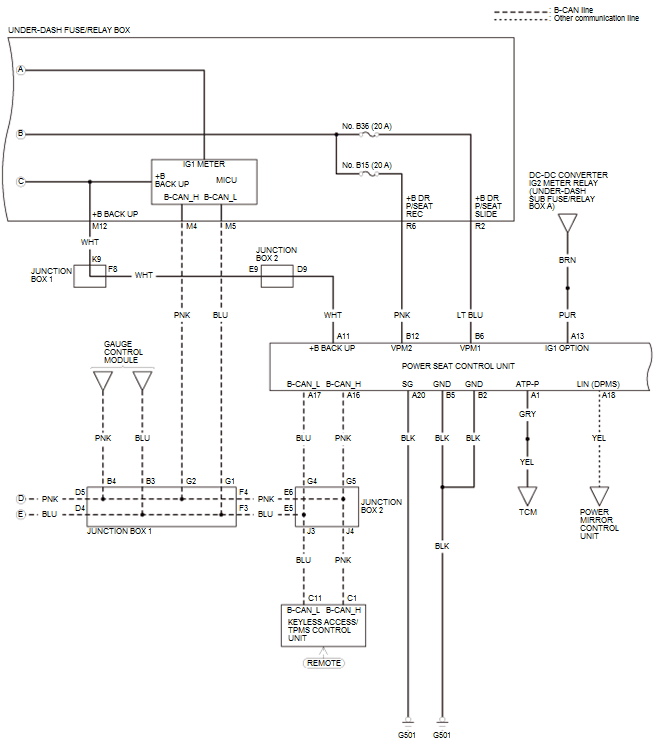

Driver's Power Seat

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

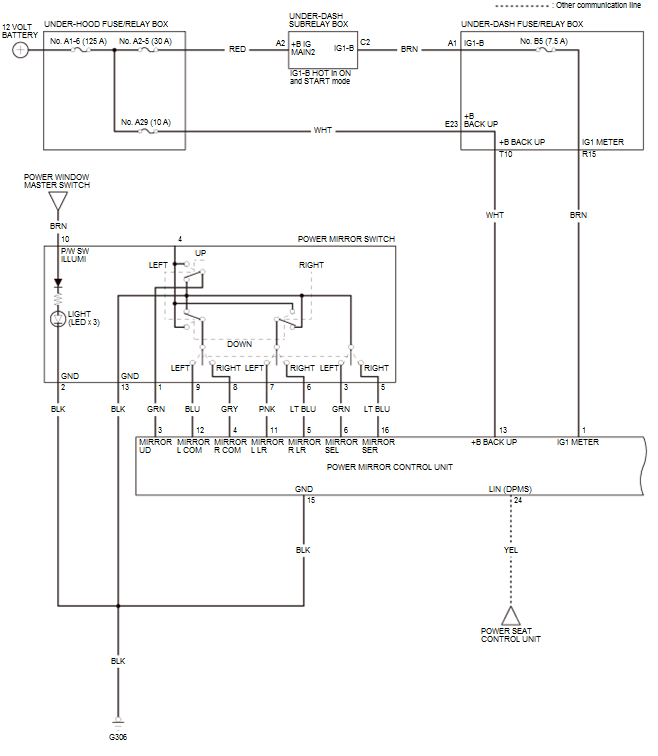

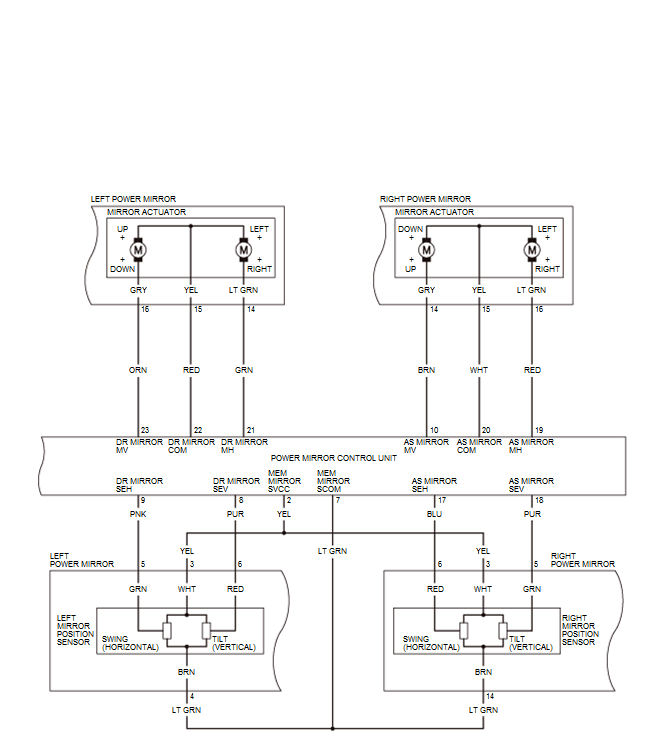

Power Mirror

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
