Multiplex Integrated Control System Component Location Index (2018-19)

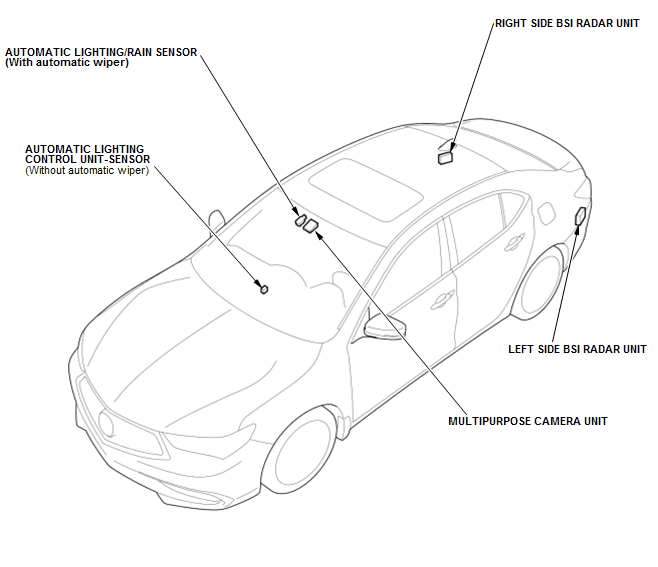

GHH201847Courtesy of HONDA, U.S.A., INC.

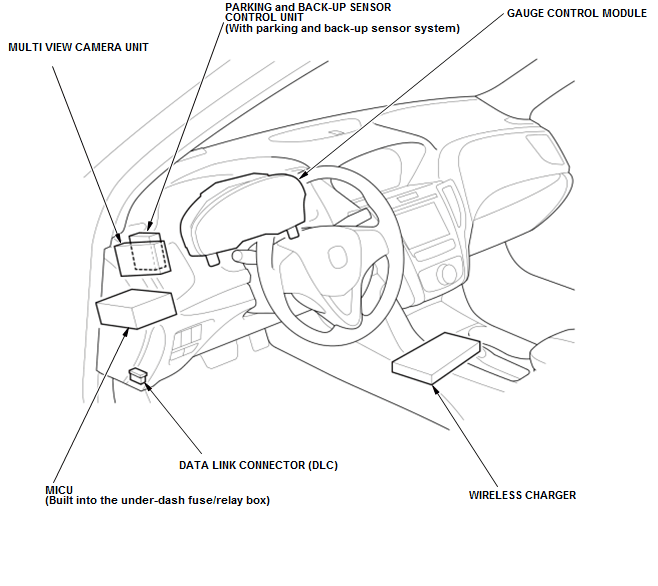

GHH201848Courtesy of HONDA, U.S.A., INC.

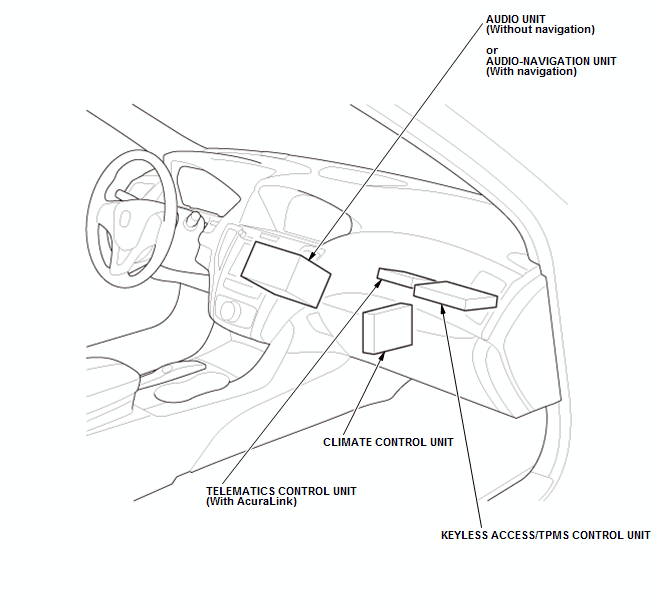

GHH201849Courtesy of HONDA, U.S.A., INC.

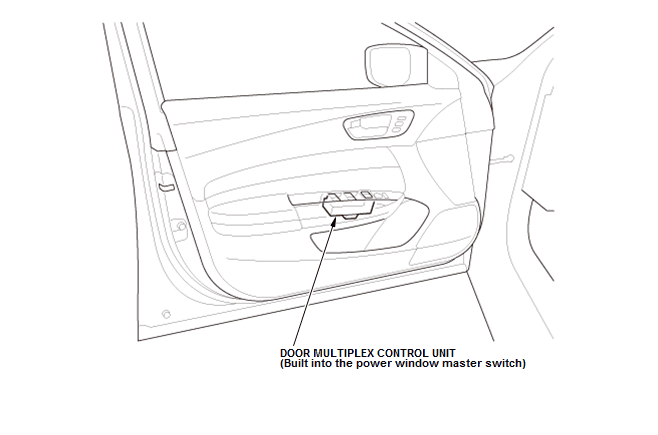

GHH201850Courtesy of HONDA, U.S.A., INC.

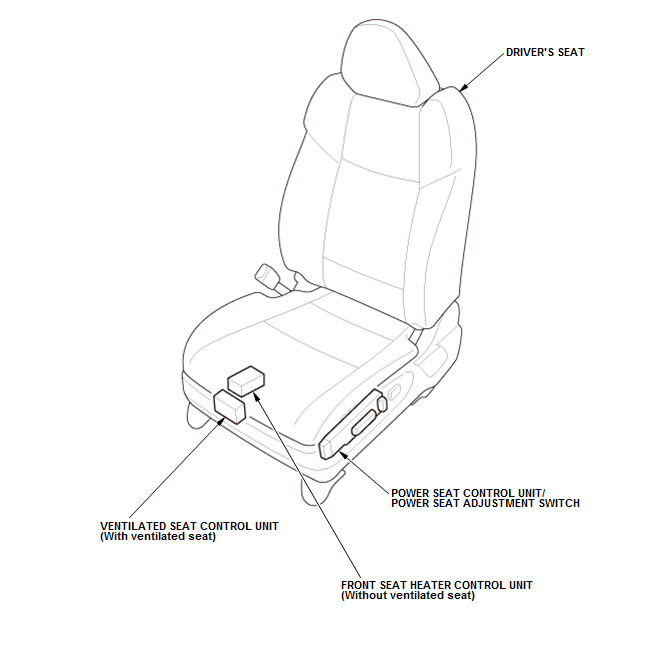

GHH201851Courtesy of HONDA, U.S.A., INC.
