Driving Position Memory System Description - Overview

The driving position memory system (DPMS) can automatically store the driver's seat and power mirrors positions to one of two memorized presets. Drivers can activate the system using the driving position memory switch or the remote.

Along with the seat, the power door lock settings will also be memorized based on which remote (Driver 1 or Driver 2) is used.

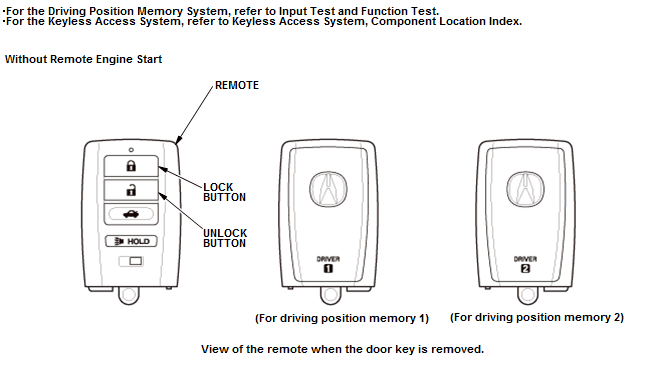

GHH162560Courtesy of HONDA, U.S.A., INC.

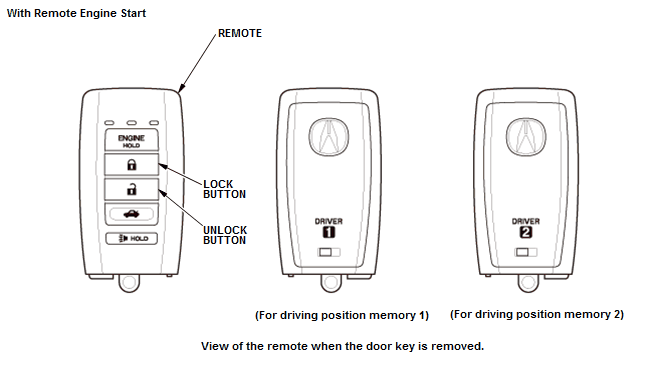

GHH162561Courtesy of HONDA, U.S.A., INC.

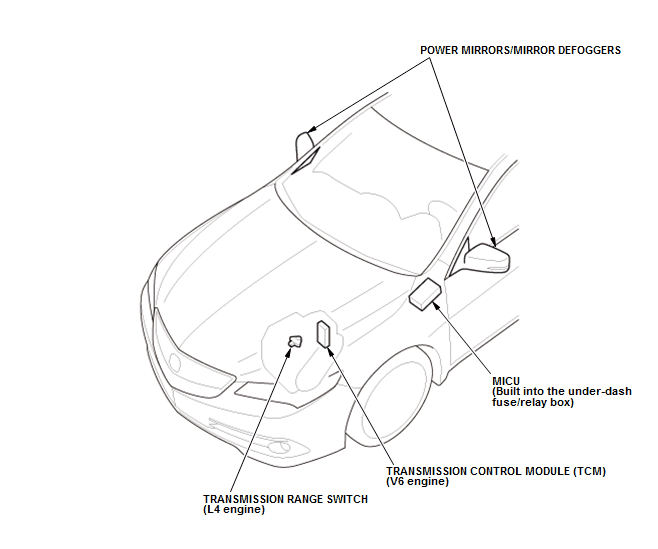

GHH162562Courtesy of HONDA, U.S.A., INC.

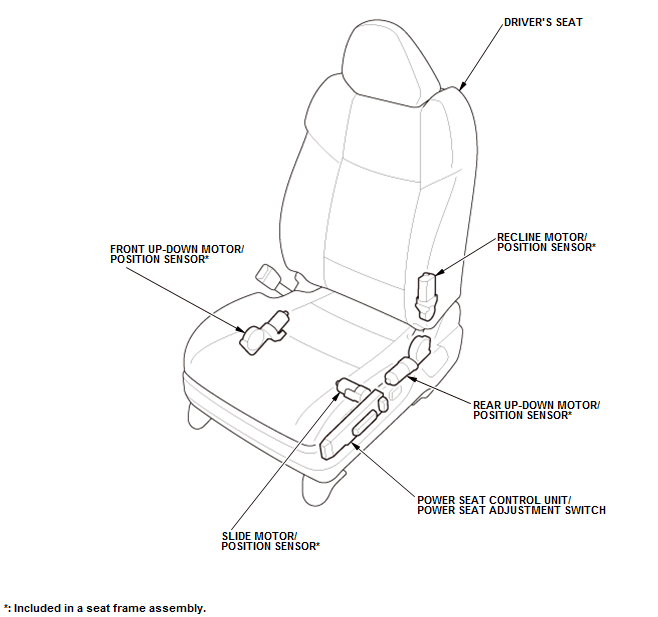

GHH162563Courtesy of HONDA, U.S.A., INC.

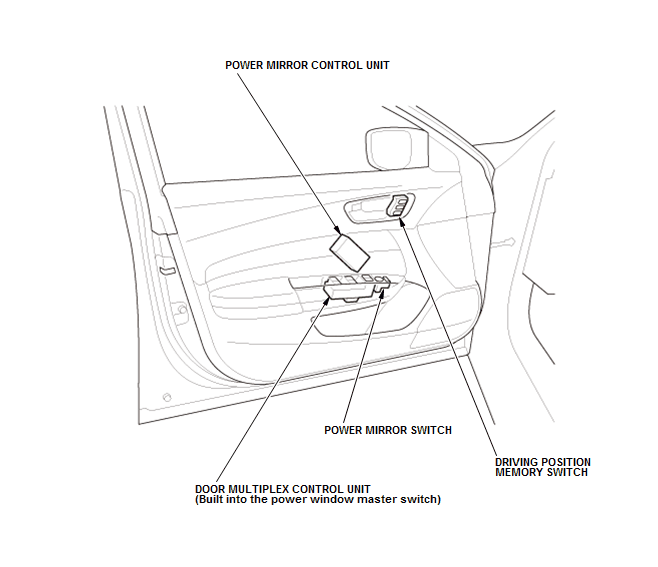

GHH162564Courtesy of HONDA, U.S.A., INC.
