Multi View Camera System (MVCS) Description - System Diagram

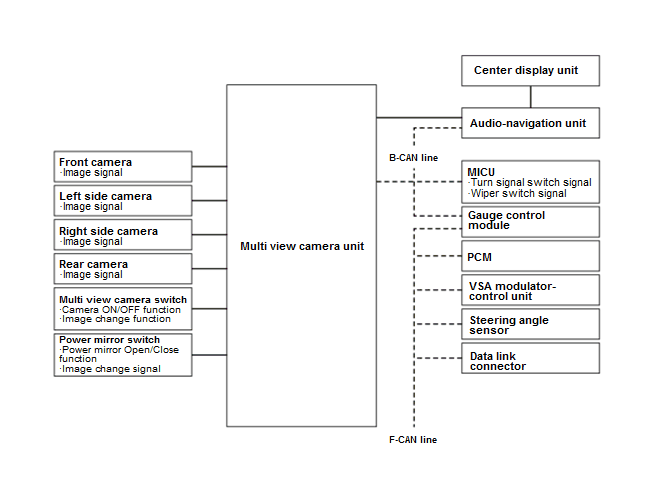

The system diagram of the Multi View Camera System (MVCS) is shown below.
For locations of each component on the vehicle, refer to Component Location Index:
- Multi view camera unit
- Audio-navigation unit, Center display unit - Refer to: Audio System Component Location Index
- MICU - Refer to: Multiplex Integrated Control System Component Location Index, or Multiplex Integrated Control System Component Location Index (2015-17)
- Gauge control module - Refer to: Gauges Component Location Index (With SH-AWD), or Gauges Component Location Index (Without SH-AWD)
- PCM - Refer to: Fuel and Emissions Systems Component Location Index (L4), or Fuel and Emissions Systems Component Location Index (V6) (Without SH-AWD), or Fuel and Emissions Systems Component Location Index (V6) (With SH-AWD)
- VSA modulator-control unit, Steering angle sensor
