ANC/Active Sound Control Unit Connector For Inputs And Outputs (Without Auto Idle Stop System) (2015-17)

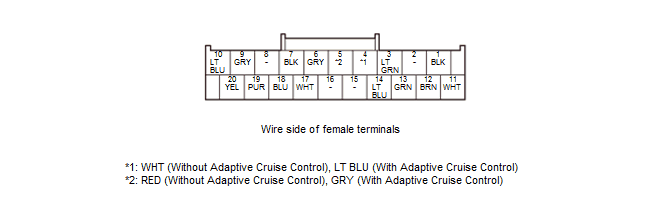

ANC/ACTIVE SOUND CONTROL UNIT 20P CONNECTOR
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | GND | Ground for ANC/active sound control unit (G303) |
| 2 | Not used | - - - |
| 3 | SWD+B | Inputs signal for ANC/active sound control unit switching on/off |
| 4 *1 | F-CAN_H *3 F-CAN A_H *4 |
Communication signal |
| 4 *2 | F-CAN B_H | Communication signal |
| 5 *1 | F-CAN_L *3 F-CAN A_L *4 |
Communication signal |
| 5 *2 | F-CAN B_L | Communication signal |
| 6 | R MIC SH | Shield for terminal No. 17 |
| 7 | F MIC SH | Shield for terminal No. 18 |
| 8 | Not used | - - - |
| 9 | ANC R- | Outputs noise cancelling signal to stereo amplifier |
| 10 | ANC F- | Outputs noise cancelling signal to stereo amplifier |
| 11 | +B BACK UP | Continuous power source |
| 12 | IG1 METER | IG1 power source |
| 13 | ANC CHK2 | Detects ANC test signal |
| 14 | K LINE | Detects scan tool signal (serial data) |
| 15 | Not used | - - - |
| 16 | Not used | - - - |
| 17 | R MIC+ | Inputs rear ANC/active sound control microphone signal positive |
| 18 | F MIC+ | Inputs front ANC/active sound control microphone signal positive |
| 19 | ANC R+ | Outputs noise cancelling signal to stereo amplifier |
| 20 | ANC F+ | Outputs noise cancelling signal to stereo amplifier |
| *1: Without Adaptive Cruise Control |
| *2: With Adaptive Cruise Control |
| *3: L4 engine |
| *4: V6 engine |
