Tuner Unit Connector For Inputs And Outputs (Without XM) (2018-19)
| Connector Index |
| Tuner Unit Connector A (12P) |
| Tuner Unit Connector B (5P) |

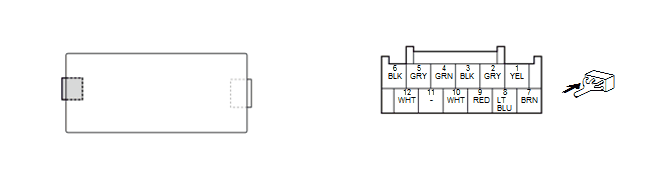

TUNER UNIT CONNECTOR A (12P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| A1 |
GA BUS- |
GA-Net bus communication signal |
| A2 |
SH GA BUS |
Shield for terminals No. 1 and No. 7 |
| A3 |
TUNE L- |
Outputs sound signal |
| A4 |
TUNE R- |
Outputs sound signal |
| A5 |
TUNE SH |
Shield for terminals No. 3, No. 4, No. 9, and No. 10 |
| A6 |
GA GND |
Ground for tuner unit |
| A7 |
GA BUS+ |
GA-Net bus communication signal |
| A8 |
GA SYS ON |
Inputs signal for tuner unit switching on/off |
| A9 |
TUNE L+ |
Outputs sound signal |
| A10 |
TUNE R+ |
Outputs sound signal |
| A11 |
Not used |
- - - |
| A12 |
GA+B |
Continuous power source from audio-navigation unit or audio unit |

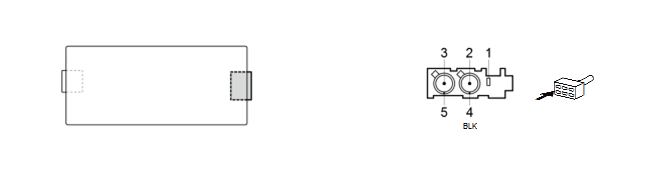

TUNER UNIT CONNECTOR B (5P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| B1 |
Not used |
- - - |
| B2 |
AM/FM |
Inputs AM/FM signal |
| B3 |
Not used |
- - - |
| B4 |
SH (AM/FM) |
Shield for terminal No. 2 |
| B5 |
Not used |
- - - |
