Auxiliary Jack Assembly Connector For Inputs And Outputs

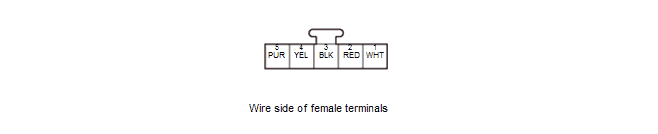

AUXILIARY JACK ASSEMBLY 5P CONNECTOR

Courtesy of HONDA, U.S.A., INC.

Cavity	Terminal Name	Description
1	AUX RCH	Outputs auxiliary sound signal
2	AUX LCH	Outputs auxiliary sound signal
3	AUX SIG GND	Ground for auxiliary sound signal
4	AUX DET GND	Ground for auxiliary jack assembly connection signal
5	AUX DET	Inputs connection signal for auxiliary jack assembly
