Center Display Unit Connector For Inputs And Outputs (Without Auto Idle Stop System)
| Connector Index |
| Center Display Unit Connector A (12P) |
| Center Display Unit Connector B (3P) |

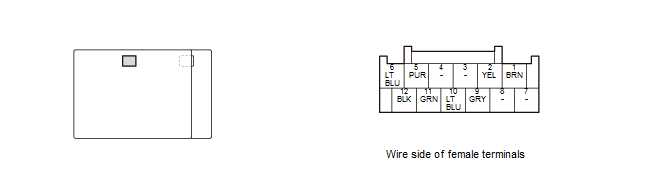

CENTER DISPLAY UNIT CONNECTOR A (12P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| A1 |
GA BUS+ |
GA-Net bus communication signal |
| A2 |
GA BUS- |
GA-Net bus communication signal |
| A3 |
Not used |
- - - |
| A4 |
Not used |
- - - |
| A5 |
ACC |
Power source for accessories |
| A6 |
+B AUDIO |
Continuous power source |
| A7 |
Not used |
- - - |
| A8 |
Not used |
- - - |
| A9 |
ILLUMI+ |
Detects parking light on signal |
| A10 |
SCTY 1 |
Security signal from MICU |
| A11 |
SCTY 2 |
Security signal to audio unit |
| A12 |
GND |
Ground for center display unit (G303) |
CENTER DISPLAY UNIT CONNECTOR B (3P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| B1 |
GVIF- |
Inputs video signal |
| B2 |
GVIF+ |
Inputs video signal |
| B3 |
GVIF SH |
Shield for terminals No. 1 and No. 2 |
