HandsFreeLink Control Unit Connector For Inputs And Outputs (2018-19)
| Connector Index |
| HandsFreeLink Control Unit Connector A (32P) |
| HandsFreeLink Control Unit Connector B (5P) |

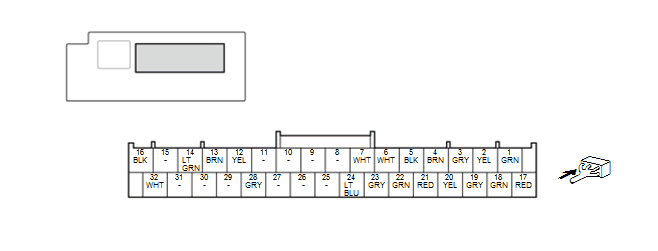

HANDSFREELINK CONTROL UNIT CONNECTOR A (32P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| A1 |
MIC GND |
Ground for HFL microphone |
| A2 |
MIC SIG L |
Inputs microphone signal positive |
| A3 |
MIC SH |
Shield for terminals No. 1 and No. 2 |
| A4 |
TELE SIG+ |
Outputs HFL prompts and telephone sound signal |
| A5 |
GA AUDIO L+ |
Outputs sound signal |
| A6 |
GA AUDIO R+ |
Outputs sound signal |
| A7 |
MIC PWR |
Power source for HFL microphone |
| A8 |
Not used |
- - - |
| A9 |
Not used |
- - - |
| A10 |
Not used |
- - - |
| A11 |
Not used |
- - - |
| A12 |
GA BUS- |
GA-Net bus communication signal |
| A13 |
GA BUS+ |
GA-Net bus communication signal |
| A14 |
HFT MUTE |
HFL mute signal |
| A15 |
Not used |
- - - |
| A16 |
GA GND |
Ground for HandsFreeLink control unit |
| A17 |
NAVI HFT MIC- |
Outputs Voice Recognition (VR) prompts to audio-navigation unit or audio unit |
| A18 |
NAVI HFT MIC+ |
Outputs Voice Recognition (VR) prompts to audio-navigation unit or audio unit |
| A19 |
TELE SIG SH |
Shield for terminals No. 4 and No. 20 |
| A20 |
TELE SIG- |
Outputs HFL prompts and telephone sound signal |
| A21 |
GA AUDIO L- |
Outputs sound signal |
| A22 |
GA AUDIO R- |
Outputs sound signal |
| A23 |
SH GA AUDIO |
Shield for terminals No. 5, No. 6, No. 21, and No. 22 |
| A24 |
GA SYS ON |
Inputs signal for HandsFreeLink control unit switching on/off |
| A25 |
Not used |
- - - |
| A26 |
Not used |
- - - |
| A27 |
Not used |
- - - |
| A28 |
SH GA BUS |
Shield for terminals No. 12 and No. 13 |
| A29 |
Not used |
- - - |
| A30 |
Not used |
- - - |
| A31 |
Not used |
- - - |
| A32 |
GA+B |
Continuous power source from audio unit or audio-navigation unit |

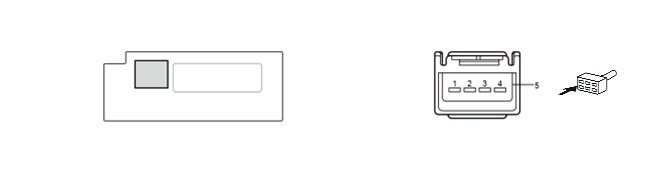

HANDSFREELINK CONTROL UNIT CONNECTOR B (5P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| B1 |
USB GND |
Ground for communication signal |
| B2 |
USB DATA+ |
Communication signal |
| B3 |
USB DATA- |
Communication signal |
| B4 |
USB VBUS |
Outputs power source for USB |
| B5 |
USB SH |
Shield for terminals No. 1, No. 2, No. 3, and No. 4 |
