Tuner Unit Connector For Inputs And Outputs (With XM) (2018-19)
| Connector Index |
| Tuner Unit Connector A (20P) |
| Tuner Unit Connector B (5P) |
| Tuner Unit Connector C (2P) |

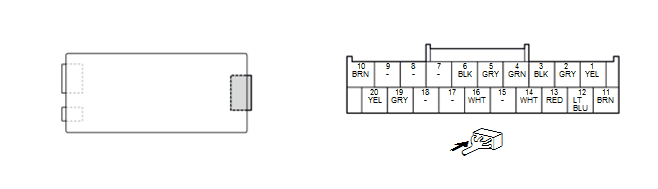

TUNER UNIT CONNECTOR A (20P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| A1 |
GA BUS- |
GA-Net bus communication signal |
| A2 |
SH GA BUS |
Shield for terminals No. 1 and No. 11 |
| A3 |
TUNE L- |
Outputs sound signal |
| A4 |
TUNE R- |
Outputs sound signal |
| A5 |
TUNE SH |
Shield for terminals No. 3, No. 4, No. 13, and No. 14 |
| A6 |
GA GND |
Ground for tuner unit |
| A7 |
Not used |
- - - |
| A8 |
Not used |
- - - |
| A9 |
Not used |
- - - |
| A10 |
TUNER RS485- |
Communication signal to audio-navigation unit or audio unit |
| A11 |
GA BUS+ |
GA-Net bus communication signal |
| A12 |
GA SYS ON |
Inputs signal for tuner unit switching on/off |
| A13 |
TUNE L+ |
Outputs sound signal |
| A14 |
TUNE R+ |
Outputs sound signal |
| A15 |
Not used |
- - - |
| A16 |
GA+B |
Continuous power source from audio-navigation unit or audio unit |
| A17 |
Not used |
- - - |
| A18 |
Not used |
- - - |
| A19 |
TUNER RS485 SH |
Shield for terminals No. 10 and No. 20 |
| A20 |
TUNER RS485+ |
Communication signal to audio-navigation unit or audio unit |

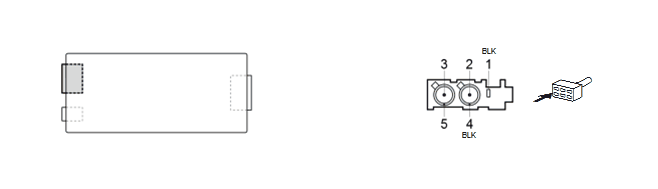

TUNER UNIT CONNECTOR B (5P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| B1 |
SWD +B |
Power source for AM/FM antenna amplifier |
| B2 |
AM/FM |
Inputs AM/FM signal |
| B3 |
Not used |
- - - |
| B4 |
SH (AM/FM) |
Shield for terminal No. 2 |
| B5 |
Not used |
- - - |

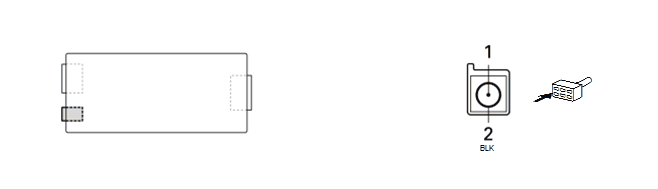

TUNER UNIT CONNECTOR C (2P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| C1 |
SAT/TERM |
Inputs XM signal |
| C2 |
SH (SAT/TERM) |
Shield for terminal No. 1 |
