Start-Up Procedure and Diagnostic Menu
NOTE:
- Check the vehicle 12 volt battery condition first - Refer to: 12 Volt Battery Test (Without SH-AWD) or 12 Volt Battery Test (With SH-AWD) .
- The screens detail indicated may change depending on equipment or specification.
1. Start the engine

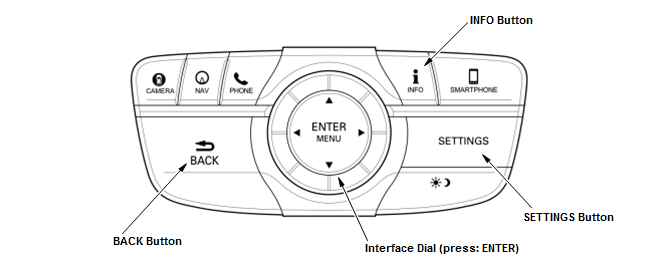

2. At any screen, use the center switch panel/interface dial buttons: Press and hold the INFO button, the SETTINGS button, and the BACK button for about 3 seconds or more. The center display unit and the ODMD (TM) (touch screen) goes directly to the diagnosis items menu shown:

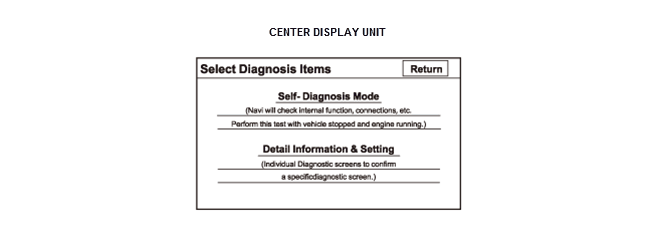

- Center display unit screen:
-
- Self-Diagnosis Mode (runs the automatic diagnosis of the navigation system)
-
- Detail Information & Setting (Can help you to manually diagnose the navigation system)

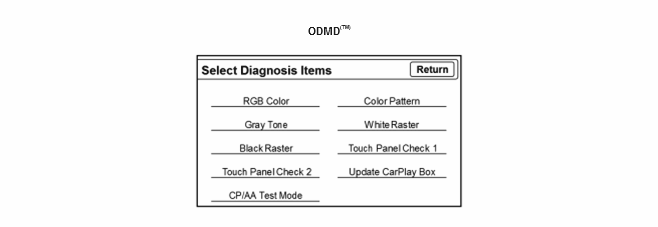

- ODMD (TM) (touch screen) screen:
-
- Monitor Check (Can help you to manually diagnose the ODMD (TM) (touch screen))
