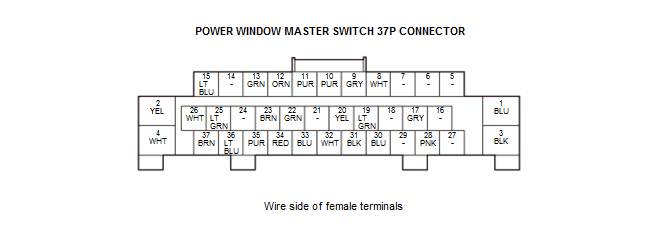

Power Window Master Switch Connector For Inputs And Outputs

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	P/W DR MTR DOWN	Drives driver's power window motor	With driver's power window motor DOWN operation: about battery voltage If none of above conditions are met: less than 0.2 V
2	P/W DR MTR UP	Drives driver's power window motor	With driver's power window motor UP operation: about battery voltage If none of above conditions are met: less than 0.2 V
3	GND	Ground for power window master switch	Less than 0.2 V at all times
4	+B P/W DR	Power source for door multiplex control unit	About battery voltage at all times
5	Not used	- - -	- - -
6	Not used	- - -	- - -
7	Not used	- - -	- - -
8 *	DR RETRA CLOSE	Drives retract actuator	With vehicle in ON mode, and power mirror retract switch in RETRACT position: about battery voltage
9 *	DR RETRA OPEN	Drives retract actuator	With vehicle in ON mode, and power mirror retract switch in EXTEND position: about battery voltage
10	DR MEMORY SEAT SW IND1	Outputs DR MEMORY SEAT SW IND1 signal	Indicator 1 ON: pulse (depending on indicator brightness) Indicator 1 OFF: less than 0.2 V
11 *	RETRA MIRROR SW	Outputs RETRA MIRROR SW signal	With vehicle in ON mode and power mirror retract switch in EXTEND position: less than 0.2 V With vehicle in ON mode, and power mirror retract switch in RETRACT position: about battery voltage
12	DR MEMORY SEAT SW IND2	Outputs DR MEMORY SEAT SW IND2 signal	Indicator 2 ON: pulse (depending on indicator brightness) Indicator 2 OFF: less than 0.2 V
13	P/W DR MTR VCC	Outputs P/W DR MTR VCC signal	With door multiplex control unit is wakeup mode: about battery voltage With door multiplex control unit is sleep mode: less than 0.2 V
14	Not used	- - -	- - -
15	H/MIRROR DR	Outputs H/MIRROR DR signal	With mirror defogger ON mode: about battery voltage
16	Not used	- - -	- - -
17	P/W DR MTR PLSA	P/W DR MTR PLSA signal	- - -
18	Not used	- - -	- - -
19	P/W DR MTR PLSB	P/W DR MTR PLSB signal	- - -
20	DR MEMORY SEAT SW MEMORY	Detects DR MEMORY SEAT SW MEMORY signal	With driving position memory set switch ON: less than 0.2 V With driving position memory set switch OFF: about 5 V
21	Not used	- - -	- - -
22	DR MEMORY SEAT SW POS1	Detects DR MEMORY SEAT SW POS1 signal	With driving position memory switch 1 ON: less than 0.2 V With driving position memory switch 1 OFF: about 5 V
23	DR MEMORY SEAT SW POS2	Detects DR MEMORY SEAT SW POS2 signal	With driving position memory switch 2 ON: less than 0.2 V With driving position memory switch 2 OFF: about 5 V
24	Not used	- - -	- - -
25	IG2 A/C	IG2 power source	With vehicle in ON mode: about battery voltage
26	+B BACK UP	Power source for power window master switch	About battery voltage at all times
27	Not used	- - -	- - -
28	B-CAN_H	Communication line	- - -
29	Not used	- - -	- - -
30	B-CAN_L	Communication line	- - -
31	GND	Ground for power window master switch	Less than 0.2 V at all times
32	DR SILCON UNLOCK	Detects DR SILCON UNLOCK signal	With driver's door lock knob switch LOCK: about battery voltage With driver's door lock knob switch UNLOCK: less than 0.2 V
33	DR SILCON LOCK	Detects DR SILCON LOCK signal	With driver's door lock knob switch UNLOCK: about battery voltage With driver's door lock knob switch LOCK: less than 0.2 V
34	DR KEY CYL UNLOCK	Detects DR KEY CYL UNLOCK signal	With driver's door key cylinder switch LOCK: about battery voltage With driver's door key cylinder switch UNLOCK: less than 0.2 V
35	DR KEY CYL LOCK	Detects DR KEY CYL LOCK signal	With driver's door key cylinder switch UNLOCK: about battery voltage With driver's door key cylinder switch LOCK: less than 0.2 V
36	LIN (P/W)	Communication line	- - -
37	P/W SW ILLUMI	Detects P/W SW ILLUMI signal	With combination light switch PARKING: about battery voltage With combination light switch OFF: less than 0.2 V

*: With retract power mirror
